What is EV Battery Cooling and How Does it Work?

Electric vehicle (EV) batteries generate heat during operation and charging, which can reduce performance, shorten lifespan, and cause safety risks like thermal runaway. EV battery cooling systems maintain optimal temperatures, typically 20°C to 25°C, ensuring efficiency, longevity, and safety for reliable vehicle operation.

As an EV enthusiast, I’ve seen how the rise of electric vehicles is transforming transportation. Last summer, I noticed my friend’s EV struggled with range on a hot day, highlighting the critical role of battery cooling. Let’s explore how these systems work and why they’re essential for EVs.

Table of Contents

1. Why is EV Battery Cooling Necessary?

2. What are the Main Types of EV Battery Cooling Systems?

3. How Does Liquid Cooling Work in EVs?

4. What are the Challenges in EV Battery Cooling?

5. How Does EV Battery Cooling Affect Performance and Safety?

Why is EV Battery Cooling Necessary?

Understanding why EV batteries need cooling is key to appreciating their performance and safety. Let’s dive into the reasons behind this critical technology.

EV battery cooling is necessary because batteries generate heat during charging and discharging, which can lead to overheating. Overheating reduces efficiency, accelerates degradation, and risks thermal runaway. Cooling systems maintain batteries within the optimal 20°C to 25°C range, enhancing performance and safety.

The Science Behind Battery Heat Generation

Lithium-ion batteries, common in EVs, generate heat through chemical reactions and electrical resistance during operation. For example, during fast charging, a Tesla Model 3’s battery can produce significant heat due to high current flow. This heat, if unmanaged, increases internal resistance, reducing efficiency. The heat generation can be modeled as joule heating and entropy changes, with studies showing that temperatures above 35°C accelerate electrode degradation. Effective cooling, like Winshare Thermal heat sinks, dissipates this heat, maintaining battery health.

Impact of Temperature on Battery Performance

High temperatures reduce battery capacity and charging speed. For instance, a Nissan Leaf’s range drops in extreme heat due to its air-cooled system struggling to maintain the 20°C to 25°C optimal range. Conversely, cold temperatures below 0°C can slow chemical reactions, reducing power output. Cooling systems, paired with heating elements, ensure consistent performance across climates, extending battery life by up to 20% in optimal conditions.

Safety Concerns with Overheated Batteries

Overheating can lead to thermal runaway, a chain reaction causing fires or explosions. A notable case involved early EV battery failures due to inadequate cooling, emphasizing the need for robust systems. Cooling solutions, like liquid-cooled plates, prevent temperatures from reaching the critical 70°C to 100°C range, ensuring safety and reliability.

What are the Main Types of EV Battery Cooling Systems?

EV battery cooling systems vary in design and efficiency. Let’s explore the primary methods used in modern EVs.

The main types of EV battery cooling systems are air cooling and liquid cooling. Air cooling uses air to dissipate heat, while liquid cooling uses coolant for efficient heat transfer. Liquid cooling is more effective and widely used in high-performance EVs.

Air Cooling: Passive and Active

Air cooling uses air to remove heat from battery packs. Passive air cooling relies on ambient air, as seen in early Nissan Leaf models, but is limited to a few hundred watts of heat dissipation. Active air cooling, using fans and HVAC systems, improves efficiency but is still less effective than liquid cooling. It’s lightweight and cost-effective but struggles with high thermal loads, making it suitable for low-performance EVs.

Liquid Cooling: Indirect and Direct

Liquid cooling uses coolant, such as ethylene glycol, to absorb and transfer heat. Indirect liquid cooling, common in Tesla vehicles, circulates coolant through tubes or plates. Direct cooling, or immersion cooling, bathes cells in dielectric fluid, offering superior heat transfer but increasing complexity. Liquid cooling is ideal for high-performance EVs due to its efficiency and uniform temperature distribution.

Comparison of Air and Liquid Cooling

The table below compares air and liquid cooling systems:

Liquid cooling’s superior efficiency makes it the preferred choice for modern EVs, while air cooling suits budget models.

How Does Liquid Cooling Work in EVs?

Liquid cooling is the gold standard for EV battery cooling. Let’s examine how it operates to keep batteries at optimal temperatures.

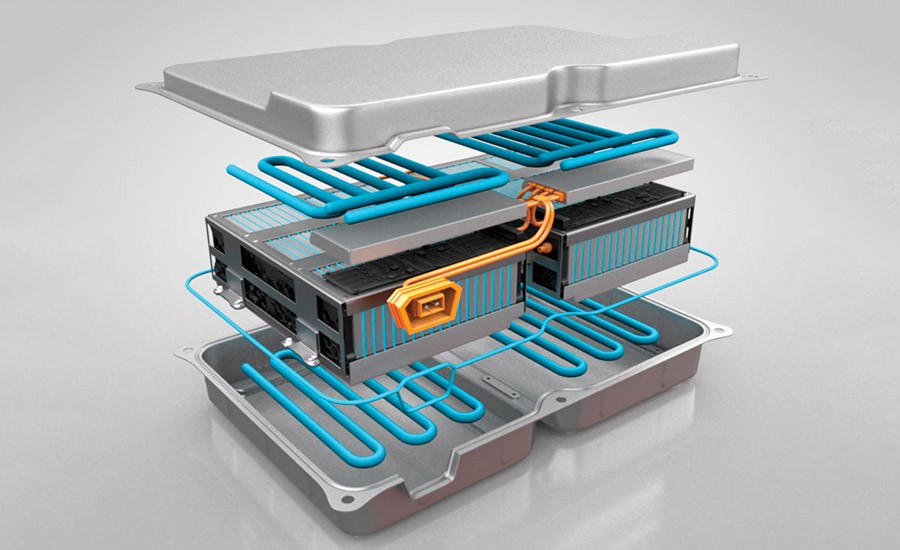

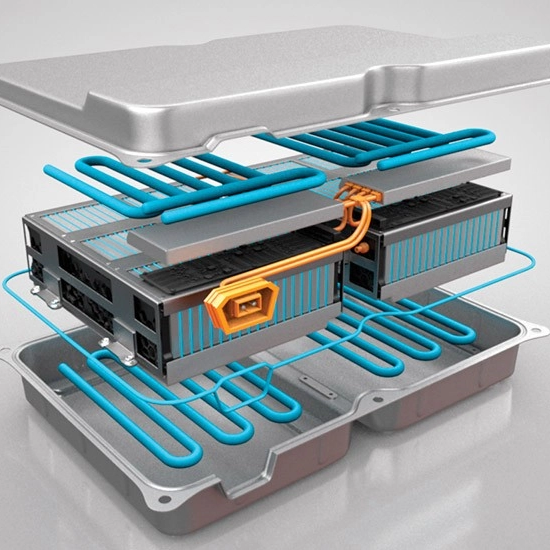

Liquid cooling in EVs circulates coolant through channels or plates in contact with battery cells. The coolant absorbs heat and transfers it to a heat exchanger for dissipation, ensuring precise temperature control and efficient cooling.

Components of a Liquid Cooling System

A liquid cooling system includes coolant (e.g., water-glycol mix), pumps, heat exchangers, and control valves. For example, Tesla’s Superbottle integrates two pumps and a heat exchanger for efficient cooling. Cooling plates, like those Winshare Thermal likely produces, are critical for transferring heat from battery cells to the coolant, ensuring uniform temperature distribution.

Operation and Heat Transfer Process

Coolant circulates through channels or plates, absorbing heat from battery cells. The heated coolant flows to a heat exchanger, where it dissipates heat to the environment, often aided by a radiator or chiller. This process maintains batteries within the 20°C to 25°C range, critical for fast charging and high performance.

Examples from Leading EV Manufacturers

Tesla’s Model 3 uses a Superbottle to manage coolant flow, cooling both the battery and power electronics. Similarly, the Chevrolet Volt employs liquid cooling for stable battery performance. These systems highlight the importance of advanced cooling for modern EVs.

What are the Challenges in EV Battery Cooling?

Cooling systems face several challenges that impact their design and performance. Let’s explore these hurdles.

Challenges in EV battery cooling include leaks and corrosion in liquid cooling systems, limited capacity in air cooling, and the need for energy-efficient solutions that balance performance and battery drain.

Challenges with Liquid Cooling

Liquid cooling systems risk coolant leaks, corrosion, and clogging. For instance, glycol-based coolants can corrode components if not properly maintained, requiring regular servicing. The complexity of pumps and heat exchangers increases costs and maintenance needs, posing challenges for widespread adoption.

Challenges with Air Cooling

Air cooling struggles with limited cooling capacity, especially in extreme climates. Early Nissan Leaf models faced range reductions in hot weather due to inefficient air cooling. Inconsistent airflow and dependence on ambient conditions make it less reliable for high-performance EVs.

General Challenges in Battery Cooling

Balancing energy consumption is a key challenge, as cooling systems draw power from the battery, reducing range. Weight and space constraints also complicate design, as seen in compact EVs. Cost is another factor, with liquid cooling systems being more expensive. Emerging solutions, like phase change materials, aim to address these issues but are still in development.

How Does EV Battery Cooling Affect Performance and Safety?

Effective cooling directly impacts an EV’s performance and safety. Let’s see how it makes a difference.

Proper battery cooling maintains optimal temperatures, enhancing efficiency, extending lifespan, and preventing thermal runaway, ensuring safe and reliable EV operation.

Effects on Battery Performance

Cooling systems keep batteries within the 20°C to 25°C range, optimizing energy output and charging speed. For example, a well-cooled Tesla battery supports fast charging without capacity loss. Overheating reduces range by up to 15%, while proper cooling extends battery life.

Ensuring Safety Through Cooling

Cooling prevents thermal runaway, where temperatures exceed 70°C, risking fires. Robust systems, like those using Winshare Thermal cooling plates, maintain safe operating conditions, as seen in modern EVs.

Real-World Examples and Case Studies

Incidents of battery fires in early EVs underscored the need for effective cooling. Modern systems, like those in the Chevrolet Volt, have reduced such risks through liquid cooling, ensuring safety and reliability.

Conclusion

EV battery cooling is vital for ensuring electric vehicles perform efficiently, last longer, and operate safely. By managing heat through air or liquid cooling systems, manufacturers enhance battery performance and prevent dangerous conditions like thermal runaway. As EVs become more prevalent, advancements in cooling technology, such as immersive cooling and phase change materials, promise even greater efficiency.

At Winshare Thermal, we specialize in providing high-quality thermal management solutions, including heat sinks and cooling plates, essential for EV battery cooling systems. Our expertise supports the future of sustainable transportation by ensuring batteries operate at peak efficiency and safety.
