Winshare Thermal
Is Devoted to Become Thethermal Management Leader in the New Energy Field!
组 7
800+ Employees
60,000 m² Manufacturing Area
200+ Patents Granted
17 Years Water-Cooling Expertise
100+ R&D Engineers

Our Products


Three product families, from IGBT modules to complete liquid-cooling loops. As a liquid cold plate and heat sink manufacturer, we propose the structure and process route around your thermal load, envelope and flow rate.

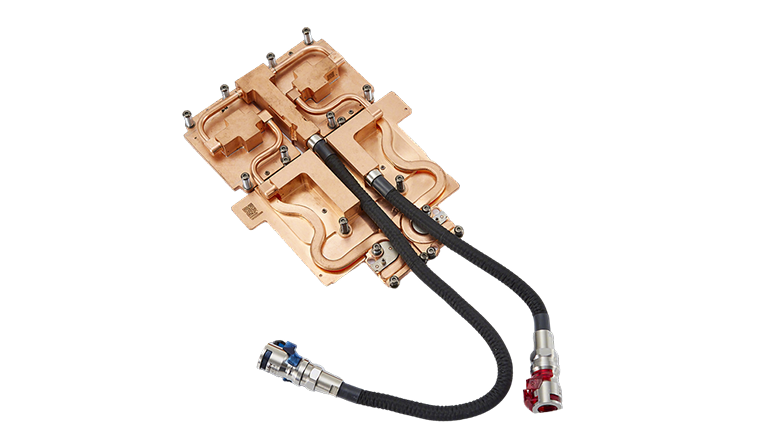

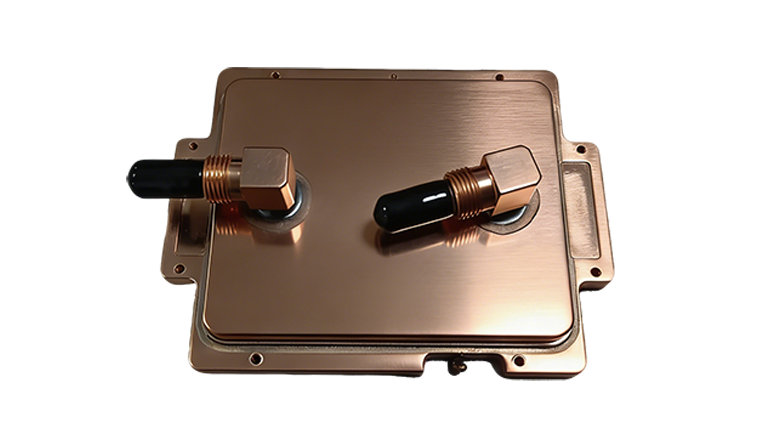

Liquid Cold Plates

Liquid Cold Plates

Embedded tube, friction stir welded (FSW), vacuum brazed and die-cast liquid cold plates for IGBT modules, EV battery packs, ADAS domains, AI server CPU / GPU, and laser or IC test equipment.

Micro-Channel Cold Plate Battery Cold Plate GPU Cold Plate
Liquid Cold plate >

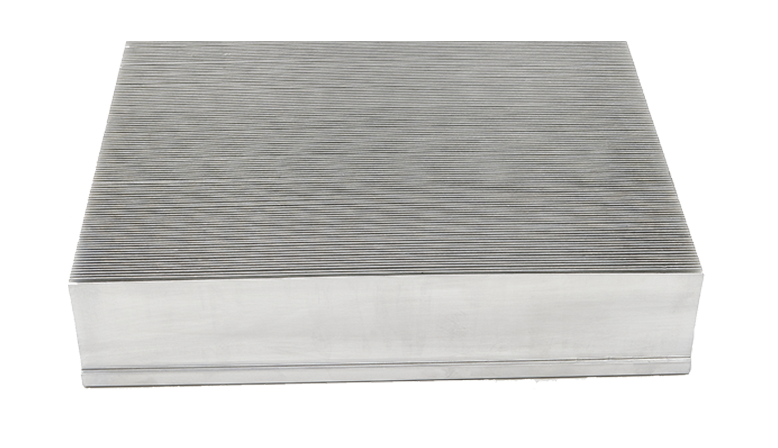

Heat Sinks

Heat Sinks

Skived fin, extruded, cold forged, stacked fin, HP bonded and composite heat sinks for power supplies, inverters and telecom equipment. Skiving lines run fin pitch down to 0.08 mm with fin length up to 600 mm.

Skived Fin Heat Sink Extruded Heat Sink Stacked Fin
Heat Sink >
Phase Thermal Parts

Phase Thermal Parts

Heat pipe assemblies, vapor chambers (VC) and HP bonded heat sinks on 75 heat-pipe production lines — in mass production for game consoles, laptops, telecom and compact high-power devices.

Heat Pipe Assembly Vapor Chamber HP Bonded HS
Phase Thermal Parts >

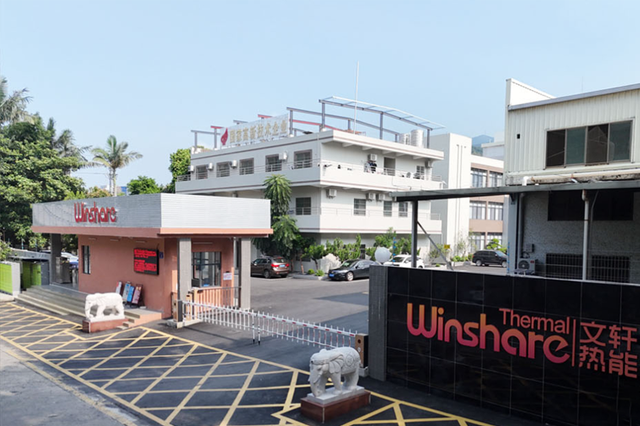

Winshare Thermal factory

Add: Sanqin Road, Qingxi Town, Dongguan, Guangdong, China

About Winshare Thermal

Founded in Dongguan in 2009, Winshare Thermal has grown from a 3C thermal-kit workshop into a 800-employee liquid-cooling manufacturer serving automotive, green-energy, semiconductor and AI infrastructure customers worldwide. Meeting our customers' needs is our highest development principle — supported by 200+ engineers in our dedicated new-technology research centre.

  • Complete in-house chain — CNC, skiving, die casting, stamping, heat pipe, FSW, vacuum and copper brazing, laser welding and 100K-class cleanroom assembly under one roof.
  • Own testing laboratory — helium and air leak detection, flow resistance, pulse flow, thermal resistance, ultrasonic scanning, X-ray and cleanliness testing.
  • Automotive-grade discipline — IATF 16949 certified, APQP development flow, DQE / SQE / QA organisation and PPAP documentation.
Visit Our Factory

Why Choose Winshare


From the first drawing to the last shipment, every process stays in-house — so custom cold plates, heat sinks and cooling kits keep their tolerance, lead time and cost under one roof.

15+ Years of Water-Cooling Engineering

Battery cold plates in production since 2014, with 15 years of accumulated water-cooling technology behind the process window.

80+ Design & Project Engineers

A dedicated new-technology research centre: 8+ thermal design, 10+ mechanical design, 20+ process and 38+ project engineers.

Free Thermal Design & DFM Review

Send a drawing or a concept and our engineers return a cooling-structure proposal with manufacturing feedback — typically within 24–48 hours.

Rapid Prototyping & Sample Team

A standalone sample team and dedicated prototype line keep first articles moving — samples in 7–15 days after drawing confirmation.

In-House Testing Laboratory

Helium leak detector, thermal-resistance tester, flow-resistance bench, ultrasonic scanner, X-ray, CMM and salt-spray chambers — all on site.

Certified, Auditable Quality

IATF 16949 and ISO 9001 systems, RoHS compliance, 100% leak testing on liquid-cooling kits and full traceability per batch.

Applications


AI servers, EVs, energy storage, semiconductor equipment and many more — the fields listed here are only part of what we cool. Wherever high heat flux appears, our engineering team can build the cooling solution for it.

Artificial Intelligence

Artificial Intelligence

Our largest business — CPU / GPU cold plates, manifolds and complete liquid-cooling kits for AI servers and HPC, engineered for 800 W per die and mass-produced in 100K-class cleanrooms.

Automotive

Automotive

Battery cold plates and ADAS cooling modules — 250,000 vehicles on the road.

Green Energy

Green Energy

Cold plates and cooling pallets for battery racks and PCS cabinets, plus inverter cooling — over 65% share in Sungrow solar stations.

Communications

Communications

Cold plates and heat sinks for telecom base stations, optical modules and communication power supplies.

Laser & Medical Devices

Laser & Medical Devices

Precision liquid cooling for laser equipment, imaging and diagnostic devices.

Manufacturing Process


Cold-plate performance is decided long before assembly. This is the process chain that runs inside our own workshops.

1

CNC Machining

300 CNC machining centres cut the plate, the channel groove and the sealing face to drawing tolerance.

2

Skiving & Micro-Fin

18 skiving machines form fin pitch down to 0.08 mm, with fin length up to 600 mm for high-density air cooling.

3

Friction Stir Welding

8 FSW centres close aluminium bodies without filler metal — no porosity, no filler wire, no flux residue.

4

Vacuum & Copper Brazing

Vacuum brazing up to 2400 × 800 × 800 mm, plus 8-zone copper and 10-zone aluminium brazing lines.

5

Laser Welding & Cleanroom Assembly

Filler-free laser welding for stainless manifolds and bellows, then washing, passivation, vacuum baking and 100K-class cleanroom assembly.

6

Inspection & Testing

Every liquid-cooling kit is leak-tested and performance-checked against the agreed acceptance criteria before packing.

Inspection Process for Liquid-Cooling Kits

Thirteen checkpoints between machining and shipment — not a final spot check.

Helium Leak Test Air Leak Test Pressure Holding Test Flow Resistance Test Pulse Flow Test High-Temperature Channel Flushing Vacuum Baking Thermal Resistance Test Ultrasonic Scanning (SAT) X-Ray Scanning Cleanliness Test Salt Spray Test Cleanroom Packing

Factory & Equipment


Take a walk through our 60,000 m² manufacturing centre in Qingxi, Dongguan — CNC machining, skiving, FSW, brazing, die casting and heat-pipe lines under one roof, backed by a dedicated quality centre for helium leak, flow, thermal, X-ray and ultrasonic testing. Our Chonburi, Thailand plant, begun in 2024, is built, with CNC, brazing, cold-plate assembly and leak-testing lines defined for Phase I.

Qingxi Factory
Qingxi Factory · 60,000 m²
Production Centre
Production Centre

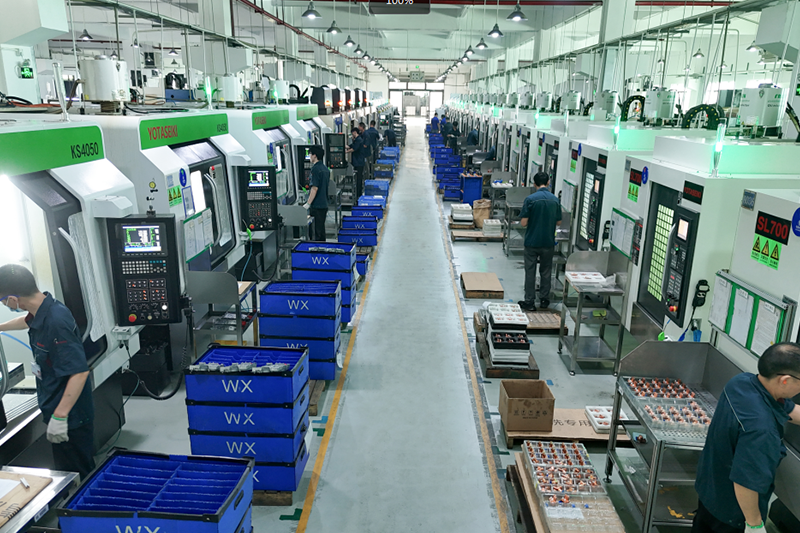

CNC Machining
CNC Machining
Skiving Process
Skiving Process
Stamping Fin Process
Stamping Fin Process
Friction Stir Welding
Friction Stir Welding
Die Casting
Die Casting
Copper / AL Brazing
Copper / AL Brazing
Laser Welding
Laser Welding
Soldering Assembly
Soldering Assembly
Heat Pipe Production
Heat Pipe Production
Clean Room Assembly
Clean Room Assembly
Helium Leak Test
Helium Leak Test
Flow Resistance Test
Flow Resistance Test
Thermal Test
Thermal Test
X-Ray Scanning
X-Ray Scanning
Ultra-Sonic Scanning
Ultra-Sonic Scanning
Salt Spray Test
Salt Spray Test
300CNC MACHINES
18SKIVING MACHINES
8FSW CENTRES
75HEAT PIPE LINES
4HELIUM LEAK TESTERS
100 KCLEANROOM CLASS
7–15 DSAMPLE LEAD TIME

Quality Certifications

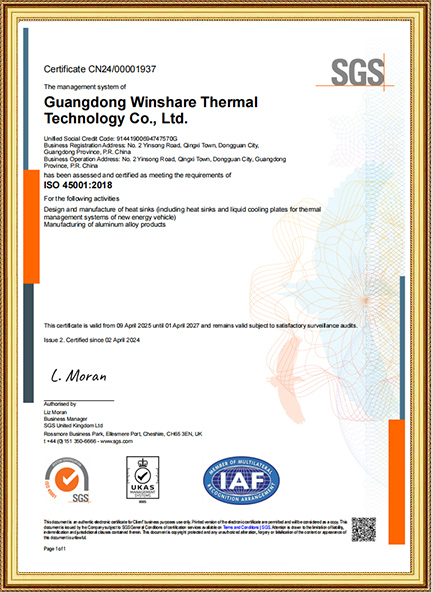

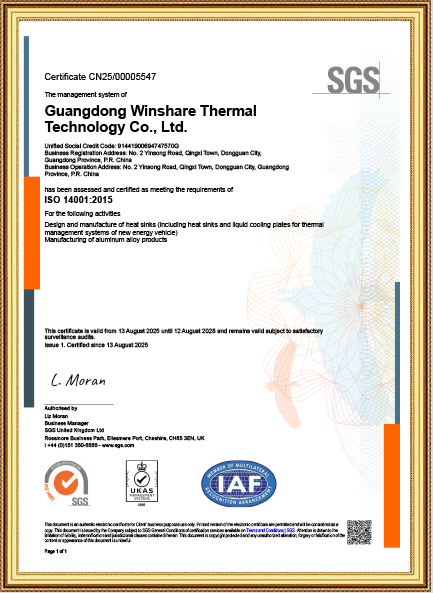

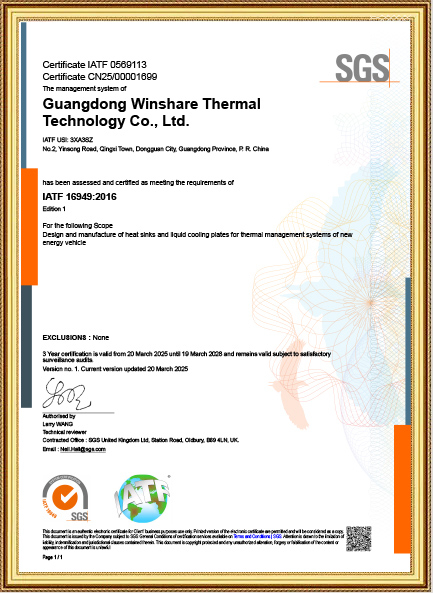

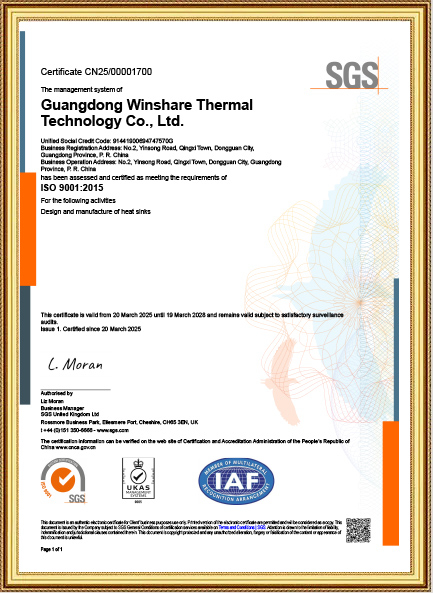

Certified to ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 and IATF 16949, with an intellectual property management system (GB/T 29490-2013). Our in-house lab verifies every liquid-cooling kit before shipment.

How We Work


No black box. You always know which step your project is in and who is working on it.


01

Send Drawings & Requirements

Share 2D/3D files, thermal load, flow rate, pressure budget and the available envelope. A rough sketch is enough to start.

02

Thermal Design & DFM Proposal

Our engineers propose the cooling structure, material, process route and tooling, and flag manufacturing risks — usually within 24–48 hours.

03

Prototype & Validation Testing

First articles in 7–15 days, then measured in our own lab: thermal resistance, pressure drop, flow rate and leak tightness.

04

Mass Production & Delivery

APQP-controlled mass production with PPAP documentation, 100% leak testing, cleanroom packing and shipping from Dongguan or Thailand.

Proven Programs & Case Studies


Selected programmes in which our cold plates and heat sinks are already running in volume production — the numbers come from our own project records.

  • Leveling Up Performance: Thermal Solutions for Next-Gen Gaming Consoles
    Next-generation gaming consoles pack immense processing power into living-room-friendly designs, creating extreme thermal challenges. This case study highlights Winshare's success in providing customized, high-efficiency cooling modules for industry-leading platforms including PlayStation, Xbox, and Nintendo Switch. By utilizing advanced Heat Pipe (HP) and Vapor Chamber (VC) heat sinks, Winshare enables stable, whisper-quiet, and high-performance gaming experiences in ultra-compact spaces. Read More
  • Powering the Green Transition: Thermal Solutions for SUNGROW Solar Stations
    As global renewable energy adoption scales, managing the intense heat of solar inverters and energy storage is vital. This case study details our strategic partnership with SUNGROW. By supplying customized HP bonded and skived fin heat sinks, Winshare has secured a massive 65% market share in their solar power stations, proving our capability to deliver highly reliable thermal solutions for the world's most demanding green energy infrastructure. Read More
  • Elevating Luxury EV Performance: Dual Liquid Cooling for Lucid Air ADAS
    Premium electric vehicles demand flawless ADAS performance. This case study details Winshare’s development of a custom Multiple PCBs Dual Liquid Cooling Module for the Lucid Air luxury sedan. Backed by comprehensive pressure and temperature flow channel simulations and having passed 20 rigorous reliability tests, discover how our solutions are driving thermal innovation for top-tier global automotive brands. Read More

Blog


Selected programmes in which our cold plates and heat sinks are already running in volume production — the numbers come from our own project records.

Trusted Across the Supply Chain


Our cooperation partners span automotive OEMs and tier-ones, photovoltaic and storage leaders, semiconductor test houses and global electronics brands. Add your programme to the list — our engineers reply to every enquiry within one working day.

Digital Manufacturing Resources

Frequently Asked Questions

−What is the minimum order quantity for custom cold plates?

Samples and prototypes start from a single piece — we run a dedicated sample team so first articles do not queue behind production. Mass production typically begins at 100–500 pieces depending on the process (skiving, FSW, vacuum brazing), and we will tell you the economic break-even point before you commit.

+How fast can I receive a quotation and samples?

Send your 2D/3D drawing or even a concept sketch with the thermal load, flow rate and available envelope. Quotations are normally returned within 24 hours and the design proposal within 24–48 hours. After drawing confirmation, samples are typically delivered in 7–15 days.

+Which processes do you use for liquid cold plates?

Embedded copper tube, friction stir welding (FSW), vacuum brazing, copper and aluminium brazing, laser welding, high-frequency welding, diffusion bonding, die casting, stamping, skiving and micro-fin machining. Choosing between them is a cost-versus-performance decision we will make with you.

+How do you guarantee leak tightness and cleanliness?

Every liquid-cooling kit passes a 100% helium leak test, with air leak and pressure-holding tests where the specification requires them. We also run flow-resistance, pulse-flow and thermal-resistance tests, ultrasonic scanning, X-ray inspection and cleanliness checks, then assemble and pack in a 100K-class cleanroom.

+Can you support automotive-grade and AI server programmes?

Yes. We are IATF 16949 certified and work to an APQP development flow with PPAP documentation. Battery cold plates are in mass production for major Chinese EV makers; ADAS cooling modules are running in more than 250,000 vehicles; and our cold plate assemblies serve flagship GPU super chips and AI server water-cooling platforms.

+Where are you located, and do you export worldwide?

Our head factory is in Qingxi, Dongguan, Guangdong, China, with 60,000 m² of manufacturing area, and a second plant is under construction in Chonburi, Thailand to support overseas programmes. We ship to North America, Europe, Japan, Korea and Southeast Asia, and we are happy to work through your forwarder or ours.



Let's Engineer It Together


Looking for a Custom Thermal Solution Partner?


Send us your drawing, thermal load and target cost. Within one working day you will have a cooling-structure proposal, a process route and an indicative price — no obligation, no sales script.

Free thermal design & DFM review Samples in 7–15 days IATF 16949 quality system 100% leak-tested before shipment
