We specialize in the research and development, production and technical services of high power cooling solutions. We are devoted to becoming the leader in the thermal management of new energy field. To provide our customers with better services and high-quality and reliable thermal management solutions and products

What Are Skived Heat Sinks?

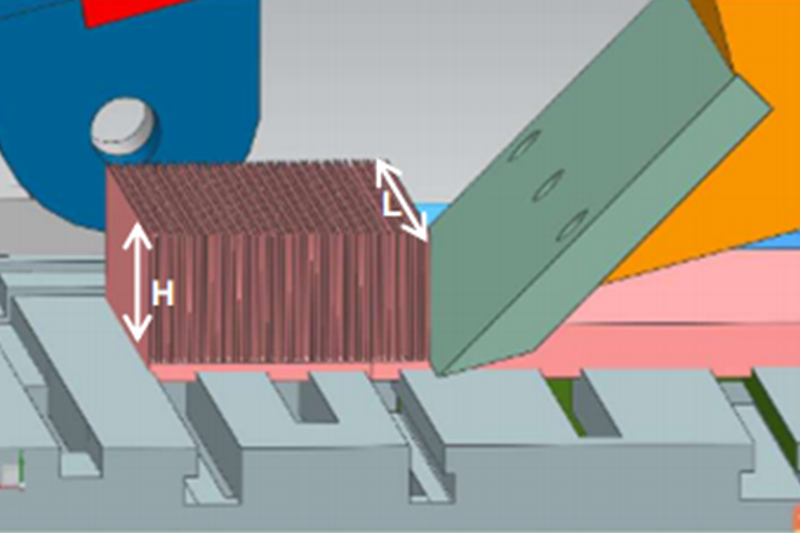

Skived heat sink adopts SKIVING (precision cutting) technology, the shovel blade is thin and uniform, the heat dissipation efficiency is stable, and the effect is better. The strip of material is cut into slices at a certain angle through mechanical action and is straighter. Repeated cutting forms a uniform gap structure. It is used to solve the heat dissipation of high-power devices under air-cooled heat dissipation conditions, which can be improved compared to insert heat sinks. 8~15% heat dissipation efficiency.

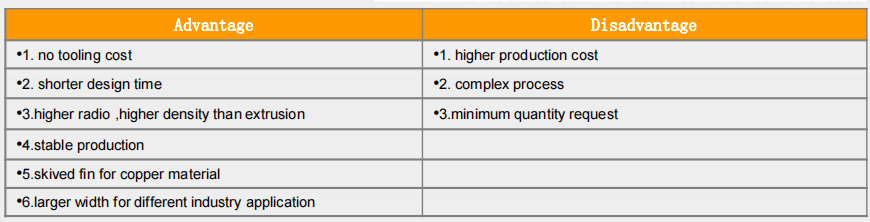

Why Use Skived Heat Sinks?

High Thermal Efficiency: Skived heat sinks feature a continuous structure with no joints between the base and fins, resulting in reduced thermal resistance and optimal heat transfer.
Increased Fin Density: The skiving process allows for a high density of thin fins, maximizing the surface area for heat dissipation. This design significantly enhances cooling performance, especially in compact spaces.
Customizable Design: Skived heat sinks can be tailored to specific applications without the need for costly tooling, offering flexibility in size and configuration.
Durability: Made from a single piece of metal, skived heat sinks are robust and eliminate the risk of fin detachment or failure over time.
Cost-Effective Production: The manufacturing process is efficient, allowing for high production capacity while keeping costs manageable, making them suitable for mass production.

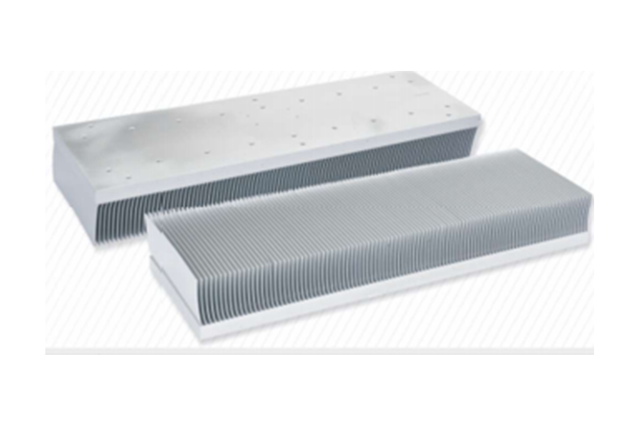

Skived Fin Heat Sink

Skived fin heat sink adopts SKIVING (precision cutting) technology, the shovel blade is thin and uniform, the heat dissipation efficiency is stable, and the effect is better. The strip of material is cut into slices at a certain angle through mechanical action and is straighter. Repeated cutting forms a uniform gap structure. It is used to solve the heat dissipation of high-power devices under air-cooled heat dissipation conditions, which can be improved compared to insert heat sinks. 8~15% heat dissipation efficiency.

In 2012, Winshare Thermal’s self-developed high-power shovel technology was successfully applied to Sungrow’s 500KW central inverter. It has been used in large-scale applications for many years. The cumulative installed capacity of the photovoltaic industry has exceeded 25GW.

With the large-scale application, Winshare Thermal Skived fin heat sink technology has become more mature, the process coverage has increased, the degree of automation has been gradually improved, and the cost and reliability advantages have been obvious. It has obtained communications, UPS, inverters, controllers, and wind power converters. , SVG and other domestic and foreign customers.

skived heat sink

skived heat sinks heatsink fin skived fin heat sink skived heatsink skived heat sink heat sink fins skiving heat sink

Premium Skived Heat Sinks by Us

Uncover top-notch skived heat sinks from us. Meticulously crafted for superior heat dissipation, our products are tailored to fulfill the diverse requirements of different industries, guaranteeing improved performance and reliability of your electronic equipment.

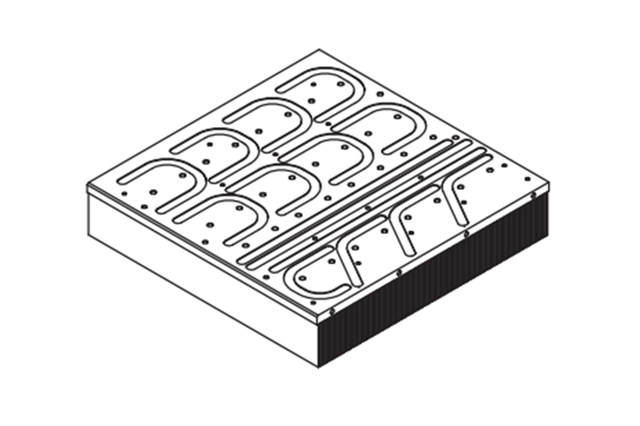

Aluminum skived fin heat sink with epoxy bonding process

Size: L380*W376.5*H74mm
Process: Skived and Bonded
Place of Origin：China
Packing：The carton packaging or According to the customer's needs
Supply Ability: 10000/Month
Application：High power cooling system,Solar energy, Inverter , Converter,Electronic heating element,Laser cooling
Payment：T/T
Delivery Time：2-3Weeks
Quality Guarantee：ISO9001:2015

Winshare Thermal - Your Reliable Skived Heat Sinks Manufacturer

In 2012, Winshare Thermal’s self-developed high-power skived technology was successfully applied to Sungrow’s 500KW central inverter. It has been used in large-scale applications for many years. The cumulative installed capacity of the photovoltaic industry has exceeded 25GW.

With the large-scale application, Winshare Thermal Skived heat sinks technology has become more mature, the process coverage has increased, the degree of automation has been gradually improved, and the cost and reliability advantages have been obvious. It has obtained communications, UPS, inverters, controllers, and wind power converters. , SVG and other domestic and foreign customers.
