What is a Heat Pipe Heat Sink?

When solid metal conduction hits a thermal bottleneck, a heat pipe heat sink offers the ultimate solution by utilizing two-phase vapor chamber mechanics. By encapsulating a working fluid within a vacuum-sealed copper tube with an internal wick structure, heat pipes transfer latent heat at velocities approaching the speed of sound.

This passive phase-change technology effectively flattens high-heat-flux hot spots, making it an indispensable thermal management assembly for modern high-density servers, telecommunication telecom enclosures, IGBT modules, and renewable energy inverters where traditional air cooling falls short.

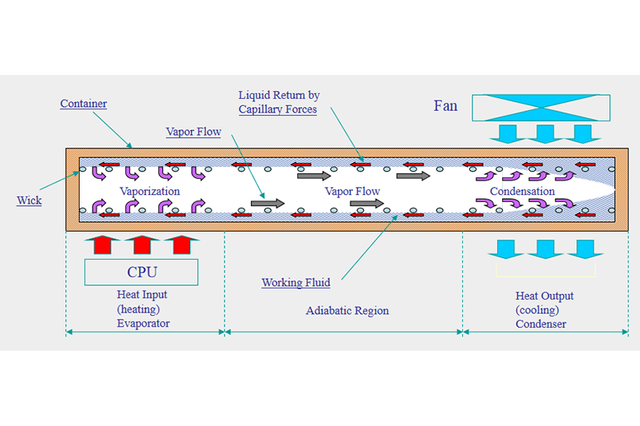

Working principle of heat pipe：

When liquid and vapor phase changes, heat is brought from evaporation section to condenser section. Then the capillary force of wick structure will bring back the working fluid to evaporation section and continue the cycle.

Three physical principles are used when the heat pipe works:

1.In the vacuum state, the boiling point of the liquid decreases.
2.The latent heat of vaporization of the same substance is much higher than the sensible heat.
3.The suction force of the porous capillary structure on the liquid can make the liquid flow.

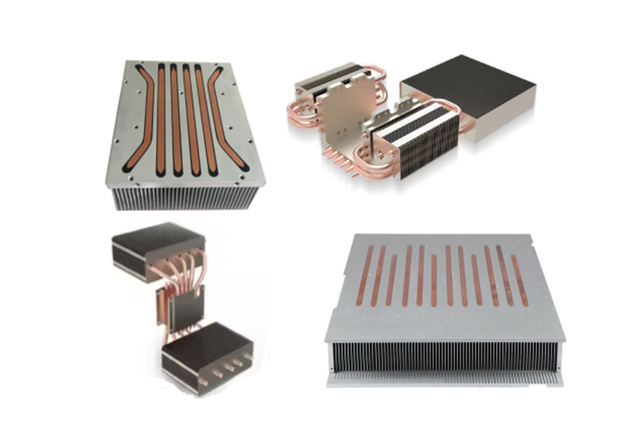

Product Showcase: Premium Heat Pipe Heat Sinks

At Winshare Thermal, we take pride in offering a diverse range of high-quality heat pipe heat sinks designed to meet the demanding thermal management needs of various applications. Our products leverage advanced heat pipe technology to ensure optimal performance and reliability. Below are some of our featured products

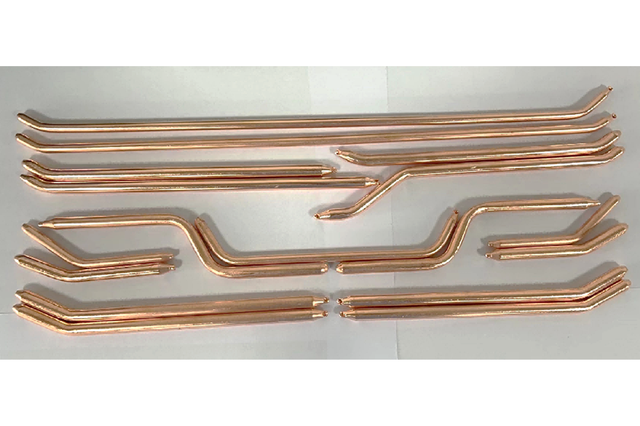

Heat Pipe Thermal Module

The heat pipe is a heat transfer element with high thermal conductivity. The working principle of the heat pipe: The heat pipe is an artificial component with excellent heat transfer. The commonly used heat pipe consists of three parts: the main body is a closed metal pipe with a small amount of working medium and capillary structure inside, the air and other debris in the pipe Must be excluded.

Three physical principles are used when the heat pipe works: 　　

1. In the vacuum state, the boiling point of the liquid decreases.　　

2. The latent heat of vaporization of the same substance is much higher than the sensible heat.　　

3. The suction force of the porous capillary structure on the liquid can make the liquid flow.

Folded fin/Zipper fin + heat pipe heat sink: FIN sheet + heat pipe heat sink is to weld the FIN sheet and the heat pipe through solder paste, and use the heat transfer performance of the heat pipe to quickly transfer the heat. Its heat dissipation efficiency is high and the heat dissipation performance is stable. FIN can be used with copper, It is made of aluminum material, which can reduce product weight and production cost under different performance requirements, and is suitable for mass production.

Skived fin + heat pipe heat sink: The shovel teeth + heat pipe heat sink is a shovel fin and heat pipe welded by solder paste. This production process combines the heat absorption and heat transfer of the heat pipe and the heat dissipation performance of the shovel tooth is very stable. Combined together, the heat is quickly transferred from the heat source to ensure the safe and stable operation of the equipment; compared with the FIN chip + heat pipe heat sink, the cost of mold opening is reduced, and the production quantity is relatively small, which is relatively suitable for small batch and diversified production.

Copper aluminum combination + heat pipe heat sink: the pre-designed copper pipe is embedded and pressed into the aluminum plate with reserved groove, and epoxy resin is used to fill the gap to reduce the thermal resistance of the gap air, and then processed by CNC.

1
2
»

heatpipe heatsink copper pipe heat sink heat pipe manufacturer custom heat pipes heat pipe heatsink copper tube heat sink heat sink pipe Heat Sink with Heat Pipe heatpipe manufacturer heat pipe heat sink

Advantages of Heat Pipe Heat Sinks Compared to Traditional Heat Sinks

Heat pipe heat sinks offer several distinct advantages over traditional heat sinks, making them a preferred choice in many high-performance thermal management applications. Below are the key benefits

Advantage	Heat Pipe Heat Sink	Traditional Heat Sink
Thermal Efficiency	Extremely high thermal efficiency due to the phase change process, allowing for rapid heat transfer.	Moderate efficiency, primarily relying on conduction through solid materials.
Heat Distribution	Evenly distributes heat along its length, preventing hot spots and enhancing overall cooling performance.	May create hot spots if not designed properly, leading to uneven cooling.
Compact Design	Thin and lightweight, making them ideal for space-constrained environments such as laptops and compact electronics.	Generally bulkier and heavier, requiring more space for effective cooling.
Passive Operation	Operates without moving parts, requiring no external power source or maintenance, which enhances reliability.	Often relies on fans or active cooling methods, which can introduce noise and require maintenance.
Long Lifespan	High durability with no moving parts; vacuum-sealed design prevents liquid loss and corrosion.	Mechanical components can wear out over time, leading to potential failures.
Versatility in Applications	Suitable for a wide range of applications, including electronics, automotive, and aerospace industries due to their adaptability.	Limited to specific applications where traditional conduction metho ds suffice.
Cost-Effectiveness	While initial costs may be higher, they can reduce long-term operational costs by improving efficiency and reducing maintenance needs.	Lower initial costs but may incur higher operational costs due to less efficient cooling performance.

Advanced Heat Sink Solutions: Combining Heat Pipes with Innovative Fin Designs

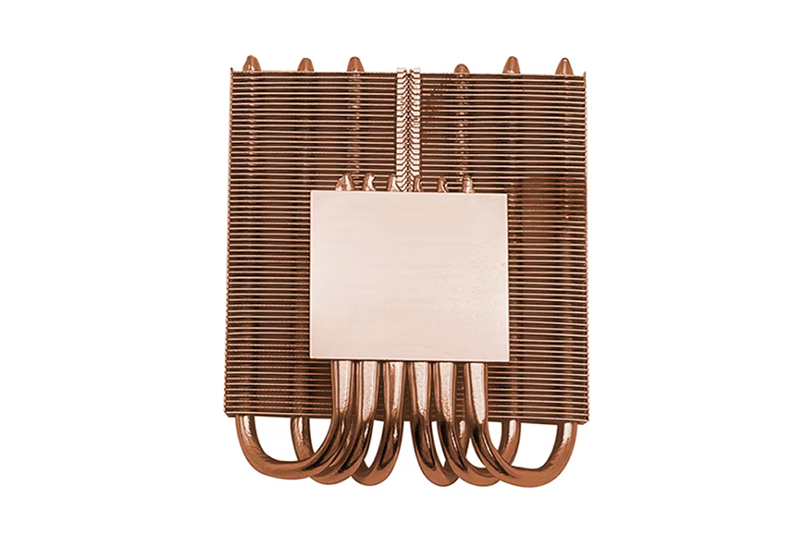

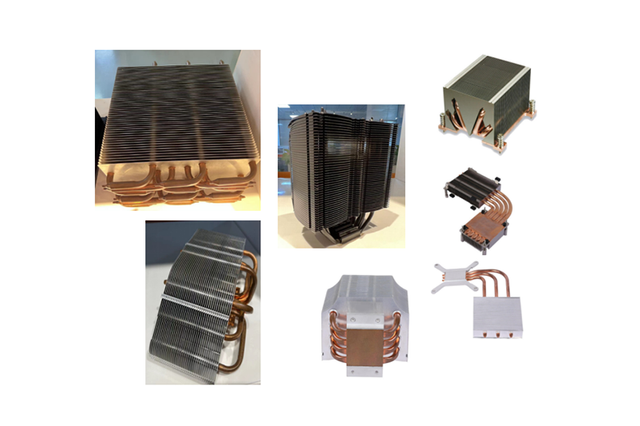

Folded Fin/Zipper Fin + Heat Pipe Heat Sink

By utilizing automated reflow soldering with precision solder paste, Winshare Thermal permanently bonds ultra-thin copper or aluminum zipper fins to highly conductive heat pipes. This design maximizes the airflow surface area while minimizing the overall assembly weight. It is the gold standard for high-volume mass production in the telecom and consumer electronics sectors where low thermal resistance and tight space constraints coexist.

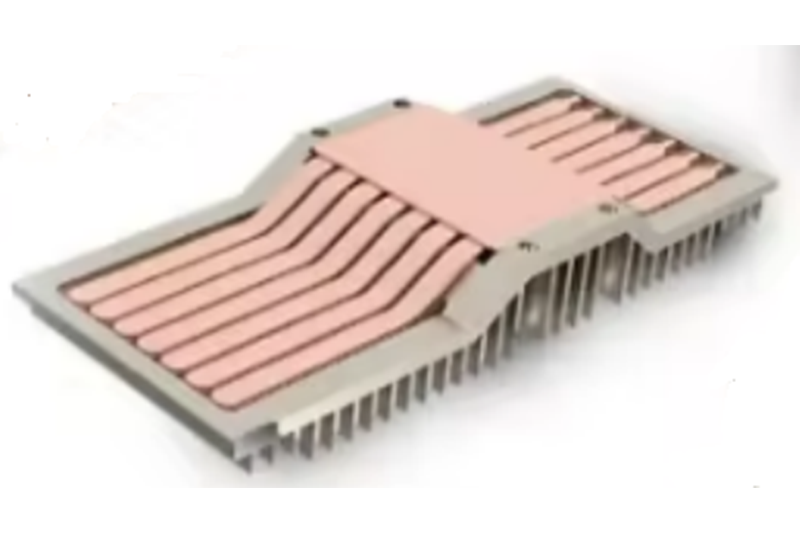

Skived Fin + Heat Pipe Heat Sink

This hybrid profile combines a monolithic skived fin base with embedded heat pipes via specialized thermal soldering. By integrating the seamless, zero-interfacial-resistance construction of skived fins with the rapid transient response of phase-change heat pipes, this assembly eliminates the thermal bottlenecks common in high-power IGBTs and graphics processors. It requires minimal tooling investment, making it ideal for high-performance, small-to-medium batch customizations.

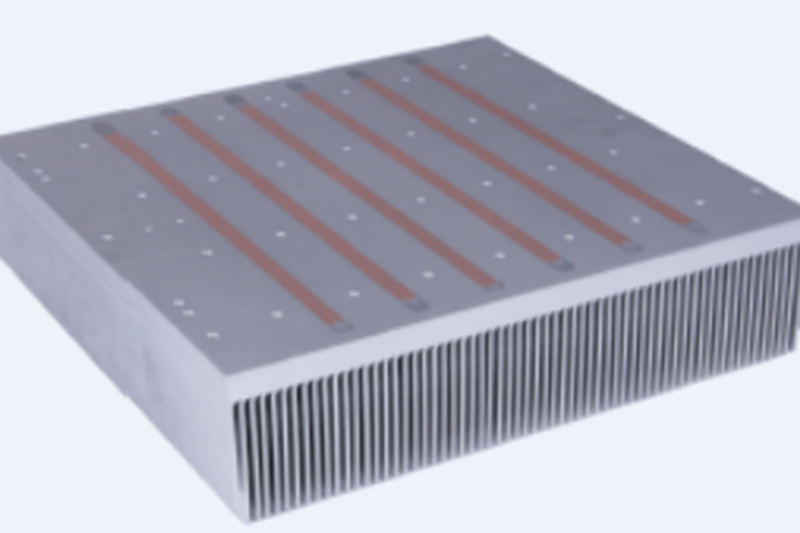

Copper-Aluminum Combination + Heat Pipe Heat Sink

Designed for heavy-duty industrial power modules, pre-machined grooves are CNC-milled into a lightweight aluminum base plate. Pure copper heat pipes are then embedded and pressed into the grooves using proprietary mechanical interference fit (swaging) and high-conductivity thermal polymers. This ensures zero micro-air pockets within the contact interface, drastically minimizing thermal resistance while leveraging the cost/weight benefits of aluminum and the localized thermal spreading of copper.

Why Choose Winshare Thermal As Your Custom Heat Pipe Assembly Manufacturer?

Partnering with Winshare Thermal means collaborating with an engineering powerhouse. To support your product advancement, our dedicated heat transfer labs—established in partnership with the South China University of Technology—conduct rigorous thermal performance validation, flattening limits tests, and dry-out simulations before production begins.

The biggest point of failure for heat pipes in the field is vacuum loss. At Winshare, every single heat pipe assembly undergoes strict automated hydrogen/helium leak testing and thermal cycling to ensure zero micro-leakage and long-term capillary reliability over a decade-long operational lifespan.

Operating under full compliance with the latest global automotive and industrial standards—including IATF 16949, ISO 9001:2015, and ISO 14001:2015—our internal manufacturing ecosystem handles everything from precision CNC machining to advanced reflow soldering.

Struggling with a high-wattage thermal hotspot? Send us your thermal design power (TDP) budget and bounding box constraints below. Our engineering team will deliver a comprehensive DFM review and a customized factory quote within 24 hours.
