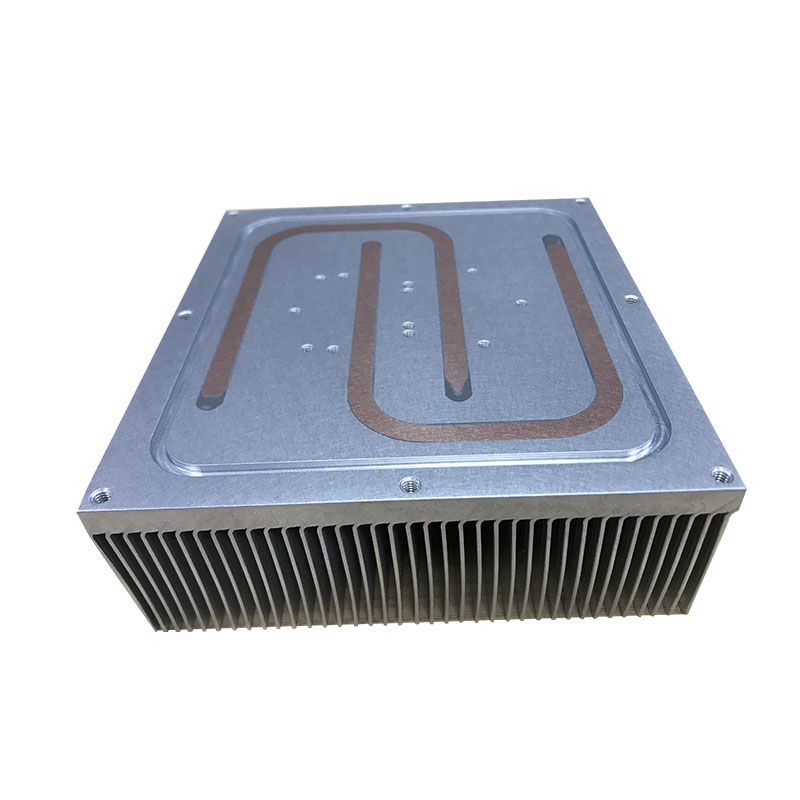

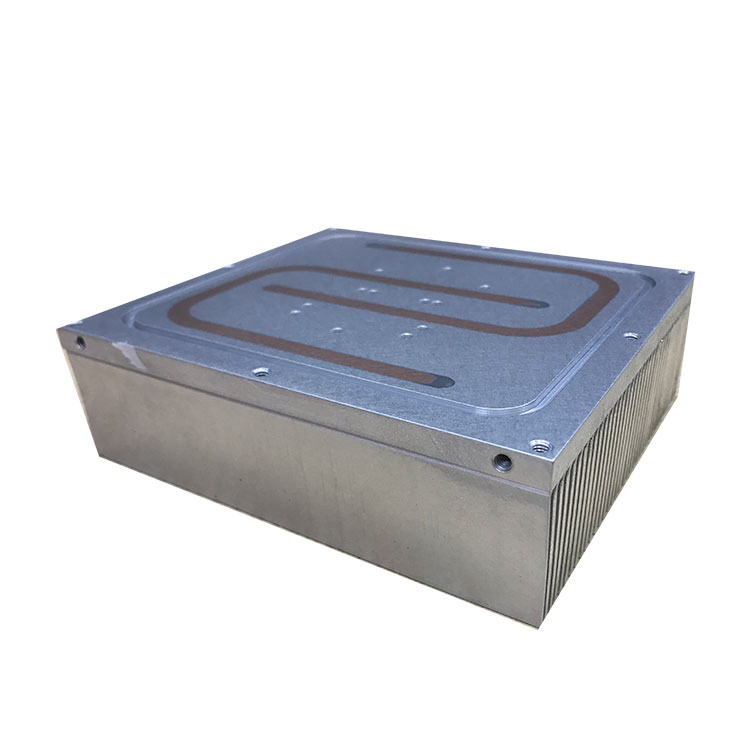

The Skived Fin Heat Sink with Heat Pipe is engineered to provide efficient cooling for 300W LED stage lights, where high-density heat dissipation is essential in a compact form. Utilizing advanced skived fin technology and embedded heat pipes, this heat sink ensures reliable thermal management, extending the lifespan of LED systems.
| Parameter | Details |
|---|---|
| Model Number | WS-HS-SK-001201 |
| Dimensions | 200mm x 150mm x 45mm (heat sink base) |
| Heat Pipe | Diameter 8mm, Length 400mm (standard); customizable (D6, D8, D10, D12, D16) |
| Material | Aluminum (standard), Copper (optional) |
| Cooling Method | Air cooling with heat pipe |
| Operating Temperature | -40°C to 100°C (typical) |
| Thermal Resistance | <0.5°C/W (typical, depends on design) |
| Weight | Approx. 0.5 kg (aluminum) |
| Certifications | ISO9001:2018 |
Note: Exact thermal performance metrics and weight may vary based on custom design. Contact us for detailed specifications.
Customizable Heat Pipes: Available in diameters D6, D8, D10, D12, D16, with lengths tailored to specific requirements.
Epoxy Bonding: Ensures reliable and efficient thermal contact between the heat sink and heat pipe.
High-Density Fins: Skived fin technology maximizes surface area for superior heat dissipation in a compact design.
Lightweight and Compact: Ideal for space- and weight-constrained applications like stage lighting.
Efficient Production: Optimized for small to medium batch sizes, ensuring quick delivery and cost-effectiveness.
Superior Heat Dissipation: Combines skived fins and heat pipes for efficient cooling, maintaining optimal LED operating temperatures.
Customizable Design: Tailored to fit specific LED stage lighting requirements, ensuring seamless integration.
Compact and Lightweight: Meets size and weight constraints of stage lighting without compromising performance.
Cost-Effective: Ideal for small to medium batch production, balancing performance and affordability.
Fast Turnaround: Rapid production process ensures delivery within 2-3 weeks, perfect for time-sensitive projects.
Durability: High-quality materials and construction ensure reliability in demanding environments.
LED Stage Lighting: Optimized for 300W LED stage lights, providing high-density heat dissipation in a compact space.
Other High-Power LED Systems: Adaptable for LED billboards, architectural lighting, and other high-power LED applications requiring efficient cooling.

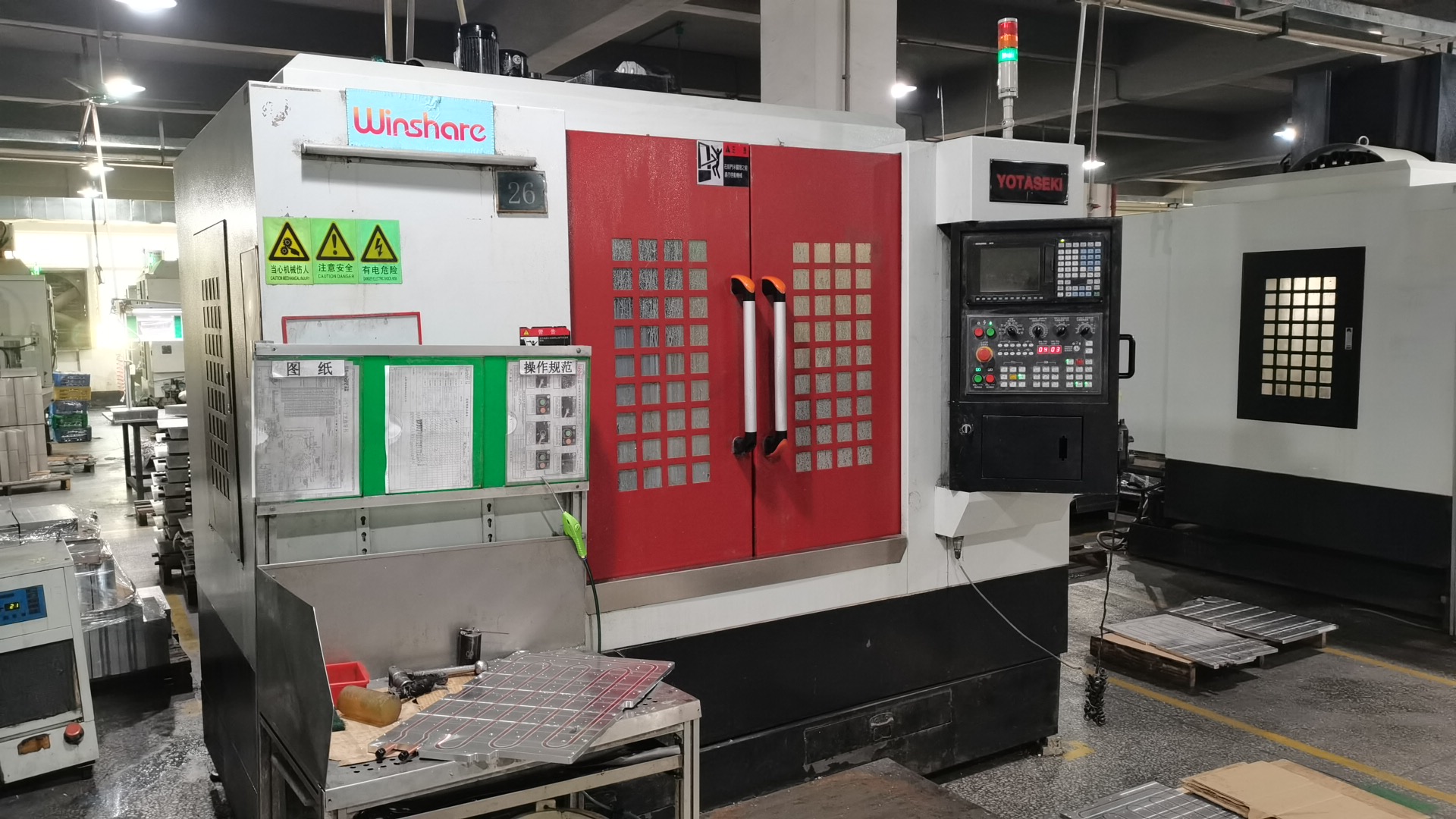

Our Skived Fin Heat Sink with Heat Pipe is crafted using advanced manufacturing techniques:
Skived Fin Technology: Creates high-density fins from a single piece of metal, maximizing thermal conductivity and efficiency.
Heat Pipe Integration: Heat pipes are embedded in the heat sink base using epoxy bonding for optimal thermal transfer.
Customization: Flexible design process allows for tailored heat pipe sizes and lengths to meet specific needs.
ISO9001:2018 Certified: Manufactured in a facility adhering to international quality standards.
Rigorous Testing: Each unit undergoes thermal performance and reliability testing to ensure consistent quality.
Standard Packaging: Carton packaging, with custom options available upon request.
Supply Capacity: 10,000 units per month.
Delivery Time: 2-3 weeks from order confirmation.
Payment Terms: T/T.
Shipping: Global shipping available.
Unmatched cooling efficiency for high-power LEDs, ensuring extended lifespan.
Fully customizable to meet specific design and thermal requirements.
Lightweight and compact, ideal for stage lighting applications.
Fast production and delivery for time-sensitive projects.
Backed by ISO9001:2018 certification for guaranteed quality.
For more information, custom quotes, or detailed specifications, contact our sales team at sales@winsharethermalloy.com or call +86-123-456-7890.
