Embedded Tube Cold Plates

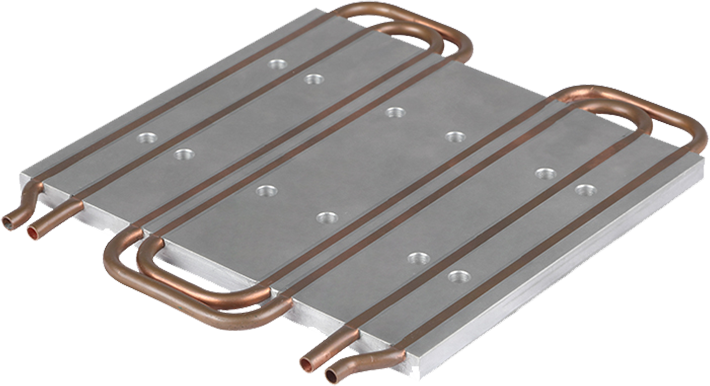

We integrate copper or stainless steel tubes into an aluminum or copper base plate, with coolant circulating through the tubing. Heat generated by the target components is rapidly transferred to the coolant and then expelled from the system.

Core Features:

Tube in plate: Coolant path sits under the heat source.

Fast heat path: Heat hits the tube wall directly.

Strong flow: Liquid carries away big loads.

Quiet run: No fans. Zero noise.

Small fit: Thin design for tight spaces.

Embedded Tube Cold Plates Case

Winshare Embedded Tube Cold Plates Application Areas

New Energy Vehicles

Thermal management of battery packs, motor controllers, inverters, etc.

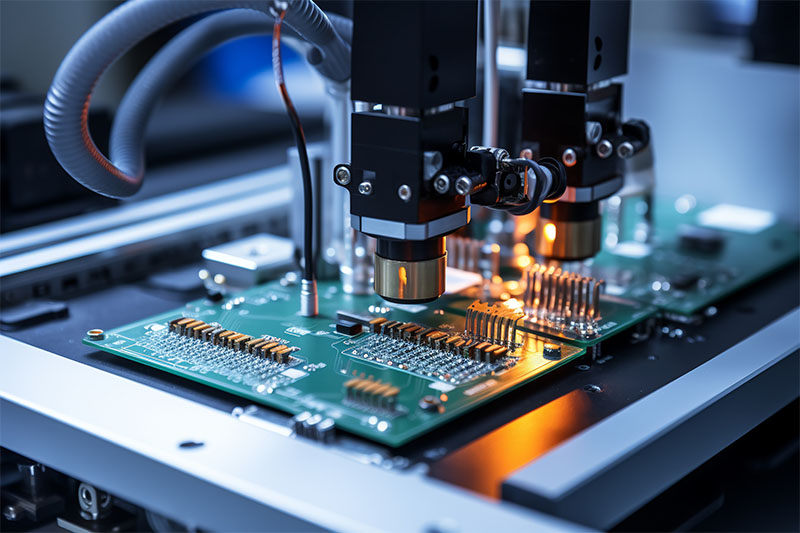

Industrial Electronics

Inverters, IGBT modules, high-power semiconductor devices, laser equipment, etc.

Data Center and Server

Cooling of high-performance computing components such as CPU, GPU, and memory.

Medical Devices

Temperature control of high-precision electronic equipment such as imaging equipment and diagnostic instruments.

Aerospace and Military

Applications such as airborne equipment and radar systems that have extremely high requirements for heat dissipation performance and reliability.

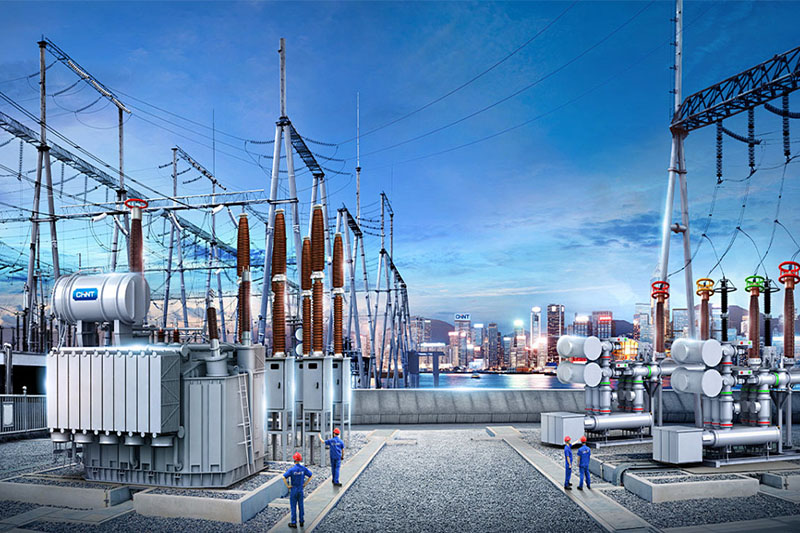

Power Electronics

High-power equipment such as rectifiers, transformers, and power modules.

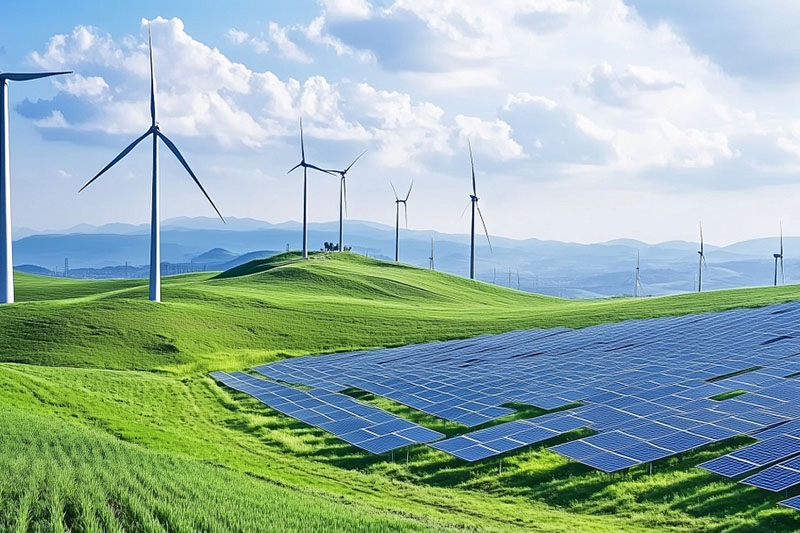

Renewable Energy

Photovoltaic inverters, wind turbine converters, etc.

LED lighting

Heat dissipation of high-power LED lamps.

Get a customized plan now

Why Choose Winshare Embedded Tube Cold Plates?

Superior performance

We are committed to providing cold plates with high thermal efficiency and excellent thermal uniformity, ensuring your equipment operates stably under high loads.

Professional engineering support

Our team of engineers has extensive experience and can provide professional technical consulting, design optimization and problem-solving services.

Reliable quality assurance

We strictly follow international quality standards and have passed multiple certifications to ensure that every product meets the highest quality requirements.

Cost-effectiveness

While ensuring high performance and high quality, we strive to provide competitive prices to create greater value for our customers.

Trusted Partner

With years of industry experience and a strong customer reputation, we have become the trusted partner of many well-known companies, such as Delta Electronics, Sungrow Power Supply, BYD Company Limited, etc.

Winshare Embedded Tube Cold Plates Customization Process

Demand communication and assessment

Gain a deep understanding of your cooling needs, application environment, heat load, size constraints, material preferences, and budget.

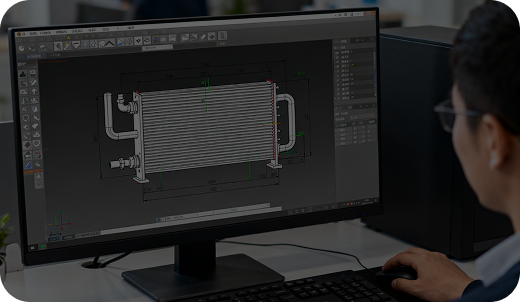

Preliminary design and simulation

Conduct preliminary design, use advanced software for thermal simulation and fluid dynamics analysis, and optimize piping layo

Material selection and process determination

According to the design and performance requirements, select the appropriate substrate and piping materials and determine the best manufacturing process.

Prototyping and testing

Prototype the cold plate and conduct rigorous performance testing to ensure it meets design specifications.

Design Optimization and Verification

We then refine and adjust the prototype based on the test results until we achieve optimal performance and receive your final approval.

Mass production

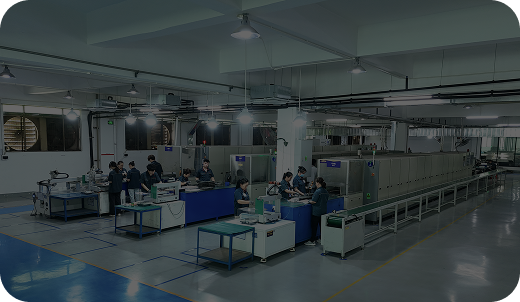

We use advanced production equipment and strict quality control processes to ensure product consistency and high quality.

What are the advantages of Embedded Tube Cold Plates?

The waterway layout can be designed and simulated according to the customer's requirements.

Direct cooling

Heat source touches coolant path. Lowest thermal resistance

High power ready

Handles 500W+ per plate. Perfect for EV, wind, solar, servers.

Compact size

Fits tight spaces. No big fans needed.

Quiet work

No noise. Great for data centers

Strong build

Vacuum brazing or epoxy bond. ISO 9001 & TS 16949 certified.

Custom fit

Any tube layout. OEM design

Winshare Embedded Tube Cold Plates FAQ

Q How complex can the flow channel shape of a drilled cold plate be?

A Drilled cold plates offer a high degree of freedom in flow channel design. In addition to straight channels, we can create complex 3D channels, cross channels, multi-layer channels, and special-shaped channels customized to the shape of the heat source to maximize heat dissipation efficiency.
Q What materials do you offer for Embedded Tube Cold Plates?

A We typically offer aluminum baseplates (e.g., 6063 aluminum) and copper baseplates, with tubing typically made of copper or stainless steel. The choice depends on your application needs, thermal performance requirements, and cost considerations.
Q How long does it take to customize Embedded Tube Cold Plates?

A Customization time depends on the complexity of the design, material procurement time, and production schedule. Typically, it takes approximately X weeks from design confirmation to prototype delivery, with volume production scheduled based on order quantity. We recommend contacting our sales team in advance for an accurate time estimate.

Q What coolants can be used with Embedded Tube Cold Plates?

A Common coolants include water, deionized water, water-glycol mixtures, and dielectric fluids. Selecting the appropriate coolant requires consideration of its thermal properties, compatibility with the cold plate material, operating temperature range, and safety features.
Q Is the maintenance of Embedded Tube Cold Plates complicated?

A Compared to many other cooling methods, maintenance for Embedded Tube Cold Plates is generally simple. This primarily involves regularly checking the coolant's condition and system integrity, and occasionally cleaning to prevent clogging or decreased efficiency. Their robust construction and limited moving parts also reduce the likelihood of mechanical failure.
Q Does Winshare Thermal Alloy provide installation support or after-sales service?

A Yes, we provide comprehensive after-sales service and necessary technical support. After the product is delivered, if you encounter any problems during installation or use, our technical team will be at your service at any time.
