Winshare heat pipe customization

Winshare Thermal Alloy: Highly efficient heat conduction, flexible customization, solving local heat dissipation problems.

What is Heat Pipe?

Heat pipes are heat transfer elements with extremely high thermal conductivity and are known as "super thermal conductors". It uses the evaporation-condensation phase change cycle of the working fluid in a closed vacuum tube to transfer heat. When heat is applied to one end of the heat pipe (evaporative end), the working fluid inside will quickly evaporate and absorb heat; The steam flows to the other end (the condensing end) driven by a small differential pressure, where it condenses and releases heat, transferring the heat efficiently. The condensed liquid flows back to the evaporation end through the wick structure inside the heat pipe, completing a continuous cycle.

The effective thermal conductivity of heat pipes can reach hundreds or even thousands of times that of pure copper, far exceeding any known metal material. Due to their passive, efficient, noiseless and flexible structure, heat pipes have become an ideal solution to solve the problems of local hot spot heat dissipation and heat homogenization in electronic equipment, industrial equipment and other fields, especially suitable for customized applications with limited space and high requirements for heat dissipation efficiency and reliability.

The core benefits of Winshare heat pipes

Excellent ultra-high thermal conductivity

The effective thermal conductivity of heat pipes far exceeds that of any known metal material, and can quickly transfer heat from the heat source to the heat dissipation area with very little temperature difference, making it ideal for solving the problem of high heat flux density.

Highly flexible shape customization

The heat pipe can be bent, flattened, stamped, and even made into complex three-dimensional shapes according to the actual application space, perfectly adapting to various compact and special-shaped heat dissipation spaces to achieve customized integration.

Passive operation with high reliability

The heat pipe works without external power or moving parts, which means it is extremely reliable and long-lasting, and operates without noise, vibration, and low maintenance.even made into complex three-dimensional shapes according to the actual application space, perfectly adapting to various compact and special-shaped heat dissipation spaces to achieve customized integration.

Excellent temperature equalization ability

Heat pipes can quickly diffuse heat from local hot spots to the entire heat dissipation surface, achieving temperature uniformity, effectively reducing chip junction temperature, and improving equipment performance and life.

Wide range of temperature adaptability

By selecting different working fluids, heat pipes can operate efficiently over a wide temperature range from minus tens of degrees to more than two hundred degrees, meeting the needs of various demanding environments.

Cost-effective cooling solution

Compared to active cooling systems, heat pipes provide high-performance heat dissipation while having lower initial and operating costs, making them a cost-effective batch choice for many medium- to high-load applications.

Winshare Heat Pipe Technology Principles

The core working principle of heat pipes is based on phase change heat transfer, which allows them to absorb heat from the heat source end and quickly transfer it to the heat dissipation end with great efficiency. The entire process is circulated in a closed vacuum chamber

Evaporation

The transfer of heat from a heat source (e.g., CPU, LED chip) to the evaporation section of the heat pipe. The working fluid (such as water, methanol, etc.) inside the evaporation section absorbs heat and quickly changes from liquid to gaseous (steam).

Vapor Flow

Since the temperature at the evaporation end is slightly higher than at the condensing end, a small pressure difference is generated, and the steam flows to the condensation section at a very fast speed in the tube.

Condensation

After the steam reaches the condensation section, it transfers heat to the radiator or cooling medium, and its own condensation turns back into a liquid state. Liquid Return: The condensed liquid passes through the Wick Structure inside the heat pipe and uses capillary force (not gravity) to flow back to the evaporation section to complete a closed cycle.

This continuous evaporation-condensation-reflux cycle allows heat pipes to transfer large amounts of heat energy with very small temperature differences, and their effective thermal conductivity far exceeds that of any solid metal, which is a key technology for efficient thermal management.

Winshare Heat Pipe Types & Constructions

Winshare offers a variety of heat pipe types and internal capillaries to meet the needs of different application scenarios for heat transfer capacity, gravity resistance, cost, and space constraints.

Wick Structures

Sintered: Formed by sintering metal powder to form a porous structure, with strong capillary strength, excellent gravity resistance, and high heat transfer capacity, suitable for high heat flux density and any direction application. Grooved: Parallel grooved inner wall with simple structure and low cost, suitable for heat transfer in horizontal or gravity-assisted directions. Mesh: Made by rolling multiple layers of wire mesh, it is cost-effective with moderate capillary force and is suitable for medium heat flux density and specific orientation applications.

Heat Pipe Products

Standard Heat Pipes: The most common cylindrical heat pipes, ranging from 3mm to 12mm in diameter, can be bent and flattened to flexibly adapt to the space. Vapor Chambers: Planar heat pipes that quickly diffuse heat on a two-dimensional plane to achieve a temperature homogeneity effect, suitable for surface homogeneity of high heat flux density chips. Loop Heat Pipes: Utilize capillary pumps and auxiliary capillary pumps to form a closed loop that allows for long-distance, high-power heat transfer without directional sensitivity.

Working Fluids

Water: The most commonly used working fluid, suitable for temperature range from 30°C to 200°C, high latent heat, excellent thermal conductivity. Methanol: Suitable for cryogenic environments ranging from -20°C to 100°C. Ammonia: Suitable for extremely low temperatures from -60°C to 60°C. Acetone: Suitable for low to medium temperatures from 0°C to 120°C.

Get a customized plan now

Winshare Heat Pipe: Core Product Parameters and Customization Capabilities

Winshare's heat pipe products offer a high degree of flexibility and customization to meet your specific application needs. The following is the range of our design and manufacturing capabilities

Heat Transport Capacity

A single heat pipe can reach 500W Depends on heat pipe size, working fluid, capillary structure, and operating temperature. Can be customized according to heat load requirements.

Operating Temperature

Covers -60°C to 200°C By selecting different working fluids and tube and shell materials, it can accommodate a wide operating temperature range.

Thermal Resistance

As low as 0.05 °C/W The effective thermal resistance of the heat pipe is extremely low, ensuring efficient heat transfer from the evaporation end to the condensing end

Size and shape customization

Diameter 3mm-12mm, length up to 1000mm It can be bent, flattened, and special-shaped processing according to space constraints to realize the integration of complex structures.

Tube shell and capillary material

Copper, aluminum, stainless steel, etc The appropriate material combination can be selected based on thermal conductivity needs, cost, and corrosion resistance.

Surface treatment

Nickel plating, passivation, spraying, etc Available in a variety of finishes to enhance corrosion resistance, insulation, or aesthetics.

Winshare Heat Pipes: Quality Certification & Assurance

Winshare Thermal Alloy has a stringent commitment to the quality of its heat pipes. We have established a sound quality management system and conducted a number of rigorous tests on each product to ensure its performance and long-term stability.

Rigorous factory testing

Heat Transfer Capability Testing: Accurately measure the heat transfer limit of heat pipes under different heat loads.
Thermal Resistance Testing: Evaluates the thermal resistance performance of heat pipes under actual operating conditions.
Leak Test: High-precision equipment such as helium mass spectrometry leak detectors is used to ensure that the internal seal of the heat pipe is leak-free.
Non-condensable gas test (NCG Test): Detects the presence of non-working fluid gases inside the heat pipe that affect performance.
Life Cycle Test: Simulate long-term operating conditions to verify the durability and stability of heat pipes.
Post-Bend/Flatten Performance Testing: Ensures that heat pipes maintain their design properties after being shaped and processed.
Our main certifications

ISO 9001:2015: Internationally recognized quality management system certification, covering the entire product life cycle.
IATF 16949: Quality Management System for the Automotive Industry to provide the highest guarantee for highly demanding areas such as automotive electronics.
ISO 14001:2015: Environmental Management System certification, reflecting our commitment to sustainability and eco-friendly manufacturing.
UL / CE / RoHS: Products comply with safety, health and environmental regulations in major markets around the world.

Winshare Heat Pipe Applications

Servers and data

centers CPU, GPU, HPC cooling

New energy vehicles

Battery modules, motor controllers

Consumer electronics

Laptops, game consoles, smartphones

Telecommunications equipment

5G base station, communication module

High-power LED lighting

Street lights, stage lights, projectors

Medical devices Diagnostic

Instruments, Laser Medical Equipment

Winshare heat pipe customization process

Requirements analysis and thermal design

Communicate with you in depth about heat source characteristics, space constraints, heat dissipation goals, and environmental conditions to conduct a preliminary thermal design and determine the size, number, and layout of the heat pipes.

Material and structural selection

Optimize the internal design of the heat pipe by selecting the appropriate shell material, capillary type, and working fluid based on heat transfer capacity, operating temperature, and directivity requirements.

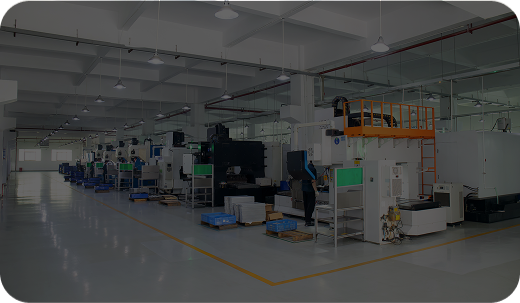

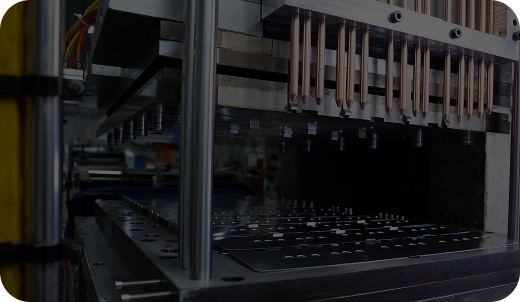

Precision machining and molding

High-precision equipment is used for shell and tube processing and capillary structure production. Depending on the customized needs, the heat pipes can be bent, flattened, welded or integrated into the heat dissipation module.

Vacuum extraction and working material filling

In a strict clean environment, the heat pipe is thoroughly vacuumed to ensure that there is no non-condensable gas inside. Subsequently, the appropriate amount of working fluid is precisely charged and sealed.

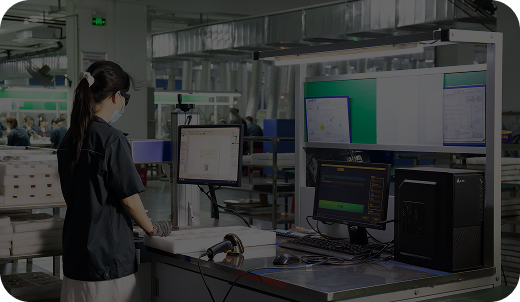

Performance testing and quality verification

Each heat pipe is tested for heat transfer capability, thermal resistance, air tightness, and life to ensure product performance meets design requirements and industry standards.

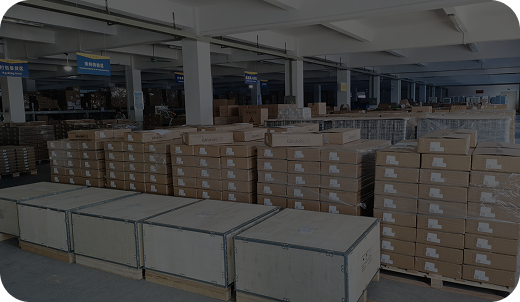

Mass production and on-time delivery

Under strict production management and quality control, start mass production to ensure product consistency and deliver your orders on time to meet your market demands.

Why Choose Winshare Thermal Alloy?

Elite Expertise and Trusted Partnership

Winshare Thermal Alloy is a leader in New Energy thermal management, built on an elite design team with experience serving top global thermal companies and Fortune 500 clients. Our core value is providing reliable, high-performance cooling solutions, making us a trusted, long-term partner for industry giants like Delta, Sungrow, and BYD in tackling critical high-power thermal challenges.

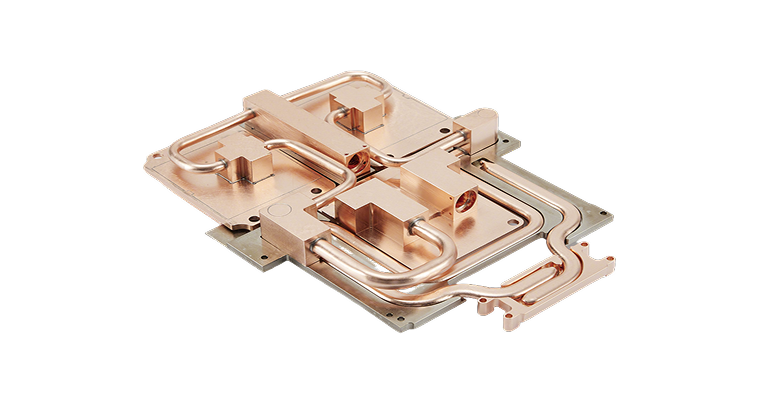

Specialized Heat Pipe Thermal Module Capability

Our key technical advantage is profound expertise in Heat Pipe Thermal Module design and manufacturing. We utilize advanced processes like Friction Stir Welding (FSW), Brazing, and extensive simulation data to ensure optimal thermal performance. This specialized mastery of heat pipe technology, alongside comprehensive manufacturing for Liquid Cold Plates and Skived Fins, allows us to deliver innovative and precisely engineered solutions.

Rigorous Quality and Comprehensive Customization

We operate under the highest standards, maintaining quality management systems like ISO9001 and TS16949. Our commitment includes comprehensive customization, offering end-to-end support from product concept to mass production, including critical Design for Manufacturability (DFM) analysis. We ensure every product is perfectly integrated, reliable, and high-quality.

Guaranteed Mass Production and Scalability

Recognizing the high-volume demands of rapid-growth sectors, Winshare offers powerful mass production capability for Heat Pipe Thermal Modules and other solutions. We seamlessly integrate into your supply chain, guaranteeing fast, consistent delivery and cost-effective scalability. This ensures your products can confidently and quickly enter the market.

Winshare Heat Pipes: Frequently Asked Questions (FAQs)

Q Is the heat dissipation performance of heat pipes affected by direction?

A Yes, the heat dissipation performance of heat pipes can be affected by the direction of gravity. The best performance is when the evaporation end is higher than the condensation end (gravity-assisted direction). The performance is secondary when placed horizontally; Capillary requirements are highest when the evaporation end is lower than the condensation end (in the anti-gravity direction), and sintered heat pipes are generally better suited for anti-gravity applications.
Q How long does the heat pipe last?

A Properly designed and manufactured heat pipes for a very long life. Winshare's heat pipes use high-purity materials and strict sealing processes to ensure that the internal working fluid is not lost. Under normal operating conditions, their lifespan often matches that of electronic devices, or even longer, up to decades.
Q What is the working fluid inside the heat pipe? Is it safe?

A The working fluid inside the heat pipe is selected according to the operating temperature range, the most commonly used is water, in addition to methanol, acetone, ammonia, etc. These fluids are sealed inside the heat pipes and do not leak into the outside environment. The working fluid and manufacturing processes we use comply with environmental and safety standards, ensuring that the products are harmless to humans and the environment.
Q What is the difference between heat pipes and vapor chambers?

A Heat pipes are linear heat transfer elements primarily used to transfer heat from one point to another. The vapor chamber can be understood as a two-dimensional planarized heat pipe, which can quickly diffuse and homogenize heat across the entire surface, suitable for surface uniformity of high heat flux density chips, and provide stronger local heat dissipation capabilities.

Contact us today to customize your flexible heat pipe solution!

Get an instant quote
