Brazed Cold Plates - Ultimate Cooling Solutions
Winshare Thermal provides superior brazed cold plates for your high heat flux applications
Frame 1321318651 (1)

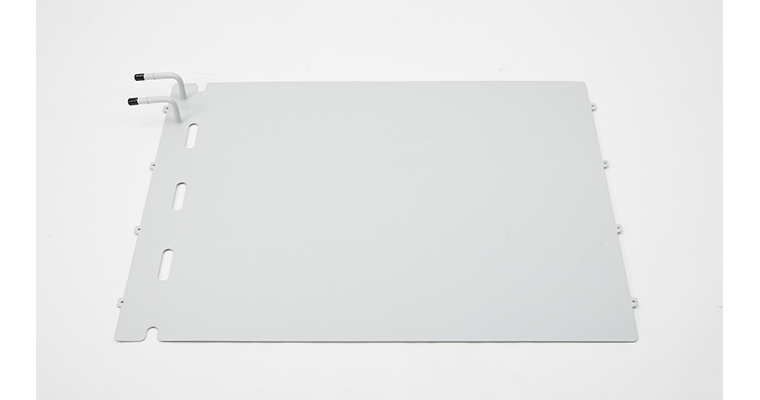

Brazed Cold Plates

We join two or more metal plates (aluminum, copper, or stainless steel) by vacuum brazing. Inside, we build flow channels and dense fins. Coolant touches more surfaces. Heat moves out fast.
Core Features:
Vacuum join: Metal melts and seals tight. No leaks.
Microchannel dense fins: More contact with coolant.
Complex channels: Coolant swirls and grabs heat.
Full seal: Strong and leak-proof under pressure.
Thin but tough: High power in small space.
F

Brazed Cold Plates Technology & Product Categories

What are the advantages of Brazed Cold Plates?

Top heat transfer

Vacuum brazing makes leak-proof, low-resistance joints.


High power cooling

Handles 1000 W+ per plate. Built for EV controllers, wind converters, AI servers.

Strong & sealed

Full metal bond. No leaks under pressure.


Compact power

Thin design, big cooling. Saves space.

Custom channels

Any flow path you need.

Certified quality

ISO 9001 & TS 16949. Trusted by global leaders.

The main difference between brazed cold plates and embedded pipe cold plates

While both brazed cold plates and embedded tube cold plates are liquid cooling solutions, they differ significantly in their manufacturing processes, structural characteristics, and performance, making them suitable for different thermal management requirements:
Bonded-fin-heat-sink4_03
Manufacturing process
Brazed Cold Plates: Multiple metal sheets are fused together through high-temperature brazing (usually vacuum brazing) to form a single-piece internal flow channel and fin structure. This metallurgical bond provides excellent structural integrity.
Embedded tube cold plates: Cooling tubes (such as copper tubes) are typically pressed or bonded into pre-machined slots in the baseplate. A small gap may exist between the tubes and the baseplate, which typically needs to be filled with thermally conductive adhesive.

Internal structure and thermal resistance
Brazed cold plate: The internal structure can be designed with extremely complex and high-density fins or microchannels to maximize the contact area between the coolant and the cold plate material, thereby achieving extremely low thermal resistance and higher heat transfer efficiency.
Embedded pipe cold plate: The flow channel is usually a simple tubular structure. Heat needs to be transferred through the pipe wall and the contact surface between the pipe and the substrate, and the thermal resistance is relatively high.
Bonded-fin-heat-sink4_03
Sealing and reliability
Brazed Cold Plates: The metallurgical bond formed by brazing provides unmatched sealing, virtually eliminating the risk of leakage, suitable for critical applications and high-pressure environments where reliability is paramount.
Embedded tube cold plates: Although they can provide a reliable seal if designed properly, the risk of leakage is theoretically slightly higher than that of brazed cold plates due to the physical contact or gluing.

Applicable heat load
Brazed Cold Plates: Designed to handle extremely high heat flux and high power cooling needs.
Embedded Tube Cold Plates: Cost-effective for low to medium heat load applications.

Brazed Cold Plates Core product parameters and customization capabilities

Group 1321314619
Leading vacuum brazing technology

Mastering advanced vacuum brazing technology ensures the perfect combination of internal flow channels and fin structure, providing excellent heat conduction performance.


Group 1321314612 (1)

High strength and leak-proof protection

The metallurgical bond formed by brazing provides extremely high structural strength and unparalleled sealing, ensuring reliable operation of the product under harsh working conditions.

Group 1321314620
Precision channel and fin design

Ability to design and manufacture complex internal microchannels and high-density fins to maximize heat dissipation surface area and meet the challenges of high heat flux density.

Group 1321314613 (1)

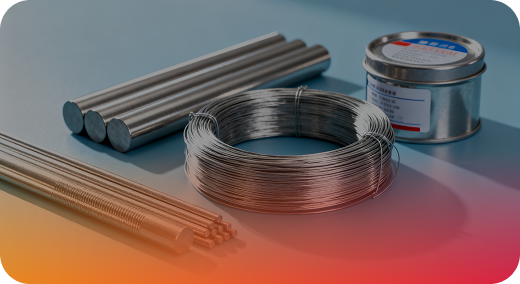

Multi-material brazing expertise

Expertise in brazing a variety of metals,including aluminum,copper, and stainless steel, to meet the material compatibilityand corrosion resistance requirements of various applications.

Group 1321314616 (1)

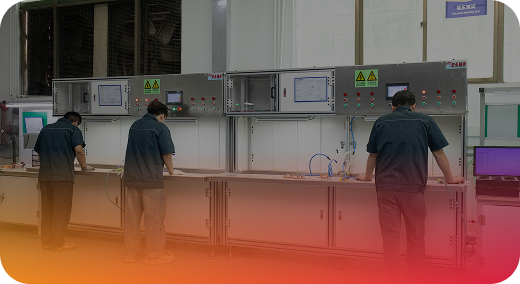

Strict non-destructive testing

Advanced non-destructive testing technologies such as helium mass spectrometry leak detection are used to ensure that each brazed cold plate meets the stringent standard of zero leakage.


Group 1321314617
Customized solution experts

Based on the unique needs of customers, we provide comprehensive customized services from concept design to mass production to achieve the best thermal management solutions.

Group 1321314618
One-stop thermal management service

Provide one-stop liquid cooling solutions from thermal design, structural design, precision manufacturing to system integration.



Why choose Winshare Brazed Cold Plates?

001A6007 9

  • Ultimate cooling performance:

    组 12 We specialize in providing brazed cold plates with industry-leading heat transfer efficiency and ultra-low thermal resistance, ensuring your critical equipment operates stably under extreme operating conditions.
    组 12    Deep brazing expertise: With years of experience in brazing technology, we are able to master complex designs and multiple material combinations, achieving unparalleled product reliability.

  • Strict quality control and testing:

    组 12 From raw materials to finished products, every link undergoes strict quality control, including advanced helium mass spectrometry leak detection, to ensure zero-defect product delivery.

  • Customized design and engineering support:

    组 12 Our team of experienced engineers provides comprehensive technical support, from thermal simulation and structural optimization to prototype verification, to turn your needs into reality.

  • Trusted industry partner:

    组 12 We have become the preferred partner of many global leading companies in the field of high heat flux density cooling, jointly pushing the technological frontier.

Winshare Brazed Cold Plates Application Areas

brazed_0006_计算机

High Performance Computing (HPC)

High-density heat dissipation for supercomputers, data center servers, GPU clusters, etc.
brazed_0000_高功率电子设备

High Power Electronics

Extreme thermal management of IGBT modules, converters, high-power power supplies, etc.

brazed_0002_医疗

Advanced Medical Imaging

MRI, CT scanners and other equipment that require extremely high temperature stability and reliability.

brazed_0005_工业

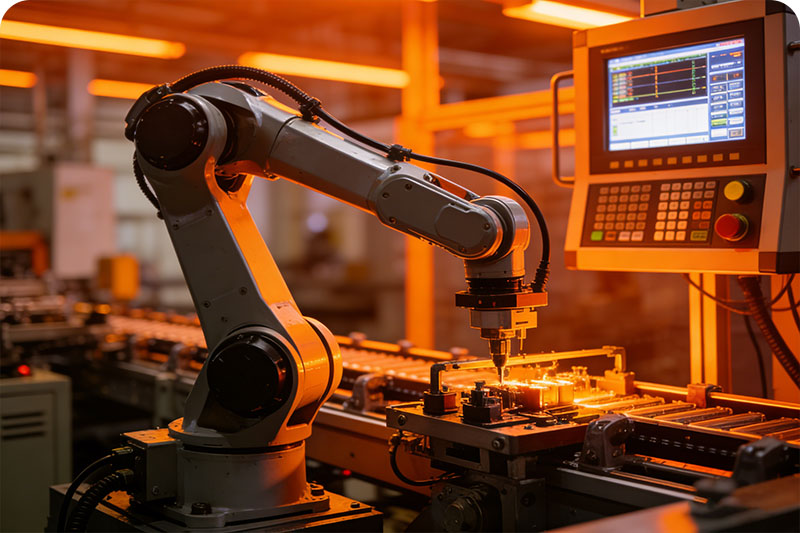

Industrial Automation

High-precision temperature control for robot control, precision machine tools, etc.


brazed_0003_军事

Aerospace and Military

Heat dissipation in extreme environments such as airborne radar, satellite communications, and military electronic equipment.

brazed_0001_高功率激光设备

High-power laser equipment

Precision temperature control of industrial lasers, scientific research laser systems, etc.



微信图片_20251227170945_120_33

Core components of new energy vehicles

Precision thermal management of key components such as electric drive systems and battery modules.

brazed_0004_可再生资源

Renewable energy systems

High-power equipment such as wind power converters and photovoltaic inverters.




Winshare Brazed Cold Plates Customization Process

Group 1321314626
Demand communication and assessment

We will communicate with you in depth to understand your high heat flux density cooling needs, application environment, size and performance goals.



Group 1321314627
Precision design and simulation

Advanced software is used to design flow channels and fin structures, and perform thermal-fluid simulations to optimize brazed cold plate performance.



Group 1321314628

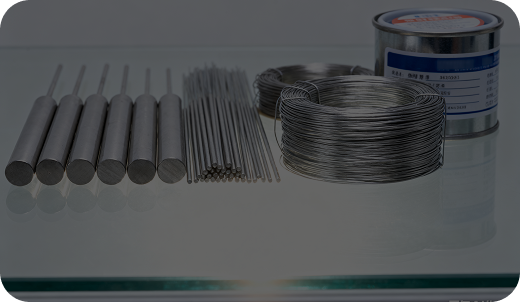

Material and brazing process determination

Select the best brazing material combination according to design requirements and determine the most suitable vacuum brazing process parameters.


Group 1321314631
Prototyping and rigorous testing

Prototypes are produced and subjected to high-precision tests such as thermal performance, pressure, flow, and helium mass spectrometry leak detection to ensure that they meet extreme requirements.


3
Design optimization and final confirmation

We will conduct fine-tuning based on the test results until the performance reaches the best and receive your final approval.



4
High-standard mass production

Utilizing advanced automated production lines and strict quality control, we ensure the consistency and excellent quality of batch products.




Winshare Brazed Cold Plates FAQ

  • Q What heat load ranges are Brazed Cold Plates mainly suitable for?

    A Brazed Cold Plates are designed to handle extremely high heat flux density and high-power heat dissipation requirements. They are an ideal choice for high-performance computing, high-power power electronics, laser equipment, and other applications that require extreme heat dissipation efficiency and reliability.

  • Q How long does it take to customize Brazed Cold Plates?

    A Customization time depends on design complexity, material availability, and production schedule. Typically, it takes approximately X weeks from design confirmation to prototype delivery. Production runs are negotiated based on order volume and specific requirements. We recommend contacting our sales team for an accurate estimate.

  • Q How do you ensure the internal flow channels of Brazed Cold Plates are clean?

    A During the manufacturing process of brazed cold plates, we strictly control internal cleanliness and use professional cleaning processes to ensure that there is no residue in the flow channel. They are rinsed and dried before leaving the factory. Some applications with high cleanliness requirements also require special treatment.

  • Q Does Winshare Thermal Alloy provide installation and after-sales support?

    A Yes, we provide comprehensive after-sales service and professional technical support. After the product is delivered, if you encounter any problems during installation or use, our technical team will be at your service at any time to help you.

Customize your Winshare Brazed Cold Plates now and unleash the ultimate cooling potential!
