Winshare Thermal Alloy Extruded Cold Plate Solutions
Winshare Thermal Alloy: High volume, cost-effective, optimal for medium heat load cooling
Frame 1321318651 (2)

What are Extruded Cold Plates?

Extruded Cold Plates (ECPs) are liquid-cooled heat sinks manufactured using a metal extrusion process. This process involves extruding a heated metal billet (usually aluminum alloy) through a die with a specific cross-sectional shape, forming the cold plate's outer contours and the coolant channels within in the same process.
This one-piece manufacturing method gives the extruded cold plate excellent structural integrity, eliminating the need for welding or brazing, thereby reducing potential leak points. Extruded cold plates are ideal for providing cost-effective and mass-produced solutions for medium heat load applications and are widely used in fields with high requirements for cost-effectiveness and mass production efficiency.

Additional notes on extruded cold plates
Channel Design: The channel design of extruded cold plates is relatively simple and is generally suitable for straight channels or channels with simple bends, which is limited by the complexity of the extrusion die. For extremely complex microchannels or multi-layer flow channels, brazed cold plates or FSW cold plates may be more suitable.
Surface treatment: Cold plates can undergo a variety of surface treatments, such as anodizing (to increase corrosion resistance and insulation), passivation, chemical nickel plating, etc., to meet the needs of different application environments.
Length Limitation: The length of extruded cold sheets is often limited by the length of the extrusion equipment and transportation conditions. Winshare can provide customized services of different lengths according to your specific needs.
Group 1321314806

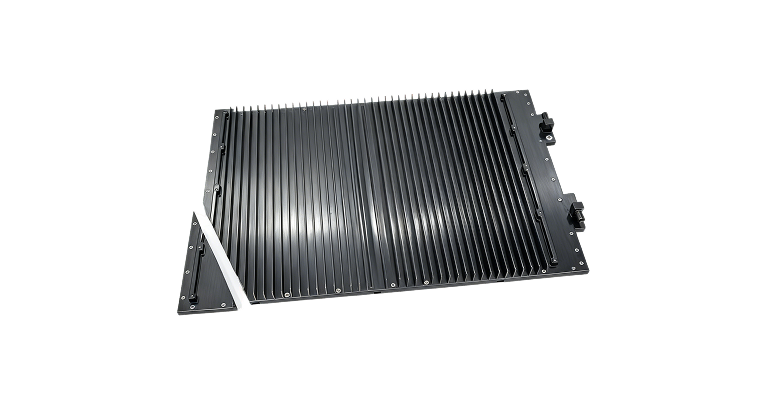

What are the advantages of Extruded Cold Plates?

Extremely cost-effective

Integrated extrusion molding eliminates the need for complex welding and is particularly suitable for mass production, significantly reducing unit costs.

Excellent structural integrity

The weld-free design reduces potential leak points and provides higher reliability and structural strength.

Good thermal performance

For medium heat load applications, it provides stable and efficient heat dissipation capabilities to ensure normal operation of the equipment.

Design flexibility

The shape and size of the flow channel can be customized within a certain range to meet the heat dissipation requirements of different components.

Lightweight advantages

Manufactured primarily from aluminum alloy, it has inherent lightweight properties that help reduce overall system weight.

High production efficiency

The extrusion process is highly efficient, enabling rapid, large-scale production and shortening lead times.

The main difference between Extruded Cold Plate and other cold plates

Extruded cold plates have a unique manufacturing method and performance characteristics, occupying a place in liquid cooling solutions. They have different focuses from other cold plate types
Bonded-fin-heat-sink4_03
Manufacturing process
Extruded cold plate: Molded in one piece through an extrusion die, with no welds and no connection interfaces.
Embedded Tube Cold Plates: Cooling tubes are pressed or bonded into the base plate slots.
Brazed cold plate: Multiple metal sheets are fused together through high-temperature brazing to form a complex internal structure.
FSW Cold Plate: Solid-state connection using friction stir welding, high weld quality, no melting

Flow channel complexity
Extruded cold plate: The flow channel design is relatively simple, usually a straight line or a simple curved channel, which is limited by the complexity of the extrusion die.
Embedded tube cold plate: The flow channel is tubular, which allows a certain degree of layout flexibility.
Brazed Cold Plates / FSW Cold Plates: Extremely complex and high-density internal fin or microchannel structures can be designed for optimal heat transfer.
Bonded-fin-heat-sink4_03
Thermal performance range
Extruded Cold Plates: Suitable for medium heat load applications, providing good heat dissipation performance.
Embedded tube cold plate: Suitable for low to medium heat loads.
Brazed Cold Plates/FSW Cold Plates: Designed to handle extremely high heat flux and high power cooling needs.

Cost and applicable batch
Extruded cold plate: High production efficiency, extremely low unit cost after mold cost is amortized, most suitable for mass production.
Embedded tube cold plates: Cost-effective for medium batch sizes.
Brazed cold plate/FSW cold plate: The manufacturing process is complex and the cost is relatively high. It is suitable for high performance, small batch or medium batch customization needs.

What material combinations are supported for Extruded Cold Plates?

The extrusion process has certain limitations in the choice of metal materials, but it demonstrates excellent performance and cost-effectiveness in certain materials. Winshare Thermal Alloy's Extruded Cold Plates are primarily made of the following materials

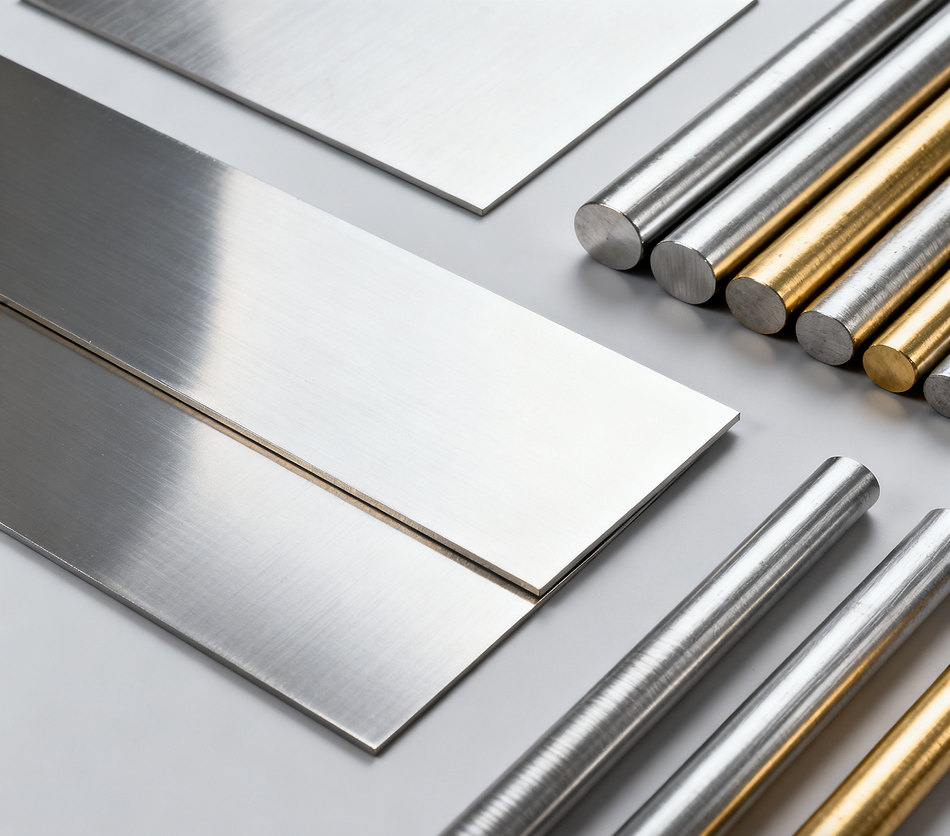

image 1089
Aluminum alloy Extruded cold plate
Aluminum alloys are the most commonly used materials for extruded cold plates, particularly grades like 6061 and 6063. These alloys offer excellent thermal conductivity, lightweight construction, good machinability, and corrosion resistance. The extrusion process maximizes these advantages, making them ideal for cooling moderate heat loads in applications such as consumer electronics, LED lighting, and telecommunications equipment.

Other material potentials
Although aluminum alloy is the mainstream, in theory other extrudable metals such as copper can also be used to manufacture extruded cold plates, but this usually increases the cost and manufacturing difficulty, and is not as common as aluminum alloy in actual applications.
Our team of engineers will recommend the most suitable aluminum alloy grade and flow channel design based on your specific application needs and budget, ensuring the cold plate achieves the best balance between performance and cost-effectiveness.

How cost-effective are Extruded Cold Plates?

Extruded Cold Plates offer excellent cost-effectiveness in high-volume production, making them ideal for many moderate heat load applications. This cost advantage stems primarily from their unique manufacturing process

Winshare Thermal Alloy, with its advanced extrusion technology and optimized management, can provide you with highly competitive Extruded Cold Plates solutions, ensuring you achieve the best balance between performance and budget.
  Low unit manufacturing cost
Extrusion molding is an efficient continuous production process. Once the mold is developed, subsequent production is fast and highly automated, significantly reducing the direct manufacturing cost of each cold plate.

  Reduce subsequent processing
Because the runner is integrally formed during the extrusion process, the need for complex welding, brazing or internal machining is reduced, saving significant labor and equipment costs.

  High material utilization rate
Extrusion processes typically result in higher material utilization and less scrap, further reducing overall material costs.

  Long-term savings from reliability
The weld-free, one-piece structure means lower risk of leakage and higher reliability, reducing long-term costs of product failure and maintenance.

  Fast time to market
Efficient production processes mean shorter delivery cycles, helping to bring products to market faster and seize business opportunities.


Winshare Extruded Cold Plates Advantages and Features

Exquisite extrusion molding technology

With advanced extrusion equipment and rich experience in mold design, we ensure high profile precision and integrated runner molding.

Excellent cost-effectiveness

Through efficient mass production and optimized process flow, we provide customers with highly competitive prices.

High reliability and no leakage

The one-piece molding structure fundamentally eliminates the risk of leakage caused by welds and improves the long-term stability of the product.

Flexible customization capabilities

Extruded cold plates with different cross-sectional shapes, flow channel layouts and lengths can be customized according to customer needs.

Fast response and delivery

Efficient production capacity ensures fast proofing and batch delivery to meet customers' urgent needs.

Total quality management

From raw materials to finished products, we strictly follow quality standards to ensure that every product meets the design requirements.

Environmentally friendly and sustainable manufacturing

The extrusion process has high material utilization rate and less waste, which is in line with the concept of green manufacturing.

Winshare Extruded Cold Plates quality certification and guarantee

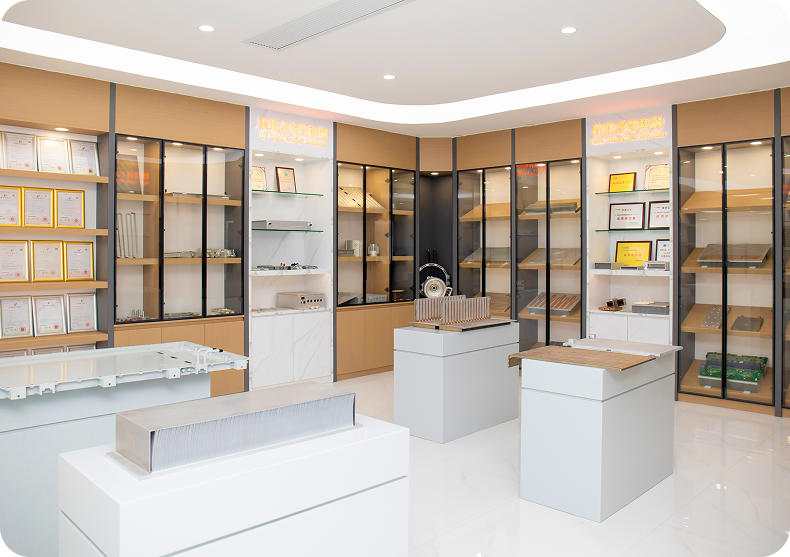

Winshare Thermal Alloy has a strict commitment to the quality of Extruded Cold Plates. We have established a comprehensive quality management system and obtained multiple international authoritative certifications to ensure that our products meet the highest standards
001A6002 3

  • Our main certifications

    组 12 ISO 9001:2015 quality management system certification: covering the entire life cycle of product design, development, production, installation and service.
    组 12 IATF 16949:2016 Automotive Quality Management System Certification: This demonstrates our ability to provide high-standard products to the automotive industry, which has stringent quality requirements.
    组 12 ISO 14001:2015 Environmental Management System Certification: Demonstrates our strong commitment to sustainable development and environmentally friendly manufacturing.
    UL/CE/RoHS certification: Ensures products comply with safety, health, and environmental regulations in major global markets.

  • Rigorous factory testing

    组 12 Pressure testing: Verifies the structural integrity and safety of the cold plate at the design pressure.
    组 12 Flow and pressure drop test: Confirm the flow characteristics of the coolant in the flow channel to ensure system efficiency.
    组 12 Dimensional accuracy and surface roughness testing: Ensure that the geometric dimensions and surface quality of extruded profiles meet strict requirements.
    组 12 Thermal resistance test: Accurately measure the overall thermal resistance of the cold plate to verify heat dissipation performance.
    组 12 Cleanliness inspection: Ensure that there is no residue in the internal flow channel to avoid contamination of the coolant system.
    组 12 Accelerated life test: Evaluates the reliability and stability of products in long-term use by simulating extreme conditions.

Winshare Extruded Cold Plates Application Areas

LED lighting

Heat dissipation of high-power LED lamps and lighting modules.

Telecommunications equipment

Communication base stations, servers, network switches, etc.

Power Module

Various types of power supplies, transformers, inverters, etc.

Industrial Control

Industrial PC, automation equipment, drives, etc.


Consumer Electronics

Heat dissipation for some high-performance consumer electronics products.

Medical Devices

Medical diagnostic equipment with high requirements on cost and reliability.

Automotive Electronics

Medium power components such as on-board chargers and controllers.


HVAC systems

Heat exchange components in air conditioning and refrigeration equipment.


Winshare Die Casting Cold Plate Customization & Mass Production Process

Group 1321314686
Initial needs assessment

Understand your heat loads, dimensions, flow needs, and batch requirements.




Group 1321314687
Mold design and optimization

According to the flow channel and shape requirements, the extrusion die is precisely designed to ensure the profile accuracy and performance.



Group 1321314688 (1)

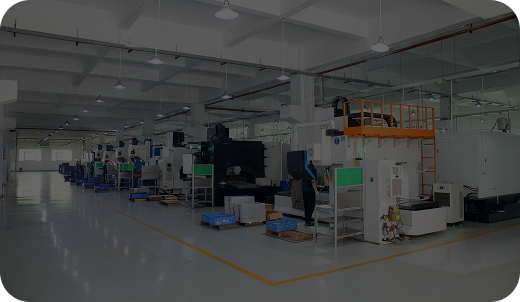

Extrusion molding and processing

Efficient extrusion molding is performed, and cutting, port processing, surface treatment, etc. are performed as needed.




Group 1321314691

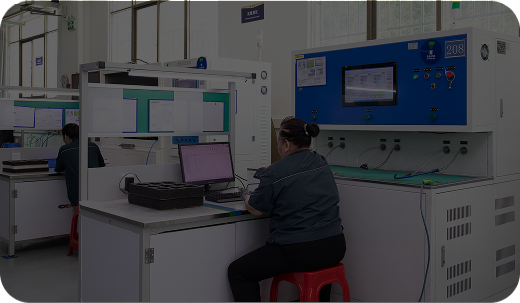

Prototype verification and testing

Prototypes are produced and tested for thermal performance, pressure, flow, and dimensional accuracy to validate the design.




Group 1321314690
Design optimization and final confirmation

We make adjustments based on test feedback until we achieve optimal performance and cost-effectiveness and gain your approval.



Group 1321314689

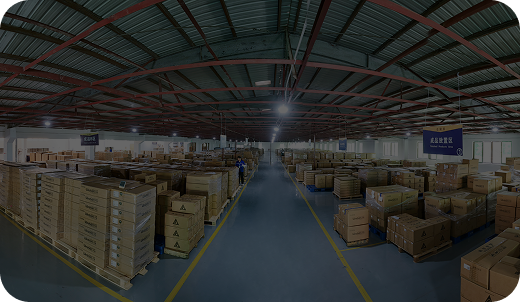

Efficient mass production

Launch large-scale production, leveraging automation to ensure product consistency and fast delivery.






Why choose Winshare Extruded Cold Plates?

LED lighting

We specialize in providing high-volume, cost-effective extruded cold plate to help you maintain your edge in a highly competitive market.

Excellent manufacturing capabilities

We have advanced extrusion equipment and precise mold design capabilities to ensure product dimensional accuracy and performance consistency.

High reliability and worry-free

The one-piece molded structure fundamentally eliminates the risk of leakage and provides long-term stable operation guarantee for your equipment.

Fast response and delivery

Efficient production process and flexible supply chain management ensure fast proofing and on-time delivery of bulk orders.

Customized design support

Our professional team of engineers can optimize flow channel design and profile cross-section to achieve optimal heat dissipation based on your specific needs.

Total Quality Management

From raw materials to finished products, every link follows strict quality standards to ensure that the product meets your expectations.

Winshare Deep Hole Drilled Cold Plates FAQ

  • Q What is the applicable temperature range of extruded cold plate?

    A The applicable temperature range of extruded cold plates depends primarily on the characteristics of the selected aluminum alloy and the type of coolant. Generally, aluminum alloy cold plates can operate stably over a wide temperature range, with specific values determined based on custom requirements and material specifications.

  • Q What is the corrosion resistance of extruded cold plate?

    A Extruded cold plates are typically made of corrosion-resistant aluminum alloy. Surface treatments such as anodizing and passivation can further enhance their corrosion resistance, allowing them to maintain long-term stability in a variety of coolants and operating environments.

  • Q Can extruded cold plates be customized in complex shapes?

    A Extruded cold plates have relatively simple flow channel designs and are primarily suitable for straight or simple curved channels, which is limited by the complexity of the extrusion die. However, their outer contour and length can be flexibly customized to suit different installation spaces and component layouts.

  • Q Does Winshare Thermal Alloy provide installation and after-sales support?

    A Yes, we provide comprehensive after-sales service and professional technical support. After the product is delivered, if you encounter any problems during installation or use, our technical team will be at your service at any time to help you.

Customize Your Winshare Extruded Cold Plates Now and Start a New Chapter of Efficient and Economical Cooling!
