What is a Pin Fin Heat Sink?

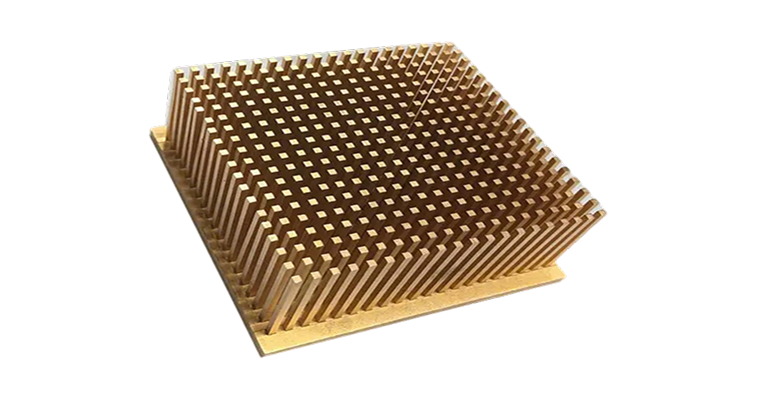

A pin-fin heat sink is a unique heat sink component characterized by a dense array of individual pin-fins (which can be cylindrical, oval, or square) on a base plate. Unlike traditional plate-fin heat sinks, the pin-fin design provides omnidirectional airflow, enabling the heat sink to maintain efficient cooling performance even in environments with uncertain or changing airflow directions.

Working principle:

Pin-fin heat sinks utilize a three-dimensional, pin-shaped structure to significantly increase the surface area in contact with the air. Once heat is transferred from the heat source to the baseplate, it is efficiently dissipated into the surrounding air through these pin-shaped fins. The gaps between the pin-fins promote air turbulence, breaking up the boundary layer effect and enhancing thermal convection. Their omnidirectional nature ensures that airflow flows efficiently through the fin array regardless of its direction of entry, achieving uniform and efficient heat dissipation.

Product features and advantages:

Omnidirectional and efficient heat dissipation: The pin-fin design allows airflow to pass freely from any direction, maintaining excellent heat dissipation performance regardless of heat sink placement or airflow direction, making it particularly suitable for products with limited space and complex airflow. High surface area density and compactness: A large number of independent pin fins provide a large heat dissipation surface area on a limited substrate area, which enables the pin fin heat sink to handle higher heat loads without being compact. Excellent fluid dynamics: The gaps between the pin fins help to form micro-turbulence, effectively destroying the boundary layer, thereby significantly enhancing the efficiency of thermal convection and improving the overall heat dissipation capacity. Superior mechanical strength and reliability: Manufactured using one-piece forging or skived-tooth processes, the pin-fin heatsink offers exceptional structural integrity and vibration resistance, ensuring long-term, stable operation under demanding operating conditions. Flexible and customizable design: The pin-fin shape (round, square, oval), height, spacing, and arrangement can be precisely optimized to achieve the best heat dissipation and pressure drop balance based on specific application requirements. Suitable for natural convection and forced convection: Whether it is a natural convection environment without a fan or a forced convection system with a fan, the pin-fin heat sink can effectively improve the heat dissipation efficiency through its unique structure.

Main components and manufacturing process:

Baseplate and pin fins: Typically made of a high-thermal-conductivity aluminum alloy or pure copper, integrally molded (through forging or skiving) or cast. The shape and arrangement of the pin fins are key design factors. Manufacturing process: Forging: Metal materials are pressed into shape through high-pressure forging to form an integrated pin-fin structure with excellent mechanical strength and thermal properties. Skiving: Precision cutting of thin and tall pin fins from a solid block of metal enables extremely high fin density and aspect ratio. Die Casting: Molten metal is injected into a mold to form the die. It is suitable for complex shapes and large-scale production, but the thermal conductivity may be slightly lower than forging and skiving. Surface treatment (optional): such as anodizing, nickel plating, etc., to enhance corrosion resistance, insulation or improve radiation heat dissipation.

Unique advantages of Pin Fin Heat Sinks

Omnidirectional airflow adaptability

The pin-fin design provides an effective heat dissipation path regardless of airflow direction, making it particularly suitable for applications where airflow is uncertain or variable.

Compact and high-density heat dissipation

Achieving extremely high surface area density within a limited volume, it is an ideal choice for applications where space is limited but heat dissipation requirements are high.

Excellent natural convection performance

The pin-fin structure can effectively induce air turbulence and achieve good heat dissipation even under natural convection conditions without a fan.

High mechanical strength and reliability

The one-piece (forged, skived) Pin Fin Heat Sink provides excellent structural integrity and vibration resistance.

Flexible size and material selection

The size can be customized according to needs, and high thermal conductivity materials such as aluminum or copper can be flexibly selected to achieve the best balance between performance and cost.

Suitable for point heat source heat dissipation

The pin-fin design can effectively concentrate heat dissipation in local high heat density areas, improving hotspot management efficiency.

Why Choose Winshare Pin Fin Heat Sink?

Winshare has extensive technical expertise, advanced manufacturing processes, and exceptional customization capabilities in the pin-fin heat sink field. We are committed to providing you with high-performance, highly reliable pin-fin cooling solutions that perfectly suit your application.

Precision manufacturing technology and high quality

Winshare masters advanced pin-fin heat sink manufacturing processes, including precision forging, efficient skiving, and optimized die-casting. We can select the most appropriate process based on your specific needs, ensuring your product has superior mechanical strength, dimensional accuracy, and thermal performance.

Pin-fin geometry optimization design

Our thermal design team uses advanced CFD (Computational Fluid Dynamics) simulation tools to precisely optimize the shape (circular, square, oval), height, spacing, and arrangement of the pin fins. This ensures the heat sink achieves the optimal balance between thermal resistance and pressure drop under various airflow conditions.

Winshare Pin Fin Heat Sink Application Areas

Winshare's pin-fin heat sinks are widely used in the following fields with strict requirements on space and airflow due to their omnidirectional heat dissipation, compactness and high efficiency:

LED lighting

High-power LED downlights and spotlights Stage lighting, outdoor lighting Convection-restricted compact luminaires

Consumer electronics and embedded systems

Routers, set-top boxes Mini PC, embedded industrial computer Smart Home Devices

Automotive Electronics

Car charger, inverter ECU, sensor module Components with strict requirements on space and vibration

Communications equipment

Small base stations, wireless access points Network switches, optical modules Equipment that requires heat dissipation efficiency and volume

Medical Devices

Portable medical diagnostic equipment Internal heat dissipation of high-precision medical instruments Equipment with noise and space restrictions

Compact power supply

Industrial controllers, inverters Equipment that requires natural convection cooling

Winshare Pin Fin Heat Sink Quality Certification and Guarantee

Winshare always regards product quality as the lifeline of the enterprise. We strictly follow international quality standards and have established a complete quality management system to ensure that every Pin Fin Heat Sink has excellent performance and long-term reliability.

We have established a comprehensive product traceability system to ensure full traceability from raw materials to finished products. At the same time, we adhere to the concept of continuous improvement and continuously optimize production processes and management procedures, committed to providing customers with higher quality and more reliable Pin Fin Heat Sinks.

Category	Description
International system certification	ISO 9001:2018: Comprehensive quality management system covering the entire process of product design, production, testing and service. ISO 14001:2004: Environmental Management System Certification reflects our commitment to green manufacturing and sustainable development. TS 16949: (if applicable) Automotive industry quality management system, ensuring that products meet the high standards required in the automotive field.
Precision quality control and testing	Incoming Quality Control (IQC): Strictly screen and test raw materials to ensure they meet standards. In-process quality control (IPQC): Real-time monitoring of each production process to ensure the accuracy and consistency of pin-fin molding. Finished product inspection (FQC): Conduct comprehensive inspections on the final product in terms of size, appearance, performance (thermal resistance, pressure drop), etc. Reliability testing: including thermal shock, vibration, drop, salt spray corrosion, etc., to verify the long-term stability of the product in harsh environments.

Winshare Pin Fin Heat Sink Customization Process

When you choose Winshare, you are not only choosing an efficient cooling product, but also a trustworthy long-term thermal management strategic partner.

Requirements analysis and conceptual design

We provide a thorough understanding of your cooling needs, application environment, space constraints, and expected performance to propose preliminary design concepts.

Thermal simulation and optimization

Advanced simulation tools such as CFD are used to optimize the thermal performance of pin-fin geometry and materials and predict the heat dissipation effect.

Structural design and process selection

Conduct detailed mechanical structure design and select the best manufacturing process (forging/shovel gear/die casting) based on performance, cost and batch requirements.

Prototyping and Verification

Rapidly create prototype samples and conduct rigorous thermal, mechanical, and reliability testing in specialized laboratories

Mass production and quality control

After the prototype is confirmed, large-scale production is started, strictly implementing the ISO system and full-process quality control to ensure product consistency.

Delivery and after-sales support

Deliver products on time and provide continuous professional technical support and after-sales service to ensure customers have no worries.

Common Problems of Brazing Heat Sink

Q What manufacturing processes does Winshare mainly use to produce Pin Fin Heat Sinks?

A We primarily utilize precision forging, efficient skiving, and optimized die-casting. Forging and skiving achieve integrated structures and excellent thermal performance, while die-casting is suitable for complex shapes and large-scale production. We will recommend the most appropriate process based on your design and batch requirements.
Q What effect do different pin fin shapes (round, square, oval) have on performance?

A Different pin fin shapes affect airflow resistance, surface area, and heat convection efficiency. For example, round pin fins generally have a lower pressure drop and are suitable for natural convection; square pin fins may provide more surface area for forced convection; and oval pin fins fall somewhere in between, offering a balanced performance. Our design team will optimize the selection based on your specific application.
Q Under what airflow conditions do pin-fin heat sinks perform best?

A Pin-fin heat sinks perform particularly well in environments with omnidirectional airflow or where the airflow direction is uncertain. They also provide good cooling under natural convection (fanless) conditions because the pin-fin structure helps induce air turbulence.

Q How to choose the material of Pin Fin Heat Sink?

A The primary materials are aluminum alloy and pure copper. Aluminum is lightweight and cost-effective, making it suitable for most applications. Copper offers superior thermal conductivity and is suitable for applications requiring the highest heat dissipation performance. We will provide professional recommendations based on your thermal load, weight restrictions, and cost budget.
Q Are pin-fin heat sinks suitable for high power density devices?

A Pin-fin heat sinks offer high surface area in a compact footprint, making them ideal for space-constrained devices with medium to high power densities. For extremely high power applications, heat dissipation can be further enhanced by incorporating heat pipes, fans, or liquid cooling.
