Ultimate Cooling for Maximum PV Efficiency High-Reliability Thermal Solutions for the PV Industry

As the core link between PV modules and the grid, the performance and reliability of inverters directly determine the ROI of a solar power plant. Winshare Thermal provides high-performance, cost-effective thermal solutions designed specifically for PV inverters, ensuring your equipment operates continuously, efficiently, and stably throughout its 25-year design life.

Core Thermal Challenges for PV Inverters

High-Temperature Power Losses

IGBT/SiC modules in inverters are major heat sources. Their lifespan is nearly halved for every 10°C rise in temperature. Efficient cooling is fundamental to ensuring non-derated operation and a 25-year lifespan.

Harsh Outdoor Environments

PV plants are often built in deserts, mountains, or on water. Inverters must withstand long-term erosion from extreme heat, humidity, salt spray, and sand.

High IP Protection Ratings

To cope with rain and dust, string inverters typically use fanless, natural convection cooling, requiring the heat sink itself to have a high IP rating (IP65+).

Extreme Cost-Effectiveness

The PV industry is extremely cost-sensitive. Thermal solutions must offer highly competitive costs while ensuring performance and reliability to help clients achieve grid parity.

Customized Solutions for All PV Inverter Types

We offer a full-process portfolio from air to liquid cooling, from extrusions to die-casting, to precisely meet the diverse needs of central, string, and residential inverters.

String Inverters: High-Protection Natural Cooling

We provide integrated thermal enclosure solutions to meet the fanless, high-protection requirements of string inverters.

Die-Cast/Extrusion Heat Sinks

Featuring complex fin structures to maximize natural convection heat transfer area.

IP65/IP66 Protection

Achieved through precision structural design and sealing processes.

Corrosion-Resistant Coating

Providing C4/C5 level anti-corrosion coatings to meet 25-year life requirements in harsh environments.

Central Inverters: High-Performance Forced Cooling

For megawatt-scale central inverters, we provide efficient and reliable forced convection solutions to ensure stable operation of power modules.

Forced Air Cooling Modules

Utilizing high-density skived/welded fins and heat pipe technology for ultra-low thermal resistance.

Efficient Liquid Cooling

Offering liquid cooling solutions for next-gen high-power inverters, achieving smaller size and higher efficiency.

Simulation-Driven Design

Optimizing air/fluid channels through simulation to achieve the best cooling effect at the lowest cost.

Our Success Stories

We work closely with the world's leading PV inverter manufacturers, helping their products succeed globally.

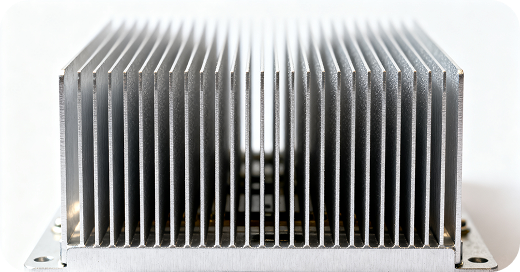

Developing String Inverter Heat Sinks for a Global Top 3 Client

Challenge: The client's new 200kW+ inverter needed a 30% power increase in the same volume, while meeting C5 corrosion resistance.

Solution: We optimized the fin design through simulation and used a high-conductivity die-cast aluminum alloy with a special surface treatment.

Result:Thermal performance increased by 25%, weight was reduced by 10%, successfully helping the client capture the high-power string market.

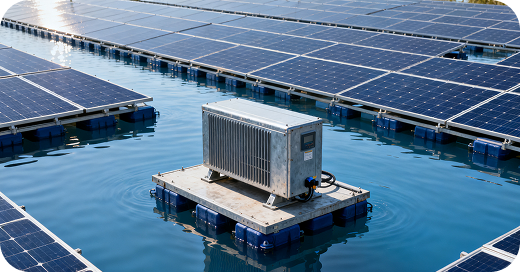

Enabling Central Inverters for Floating PV Plants

Challenge: The high-humidity, high-salt-spray environment of floating PV projects posed an extreme reliability challenge for inverter cooling systems.

Solution: We provided an IP68-rated forced air cooling module with heat pipes and a fully sealed design.

Result:The product passed a 1500-hour enhanced salt spray test and has been operating without failure in multiple floating PV projects for over 5 years.

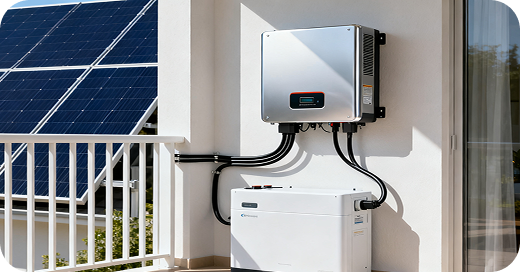

A Cost-Effective Solution for Residential Hybrid Inverters

Challenge: A client's residential hybrid inverter required a heat sink that was aesthetic, silent, and extremely cost-competitive.

Solution: We designed an extrusion heat sink with an artistic fin structure and significantly reduced costs through process optimization.

Result:While meeting all performance requirements, we reduced the client's cooling cost by 20%, leading to an order of several million units.

Why Partner with Winshare Thermal for PV Cooling

We are your trusted partner, dedicated to maximizing the value of your PV assets through superior thermal technology.

20+ Years of Industry Expertise

With over 20 years of experience in power electronics cooling, we deeply understand the thermal pain points and technology evolution of PV inverters.

Full-Process Manufacturing Platform

We master a full suite of manufacturing processes from extrusion, die-casting, and skiving to brazing, FSW, and heat pipes, offering you the optimal integrated solution.

Trusted by Global Leaders

We are a strategic partner to several of the world's top 5 inverter manufacturers by shipment, with over 100GW of installed capacity cases.

Perfect Balance of Cost & Value

Through lean production and supply chain management, we provide solutions with ultimate cost-effectiveness while meeting the stringent standards of a 25-year lifespan.

Our Collaboration Process

We offer full-lifecycle collaboration from concept to mass production, ensuring your PV products are launched on time and with high quality.

Early Engagement & Thermal Simulation

Engaging during your product definition phase to provide design input based on thermal performance predictions.

Cost & Performance Optimization Design

Using value engineering (VE) to design the most cost-effective solution while meeting all performance targets.

Rapid Prototyping & Reliability Validation

Quickly delivering prototypes and conducting comprehensive reliability tests (salt spray, vibration, etc.) in our in-house

Global Mass Production

Providing stable and reliable global delivery through our highly automated production bases and global supply chain.

Increase Your Power Generation, Starting with Optimized Cooling

Don't let thermal management be the bottleneck limiting your inverter's performance and reliability. Contact our PV thermal experts today for a high-performance, high-reliability cooling solution tailored for your products.
