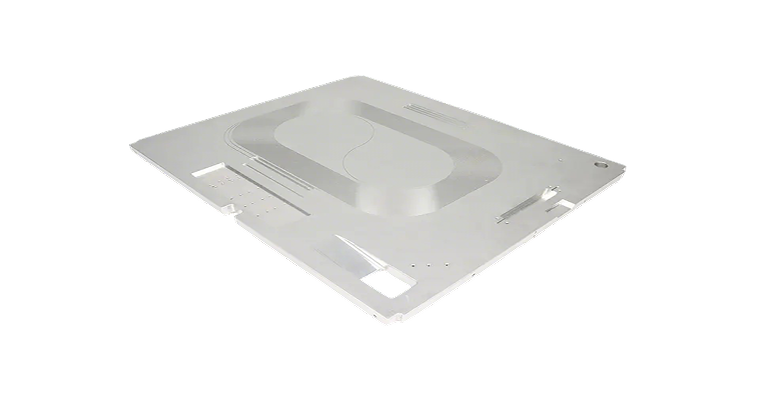

FSW Cold Plates

We build liquid-cooled plates with Friction Stir Welding (FSW). A spinning tool rubs two aluminum parts together. Heat softens the metal. It mixes and bonds without melting. No cracks. No holes. Just solid join.

Core Features:

Solid-state join: No melt. Zero defects.

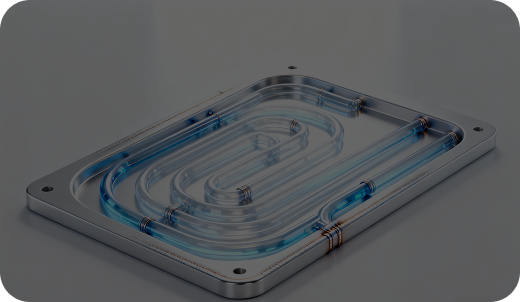

Dense channels: Complex flow paths inside.

Lightweight: All-aluminum build.

Strong bond: High strength. Low thermal resistance.

Seamless flow: Coolant runs smooth.

FSW Cold Plates Technology & Product Categories

What material combinations are supported for FSW cold plates?

Friction stir welding (FSW) technology has unique advantages in joining a variety of materials, especially in the field of aluminum alloys. Winshare Thermal Alloy specializes in using FSW to manufacture high-performance cold plates, mainly supporting the following material combinations

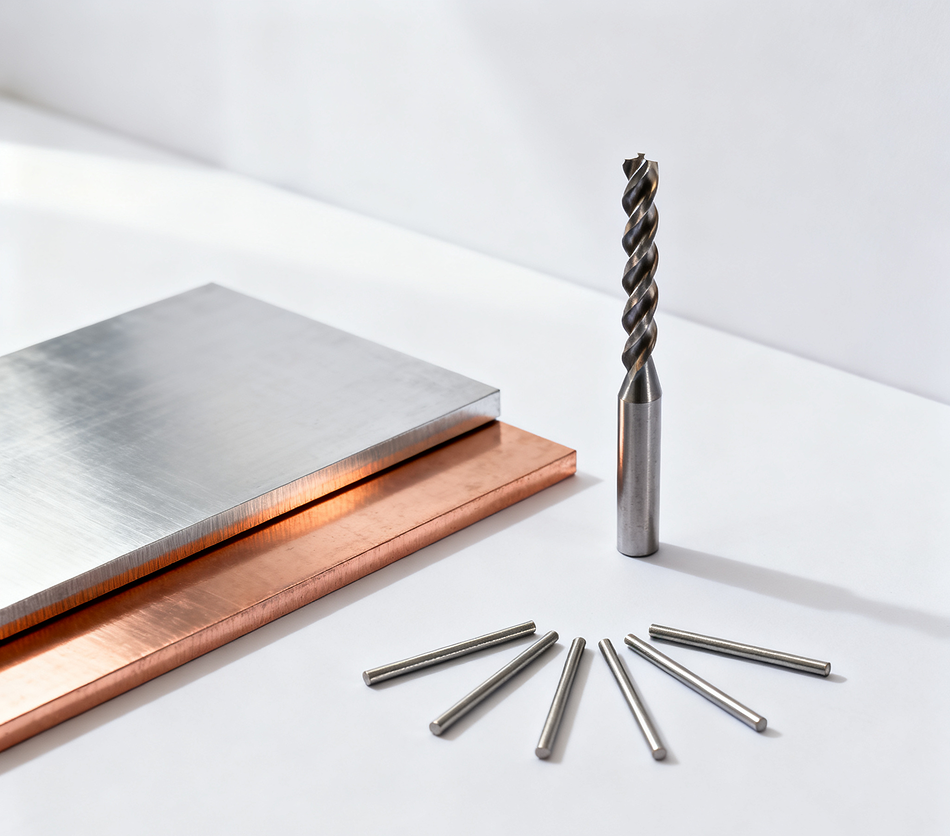

Aluminum alloy-aluminum alloy FSW cold plate

FSW is an ideal choice for joining aluminum alloys, particularly those in the 6XXX series, such as 6061 and 6063. It overcomes common defects associated with traditional fusion welding, such as hot cracking and strength loss. Aluminum alloy FSW cold plates offer lightweight, high strength, and excellent thermal conductivity, making them widely used in aerospace, electric vehicles, and high-performance electronic devices.

Dissimilar materials FSW potential

FSW technology also has the ability to join certain dissimilar metals, such as aluminum and copper. While not as common in cold plates as joining similar materials, it shows great potential in specific applications, combining the advantages of different metals.

Our team of engineers has deep knowledge of FSW material science and will evaluate and recommend the most appropriate material combination based on your specific application needs and performance goals, ensuring your cold plate achieves the optimal balance between performance, reliability, and cost-effectiveness.

Get a customized plan now

How cost-effective are FSW Cold Plates?

Winshare Thermal, with its deep expertise in precision thermal management, provides AI computing centers with liquid cooling solutions that meet stringent industry standards. For NVIDIA H/B series and high-end domestic AI chips, we offer a complete liquid cooling product chain, from cold plates and CDUs to manifolds, ensuring that GPUs maintain low temperatures even under full load, preventing thermal throttling, and providing a rock-solid cooling base for generative AI and deep learning.

Long-term value from superior performance

FSW cold plates provide excellent heat dissipation efficiency and reliability, effectively reducing the failure rate of electronic equipment due to overheating, extending equipment life, and thus reducing maintenance and replacement costs.

High reliability reduces operational risks

Leak-free, high-strength welds ensure stable operation under harsh conditions, reducing downtime and production losses caused by cold plate failure.

Production efficiency and automation advantages

The FSW process is easy to automate, enabling efficient mass production and reducing the manufacturing cost per unit product.

Material and environmental benefits

FSW eliminates the need for filler materials and flux, reducing material consumption and waste disposal costs. Its clean production process also complies with increasingly stringent environmental regulations, avoiding potential environmental fines and reputational damage.

Reduce total system cost

By providing a more efficient and reliable cooling solution, FSW cold plates may allow for more compact system designs and even reduce the need for other cooling components, thereby optimizing the total cost of the entire system.

Winshare FSW Cold Plates Advantages and Features

Top FSW technical strength

We have advanced friction stir welding equipment and rich process experience to ensure excellent weld quality and stable and reliable performance.

Ultimate thermal performance design

FSW achieves smooth, defect-free internal flow channels, minimizing fluid resistance and improving heat transfer efficiency to meet the challenges of high heat flux density.

High reliability and long life

Solid-state connection avoids the defects of traditional welding, and the product demonstrates extremely high reliability and durability under harsh working conditions such as vibration and high pressure.

Lightweight customization experts

We are particularly good at manufacturing aluminum alloy FSW cold plates, providing ideal solutions for applications with strict lightweight requirements such as aerospace and electric vehicles.

Comprehensive quality control system

From material selection to production process, and then to non-destructive testing of welds (such as X-ray, ultrasonic), we ensure that every product meets the highest standards.

Customized engineering support

Our professional team of engineers provides comprehensive customized services ranging from thermal simulation and structural design to FSW process optimization.

Green and environmentally friendly manufacturing

The FSW process is clean and energy-saving, meeting the requirements of modern industry for sustainable development.

Winshare FSW Cold Plates Application Areas

Electric vehicle battery cooling

Battery packs, motor controllers, etc. require extremely high thermal management requirements for lightweighting and reliability.

Aerospace Electronics

Precision heat dissipation in extreme environments such as satellites and aircraft avionics systems.

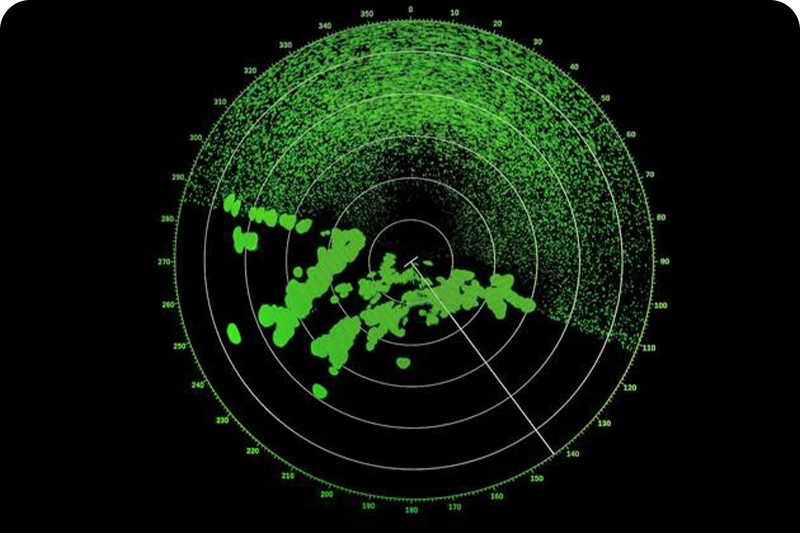

Military radar and communications

Military applications with stringent requirements for high power, high reliability and vibration resistance.

Industrial Automation

High-precision temperature control for robot control, precision machine tools, etc.

High-power semiconductor cooling

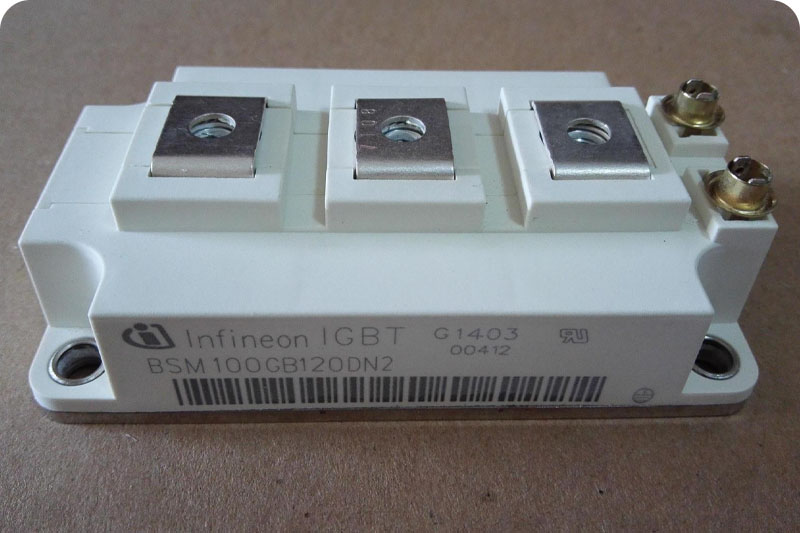

IGBT modules, high-power laser diodes and other high heat flux density devices.

Data center liquid cooling server

Direct liquid cooling of high-performance computing components such as CPUs and GPUs.

Renewable energy systems

High-power equipment such as wind power converters and photovoltaic inverters.

Medical imaging equipment Medical diagnostic

Equipment with stringent requirements on temperature stability and noise.

Winshare FSW Cold Plates Customization Process

In-depth analysis of needs

Get a detailed understanding of your cooling needs, application environment, size constraints, heat loads, and reliability goals.

Precision flow channel and structural design

Advanced simulation tools are used for flow channel optimization and structural design to ensure optimal thermal performance and mechanical strength.

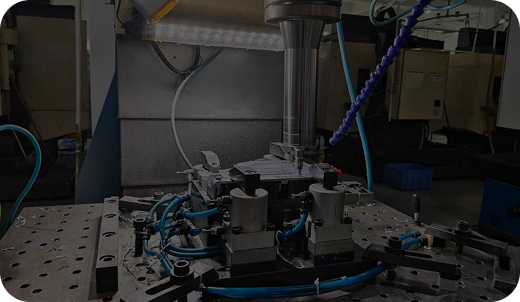

FSW process parameter optimization

Precisely set FSW welding parameters based on material and design to ensure weld quality and consistency.

Prototype manufacturing and rigorous testing

Rapidly produce prototypes and perform thermal performance, pressure, flow, helium mass spectrometry leak detection and weld non-destructive testing.

Design iteration and final confirmation

We optimize and adjust based on test feedback until performance reaches its peak and we receive your final approval.

High-standard mass production Utilizing automated FSW

equipment and strict quality control, we ensure high quality and consistency of batch products.

Why choose Winshare FSW Cold Plates?

FSW technology leader

We are a pioneer in friction stir welding technology, with deep technical expertise and extensive practical experience to ensure superior product performance.

Ultimate reliability

FSW solid-state connection provides unmatched weld quality and sealing, ensuring long-term stable operation for your critical applications.

Customized and innovative designs

Our team of engineers can leverage FSW's flexibility to design and manufacture a cold plate that best meets your specific needs and optimizes performance.

Strict quality control system

From material procurement to FSW welding process, and then to comprehensive non-destructive testing, each link follows the highest standards to ensure zero defects in products.

Environmentally friendly and efficient production

We are committed to green manufacturing, and the cleanliness and energy efficiency of the FSW process reflect our commitment to sustainable development.

Trusted Partner

We are the preferred partner for industry leaders who demand the highest levels of thermal performance and reliability.

Winshare FSW Cold Plates FAQ

Q What is the weld strength of FSW cold plate?

A FSW welds are solid-state welds with no melting process, resulting in dense microstructure and strength that approaches or even exceeds that of the parent material. We ensure weld quality through strict quality control and non-destructive testing.
Q How is the surface flatness of the FSW cold plate?

A The FSW process can achieve excellent weld surface flatness, which is crucial for close contact between the cold plate and the heat source, helping to maximize heat transfer efficiency.
Q Does the FSW process have any restrictions on material thickness?

A FSW is suitable for a wide range of material thicknesses, from thin to thick plates. Our equipment and processes are flexible enough to accommodate the manufacturing needs of cold plate of varying thicknesses.
Q Does Winshare Thermal Alloy provide installation and after-sales support?

A Yes, we provide comprehensive after-sales service and professional technical support. After the product is delivered, if you encounter any problems during installation or use, our technical team will be at your service at any time to help you.

Customize your Winshare FSW Cold Plates now and experience superior cooling with solid-state connections!

Get an instant quote
