Friction Stir Welding Heatsink


Friction welding (friction stir welding) refers to the use of the heat generated by the friction between the high-speed rotating welding tool and the workpiece to locally plasticize the material to be welded. When the welding tool moves forward along the welding interface, the plasticized material is in the welding tool. The rotating friction force flows from the front to the back of the welding tool, and forms a dense solid-phase weld under the squeeze of the welding tool.

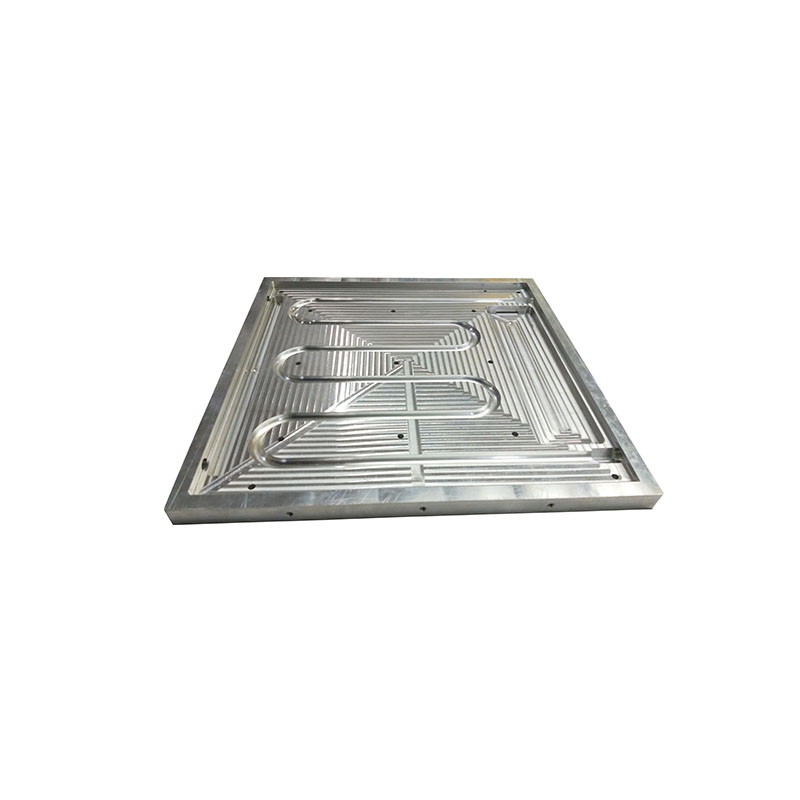

Friction Stir Welded Heatsink

Friction welding usually consists of the following four steps:

1. Convert mechanical energy into heat energy;

2. Material plastic deformation;

3. Forging pressure under thermoplasticity;

4. Intermolecular diffusion and recrystallization.

The main advantages of friction stir welding are as follows:

(1) The microstructure change of the heat-affected zone of the welded joint is small. The residual stress is relatively low, and the welding workpiece is not easy to deform;

(2) Long welds, large cross-sections, and different positions can be welded at one time. Connector height:

(3) The operation process is convenient to realize mechanization and automation, the equipment is simple, the energy consumption is low, the efficiency is high, and the requirements for the working environment are low:

(4) No need to add welding wire, no need to remove the oxide film before welding when welding aluminum alloy, no shielding gas is needed, and the cost is low;

(5) Weldable materials that are sensitive to thermal cracks, suitable for welding dissimilar materials:

(6) The welding process is safe, pollution-free, smoke-free, and radiation-free.

The biggest difference between friction stir welding and traditional fusion welding is that during the entire welding process, the temperature at which the metal to be welded gains energy does not reach its melting point, that is, the metal is a forging-like solid phase connection in a thermoplastic state.

Compared with traditional fusion welding, friction welding has high welding joint quality-can reach the strength of the weld seam and the strength of the base material, high welding efficiency, stable quality, good consistency, and can realize the welding of dissimilar materials.

Friction welding (friction stir welding) with its high-quality, high-efficiency, energy-saving, and non-polluting technical characteristics has been improved in new technologies and traditional industries such as aviation, aerospace, nuclear energy, weapons, automobiles, electric power, marine development, and machinery manufacturing. More and more widely used.
