Views: 1 Author: Site Editor Publish Time: 2025-10-21 Origin: Site
In my work, I see a constant battle against heat. Modern technology runs incredibly hot. In the world of electric cars and huge data centers, getting rid of heat is not just a small detail. It is a critical need. We are dealing with systems that handle massive amounts of power. So, we need powerful cooling solutions. This is where a special process, vacuum brazing, becomes a true game-changer.
I remember the first time I saw a complex cold plate for an EV battery pack. It had dozens of tiny channels, all perfectly sealed. I learned it was made using vacuum brazing. That was the moment I realized this technology was the key to solving some of the biggest thermal challenges we face.
So, what is vacuum brazing? It is a way of joining metals together in a very clean, controlled space. It helps us build components that move heat with amazing efficiency. This guide is my way of sharing what I've learned. I will walk you through the benefits of vacuum brazing. I will explain the process step-by-step. And I will show you where it is being used to create amazing new technologies. This essential guide explores how mastering vacuum brazing can elevate your thermal solutions, using the best practices to deliver performance you can't get any other way.
Let's start with the basics. Vacuum brazing is a high-tech joining process. We use it to connect metal parts. We do this inside a special furnace. First, we pump all the air out of the furnace. This creates a vacuum. A vacuum is a space with almost nothing in it. This is a very important step.
Inside the furnace, we heat the parts. We also use a filler metal. The filler metal has a lower melting point than the parts we are joining. When the furnace gets hot enough, the filler metal melts. It becomes a liquid. But the main parts, our base materials, do not melt. They stay solid. The liquid filler metal then flows into the tiny gaps between the parts. After it cools, it creates a very strong and clean bond. It is like using a special, high-strength metal glue.
You might be familiar with other ways of joining metals. I often get asked how vacuum brazing compares to them. It is different from regular brazing because it uses no flux. Flux is a chemical paste used in traditional brazing and soldering to clean the metal surfaces. In a vacuum, we don't need it. The vacuum itself keeps the parts clean by preventing oxides from forming. Oxides are like rust, and they create weak spots.
Here is a simple table to show the differences:
Feature | Vacuum Brazing | Traditional Brazing | Welding | Soldering |
Environment | Vacuum (no air) | Normal Air | Normal Air | Normal Air |
Flux Required? | No | Yes | Sometimes (shielding gas) | Yes |
Heat Level | High | High | Very High | Low |
Base Metal Melts? | No | No | Yes | No |
Joint Strength | Very Strong | Strong | Strongest (part of base metal) | Weak |
Cleanliness | Very Clean | Requires Post-Cleaning | Can be Messy | Requires Post-Cleaning |
So, why do we use this for cooling systems? Because it creates perfect joints. In thermal management, we build things like heat sinks and cold plates. These devices often have channels for liquid to flow through. If there is even a tiny leak, the whole system fails. Vacuum brazing creates joints that are completely leak-proof.
The bonds are also very strong and have no voids or gaps. This is great for heat transfer. Heat can move smoothly across the joint without getting stuck. This means lower thermal resistance and better cooling performance.
Three key ideas make vacuum brazing work so well.
● Capillary Action: This is the magic that pulls the liquid filler metal into the joint. Think about a paper towel touching water. The water seems to climb up the towel by itself. The same thing happens here. The tiny, controlled gap between the metal parts pulls the melted filler metal in, filling the entire space completely.
● Vapor Pressure Management: In a vacuum, some elements in metals can turn into a gas at high temperatures. This is called vaporization. For example, metals like zinc or magnesium can "boil away" and coat the inside of the furnace. We have to carefully control the temperature and vacuum level to prevent this.
● Partial Pressure: Sometimes, to stop vaporization, we let a small, controlled amount of a neutral gas, like argon or nitrogen, back into the furnace. This is called creating a partial pressure. It raises the pressure just enough to keep the metal elements from turning into a gas, but it's not enough to create oxides. It's a delicate balancing act.
I've managed many projects, and when we choose a manufacturing process, we always look at the benefits. For high-power thermal management, the advantages of vacuum brazing are just too good to ignore. It solves so many problems at once. Let's break down why it's my preferred method.
The number one benefit is the quality of the joint. Because we work in a vacuum, there is no oxygen. No oxygen means no oxides can form on the metal surface while it's hot. Oxides are weak and prevent good bonding. The result is a bright, clean, and incredibly strong joint. These bonds are very durable. They can handle high heat and stress for a long time without failing. This is essential for a cooling system in an electric vehicle that has to last for years on the road.
Imagine trying to build a perfectly flat cold plate. If the heating is uneven, the metal can warp or twist. A vacuum furnace heats the entire part uniformly. All sides of the component reach the same temperature at the same time. This controlled heating and cooling cycle means very little distortion. Every part we make is almost identical to the last one. This consistency is critical for reliable thermal performance in mass production.
Some people think a high-tech process like this must be expensive. But it is often more cost-effective in the long run. First, since we don't use flux, we completely eliminate the need for post-brazing cleaning. Cleaning flux residue is a messy, time-consuming, and costly step. Second, vacuum furnaces are often very large. This allows for batch production. We can load hundreds, or even thousands, of small parts into the furnace for a single cycle. This scalability makes the cost per part very competitive. An analysis by ECM Technologies showed that this can reduce cycle times by up to 40% for certain parts.
This is a huge advantage for thermal designers. In cooling systems, we often want to use different materials together to get the best performance. For example, copper is excellent at spreading heat, while aluminum is lightweight and cheap. Joining copper and aluminum with traditional methods like welding is extremely difficult. But vacuum brazing makes it possible. We can easily braze dissimilar metals. This allows us to design advanced cooling systems that are both high-performance and lightweight, which is perfect for industries like aerospace and EVs.
As an engineer, I also care about the impact of my work on the environment. The vacuum brazing process is very clean. Since it's flux-free, we don't produce harmful chemical waste that needs to be treated and disposed of. It does not release fumes into the atmosphere. This makes it a much greener and safer process for both the environment and the people who work with it.
These benefits directly align with how we operate. At our ISO-certified facility, we combine these process advantages with our R&D partnerships to create truly optimized designs for our clients.
The process itself is very systematic. It requires great care and precision at every stage. Over the years, I've seen that success comes from following the steps perfectly. Messing up one step can ruin the entire batch. Here is a breakdown of how we take raw parts and turn them into a finished, high-performance thermal component.
This is the most critical stage. You cannot get a good braze with dirty parts or a bad design.
● Cleaning: All parts must be perfectly clean. This means removing all oil, grease, dirt, and oxides from the surfaces that will be joined. We use special degreasing and cleaning procedures. I can't stress this enough: 90% of brazing problems I've seen come from poor cleaning.
● Joint Design: The gap between the parts must be just right. We call this the clearance. For capillary action to work properly, the ideal clearance is usually between $0.025$ mm and $0.125$ mm. Too small, and the filler metal can't get in. Too large, and the capillary force is too weak to fill the joint completely.
● Fixturing: The parts must be held together in the correct position during the entire heating and cooling cycle. We use fixtures made from materials like graphite or ceramics that can handle the high temperatures without warping or reacting with the parts.
Once the parts are prepared and assembled in their fixtures, we load them into the vacuum furnace.
● Filler Metal Placement: We place the filler metal at the joint. It can be a thin wire, a custom-shaped preform, or a paste. We position it so that when it melts, it flows directly into the joint.
● Loading and Pumping Down: The assembled parts are loaded into the furnace. We seal the door and start the vacuum pumps. We pump out the air until we reach a very low pressure, typically between $10^{-3}$ to $10^{-5}$ mbar. This can take some time, depending on the size of the furnace and the parts inside.
This is where the magic happens. The furnace's computer controls the heating cycle very precisely.
● Ramp-Up: The temperature is increased slowly and in stages. This allows the entire assembly to heat up evenly and prevents thermal shock.
● Soaking: We hold the parts at a specific temperature just below the filler metal’s melting point. This is called a soak. It ensures every part of the assembly is at a stable, uniform temperature.
● Brazing: We then raise the temperature to just above the filler metal's melting point. The filler metal becomes liquid and is pulled into the joints by capillary action. We hold it at this temperature for a few minutes to ensure the flow is complete.
Inside a vacuum furnace, where controlled heat and pressure create perfect joints.
Cooling is just as important as heating.
● Controlled Cooling: We cool the parts down in a controlled manner. Cooling too quickly can create internal stresses in the metal, which can cause cracks or warping. We often use a fan and an inert gas like nitrogen to speed up the cooling in a controlled way after the filler metal has solidified.
● Optional Partial Pressure: As mentioned before, if we are brazing materials with high vapor pressure elements, we might introduce a partial pressure of an inert gas during heating to prevent them from vaporizing.
After the cycle is complete and the parts are cool, we unload them. They come out bright and clean. But we still need to check them.
● Visual Inspection: We first look at the joints to see if the filler metal has flowed properly.
● Testing: For critical components like liquid cold plates, we perform leak tests. We pressurize the part with helium or air and use a detector to find any microscopic leaks. For some applications, we might even use X-ray inspection to look inside the joint and ensure it is free of voids.
Here are some key tips we always follow, inspired by industry leaders like Lucas-Milhaupt.
Practice | Why It Matters | My Advice |
Alloy Compatibility | The filler metal must be chemically compatible with the base metals. | Always check the metallurgy. Don't assume a standard filler will work for a unique combination of base materials. |
Thermal Expansion | Different metals expand at different rates when heated. This can ruin your joint clearance. | Design your fixtures to allow for this movement. For large parts, a slower heating rate is often necessary. |
Clean Handling | Even a fingerprint can leave behind oils that ruin a braze. | Always handle cleaned parts with clean, lint-free gloves. Treat them like surgical instruments. |
Furnace Maintenance | A clean furnace is essential for a clean process. | We regularly perform "clean-up" cycles on our furnaces to burn off any contaminants. This ensures a pure vacuum for every job. |
So, where is all this technology being used? I find it exciting to see our work in action, solving real-world problems in some of the most advanced industries. Vacuum brazing isn't just a process; it's an enabler of innovation.
EVs are a huge area for us. The battery pack is the heart of the car, and it generates a lot of heat, especially during fast charging or high performance driving. If the battery gets too hot, its life is shortened, and its performance drops. We use vacuum brazing to build complex aluminum cold plates. These plates have intricate internal channels that liquid coolant flows through. Our brazing process creates a single, leak-proof unit that sits directly against the battery cells, pulling heat away efficiently. We also braze cooling components for the inverters and controllers that manage the flow of power from the battery to the motor.
Renewable Energy

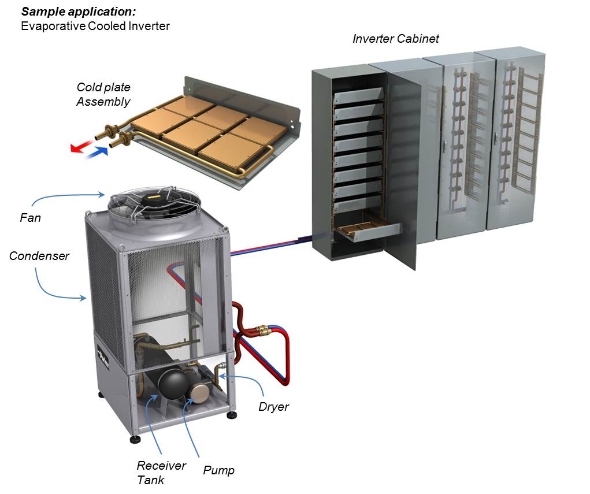

The transition to green energy relies on power electronics. Inverters that convert DC power from solar panels or wind turbines into AC power for the grid handle huge electrical loads. They get very hot. Reliability is key here; a failed inverter means lost energy production. We build robust, vacuum-brazed heat sinks that can handle these variable loads and harsh outdoor environments. They provide stable cooling for energy storage systems as well, ensuring batteries can charge and discharge efficiently without overheating.
Data Centers & AI
I'm sure you've heard about the AI revolution. Training large AI models requires enormous amounts of computing power. This means racks and racks of servers running at 100% capacity, generating an incredible amount of heat in a very small space. Traditional air cooling can't keep up. The industry is moving to liquid cooling. We use vacuum brazing to create the components at the heart of these systems, like coolant distribution units (CDUs) and server cold plates. These brazed parts allow for direct-to-chip liquid cooling, which is the only way to manage the heat from the next generation of processors.

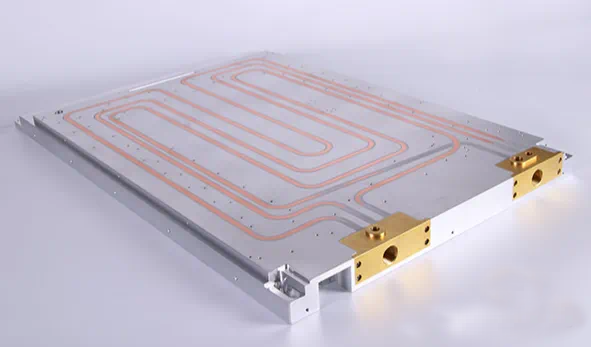

A vacuum-brazed cold plate, essential for keeping EV batteries at the optimal temperature.
The applications keep growing. I'm seeing more demand from the aerospace industry for lightweight heat exchangers used in avionics cooling. In the medical field, vacuum-brazed components are used in imaging machines and laser equipment that require precise temperature control. And with the rollout of 5G infrastructure, the powerful antennas and base stations also need advanced cooling solutions that our technology can provide. The future is full of thermal challenges, and vacuum brazing will be there to solve them.
Choosing a manufacturing partner is a big decision. The quality of their work directly impacts the performance and reliability of your product. If you are considering vacuum brazing for your project, here are a few things I've learned you should look for.
● Experience and Expertise: Does the team have a deep understanding of metallurgy and thermal dynamics? Brazing isn't just about operating a furnace; it's about the science behind it.
● Certifications: Look for quality certifications like ISO 9001 or IATF 16949 for automotive applications. These show that the provider has robust and repeatable processes.
● Customization and Design Support: The best partners don't just take your drawing and make a part. They work with you. They should be able to simulate thermal performance, suggest design improvements, and help you optimize for manufacturing. They act as an extension of your engineering team.
I'm proud of the team we've built here. Many of my colleagues, including myself, have experience from top global firms in the thermal management industry. We combine that practical experience with a strong commitment to R&D. Our partnership with the South China University of Technology allows us to stay at the forefront of new materials and processes.
We offer a complete service. It starts with design simulation and optimization. Then we move to rapid prototyping, and finally to mass production. We guide our clients through every step. We want to be more than a supplier; we want to be your thermal management partner. We take your challenges and make them our own.
We've covered a lot of ground. We started with the basics of vacuum brazing, a clean and powerful way to join metals. We explored its key benefits: superior joints, high precision, cost-efficiency, and material versatility. We walked through the step-by-step process, from careful preparation to quality assurance. And we saw how it is enabling critical technologies in electric vehicles, renewable energy, and data centers.
If you are an engineer or a project manager working on a tough thermal challenge, I encourage you to look deeper into vacuum brazing. It can transform what's possible and turn your challenges into opportunities for innovation. The future, especially a sustainable one powered by clean energy and advanced computing, is getting hotter. With the right technologies and the right partners, we can manage that heat and build a cooler world.
If you have a project in mind or just want to learn more, please feel free to reach out to us at Winshare Thermal. We're always ready to talk about your next big challenge.
