10 Critical Design Factors for High-Performance Cold Plates

Introduction: The Imperative of Optimization in Modern Manufacturing

At Winshare Thermal, we understand the relentless battle against heat in today's high-power electronics. From the intricate AI chips in next-generation servers to the robust IGBT power modules in electric vehicles (EVs) and large-scale energy storage systems (ESS), the concentration of heat is unprecedented. This high heat flux poses immense thermal challenges that traditional air cooling, having reached its functional limits, simply cannot address.

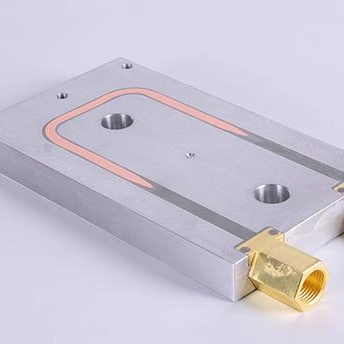

Liquid cold plates are the cornerstone of effective thermal management in these demanding applications. They serve as the critical thermal bridge, efficiently transferring heat from power-dense components into the circulating fluid. A cold plate that isn't optimally designed and meticulously manufactured can become a severe bottleneck, leading to elevated operating temperatures, compromised system performance, and significantly shortened device lifespans.

As a specialized manufacturer in high-power cooling solutions, Winshare Thermal's mission is to empower engineers with superior thermal efficiency and exceptional structural reliability. Our design philosophy is centered on two fundamental, yet often conflicting, goals:

1. Minimizing Thermal Resistance (Rth): To ensure components operate at their coolest possible temperatures.

2. Minimizing Pressure Drop (ΔP): To reduce the energy consumption of the pumping system.

Achieving the ideal balance between these two objectives requires not just theoretical understanding, but profound manufacturing expertise. This guide will delve into the 10 most essential design parameters, showcasing how Winshare Thermal's advanced CFD simulation capabilities and diverse manufacturing processes are leveraged to deliver optimized, high-reliability cold plate solutions for our global clientele.

II. Conduction and Convection Geometry)

This section focuses on the physical elements. It covers the material choices and the cold plate's internal structure. These physical factors control how heat is transferred. They affect the initial heat conduction and the total wetted area for convection.

Parameter 1: Base Thickness () - Controlling Conduction Resistance

The base thickness is the solid material layer. It is located between the heat source and the cooling channels. Heat moves through this layer by conduction only. The base thickness is a critical part of the total cold plate thermal resistance ().

Heat must travel across this thickness. A thinner base means a shorter travel distance. So, the conductive resistance () is minimized. Designers must try to make as small as possible. This is particularly important when the heat source footprint is large.

Structural Safety vs. Thermal Performance

Engineers must consider structural constraints. The cold plate needs mechanical strength. It must resist bending or warping. The internal fluid operates under high pressure (e.g., 5-10  bar). A base that is too thin will deform under this pressure. This deformation is very dangerous. It causes poor contact between the chip and the cold plate. This poor contact dramatically increases the TIM resistance. It can also cause leakage or catastrophic failure.

Engineers must calculate the minimum safe thickness. This calculation relies on material properties and the system's maximum operating pressure. This minimum safe thickness is the optimal thickness. It ensures thermal efficiency and structural integrity.

Parameter 2: Material Thermal Conductivity (k) - Heat Spreading Capability

The cold plate material choice is fundamental. Thermal conductivity (k) dictates how well heat spreads. A high k value is necessary for quick and uniform heat dissipation. High k materials quickly move heat away from hot spots.

The choice is usually between Copper and Aluminum. Copper offers superior thermal performance. Its $\text{k}$ value is about 400 W/m K. Aluminum's k value is about 205 W/m K . Copper is better at addressing thermal spreading resistance. This resistance happens when a small chip generates heat. The heat must spread out into the entire cold plate base.

Material k and System Trade-Offs

Copper provides the best thermal solution. However, it is heavier and more expensive. Aluminum is the industry standard for large, weight-sensitive applications. Its lower $\text{k}$ is acceptable when the heat load is spread out over a large area. The material choice must align with the application's weight and budget constraints.

Parameter 3: Internal Fin Density and Geometry - Maximizing Convective Area

Internal fins are used in high-performance cold plates. They are often found in brazed or micro-channel designs. The fins are metal structures inside the flow channel. They extend the wetted surface area. Fins greatly increase the convective heat transfer coefficient (). This lowers the convective thermal resistance ().

The design must optimize fin density, height, and shape. Higher fin density means more surface area. This improves heat transfer. But high density also restricts fluid flow. This restriction rapidly increases the pressure drop (∆P)

Fin Geometry and Performance Comparison

Fin shape affects fluid mixing and turbulence. Different shapes are used for different thermal needs.

Engineers must also consider fin efficiency. Very thin or very tall fins may have low efficiency. Heat cannot conduct quickly enough to the tip of the fin. The fin tip remains much hotter than the base. In this case, adding more fin material does not help. CFD modeling is necessary to optimize fin geometry and spacing.

Parameter 4: Flow Channel Aspect Ratio (H/W) - Surface Area Density

The aspect ratio is the ratio of channel height (H) to channel width (W). This ratio is a major factor in internal design. It determines the density of the cooling surface area.

A higher H/W ratio increases the cooling area. It does this without changing the overall channel footprint. This design improves cooling performance. It is a smart way to maximize the wetted perimeter.

Aspect Ratio and Manufacturing Limits

The aspect ratio is often limited by manufacturing technology.

● CNC Machining: Deep, narrow channels require long, thin tools. This process is time-consuming. It may lead to increased tool wear and reduced channel precision.

● Vacuum Brazing: This process allows for much higher aspect ratios. It uses thin, pre-formed fins. This is generally the best route for extreme performance cold plates.

Engineers must choose the highest possible H/W ratio. This ratio must be manufacturable. It must also avoid flow problems. A very deep channel may restrict flow entry and exit. This increases ∆P. The design balances performance gains and production feasibility.

Parameter 5: Flow Channel Wall Roughness () - Friction and RaRe

The internal wall roughness () is the texture of the channel walls. It is a parameter often overlooked. It strongly influences the frictional pressure drop ().Ra∆Pfric

Roughness creates friction. This friction acts against the fluid flow. Higher roughness leads to higher frictional pressure loss. The pumping system must work harder to push the fluid through.

Manufacturing Impact on Roughness

The manufacturing process determines the roughness.

● CNC Machining: The quality of the final cut determines the roughness. Post-machining polishing or chemical etching may be necessary.

● FSW (Friction Stir Welding): This welding process is crucial for EV battery plates. FSW creates a clean internal weld seam. It has a smooth surface finish. This finish minimizes frictional pressure losses compared to traditional fusion welding.

● Brazing: The brazing process must be very clean. Any flux or residue left inside the channels increases roughness. It can also cause corrosion problems later.

Roughness can slightly promote turbulence. This helps heat transfer. However, the increase in ∆P is usually too high. It is an unacceptable penalty. High-performance cold plates require extremely smooth internal channels.

III. Fluid Dynamics and System Integration)

This section focuses on the fluid itself. It looks at the system integration factors. These elements determine heat distribution, system energy consumption, and long-term reliability.

Parameter 6: Flow Pattern and Circuit Layout - Uniformity vs. ∆P

The flow pattern is the path the coolant takes. It is the most important factor for achieving temperature uniformity () across the cold plate surface. The layout must perfectly match the heat map. It must ensure that all heat sources receive equally cool fluid.

Flow Pattern and Heat Map Matching

Engineers must select the right flow pattern. This selection depends on the component's heat distribution.

CFD simulation is essential for this step. It models the flow imbalance in parallel circuits. It predicts the hot spots created by the temperature gradient in serpentine circuits. The goal is to eliminate hot spots. This elimination must be done without increasing ∆P too much.

Parameter 7: Coolant Flow Rate (Q) - Performance vs. Power Penalty

The flow rate is the volume of coolant passing through the cold plate. It is the most powerful way to improve thermal performance. A higher flow rate provides two benefits. It reduces the bulk temperature rise of the fluid (). It also increases the convective heat transfer coefficient (). Both actions lower the cold plate's .∆TfluidhRth

The Cubic Power Penalty

Engineers must consider the pump power. Pumping power increases sharply with flow rate.

This is the cubic power penalty. Doubling the flow rate requires eight times the pumping power. This is very inefficient. The design must optimize the flow rate. The flow rate must achieve the required thermal performance. It must also stay within the system's acceptable ∆P limit (e.g., 1.5  bar). Any additional flow rate is wasted energy and cost.

Parameter 8: Coolant Inlet Temperature () - The System BaselineTin

The inlet temperature () is the fluid temperature entering the cold plate. This parameter is a system constraint. It is set by the external cooling unit ( or chiller). However, is the dominant factor. It determines the component's absolute operating temperature

The component's temperature depends on . It also depends on the cold plate's efficiency.Tin

A lower always guarantees a cooler component.Tin

Tin and System PUE

A highly efficient cold plate (low ) helps the system . It allows the component to stay cool even with a RthTinhigher Tin. A running at a higher temperature is more efficient. This improves the overall data center (Power Usage Effectiveness). The cold plate design helps reduce energy consumption across the entire facility. The design must be optimized to allow the highest possible .CDUPUE Tin

Parameter 9: Coolant Properties (, , ) - The Heat Transfer Medium

The choice of cooling fluid strongly affects performance. Three main properties are important. They are specific heat capacity (), density (), and viscosity ().

Specific Heat ():Cp High allows the fluid to absorb more heat. This keeps the bulk fluid temperature rise low. Cp Viscosity ():mu Low viscosity means the fluid flows easily. This reduces the frictional pressure drop. Density ():ρ Affects the total mass flow rate for a given volume flow rate.

Coolant Trade-Offs

Pure water is the best thermal fluid. However, it requires careful monitoring for corrosion. Glycol-Water mixtures are used in EV and industrial systems. They provide critical freeze and corrosion protection. This protection comes at the expense of performance. It also increases ∆P.

Parameter 10: Thermal Interface Material () Thickness and TIMkTIM

The is the material between the heat source and the cold plate. It is the most critical element. The fills air gaps. Air is a terrible thermal conductor. The layer is often the single largest contributor to the total thermal resistance.TIMTIMTIMRth, total

The resistance () is proportional to its thickness.

The goal is to achieve the minimum Bond Line Thickness (BLT). This requires high pressure during assembly. More importantly, it requires extreme precision from the cold plate.

The Flatness Requirement

The cold plate mounting surface must be extremely flat. Poor flatness leaves large gaps. These gaps require a thicker TIM layer to fill them. The thermal performance degrades quickly. Winshare Thermal uses high-precision CNC machining and specialized tooling. We achieve flatness tolerances of 0.05 mm or better. This allows customers to use the thinnest, most effective TIM materials. Proper flatness is non-negotiable for high-performance systems.

IV. The CFD-Driven Solution for Balance

Liquid cold plate design is a difficult task. It is a multi-objective optimization problem. Engineers must simultaneously balance 10 critical, interdependent parameters. They must maximize heat transfer while minimizing pressure drop, weight, and cost.

Guesswork or simple calculations are not enough. The design requires highly detailed analysis. Winshare Thermal is the professional solution. Our engineering team uses advanced CFD (Computational Fluid Dynamics) tools. We rapidly model and iterate all 10 parameters. This process includes complex features like flow distribution analysis and topology optimization. We ensure the cold plate design is optimal.

We combine this optimal design with proven manufacturing. Our capabilities include high-precision CNC finishing and reliable FSW (Friction Stir Welding). We also use expert Vacuum Brazing techniques. This guarantees the design translates into a high-reliability, manufacturable product. Partner with Winshare Thermal to convert theoretical efficiency into maximum system performance. We can meet your toughest thermal challenges.
