The relentless pursuit of higher performance in electronic devices, especially in areas like AI, gaming, and data centers, has pushed power densities to unprecedented levels. This concentration of heat in ever-shrinking footprints poses a formidable challenge for traditional thermal management solutions. While conventional vapor chambers (VCs) have proven highly effective for planar heat spreading, the complexity of modern 3D stacked chips and intricate system architectures demands even more sophisticated approaches. This has led to the emergence of 3D VC thermal solutions, which go beyond flat heat spreading to address heat transfer in multiple dimensions, offering enhanced cooling capabilities for the most demanding applications.
3D VC thermal solutions are advanced heat spreading and transport devices that integrate vapor chamber technology with three-dimensional structures, such as heat pipes or complex internal geometries, to efficiently move and dissipate heat in multiple directions, specifically addressing the challenges of vertically integrated and densely packed electronic components. These solutions are becoming critical enablers for next-generation computing, providing superior thermal performance where traditional flat vapor chambers might fall short.
This article will delve into the definition and working principles of 3D VC thermal solutions, explore their advantages over conventional vapor chambers, discuss their primary applications, examine the manufacturing complexities involved, and consider the future outlook for this cutting-edge technology.
What are the Manufacturing Challenges for 3D VC Thermal Solutions?
How Do 3D VC Solutions Compare to Traditional Vapor Chambers and Heat Pipes?

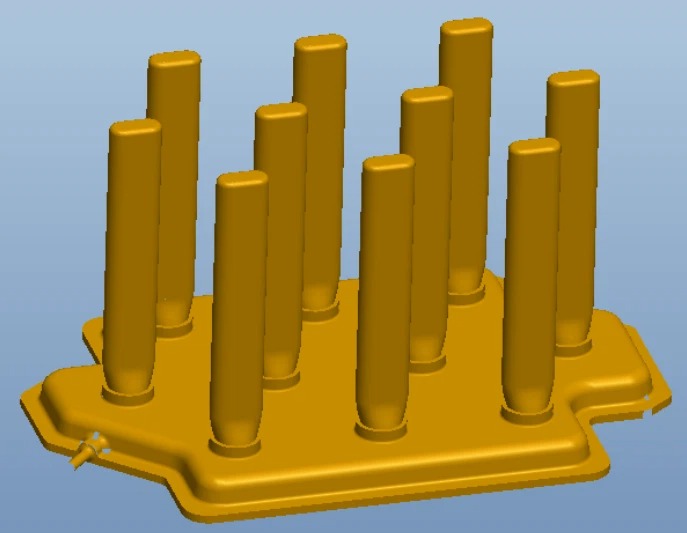

A 3D VC thermal solution refers to an advanced thermal management device that leverages the principles of a vapor chamber but is designed with a three-dimensional internal structure, often integrating heat pipes or complex geometries, to facilitate heat spreading and transport across multiple planes. Unlike conventional flat vapor chambers that primarily spread heat across a 2D surface, 3D VCs are engineered to manage heat more effectively within intricate 3D chip stacks or system layouts. They essentially create a larger, interconnected vapor space that allows heat to move more freely not only across a flat plane but also vertically or around complex shapes.
3D VC thermal solutions work by extending the well-established phase-change principles of 2D vapor chambers into a three-dimensional space, using an interconnected internal cavity and wick structures to transport heat efficiently via evaporation and condensation. When heat is applied to any part of the 3D VC (the evaporator section), the working fluid inside boils and turns into vapor, absorbing latent heat. This vapor rapidly expands and travels through the interconnected vapor channels to cooler sections (condenser sections), where it condenses back into liquid, releasing its heat. The liquid then returns to the evaporator via capillary action through an integrated wick structure that lines the internal surfaces, completing a continuous, gravity-independent cycle. The "3D" aspect typically involves:
Integrated Heat Pipes/Channels: Rather than just a flat plate, a 3D VC might have integrated heat pipes or sculpted internal channels that extend vertically or are shaped to fit around other components, effectively bringing the highly efficient vapor chamber action to different levels or complex surfaces.
Conformal Shapes: They can be designed to conform to non-planar surfaces or include pedestals and standoffs that directly contact specific hot spots in 3D-stacked packages.
Expanded Vapor Space: The internal cavity is often maximized and interconnected to allow for unrestricted vapor flow, even across multiple planes or around internal obstructions. This optimizes the thermal conductivity of the entire structure.
The key advantages of 3D VC thermal solutions include their superior heat spreading and transport capabilities in complex geometries, enabling efficient cooling for high-power, highly integrated devices where traditional 2D solutions fall short. They offer significant performance gains for modern electronics.
Enhanced 3D Heat Spreading and Transport: Unlike traditional VCs that excel at 2D spreading, 3D VCs can effectively spread heat across complex surfaces and also transport it vertically or around intricate component layouts. This is crucial for cooling 3D-stacked chips (e.g., those with HBM memory) or components densely packed on a PCB.
Higher Heat Flux Handling: By maximizing the effective surface area for phase change and providing unhindered vapor pathways, 3D VCs can manage extremely high heat flux densities (W/cm²) from very small, intense hot spots, often exceeding the capabilities of standard VCs. Some advanced 3D VCs can handle over 1000W with fluxes approaching 500 W/cm².
Improved Temperature Uniformity (Isothermality): The rapid and volumetric nature of heat transfer within a 3D VC ensures a more uniform temperature distribution across the cooled component and the entire heat sink assembly. This minimizes hot spots, reduces thermal stress, and extends component lifespan.
Compact High-Performance Cooling: 3D VCs allow for powerful cooling solutions within very tight spatial constraints. Their ability to conform to complex shapes and integrate cooling pathways directly into system architecture makes them ideal for slim gaming laptops, compact servers, and AI accelerators.
Reduced Thermal Resistance: By effectively spreading heat from the source and providing efficient pathways to the condenser, 3D VCs significantly lower the overall thermal resistance of the cooling assembly, leading to lower component operating temperatures.
3D VC thermal solutions are primarily applied in high-performance electronic devices and systems that generate substantial heat in complex or densely packed configurations, where traditional 2D cooling methods are insufficient. Their ability to handle high heat flux and manage heat in three dimensions makes them indispensable.
Key application areas include:
High-Performance Computing (HPC) and Data Centers:
AI Accelerators (GPUs, TPUs, OAMs): Modern AI chips generate immense heat in compact packages, often with 3D stacked memory. 3D VCs are crucial for maintaining their operating temperatures and preventing throttling.
Servers: Used in high-density server racks (e.g., 1U/2U servers) to cool powerful CPUs and GPUs, particularly those with high TDPs (Thermal Design Power) exceeding 500W.
Gaming Laptops and Workstations: Ultra-thin yet powerful gaming laptops require aggressive cooling for their high-end CPUs and GPUs. 3D VCs allow for effective heat dissipation within the constrained z-height.
Telecommunications Infrastructure:
Base Stations and Repeater Stations: Components in these systems can operate in demanding environments and generate significant heat, requiring robust thermal solutions like 3D VCs to ensure reliability.
High-Power Industrial Electronics: Devices with compact power modules or densely packed control systems benefit from the enhanced heat spreading capabilities of 3D VCs.
Automotive Electronics (Emerging): As electric vehicles and autonomous driving systems become more sophisticated, the power electronics and AI processing units require advanced thermal solutions, making 3D VCs a potential candidate.
Manufacturing 3D VC thermal solutions presents significant challenges due to the complexity of their internal geometries, the precision required for wick structures, and the need for robust vacuum sealing over intricate shapes. These factors contribute to higher production costs and more demanding quality control.
Complex Internal Geometry: Unlike flat 2D VCs, 3D VCs require precise fabrication of internal channels, pedestals, or integrated heat pipe structures. This often involves advanced stamping, bending, and joining techniques for copper or aluminum.
Wick Structure Integration: Ensuring uniform and robust wick structures (e.g., sintered copper powder, mesh) throughout a complex 3D internal cavity is challenging. The wick must maintain consistent capillary action across various orientations and angles to effectively return condensed fluid to the evaporator.
Hermetic Sealing: Achieving a perfectly hermetic (airtight) seal for a vacuum chamber over a three-dimensional, often multi-part, structure is extremely difficult. Any tiny leak compromises performance. Advanced welding, brazing, or diffusion bonding techniques are employed.
Working Fluid Charging: Accurately charging the optimal amount of working fluid (e.g., deionized water) into the complex 3D vacuum cavity without leaving non-condensable gases is a critical and precise step.
Material Selection and Compatibility: Ensuring long-term compatibility between the working fluid, wick material, and the internal casing material across a wide operating temperature range is crucial to prevent corrosion or degradation.
Quality Control and Testing: Verifying the integrity and performance of 3D VCs requires sophisticated testing methods, including vacuum leak detection, thermal performance testing under various orientations, and potentially X-ray or CT scanning for internal structure verification.
Cost of Production: The specialized materials, complex manufacturing processes, and rigorous quality control contribute to a significantly higher unit cost compared to traditional heat pipes or 2D vapor chambers.
3D VC solutions represent an evolution, offering superior heat spreading and transport in complex geometries compared to traditional 2D vapor chambers and heat pipes, which are typically optimized for planar spreading or linear transport, respectively. They bridge a performance gap for demanding multi-dimensional thermal challenges.
Here's a comparative overview:
The future outlook for 3D VC thermal solutions is extremely promising, driven by the relentless increase in power densities of AI chips and other high-performance semiconductors, necessitating advanced thermal management in complex 3D packages. As traditional planar solutions reach their limits, 3D VCs are poised to become a standard for cutting-edge cooling.
Key trends shaping their future include:
Integration with Advanced Packaging: As 2.5D and 3D chip stacking become more prevalent, 3D VCs will increasingly be designed to integrate directly with or very close to the semiconductor dies, potentially becoming an intrinsic part of the package itself.
Additive Manufacturing (3D Printing): Advances in metal 3D printing (additive manufacturing) hold immense potential for 3D VCs. This technology can enable the creation of highly intricate, optimized internal wick structures and complex 3D geometries that are difficult or impossible with traditional methods, potentially improving performance and reducing manufacturing steps.
Novel Working Fluids and Materials: Research will continue into alternative working fluids with better thermal properties or wider operating temperature ranges, as well as new wick materials that offer superior capillary performance or thermal conductivity.
Hybrid Cooling System Integration: 3D VCs will play an even more crucial role in hybrid cooling solutions, working seamlessly with liquid cold plates or advanced fin stacks to create a multi-layered thermal pathway from chip to ambient.
Smart and Adaptive Designs: Future 3D VCs might incorporate sensors and integrate with AI-driven thermal management systems, allowing for real-time optimization of cooling performance based on workload and environmental conditions.
Cost Reduction and Scalability: As manufacturing processes mature and demand increases, efforts will be made to reduce the unit cost and improve the scalability of 3D VC production, making them more accessible for a wider range of high-volume applications.
In the vanguard of thermal management, 3D VC thermal solutions represent a critical leap forward, directly addressing the formidable heat dissipation challenges posed by modern, high-power, and increasingly three-dimensional electronic architectures. By extending the superior heat spreading capabilities of conventional vapor chambers into a three-dimensional framework, 3D VCs offer unparalleled efficiency in transporting and diffusing concentrated heat across complex surfaces and through integrated chip stacks. They are an indispensable technology for maintaining the performance, reliability, and lifespan of cutting-edge processors in sectors like AI, HPC, and advanced consumer electronics.
While presenting manufacturing complexities and higher costs, the unique advantages of 3D VCs in handling extreme heat fluxes and enabling compact, high-performance designs solidify their position as a cornerstone of next-generation thermal solutions. As technological demands continue to escalate, innovation in 3D VC designs and manufacturing will be crucial for unlocking the full potential of future electronic devices.
