Electronics today are smaller, faster, and more powerful than ever before. This incredible progress, however, comes with a significant challenge: managing the heat they generate. Excessive heat can degrade performance, shorten lifespan, and even lead to catastrophic failure for sensitive components like CPUs, GPUs, and power transistors. This is where heat sinks become indispensable. While a simple block of metal can transfer some heat, the vast majority of heat sinks feature an array of thin protrusions known as "fins." Heat sinks have fins primarily to dramatically increase their surface area, which in turn maximizes the efficiency of heat transfer from the heat sink to the surrounding air through the process of convection. Without these fins, a heat sink would be far less effective, leading to overheating and instability in electronic devices.
This article will explore the fundamental principles behind heat sink fins, explaining why they are crucial for effective thermal management. We'll delve into how they enhance heat transfer, examine different fin designs, and discuss the factors influencing their efficiency.

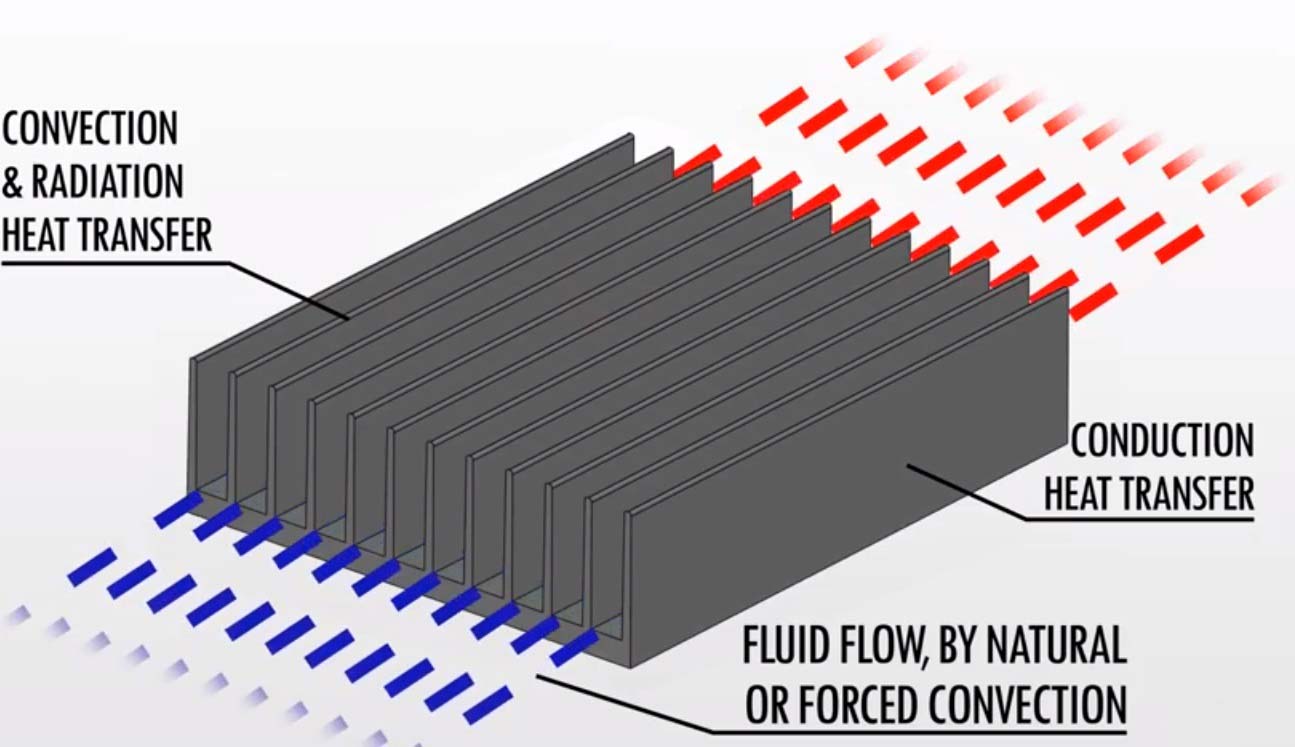

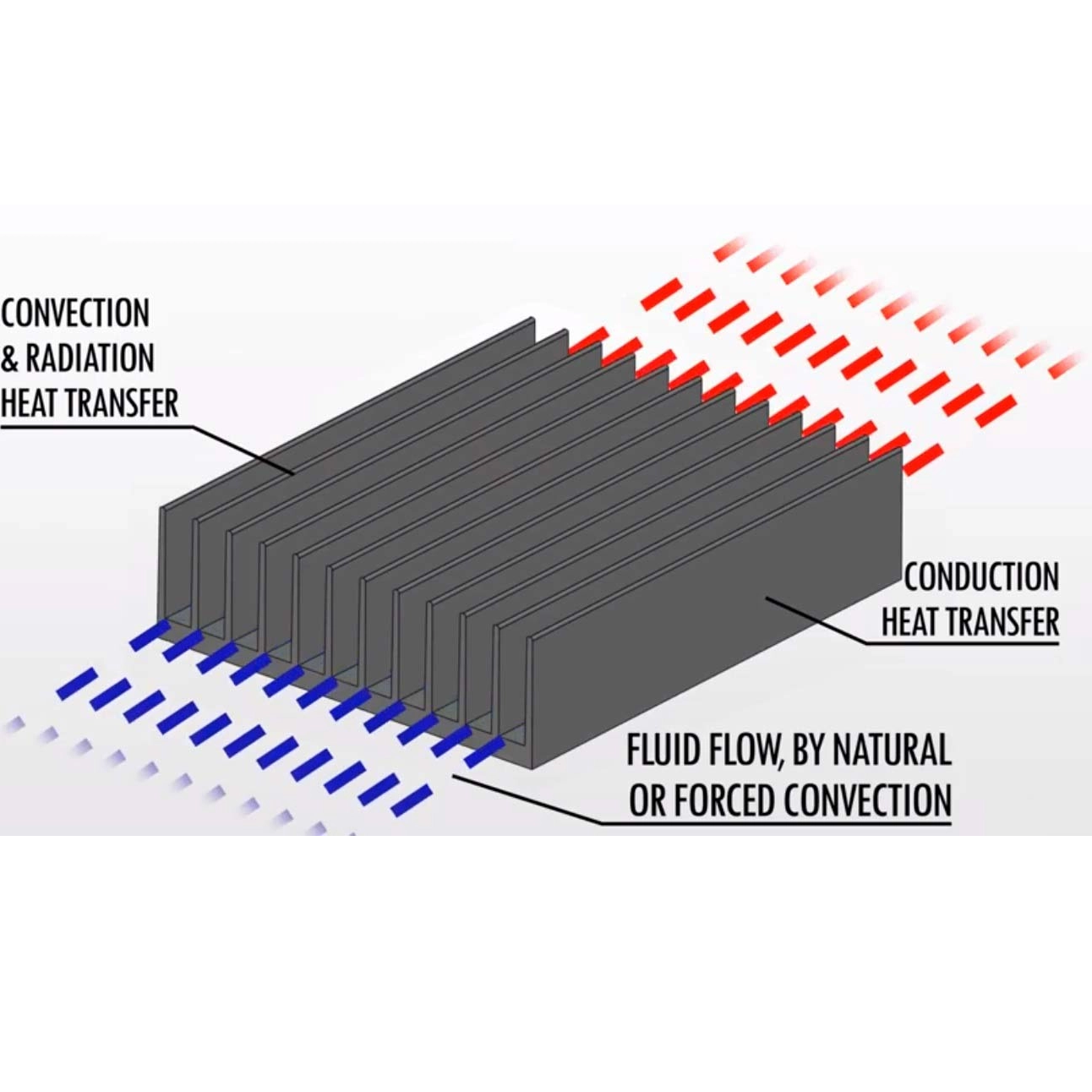

The primary purpose of heat sink fins is to significantly increase the surface area of the heat sink that is exposed to the cooling medium, typically air. This expanded surface area is crucial for enhancing the rate at which heat can be transferred away from the heat sink and into the surrounding environment. Without fins, a heat sink would be little more than a flat metal plate, severely limiting its ability to dissipate heat efficiently.
Heat is transferred from the hot electronic component to the heat sink's base through conduction. Once the heat reaches the heat sink material, it then needs to be dissipated into the surrounding air. This is primarily achieved through convection, where the heat is carried away by the movement of air molecules. A larger surface area allows more air molecules to come into contact with the heated metal, absorbing thermal energy and moving it away.
Fins increase heat transfer by maximizing the contact area between the heat sink and the cooling fluid (air), thereby accelerating the process of convection. Convection is the transfer of heat by the movement of fluids, and its efficiency is directly proportional to the surface area available for heat exchange and the temperature difference between the surface and the fluid.
Here’s how fins enhance convection:
Increased Surface Area for Convective Heat Transfer: The most direct effect of fins is the massive increase in the heat sink's total surface area. Imagine a flat plate versus a finned heat sink of the same base footprint. The fins provide numerous additional surfaces for air to flow over, dramatically multiplying the area where heat can be transferred from the solid metal to the moving air.
Facilitating Airflow: While simply increasing surface area is key, the design of fins also dictates how air flows around them. In natural convection (passive cooling), fins create channels that encourage warmer, less dense air to rise, drawing in cooler, denser air to replace it, creating a continuous natural airflow. In forced convection (with a fan), the fins guide the airflow, ensuring that a high volume of air passes efficiently over the heated surfaces.
Disrupting Boundary Layers: As air flows over a surface, a thin layer of stagnant or slow-moving air, known as the boundary layer, forms immediately adjacent to the surface. This boundary layer acts as an insulator, impeding heat transfer. Well-designed fins, especially those with intricate or interrupted geometries, can disrupt this boundary layer, promoting turbulence. Turbulent flow continuously brings cooler air into direct contact with the fin surface, significantly enhancing the heat transfer coefficient.
Heat sinks utilize various fin types, each optimized for different airflow conditions, manufacturing processes, and thermal performance requirements. The choice of fin geometry is critical to achieving efficient heat dissipation for a given application.
Common fin types include:
Plate Fins (Extruded Fins):
Description: Straight, parallel fins extending from a base. Most common type due to simple manufacturing.
Function: Excellent for forced convection where airflow is directed parallel to the fins. Provides good surface area for its manufacturing method.
Applications: General electronics, CPU coolers with direct fan airflow.

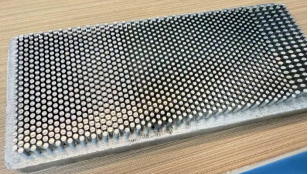

Pin Fins:
Description: An array of individual pins (cylindrical, square, elliptical) extending from the base.
Function: Offers omnidirectional airflow capabilities, making them suitable when airflow direction is not well-defined or is turbulent. Provides a large surface area in a compact footprint.
Applications: Compact devices, embedded systems, specific power modules.
Skived Fins:
Description: Very thin, high-density fins created by slicing and bending from a solid block of metal.
Function: Achieves extremely high fin densities and large surface areas, leading to superior thermal performance compared to extruded fins of the same material.
Applications: High-power CPUs/GPUs, IGBTs, compact, high-performance computing.
Folded/Bonded Fins:
Description: Individual fins (often stamped from thin sheet metal) are bonded or folded onto a base plate.
Function: Allows for very tall and thin fins, maximizing surface area for a given base. Can combine different materials (e.g., copper base with aluminum fins).
Applications: High-power servers, telecom equipment, large industrial applications requiring significant dissipation.
Staggered/Offset Fins (Corrugated Fins):
Description: Plate fins with interruptions, wavy, or louvered sections.
Function: Intentionally disrupts boundary layers and induces turbulence in the airflow, significantly enhancing the heat transfer coefficient.
Applications: Compact heat exchangers, forced convection systems where maximizing heat transfer is paramount.
The dimensions of heat sink fins—including height, thickness, and spacing—critically affect thermal performance by influencing surface area, airflow resistance, and thermal efficiency. Optimizing these parameters is a complex balancing act tailored to specific cooling requirements.
Fin Height: Taller fins provide more surface area for heat transfer. However, excessively tall fins can become less efficient at their tips due to thermal resistance within the fin material, as heat has to travel a longer distance. They can also increase overall heat sink volume and pressure drop.
Fin Thickness: Thicker fins generally conduct heat better from the base to the fin tip, improving fin efficiency. However, thicker fins reduce the number of fins that can fit within a given space, thus decreasing the overall surface area and potentially increasing weight. A balance is needed to ensure sufficient conductive path while maximizing surface area.
Fin Spacing (Pitch): The distance between adjacent fins is crucial for airflow.
In natural convection: Wider spacing is generally better as it allows for easier natural air circulation. Too dense spacing can create "air pockets" where hot air gets trapped.
In forced convection: Denser spacing can provide more surface area, but if too dense, it can create excessive pressure drop, reducing overall airflow from the fan and potentially leading to less effective cooling or requiring a more powerful, noisier fan.
Fin Material: While fins primarily facilitate convection, their material (e.g., aluminum or copper) dictates how efficiently heat conducts from the base to the entire fin surface. Materials with higher thermal conductivity ensure more uniform temperature distribution across the fin, making the entire fin surface effective.
While essential for effective heat dissipation, the presence of fins on a heat sink can introduce certain downsides, primarily related to airflow impedance, manufacturing complexity, and potential for dust accumulation. These factors must be carefully considered during the design phase.
Airflow Resistance (Pressure Drop): The intricate pathways created by fins, especially densely packed ones, create resistance to airflow. This "pressure drop" can reduce the volume of air a fan can push through the heat sink, potentially negating some of the gains from increased surface area. High pressure drop may necessitate more powerful (and louder) fans.
Manufacturing Complexity and Cost: Producing heat sinks with complex fin geometries (like skived, folded, or pin fins) can be more intricate and costly than simple extruded plate fins. This added complexity impacts the overall production cost and lead time.
Dust Accumulation: The narrow channels and intricate structures between fins can act as traps for dust and debris over time. Dust accumulation reduces airflow and acts as an insulating layer, severely degrading cooling performance. Regular cleaning may be required, which can be inconvenient.
Weight and Volume: While fins increase surface area, they also add to the overall weight and volume of the heat sink, which can be a concern for compact or weight-sensitive applications.
Structural Fragility: Very thin or tall fins, while thermally efficient, can sometimes be delicate and prone to bending or damage during handling or installation.
The material used for heat sink fins is critically important as it dictates the efficiency of heat conduction from the heat sink base through the fins to their tips, thereby influencing the overall effectiveness of heat dissipation. High thermal conductivity is paramount to ensure the entire fin participates effectively in heat transfer.
Thermal Conductivity: The primary property of concern is thermal conductivity (k). A material with high thermal conductivity ensures that heat absorbed by the heat sink base is rapidly conducted along the length and breadth of the fins. If the material has poor conductivity, heat will not spread efficiently to the fin tips, making those sections less effective at dissipating heat and leading to a phenomenon known as "fin efficiency degradation."
Common Materials:
Aluminum: Most common due to its excellent balance of thermal conductivity (approx. 205 W/m·K), light weight, low cost, and ease of manufacturing (especially extrusion). It is widely used for general-purpose heat sinks.
Copper: Offers superior thermal conductivity (approx. 386 W/m·K) compared to aluminum. This makes copper ideal for high-performance applications where maximizing heat transfer from a very concentrated heat source is critical, even with a smaller footprint. However, copper is heavier and more expensive than aluminum.
Other Considerations: Besides thermal conductivity, factors like density, specific heat capacity, corrosion resistance, and manufacturability also play a role in material selection. For instance, in some niche applications, materials with higher emissivity might be chosen to enhance radiative heat transfer, although convection remains the dominant mode for finned heat sinks.
The presence of fins on a heat sink is not merely a design aesthetic but a fundamental engineering principle for efficient thermal management. Heat sinks have fins primarily to exponentially increase the surface area available for convective heat transfer, thereby maximizing the rate at which heat can be dissipated from electronic components into the surrounding environment. This allows sensitive electronics to operate within safe temperature ranges, ensuring their longevity and optimal performance.
While fin design involves careful considerations of airflow impedance, manufacturing complexity, and material properties, the continuous innovation in fin geometries and heat sink manufacturing techniques underscores their indispensable role. As electronics continue to push boundaries in power and miniaturization, optimized finned heat sinks will remain a cornerstone of reliable thermal solutions.
