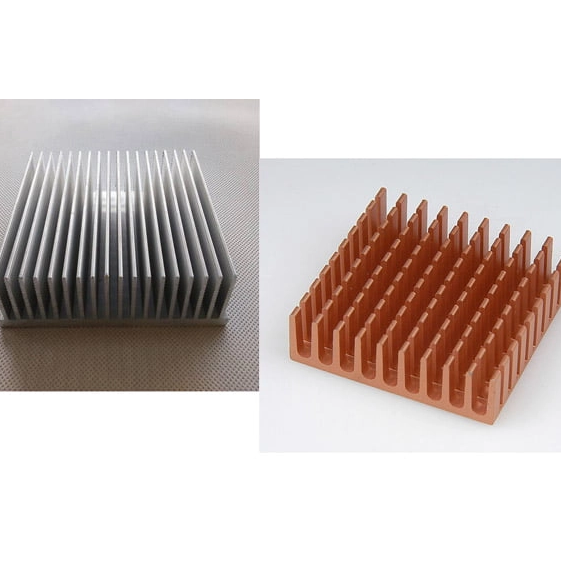

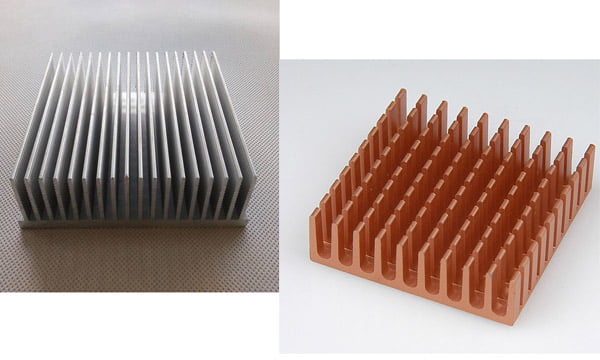

Heat sinks play a crucial role in thermal management, ensuring the efficient dissipation of heat generated by electronic devices and components. When it comes to heat sink materials, aluminum and copper are the two most commonly used options. In this article, we will delve into a comprehensive comparison of aluminum and copper heat sinks, highlighting their respective advantages, applications, and considerations for thermal management solutions.
Thermal conductivity is a measure of a material's ability to conduct heat. It is a critical factor in determining the efficiency of a heat sink in dissipating heat from electronic components. The higher the thermal conductivity, the better the heat sink's performance.
Copper has a higher thermal conductivity compared to aluminum. Copper's thermal conductivity is approximately 231 BTU/(hr·ft⋅°F), while aluminum's is about 136 BTU/(hr·ft⋅°F). This means that copper is more effective in transferring heat from the heat source to the surrounding environment, making it a preferred choice for high-performance applications where efficient heat dissipation is crucial.
One of the key differences between aluminum and copper is their density. Aluminum has a density of approximately 2.70 g/cm³, while copper has a density of 8.96 g/cm³. This means that aluminum is about 30% as dense as copper, making it significantly lighter.
The weight difference between aluminum and copper can have a significant impact on the design and application of heat sinks. In applications where weight is a critical factor, such as in portable electronics or aerospace systems, aluminum heat sinks are preferred due to their lighter weight, allowing for easier integration and reduced overall system weight.
Aluminum is generally less expensive than copper. The cost of aluminum is roughly one-third the cost of copper, making it a more cost-effective option for large-scale production and general applications.
The lower cost of aluminum can be advantageous for manufacturers looking to reduce production costs while still providing effective thermal management solutions. This cost-effectiveness makes aluminum heat sinks suitable for a wide range of applications, from consumer electronics to industrial equipment.
Aluminum and copper have different levels of corrosion resistance. Aluminum forms a thin, protective oxide layer on its surface when exposed to air, which helps prevent further corrosion. Copper, on the other hand, is more susceptible to corrosion, especially in environments with high humidity or exposure to certain chemicals.
The corrosion resistance of heat sink materials is crucial for ensuring long-term performance and reliability. In applications where the heat sink is exposed to harsh environments or potential corrosive elements, aluminum may be preferred due to its better resistance to corrosion compared to copper.
Both aluminum and copper heat sinks dissipate heat through convection, where heat is transferred from the heat sink surface to the surrounding air. The efficiency of this heat transfer process depends on factors such as the heat sink's surface area, airflow, and the temperature difference between the heat sink and the surrounding air.
In some real-world applications, aluminum heat sinks may outperform copper due to their ability to accommodate larger surface areas. Aluminum's lower density allows for the creation of heat sinks with larger surface areas without significantly increasing the overall weight. This can be beneficial in applications where natural convection is the primary means of heat dissipation, as the larger surface area can enhance heat transfer efficiency.
Aluminum heat sinks are commonly manufactured using extrusion, a process that allows for the creation of complex geometries and profiles. Copper heat sinks, on the other hand, are often machined from solid copper blocks or sheets, which can be more labour-intensive and costly.
The extrusion process used for aluminum heat sinks provides greater design flexibility compared to machining. Aluminum extrusion allows for the creation of intricate fin patterns, complex shapes, and customized geometries to optimize heat dissipation performance. This flexibility can be advantageous in applications where specific heat sink designs are required to meet thermal management challenges.
Aluminum heat sinks are widely used in consumer electronics, such as laptops, smartphones, and tablets, due to their lightweight, cost-effectiveness, and ability to dissipate heat efficiently. Copper heat sinks, on the other hand, are more commonly found in specialized applications that require high-performance thermal management, such as in high-end gaming computers, power electronics, and LED lighting systems.
In conclusion, both aluminum and copper heat sinks have their own advantages and are suitable for different applications based on specific requirements. Aluminum heat sinks excel in terms of weight, cost-effectiveness, and design flexibility, making them ideal for consumer electronics and general applications. Copper heat sinks, on the other hand, are preferred for high-performance applications that demand efficient heat dissipation, such as in power electronics and specialized computing systems.
When choosing between aluminum and copper heat sinks, it is essential to consider factors such as thermal conductivity, weight, cost, corrosion resistance, and manufacturing processes to ensure that the selected material meets the specific thermal management requirements of the application.
Copper heat sinks are generally preferred for high-performance applications due to their higher thermal conductivity, which allows for more efficient heat dissipation.
Weight is a critical factor in applications where portability or system integration is important. Aluminum heat sinks are preferred in such cases due to their significantly lower density compared to copper.
Aluminum is generally less expensive than copper, with the cost of aluminum being roughly one-third the cost of copper. This makes aluminum a more cost-effective option for large-scale production and general applications.
In environments where the heat sink may be exposed to corrosive elements, aluminum is preferred due to its better resistance to corrosion compared to copper. Aluminum forms a protective oxide layer on its surface, while copper is more susceptible to corrosion.
In some cases, aluminum heat sinks can outperform copper due to their ability to accommodate larger surface areas without significantly increasing weight. The larger surface area can enhance heat transfer efficiency through natural convection.
