As electronic components become more powerful and compact, the challenge of dissipating the immense heat they generate has become a critical engineering hurdle. Traditional air cooling and even single-phase liquid cooling are reaching their physical limits. Enter the next frontier in thermal management: Two-Phase Liquid Cooling. This advanced technology offers an order-of-magnitude improvement in cooling efficiency, paving the way for the next generation of high-performance computing, power electronics, and data centers. At Winshare Thermal, we are at the forefront of designing and implementing these sophisticated thermal solutions, and Winshare will illuminate how this transformative technology works.
Table of Contents
• What Exactly is Two-Phase Immersion Cooling?
• How Does the Phase-Change Cooling Process Actually Work?
• The Primary Types of Two-Phase Cooling Systems
• Why is Two-Phase Cooling Considered the Superior Thermal Solution?
• How Does Two-Phase Stack Up Against Single-Phase Cooling?
• Where is This Advanced Cooling Technology Being Deployed?
• How Can You Partner with Experts for Your Two-Phase Cooling Needs?
At its core, two-phase liquid cooling is a thermal management process that leverages a coolant's phase transition—specifically from liquid to vapor—to absorb and transport vast amounts of heat. Unlike single-phase liquid cooling, where the coolant remains in its liquid state throughout the entire loop, two-phase cooling capitalizes on the immense energy required to change a substance's state. This is a phenomenon you witness every day: it takes far more energy to boil a pot of water (turn it into steam) than it does to simply raise the water's temperature by a few degrees.
In a technical context, this means a special dielectric (non-conductive) fluid is brought into contact with a hot electronic component. As the fluid absorbs heat, it reaches its boiling point and turns into vapor. This vapor then travels to a cooler part of the system, where it condenses back into a liquid, releasing the stored heat. This cycle can be passive, driven by natural convection, or active, assisted by pumps. The result is an incredibly efficient and stable cooling cycle that can handle extreme heat loads with remarkable precision.
The magic of two-phase cooling lies in a thermodynamic principle known as the latent heat of vaporization. This is the significant amount of thermal energy a substance absorbs to change from a liquid to a gas without any change in its temperature. The process can be broken down into a continuous, elegant cycle:
1. Evaporation (Boiling): A carefully selected dielectric coolant with a low boiling point flows over or submerges hot components like CPUs, GPUs, or power inverters. As the surface temperature of the component exceeds the fluid's boiling point, the fluid absorbs the heat and vaporizes directly at the heat source. This localized boiling action is incredibly effective at pulling heat away from the chip.
2. Vapor Transport: The resulting vapor, which now holds the absorbed thermal energy, is naturally less dense than the surrounding liquid. It rises or is transported through a tube or channel away from the heat source towards a heat exchanger or condenser.
3. Condensation: In the condenser, the vapor comes into contact with a cooler surface (often cooled by ambient air or a secondary water loop). Here, the vapor releases its latent heat, causing it to condense back into its liquid state. This heat is then expelled from the system entirely.
4. Liquid Return: The condensed liquid is then returned to the heat source, either through gravity (in passive systems like vapor chambers) or via a small pump (in active systems), to repeat the cycle. This creates a highly efficient, closed-loop thermal transfer system.
Two-phase cooling isn't a one-size-fits-all solution. The architecture is adapted based on the application's specific requirements for performance, space, and cost. At Winshare Thermal, we engineer solutions across this spectrum.
assive Systems: Heat Pipes and Vapor Chambers
These are self-contained, wick-based systems that require no moving parts. A vacuum-sealed copper vessel contains a small amount of working fluid. Heat applied to one end (the evaporator) causes the fluid to vaporize. The vapor travels to the cooler end (the condenser), condenses, and the wick structure passively transports the liquid back to the evaporator via capillary action. Vapor chambers are essentially flat heat pipes, ideal for spreading heat from a small, high-power source to a larger surface area like a heat sink.
Active Systems: Pumped Two-Phase Cooling
Also known as flow boiling, these systems use a pump to circulate the liquid coolant through a loop. This provides more control and can handle even higher heat loads than passive systems. The liquid is pumped into a cold plate or microchannel heat exchanger attached to the component, where it boils. The liquid-vapor mixture is then pumped to a remote condenser to release heat before being recirculated. This is common in high-density data centers and advanced military electronics.
Total Immersion: Direct-to-Chip and Tank Immersion

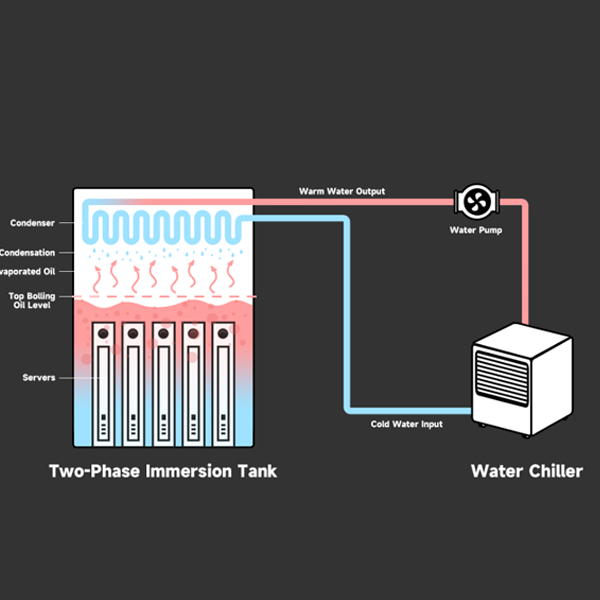

This is the most direct form of two-phase cooling. Electronic components are fully submerged in a bath of dielectric fluid. In open-bath immersion, entire servers are lowered into a tank of fluid. As components heat up, the fluid around them boils, and the vapor rises to a condenser at the top of the tank. This method offers the ultimate in cooling performance and is gaining traction in hyperscale data centers and cryptocurrency mining operations for its efficiency and simplicity at scale.
The advantages of harnessing phase-change physics for cooling are substantial, directly addressing the shortcomings of older technologies.
• Unparalleled Heat Transfer Efficiency: The primary benefit is its extremely high heat transfer coefficient. Because it utilizes the latent heat of vaporization, two-phase cooling can remove 10x to 1000x more heat per unit volume than single-phase liquid cooling, and orders of magnitude more than air cooling.
• Remarkable Temperature Uniformity: Because the fluid boils at a constant saturation temperature, it creates a nearly isothermal (uniform temperature) surface across the entire chip. This prevents hotspots, improves component reliability, and allows for higher clock speeds and better performance.
• Reduced Pumping Power & Lower Operating Costs: The natural density difference between liquid and vapor can often drive the fluid circulation, especially in passive or low-flow systems. This dramatically reduces the energy required for pumping compared to single-phase systems that rely on high flow rates, leading to a lower Power Usage Effectiveness (PUE) in data centers.
• Compact and Lightweight Designs: The high efficiency of two-phase cooling means that smaller, lighter thermal management hardware can be used to dissipate the same amount of heat. This is a critical advantage in space-constrained applications like aerospace and portable electronics.
To truly appreciate the difference, a direct comparison is helpful. Here’s a breakdown of the key characteristics of each technology:
Feature | Single-Phase Liquid Cooling | Two-Phase Liquid Cooling | |
Primary Heat Transfer Mechanism | Convection (Sensible Heat) | Boiling/Condensation (Latent Heat) | |
Heat Transfer Coefficient | Good to High | Extremely High | |
Temperature Uniformity | Variable; temperature gradient exists | Excellent; nearly isothermal | |
Required Fluid Flow Rate | High | Low to Moderate | |
System Complexity | Moderate (Pumps, Radiators, Blocks) | Can be simple (passive) or complex (pumped) | |
Energy Consumption (Pumping) | Significant | Low |
Two-phase liquid cooling is no longer a laboratory concept; it is a critical enabling technology across several high-growth industries:
• Data Centers & HPC: Cooling high-density server racks and supercomputers to improve efficiency and enable higher compute density.
• Power Electronics: Managing heat in EV inverters, fast-charging stations, and industrial power supplies to increase reliability and power output.
• Aerospace & Defense: Cooling advanced radar systems (AESA), avionics, and directed energy weapons where performance and low weight are paramount.
• High-End Consumer Electronics: Ultra-thin vapor chambers are already used in high-performance laptops, smartphones, and gaming consoles to cool powerful processors in tight spaces.
The transition to two-phase liquid cooling requires deep expertise in fluid dynamics, thermodynamics, and materials science. Simply choosing a coolant is not enough; the entire system, from the evaporator interface to the condenser, must be meticulously designed and optimized for the specific application.
At Winshare Thermal, we specialize in this complexity. Our engineering team leverages advanced simulation and extensive manufacturing experience to develop custom two-phase cooling solutions, including high-performance vapor chambers and integrated liquid cooling modules. We work directly with our clients to understand their unique thermal challenges and deliver solutions that push the boundaries of performance and reliability. If you are facing a thermal barrier that conventional cooling cannot overcome, it’s time to explore the power of phase change.
