An In-Depth Guide to Heat Sinks: Principles, Varieties, and Manufacturing

In the world of modern electronics, performance and longevity are paramount. At the heart of ensuring both is a critical component often overlooked by the end-user: the heat sink. As a leader in one-stop thermal solutions, we at Winshare Thermal believe in empowering our partners with knowledge. winshare will demystify the heat sink, exploring its fundamental principles, diverse forms, and the sophisticated processes behind its creation.

Article Directory

• What Exactly is a Heat Sink?

• How Do Thermal Management Devices Work? The Science of Cooling

• Which Materials are Best for Heat Sinks?

• What Varieties of Heat Sinks Exist?

• Which Manufacturing Processes Create These Solutions?

• Why is a Custom Thermal Solution Your Best Choice?

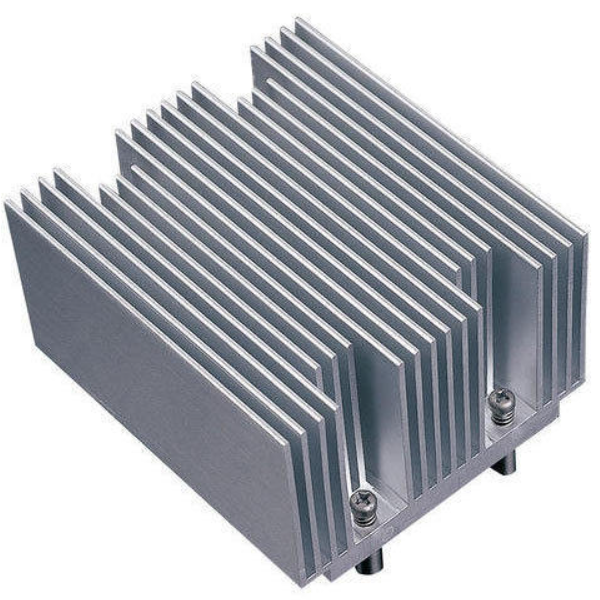

What Exactly is a Heat Sink?

At its core, a heat sink is a passive heat exchanger. Its primary function is to dissipate heat generated by an electronic or mechanical device into a surrounding fluid medium, usually air or a liquid coolant. While the term "radiator" is often used interchangeably, in the electronics industry, "heat sink" specifically refers to the component responsible for cooling processors (CPUs, GPUs), power transistors, LEDs, and other high-temperature components.

Think of it as a bridge. On one side, you have a concentrated, high-temperature source of heat. On the other, you have the cooler ambient environment. The heat sink provides a much larger surface area, creating an efficient pathway for thermal energy to travel from the hot component into the environment, thereby preventing the component from overheating and failing. Without effective heat dissipation, the sophisticated devices that power our world would have significantly shorter lifespans and compromised performance.

How Do Thermal Management Devices Work? The Science of Cooling

The effectiveness of a heat sink is governed by the fundamental principles of thermodynamics. Three primary modes of heat transfer are at play:

1. Conduction: Heat transfer begins with conduction. The heat-generating component (e.g., a CPU) is in direct contact with the flat base of the heat sink, often with a thin layer of thermal interface material (TIM) to fill microscopic air gaps. Heat energy travels from the hotter component into the cooler metal of the heat sink, just as the handle of a metal spoon gets hot when left in a cup of tea. The thermal conductivity of the heat sink's material is crucial at this stage.

2. Convection: Once the heat has spread throughout the heat sink's base and into its fins, convection takes over. The increased surface area of the fins makes contact with the surrounding air. As the air near the fins heats up, it becomes less dense and rises. This movement allows cooler, denser air to flow in and take its place, creating a natural convection current that continuously carries heat away from the device. This process can be significantly enhanced by adding a fan (forced convection).

3. Radiation: All objects with a temperature above absolute zero emit thermal energy in the form of electromagnetic waves. While it is a less dominant mode of transfer in most electronic cooling applications compared to convection, the heat sink radiates thermal energy into its surroundings. Surface treatments, such as anodizing, can improve a heat sink's radiative efficiency.

Which Materials are Best for Heat Sinks?

The choice of material is a critical design decision, balancing thermal performance, weight, and cost. The two most dominant materials in the industry are aluminum and copper.

What Varieties of Heat Sinks Exist?

Heat sinks are not one-size-fits-all. The manufacturing method dictates the design, performance, and cost. At Winshare Thermal, we specialize in a comprehensive range of solutions to meet any engineering challenge.

Extruded Aluminum Heat Sinks

This is the most common and cost-effective type of heat sink. The process involves pushing a heated aluminum billet through a shaped die to create a long profile with a constant cross-section. These profiles are then cut to the desired length.

Advantages: Low tooling cost, highly repeatable, excellent for medium-power applications.
Limitations: Limited fin density and aspect ratio (the ratio of fin height to the gap between fins) due to the constraints of the extrusion process.

Skived Fin Heat Sinks

The skiving process uses a special cutting tool to precisely shave thin fins from a solid block of metal (usually copper or aluminum). The fins are then bent upright, forming an integrated heat sink with a high fin density.
Advantages: Creates a seamless thermal path from base to fin, allows for very thin fins and high aspect ratios, resulting in superior thermal performance in forced convection environments.

Limitations: More expensive than extrusion; the material must be soft enough to be skived.

Bonded Fin Heat Sinks

For applications requiring very large heat sinks or high aspect ratios beyond the capability of extrusion, the bonded fin process is ideal. Individual fins are manufactured separately and then attached to a base plate using thermal epoxy, brazing, or our advanced Friction Stir Welding (FSW) process. FSW creates a robust, void-free joint with minimal thermal resistance.
Advantages: Allows for very large designs, high fin densities, and the use of dissimilar metals (e.g., copper base for conduction, aluminum fins for weight reduction).

Limitations: The interface between the fin and base can add thermal resistance, although technologies like FSW minimize this effect.

Cold Forged Heat Sinks

Cold forging involves shaping metal at room temperature using extreme pressure. This process is used to create complex, three-dimensional shapes, such as round or elliptical pin fin heat sinks. The pressure also refines the metal's grain structure, improving its thermal conductivity.

Advantages: Excellent thermal performance due to material grain structure, allows for complex geometries like pin fins which are effective in varied airflow directions.

Limitations: Higher tooling costs, best suited for high-volume production.

Which Manufacturing Processes Create These Solutions?

The journey from raw material to a finished thermal solution is a multi-step process demanding precision and expertise. It begins with selecting the right manufacturing method—extrusion, skiving, forging, or bonding—based on the thermal requirements, space constraints, and budget of the project.

Following the primary forming process, a series of secondary operations are often required. These can include CNC machining to create mounting holes, cutouts for components, or to achieve tight tolerances. Surface treatments are also critical. Anodizing is commonly applied to aluminum heat sinks to improve corrosion resistance and enhance radiative cooling. Finally, rigorous quality control and thermal testing ensure that every heat sink we produce meets the exact specifications required for optimal performance and reliability in the field.

Why is a Custom Thermal Solution Your Best Choice?

While off-the-shelf heat sinks can work for some applications, a truly optimized design requires a custom approach. Every product has a unique thermal profile, airflow environment, and mechanical footprint. Relying on a generic solution can lead to over-engineering (wasting cost and space) or under-engineering (risking thermal throttling and premature failure).

As a one-stop thermal solution provider, Winshare Thermal partners with you from concept to completion. Our expertise in thermal simulation, diverse manufacturing capabilities (including advanced techniques like FSW), and comprehensive in-house testing allow us to design and deliver a heat sink that is perfectly tailored to your product's needs. By considering the entire system, we ensure that you receive the most efficient, reliable, and cost-effective thermal management solution possible.
