How Does a Cold Plate Work? A Deep Dive into High-Performance Liquid Cooling

In the world of high-power electronics, from the IGBT modules in electric vehicles to the CPUs powering vast data centers, managing heat is no longer a secondary concern—it is a primary design challenge. As power densities increase, traditional air-cooling solutions often reach their physical limits. This is where liquid cooling, and specifically the cold plate, emerges as a superior thermal management technology. As a leader in designing and manufacturing comprehensive thermal solutions, Winshare Thermal is here to demystify this critical component.

This article will explore the fundamental principles behind a cold plate, its construction, the critical factors in its design, and why it has become the go-to solution for the most demanding thermal applications.

What Exactly Constitutes a Liquid Cold Plate?

At its core, a liquid cold plate is a heat exchanger that transfers thermal energy from a heat-generating device directly to a fluid flowing within it. Think of it as the critical first point of contact in a liquid cooling loop. While an air-cooled heat sink dissipates heat into the surrounding air, a cold plate acquires that heat and transfers it efficiently to a coolant, such as a water-glycol mixture.

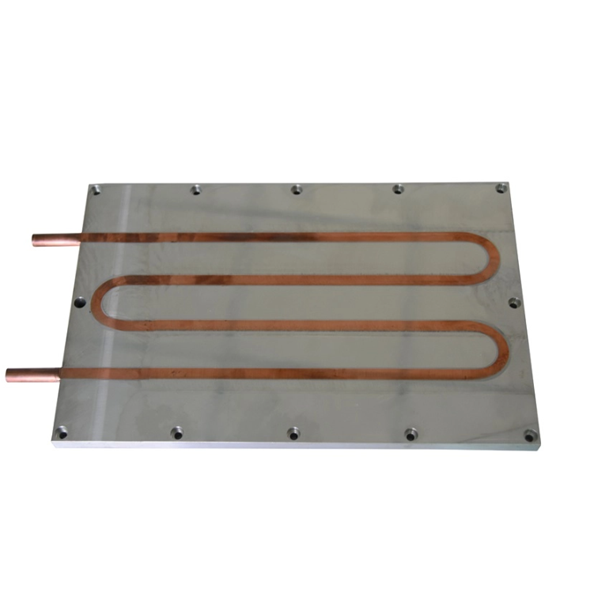

This heat-laden fluid is then pumped away from the sensitive electronics to a remote heat exchanger (like a radiator), where it can be cooled before being recirculated. This process allows for the management of much higher heat loads in a more compact and controlled manner. The cold plate itself is a meticulously engineered block of thermally conductive material, like aluminum or copper, with internal channels or tubes designed to maximize the surface area in contact with the coolant.

How Does a Cold Plate Fundamentally Transfer Thermal Energy?

The operation of a cold plate is a masterful application of two core principles of thermodynamics: conduction and convection. The process is a seamless, continuous cycle designed for maximum efficiency.

• Step 1: Conduction. The journey of heat begins at the source—a processor, an IGBT, a laser diode, or any other power component. This heat must first be conducted from the device into the body of the cold plate. This is achieved by mounting the component directly onto the cold plate's surface. The quality of this connection is paramount, which is why a high-performance Thermal Interface Material (TIM) is applied between the two surfaces. The TIM fills microscopic air gaps, minimizing thermal resistance and ensuring an efficient conductive pathway.

• Step 2: Convection. Once the heat has saturated the conductive base of the cold plate, the second stage begins. A pump circulates a liquid coolant through the intricate internal channels of the plate. As the fluid flows through these channels, it absorbs the heat from the surrounding material via convection. The design of these internal passages—whether they are simple tubes or complex, micro-channel fins—is engineered to create turbulence and maximize the surface area for heat transfer, effectively "washing" the heat away into the fluid.

• Step 3: Transportation. The now-warm coolant exits the cold plate and is transported through tubing to a radiator or another heat exchanger, where it releases its thermal load to the ambient environment, ready to begin the cycle anew.

Which Cold Plate Construction Is Right for Your Needs?

Not all cold plates are created equal. The manufacturing method and internal structure are chosen based on the specific application's performance requirements, cost targets, and mechanical constraints. At Winshare Thermal, we leverage our extensive manufacturing capabilities to provide the optimal solution for every challenge.

What Are the Crucial Factors in Designing an Effective Cold Plate?

Creating a truly effective cold plate is a science that balances thermal performance with mechanical and hydraulic considerations. Our engineering team utilizes advanced tools like CFD (Computational Fluid Dynamics) simulation to optimize every aspect of the design.

• Material Selection: The choice between copper and aluminum is a primary consideration. Copper offers superior thermal conductivity (≈400 W/m·K) for maximum performance, while aluminum provides excellent conductivity (≈235 W/m·K) at a much lower weight and cost. The choice often depends on the heat flux and overall system weight requirements.

• Internal Fin Geometry: The design inside the cold plate is where performance is won or lost. By incorporating internal fins or micro-channels, we dramatically increase the surface area available for convective heat transfer. The density, height, and shape of these fins are carefully simulated to maximize thermal performance without creating an excessive pressure drop.

• Flow Path Design: The layout of the internal channels dictates how the coolant flows across the heat source. A well-designed path ensures the coolant velocity is maintained and that there are no "hot spots" where flow is stagnant. The design must balance thermal uniformity with the pressure drop, as a higher pressure drop requires a more powerful—and more power-consuming—pump.

• Thermal Interface Material (TIM): As mentioned earlier, the TIM is a critical, yet often overlooked, component. Even the flattest surfaces have microscopic imperfections. A high-quality TIM, whether it's a thermal grease or a gap pad, is essential to bridge this gap and ensure an unbroken thermal path from your component to the cold plate.

When Should You Choose a Cold Plate Over Air Cooling?

While air cooling is effective for many applications, there are clear indicators when a transition to liquid cooling with a cold plate is necessary and advantageous:

• High Heat Flux: When the heat generated per unit of area (W/cm²) is too high for an air-cooled heat sink to dissipate effectively.

• Space Constraints: A compact cold plate can manage a thermal load that would require a massive, and often impractical, air-cooled heat sink and fan assembly.

• Remote Heat Dissipation: When the heat must be moved away from the electronics and exhausted elsewhere, such as in a sealed enclosure or a densely packed server rack.

• Acoustic Noise Reduction: Liquid cooling systems, with their slow-moving radiator fans, are significantly quieter than the high-speed fans required for equivalent air-cooling performance.

• Temperature Uniformity: Cold plates can provide a more stable and uniform temperature across a large surface or multiple components, which is critical for performance and longevity.

How Can You Ensure Optimal Thermal Performance?

Understanding how a cold plate works is the first step. The next is implementing a solution that is perfectly tailored to your application's unique demands. The design of an effective thermal management system is a multi-faceted challenge involving fluid dynamics, material science, and advanced manufacturing.

At Winshare Thermal, we are more than just a component supplier; we are your one-stop thermal solution partner. From initial CFD simulation and rapid prototyping to high-volume manufacturing of cold plates, heat sinks, and heat pipes, we provide the expertise and integrated capabilities to solve your most complex thermal challenges. By partnering with our team, you gain access to decades of engineering experience dedicated to ensuring your technology runs cooler, faster, and more reliably.
