As electronic components become more powerful and compact, the heat they generate poses a significant challenge to performance, reliability, and longevity. Traditional air cooling methods are reaching their physical limits, paving the way for more efficient solutions. Liquid cooling, once a niche technology for enthusiasts, is now a critical component in various high-demand industries. At Winshare Thermal, we engineer these advanced systems daily, and Winshare Thermal will demystify the process, explaining exactly how a liquid cooling system works to manage intense thermal loads.
Article Contents
• What is the Fundamental Principle Behind Liquid Thermal Solutions?
• Which Components Form the Core of a Liquid Cooling Loop?
• How Does the Heat Transfer Cycle Actually Unfold?
• Why Consider Liquid Cooling Over Traditional Air Cooling?
• What Are the Different Types of Liquid Cooling Systems?
• Where Are High-Performance Liquid Cooling Systems Applied?
• How Can You Ensure Optimal Performance from Your Liquid Cooling System?
• Partner with a Thermal Management Expert
The core concept of liquid cooling is based on a simple principle of physics: liquids are far more effective at absorbing and transferring heat than air. Water, for instance, has a heat capacity over 4,000 times that of air by volume. This means a small volume of liquid can absorb a massive amount of thermal energy without a significant rise in its own temperature.
A liquid cooling system leverages this property by creating a continuous cycle. A specialized coolant is pumped through a loop, first absorbing heat directly from a heat-generating component (like a CPU, GPU, or battery pack), then transporting that heat away to a different location where it can be safely dissipated into the ambient environment. This targeted and efficient heat removal allows electronics to operate at optimal temperatures, even under extreme loads.
While systems can vary in complexity, every liquid cooling loop is built around several key components working in unison. Understanding the role of each part is essential to appreciating the system's effectiveness. As a manufacturer of these core components, we know that the quality and integration of each element determine the system's overall performance.
The Cold Plate: The Point of Contact
This is where the magic begins. A cold plate is a heat exchanger, typically made from highly conductive materials like copper or aluminum, that mounts directly onto the heat source. Inside the plate are micro-channels or fins through which the coolant flows. Its sole purpose is to efficiently transfer thermal energy from the component's surface into the liquid coolant.Friction Stir Welding (FSW) or brazing, is critical for maximizing surface area and minimizing thermal resistance.
The Pump: The Heart of the System
If the cold plate is the point of contact, the pump is the engine that drives the entire process. It is responsible for circulating the coolant throughout the loop. A reliable, powerful pump ensures a consistent flow rate, which is crucial for carrying heat away from the cold plate quickly and efficiently. In mission-critical applications, the pump's durability and control are paramount to the system's long-term stability.
The Radiator: The Heat Dissipation Hub
After absorbing heat, the now-warm coolant travels to the radiator. The radiator is another type of heat exchanger designed to transfer heat from the liquid to the surrounding air. It consists of a series of thin tubes and fins, creating a massive surface area. As the liquid flows through the tubes, fans blow ambient air across the fins, dissipating the thermal energy and cooling the liquid down before it returns to the start of the loop.
The Coolant: The Heat Transfer Medium
The liquid itself is a critical component. While distilled water is an excellent base due to its high heat capacity, most commercial coolants are a mixture of water and additives. These additives prevent corrosion, inhibit biological growth (like algae), and can lower the freezing point or raise the boiling point, making the system more robust across different operating environments.
Tubing & Fittings: The Essential Connectors
The tubing is the vascular system that connects all the components, allowing the coolant to flow between them. It must be durable, flexible, and impermeable to prevent leaks. Fittings are the secure, leak-proof connectors that join the tubes to the components like the cold plate, pump, and radiator.

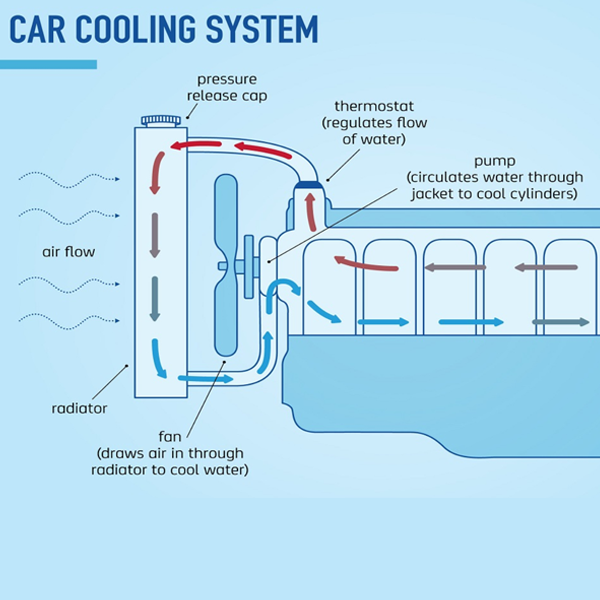

The operation of a liquid cooling system is a continuous, elegant cycle. By breaking it down into steps, we can see how each component contributes to the end goal of maintaining optimal operating temperatures.
1. Heat Absorption: The cycle begins at the heat source. The pump pushes cool liquid from the reservoir or radiator into the cold plate, which is in direct contact with the CPU or other hot component. The liquid flows through the micro-channels inside the plate, absorbing the component's waste heat.
2. Transporting Heat: Now heated, the liquid exits the cold plate and travels through the tubing towards the radiator. During this phase, the heat is safely contained within the liquid and moved away from sensitive electronics.
3. Heat Dissipation: Upon entering the radiator, the hot liquid flows through its network of small tubes. Fans attached to the radiator force cooler, ambient air over the fins, transferring the heat from the liquid into the air and exhausting it from the enclosure.
4. Returning the Cooled Liquid: Having released its thermal load, the now-cool liquid exits the radiator and flows back to the pump, ready to repeat the cycle. This continuous loop ensures that the heat source is constantly being cooled.
While air cooling with heat sinks and fans is a proven technology, liquid cooling offers distinct advantages, especially in high-power or space-constrained applications. The choice between them often depends on the specific thermal challenge.
Feature | Air Cooling | |
Thermal Efficiency | Moderate. Limited by the low heat capacity of air. Can struggle with very high thermal design power (TDP) components. | Superior. Liquid's high heat capacity allows for rapid absorption and transport of large amounts of heat. |
Acoustic Performance | Can be noisy. High fan speeds are required to move enough air to dissipate significant heat, generating considerable noise. | Quieter. Radiator fans can spin at lower RPMs because the liquid is so efficient. The pump adds a low hum, but overall noise is often much lower. |
Space & Footprint | Large, high-performance air coolers can be bulky and cause clearance issues with other components like RAM. | More Flexible. The cold plate has a very small footprint. The radiator can be mounted flexibly in different locations, improving system layout. |
Performance Consistency | Performance is highly dependent on ambient case temperature. Heat can saturate the air inside a chassis. | More Stable. By moving heat directly to an exhaust point (the radiator), it is less affected by internal case temperatures, leading to more stable performance. |
Liquid cooling is not a one-size-fits-all solution. The architecture of the system can be adapted to meet specific needs, from consumer PCs to large-scale industrial machinery.
• All-in-One (AIO) Systems: These are pre-assembled, sealed-loop solutions that are easy to install. The pump, radiator, tubes, and cold plate are integrated into a single unit, offering a convenient entry point into liquid cooling for PCs and workstations.
• Custom Loop Solutions: For enthusiasts and highly specialized applications, custom loops offer maximum performance and flexibility. Components are selected individually, allowing for the cooling of multiple heat sources in a single loop with custom tube routing and reservoir configurations.
• Direct-to-Chip (D2C) Cooling: This is a critical technology for modern data centers. In D2C systems, liquid is piped directly to cold plates on CPUs and other high-heat components within a server rack. The heat is then transferred to a larger, facility-level cooling infrastructure, enabling much higher server density.
At Winshare Thermal, our expertise extends far beyond consumer electronics. We design and manufacture liquid cooling solutions for some of the world's most demanding industries where thermal performance is non-negotiable.
• Data Centers & Servers: To support AI, machine learning, and cloud computing, server processors generate immense heat. Liquid cooling allows for higher-density racks and improved power usage effectiveness (PUE).
• New Energy: Electric Vehicle (EV) battery packs and Energy Storage Systems (ESS) require precise temperature control to ensure safety, performance, and long cycle life. Liquid cooling plates are essential for managing the thermal loads during rapid charging and discharging.
• High-Power Industrial Equipment: Lasers, power inverters, and variable frequency drives (VFDs) all benefit from the compact and powerful heat dissipation offered by liquid cooling, ensuring operational stability and reliability.
• Advanced Medical Devices: Equipment such as medical imaging systems (CT scanners, MRIs) and diagnostic tools generate significant heat and require quiet, reliable cooling to function properly in a sensitive environment.
A successful liquid cooling solution is more than just the sum of its parts; it's a result of expert engineering and system integration. To achieve the best results, several factors must be considered.
First, the design of the custom cold plate is paramount. It must be engineered to perfectly match the size, shape, and thermal output of the component it is cooling. The internal fin structure, material choice, and manufacturing process all play a role in its efficiency.
Second, the entire system must be viewed holistically. The pump's flow rate must be matched with the radiator's dissipation capacity and the pressure drop of the cold plate and tubing. Finally, rigorous testing and validation are necessary to confirm that the system performs reliably under real-world conditions.
Understanding how a liquid cooling system works reveals its immense potential for solving today's most complex thermal challenges. From the fundamental components to the complete thermal cycle, each element must be expertly designed and integrated for optimal performance.
As a leading provider of one-stop thermal management services, Winshare Thermal possesses deep expertise in the research, design, and manufacturing of high-performance liquid cooling plates and modules. Whether you are developing next-generation servers, advanced energy storage systems, or cutting-edge industrial equipment, our team of engineers is ready to partner with you to create a customized thermal solution that ensures reliability, efficiency, and peak performance. Contact us to discuss your project's unique thermal requirements.
