Views: 1 Author: Site Editor Publish Time: 2025-08-23 Origin: Site
In the world of high-performance electronics, managing heat is no longer a secondary consideration—it is a primary design challenge. As components become more powerful and compact, traditional air-cooling methods are often pushed beyond their limits. This is where a more robust and efficient technology takes center stage: the liquid cold plate. But what is it, and why has it become an indispensable tool for engineers in industries from electric vehicles to medical technology?
A liquid cold plate is an active heat exchanger that uses a circulating fluid to absorb and transport thermal energy away from a heat-generating device. By creating a direct, conductive path from the component to a liquid-cooled surface, it offers a quantum leap in cooling performance compared to air, enabling designs that are more powerful, reliable, and compact.
Article
• Why Is Advanced Liquid Cooling Essential Today?
• How Does a Liquid Cold Plate Operate?
• What Are the Fundamental Components of a Cold Plate System?
• Exploring Different Cold Plate Manufacturing Technologies
• What Materials and Fluids Are Involved?
• What Are the Decisive Benefits Compared to Air Cooling?
• Where Are These Advanced Thermal Solutions Used?
• How Do You Choose the Ideal Cold Plate for Your Application?
• Why Choose Winshare Thermal as Your Thermal Management Partner?
The relentless drive for miniaturization and increased power density in electronics has created a thermal bottleneck. Components like IGBTs, CPUs, GPUs, and high-power batteries generate immense heat in small areas. Air cooling, which relies on dissipating heat into the surrounding air via heat sinks and fans, faces fundamental physical limitations. Air has a low thermal capacity, meaning it cannot absorb and carry away heat as effectively as a liquid.
When air cooling is insufficient, devices must be throttled (run at lower performance), spaced further apart, or equipped with impractically large and noisy fan systems. This can compromise the product's performance, reliability, and form factor. Liquid cooling directly addresses these challenges by offering a significantly higher heat transfer coefficient, allowing for the efficient management of high heat fluxes in a compact and quiet manner.
The principle behind a liquid cold plate is elegantly simple, combining two fundamental heat transfer modes: conduction and convection. The process unfolds in a continuous cycle designed for maximum heat removal.
First, the heat-generating component (e.g., an IGBT module or a battery cell) is mounted directly onto the flat surface of the cold plate. The heat travels from the component into the plate through conduction. The efficiency of this initial transfer depends on the flatness of the surface and the use of a thermal interface material (TIM) to fill any microscopic air gaps.
Next, a coolant, such as a water-glycol mixture, is pumped through a network of internal channels or tubes embedded within the plate. As the fluid flows, it absorbs the heat from the plate's internal walls through convection. The warmed fluid then exits the plate and travels to a remote heat exchanger (like a radiator), where it releases the heat into the ambient environment before being recirculated back to the cold plate to repeat the cycle.
While the cold plate itself is the core of the system, it is comprised of several key features that ensure its proper function. Understanding these components is crucial for appreciating its design and performance.
• Mounting Surface: This is the flat, precision-machined area where the heat source is attached. Its material and surface finish are critical for minimizing thermal resistance.
• Internal Flow Path: This is the network of channels or tubes inside the plate through which the coolant flows. The design of this path is engineered to maximize surface area and fluid turbulence, enhancing heat transfer while balancing pressure drop.
• Inlet and Outlet Ports: These are the connection points where the coolant enters and exits the cold plate. They are carefully positioned to ensure even fluid distribution throughout the internal channels.
• Base Material: The body of the cold plate, typically made of aluminum or copper, provides the structural integrity and the primary medium for heat conduction.
Not all liquid cold plates are created equal. The manufacturing method significantly impacts performance, cost, and design flexibility. At Winshare Thermal, we leverage a range of advanced techniques to engineer the optimal solution for each unique application.
Manufacturing Technology | Description | Advantages | |

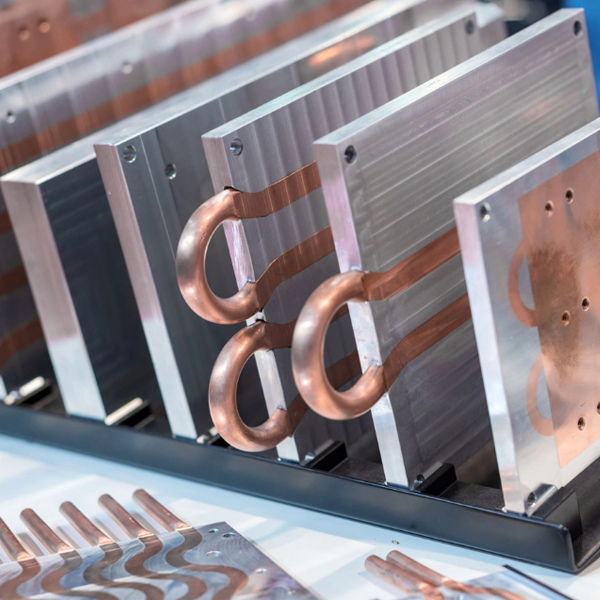

Tube-in-Plate | Tubes (typically copper or stainless steel) are pressed into a channeled aluminum base plate. | Cost-effective, good for moderate heat loads, compatible with a wide range of coolants. | Medical equipment, industrial power supplies, moderate-density electronics. |
Machined / Friction Stir Welded (FSW) | A two-piece design where a base plate and a top plate with machined channels are joined using FSW, a high-integrity solid-state welding process. | Excellent thermal performance, leak-proof joint, high design flexibility for complex flow paths, robust and reliable. | High-power applications like EV/ESS battery cooling, IGBT modules, and data centers. |
Brazed or CAB (Controlled Atmosphere Brazing) | Multiple layers of stamped or machined components are joined together using a filler metal in a controlled furnace environment. | Allows for complex, multi-layered internal structures (e.g., fins) for maximum surface area and performance. | Very high heat flux applications, compact and lightweight performance-critical designs. |
Die Cast | Molten metal is forced into a mold to create a near-net-shape part, often with integrated flow channels. | Excellent for high-volume production, low per-unit cost, allows for integrated mounting features. | Automotive applications, consumer electronics, and scenarios requiring mass production. |
The choice of materials and coolant is a critical engineering decision that balances thermal performance, weight, cost, and chemical compatibility.
Common Plate Materials:
• Aluminum: The most common choice due to its excellent balance of thermal conductivity, low weight, and cost-effectiveness. It is easily machined, extruded, and welded.
• Copper: Offers nearly double the thermal conductivity of aluminum, making it the preferred choice for applications with extremely high heat flux. However, it is heavier and more expensive.
Common Coolant Fluids:
• Deionized Water: An excellent thermal fluid with high heat capacity, but its corrosive properties and low freezing point require inhibitors and careful system design.
• Water-Glycol Mixtures: By adding Ethylene Glycol (EGW) or Propylene Glycol (PGW) to water, the freezing point is lowered and corrosion protection is added, making it a versatile and popular choice for most industrial and automotive applications.
• Dielectric Fluids: These non-conductive fluids are used in applications where the coolant could come into direct contact with live electronics, ensuring electrical safety.
The transition from air to liquid cooling provides a host of advantages that unlock new levels of performance and design freedom.
Attribute | Air Cooling | |
Thermal Performance | Limited by the low thermal capacity of air. Suitable for low to moderate heat densities. | Superior. Water has over 3,000 times the heat capacity of air by volume, enabling cooling of very high heat loads. |
System Footprint | Requires large heat sinks and significant airflow clearance, increasing overall product size. | Compact. Cold plates have a much smaller form factor, allowing for more densely packed electronics. |
Temperature Uniformity | Can result in significant hot spots across a component's surface. | Excellent. Provides highly uniform surface temperatures, improving the reliability and lifespan of components. |
Acoustic Noise | High-performance systems require large, high-speed fans, which generate significant noise. | Quiet. Pumps are significantly quieter than fans, enabling near-silent operation. |
Heat Dissipation Location | Heat is dumped directly into the local environment, potentially heating up other nearby components. | Flexible. Heat can be transported away from sensitive electronics and dissipated at a remote location. |
The superior performance of liquid cold plates makes them the go-to solution for a wide range of demanding industries—markets where Winshare Thermal has deep expertise.
• New Energy Vehicles (EVs) & Energy Storage Systems (ESS): Maintaining optimal battery temperature is crucial for performance, lifespan, and safety. Cold plates are used to cool entire battery packs, ensuring uniform temperatures during rapid charging and discharging.
• Power Electronics: High-power IGBT modules, rectifiers, and inverters used in industrial drives, renewable energy converters, and transportation systems generate massive amounts of waste heat that can only be managed effectively with liquid cooling.
• Medical Technology: Equipment such as medical lasers, diagnostic imaging systems (CT, MRI), and DNA sequencers require precise temperature control for operational accuracy and reliability, making liquid cold plates an ideal choice.
• Telecommunications & Data Centers: As server processors become more powerful, liquid cooling is being adopted to cool CPUs and other high-power components directly, allowing for higher rack density and improved energy efficiency.
Selecting the right liquid cold plate is not a one-size-fits-all process. It requires a holistic analysis of the thermal, mechanical, and economic requirements of your system. Key factors to consider include:
• Thermal Load: How much heat (in watts) needs to be dissipated?
• Maximum Temperature: What is the maximum allowable temperature for the component?
• Fluid Dynamics: What are the available flow rate and acceptable pressure drop for the coolant?
• Mechanical Constraints: What are the size, weight, and mounting requirements?
• Environmental Factors: Will the system operate in a corrosive or high-vibration environment?
Engaging with a thermal management expert early in the design process is the most effective way to navigate these considerations. Through advanced thermal simulation and prototyping, the optimal design can be achieved, balancing performance and cost effectively.
Understanding what a liquid cold plate is just the beginning. Implementing the right solution requires a partner with deep engineering expertise and advanced manufacturing capabilities. At Winshare Thermal, we are more than just a component supplier; we are your dedicated thermal management solution partner.
Our one-stop service model covers every stage of your project, from initial concept and thermal simulation to rapid prototyping and high-volume mass production. We specialize in cutting-edge manufacturing techniques, including high-performance Friction Stir Welding (FSW), to deliver robust, leak-free, and thermally superior cold plates tailored to your exact needs. Our experience across the new energy, industrial, and medical sectors means we understand the unique challenges you face.
If you're ready to push the boundaries of performance and reliability in your next project, our team of engineers is here to help you design and implement the perfect liquid cooling solution. Contact us today to discuss your thermal challenge.
