What's The Best Heat Sink Manufacturing Process?

Introduction

In today’s fast-paced technological landscape, effective thermal management is crucial for the performance and longevity of electronic devices. Heat sinks play a pivotal role in dissipating heat generated by components, ensuring optimal operation. At Guangdong Winshare Thermal Technology Co., Ltd., we specialize in high-power cooling solutions and have been committed to delivering innovative thermal management products and services since 2009. This article explores various heat sink manufacturing processes, helping you determine the best option for your specific needs.

Overview of Heat Sink Manufacturing Processes

Definition and Purpose

A heat sink is a passive cooling component designed to absorb and dissipate heat from electronic devices. By increasing the surface area available for heat dissipation, heat sinks help maintain safe operating temperatures, preventing damage and ensuring reliability.

Factors Influencing Process Selection

Choosing the right manufacturing process for a heat sink depends on several factors:

· Performance Requirements: The thermal performance needed for your application.

· Complexity: The intricacy of the design and geometry.

· Volume: The quantity of units required.

· Cost: Budget constraints that may affect material and process choices.

Common Heat Sink Manufacturing Processes

Heat sinks are critical components in thermal management, used to dissipate heat from electronic devices effectively. Various manufacturing processes are employed to produce heat sinks, each with its unique advantages and limitations. Understanding these processes can help you choose the best option for your specific application.

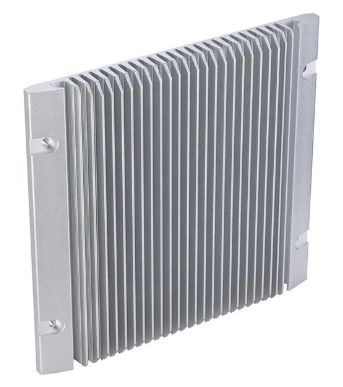

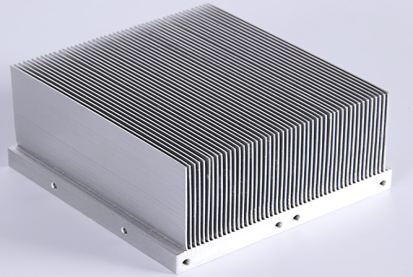

1. Aluminum Extrusion

Aluminum extrusion involves forcing heated aluminum through a die to create specific shapes, typically at temperatures around 520-540°C. This process is widely used for producing heat sinks due to its efficiency and cost-effectiveness.

Advantages:

· Cost-effective: Ideal for high-volume production, reducing per-unit costs.

· Customizable designs: Allows for a variety of shapes and sizes to meet specific requirements.

· Material properties: Commonly uses aluminum alloys like AL6063, known for good thermal conductivity and processability.

Limitations:

· Dimensional constraints: The thickness-to-length ratio of fins cannot exceed 1:18, limiting design flexibility in compact spaces.

· Complexity limitations: More intricate shapes may not be feasible with this method.

2. Cold Forging

Cold forging uses compressive forces to shape metal at room temperature, forming fins by forcing raw material into a die.

Advantages:

· High quality: Produces parts with low porosity and excellent mechanical properties due to work hardening.

· Cost-effective tooling: Lower mold production costs and shorter lead times (10-15 days).

Limitations:

· Shape limitations: Best suited for simpler designs, which may not meet all application needs.

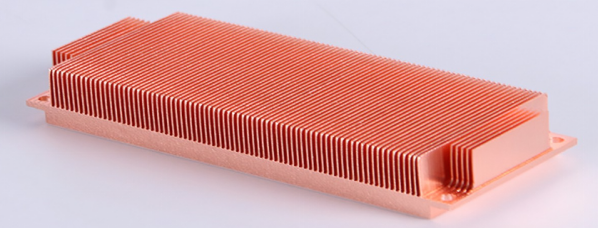

3. Skiving

Skiving involves cutting thin slices from a solid metal block to form fins. This method is particularly effective for creating high-density fin arrays.

Advantages:

· High fin density: Increases surface area for improved heat dissipation.

· Design flexibility: Capable of producing complex geometries that enhance thermal performance.

· Integrated formation: The process creates a large connection area between the base and fins, minimizing interface impedance.

Limitations:

· Specialized machinery required: Initial setup costs can be higher due to the need for specialized equipment.

· Weight considerations: End products are generally heavier compared to other methods.

4. CNC Machining

CNC machining uses computer-controlled cutting tools to create intricate designs from solid blocks of material.

Advantages:

· Precision and flexibility: Ideal for low-volume production with complex geometries.

· Quick turnaround time: Reduces lead times compared to other methods requiring extensive tooling.

Limitations:

· Higher costs per unit: Generally more expensive than bulk manufacturing processes, especially for larger quantities.

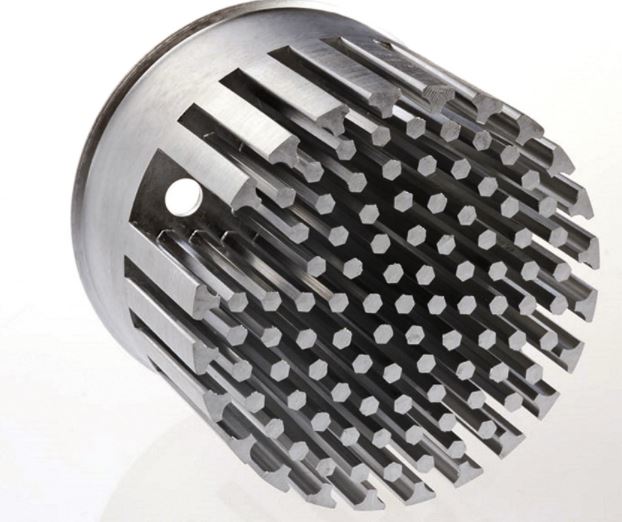

5. Die Casting

Die casting involves pouring molten metal into molds under pressure, allowing for the creation of detailed shapes.

Advantages:

· Rapid production turnaround: Efficient for large-scale manufacturing with good dimensional accuracy.

· Complex geometries possible: Suitable for intricate designs that require fine details.

Limitations:

· Potential porosity issues: Can affect thermal conductivity and overall performance if gases evolve during solidification.

· Higher initial investment in tooling: Significant upfront costs associated with die casting molds.

6. Stamping

Stamping utilizes a power press to transform sheet metal into desired shapes, often used in low-power applications.

Advantages:

· Cost-effective for high-volume production runs: Quick processing times lead to lower costs per unit.

· Scalability and automation potential: Easily automated, making it suitable for mass production.

Limitations:

· Generally lower performance levels: Best suited for applications with minimal heat dissipation requirements.

· Surface finish issues: May result in sheared edges and die marks that could affect aesthetics or functionality.

7. Bonding

Bonding techniques combine different materials to enhance performance characteristics, often used when dimensions exceed other methods' capabilities.

Advantages:

· Oversized heat sinks possible: Facilitates the creation of larger designs that might not be achievable through other processes.

· Material combination flexibility: Allows different materials (e.g., copper bases with aluminum fins) to optimize thermal performance.

Limitations:

· Higher costs associated with bonding agents: The need for adhesives can increase overall manufacturing expenses.

Comparison Table of Manufacturing Processes

Conclusion

Selecting the right heat sink manufacturing process is essential for achieving optimal thermal management in your electronic devices. Each method offers distinct advantages and limitations that must be considered based on your specific requirements.
