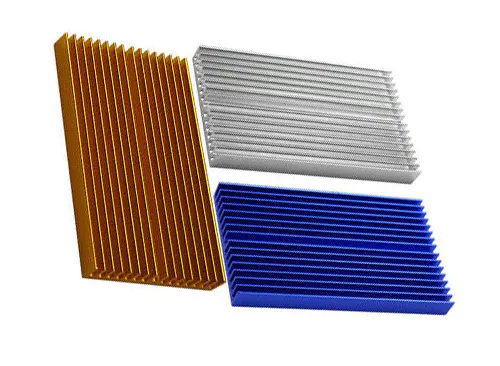

Anodized Aluminum HeatSinks Explained: Benefits, Performance & Why They're Used

In the world of electronics and thermal management, heatsinks are unsung heroes. They silently protect sensitive components from overheating, ensuring reliability and longevity. While various materials can be used, aluminum alloys are a popular choice due to their excellent balance of thermal conductivity, low weight, ease of manufacturing (especially extrusion), and cost-effectiveness.

However, the performance and durability of an aluminum heatsink don't just depend on its shape and material. The surface finish plays a critical role. One of the most common and beneficial finishes is anodizing. But what exactly is an anodized aluminum heatsink, and why is it so often preferred? Let's dive in.

1. What is Anodizing? The Process for Aluminum Heatsinks

What does it mean for a heatsink to be anodized? Simply put, an anodized heatsink has undergone an electrochemical process that enhances its natural surface properties. It's crucial to understand that anodizing is not a coating like paint or powder coating. Instead, it's a controlled oxidation process that converts the outermost layer of the aluminum itself into aluminum oxide, making this protective layer significantly thicker, more durable, and more structured than the thin, natural oxide layer that forms on bare aluminum.

The anodizing process typically involves several steps:

1. Cleaning: The aluminum heatsink is thoroughly cleaned to remove any grease, oil, or contaminants.

2. Etching (Optional): Sometimes, the part is etched (often in a sodium hydroxide solution) to create a matte finish or remove minor surface imperfections.

3. Anodizing Bath: The cleaned aluminum part is immersed in an electrolytic solution, most commonly sulfuric acid.

4. Applying Current: The aluminum part acts as the anode (positive electrode) in an electrical circuit. A direct current (DC) is passed through the bath, causing oxygen ions from the electrolyte to bond with aluminum atoms on the surface, growing the aluminum oxide layer. The structure of this layer is highly ordered and porous.

5. Coloring (Optional): While the part is still porous, it can be immersed in organic or inorganic dyes to add color (black, blue, red, etc.). The dye fills the microscopic pores.

6. Sealing: This final, critical step closes the pores of the oxide layer, usually by immersing the part in hot deionized water or specific chemical seals. This locks in any dyes and creates a hard, non-porous, corrosion-resistant surface.

Common types include Type II anodizing (standard, often used for decorative and protective purposes) and Type III anodizing (hardcoat), which creates a much thicker, denser, and harder oxide layer for applications requiring superior wear resistance.

2. Why Anodize Aluminum Heatsinks? Key Benefits Explored

Anodizing isn't just done for looks; it provides several functional advantages crucial for heatsink performance and longevity:

• Enhanced Corrosion Resistance: The sealed aluminum oxide layer is chemically stable and highly resistant to atmospheric and chemical corrosion, including moisture and salt spray. This significantly extends the heatsink's life, especially in demanding environments. Anodized finishes can meet stringent standards like the ISO 9227 acetic acid salt spray test.

• Improved Durability & Wear Resistance: Aluminum oxide is a very hard substance (close to sapphire on the Mohs scale). Anodizing creates a tough surface layer that resists scratches, nicks, and general wear far better than bare aluminum. Type III hardcoat anodizing offers exceptional abrasion resistance.

• Increased Electrical Insulation: Unlike bare aluminum, aluminum oxide is an excellent electrical insulator. This prevents accidental short circuits between the heatsink and sensitive electronic components it might contact, improving system safety and reliability. The breakdown voltage depends on the thickness and quality of the anodized layer.

• Improved Thermal Performance (via Emissivity): While we'll explore this in detail next, a major benefit is that the anodized surface radiates heat much more effectively than bare aluminum. This is a key factor in cooling performance, especially under natural convection.

• Aesthetic Options & Color Consistency: The porous nature of the oxide layer before sealing allows for dyeing in various colors. Black is common for thermal reasons and aesthetics, but other colors can be used for branding, identification, or visual appeal. Anodizing provides a very consistent and durable finish compared to painting.

3. Does Anodizing Affect Heatsink Thermal Performance? (Conductivity vs. Emissivity)

This is perhaps the most frequently asked—and sometimes misunderstood—question about anodized heatsinks. Does anodizing help or hurt cooling? The answer lies in understanding the different ways heatsinks dissipate heat and how anodizing affects them. Heat transfer occurs via three modes:

1. Conduction: Heat moving through the solid material (from the component base through the heatsink fins).

2. Convection: Heat moving from the heatsink surface to the surrounding fluid (usually air).

3. Radiation: Heat emitted from the heatsink surface as electromagnetic waves.

Here's how anodizing impacts each:

• Conduction: Aluminum oxide does have lower thermal conductivity than pure aluminum. However, the anodized layer is incredibly thin (typically ranging from 5 to 25 micrometers for Type II, maybe up to 50-100 micrometers for Type III). Because it's so thin, this layer adds only a very small amount of thermal resistance. For most heatsink designs, the negative impact on conduction is minimal and often negligible.

• Convection: The effect on convective heat transfer is generally considered minor. While some argue the slightly rougher texture might subtly improve airflow interaction at the boundary layer, convection is primarily driven by the heatsink's fin design, orientation, and the speed of the airflow (natural or forced). Anodizing doesn't significantly change convective performance.

• Radiation (Emissivity): THIS IS KEY! Emissivity is a measure of a surface's ability to emit thermal energy by radiation. It's rated on a scale from 0 to 1. Polished bare aluminum is a very poor radiator, with an emissivity of only around 0.05. However, anodizing dramatically changes the surface characteristics. Anodized aluminum has a much higher emissivity, typically ranging from ~0.77 for clear anodize to ~0.85-0.95 or even higher for black or other dark anodized finishes.

Overall Impact: For most common applications, especially passive heatsinks relying on natural convection or those in low-airflow situations, radiation plays a significant role in total heat dissipation (often cited as ~30% or more in natural convection at sea level). The massive increase in radiative heat transfer due to anodizing's high emissivity far outweighs the minimal decrease in conductive heat transfer.

Therefore, in the vast majority of cases, anodizing improves the overall thermal performance of an aluminum heatsink compared to a bare aluminum one. The benefit is less pronounced in high-airflow, forced convection scenarios where convection dominates heat transfer, but even then, anodizing rarely hinders performance significantly and still provides all the other crucial benefits (corrosion resistance, durability, etc.). Black anodizing is often preferred as it typically offers the highest emissivity values, maximizing radiative cooling.

4. Anodized vs. Non-Anodized Heatsinks: A Direct Comparison

5. Anodizing vs. Other Surface Finishes (Paint, Powder Coat, Chem Film)

While anodizing is common, other finishes exist. Here’s how they compare:

• Paint / Powder Coating: Strongly discouraged for heatsinks. These are relatively thick coatings that act as significant thermal insulators, drastically reducing the heatsink's ability to dissipate heat. Avoid them if thermal performance is critical.

• Chromate Conversion Coating (Chem Film, Alodine, Iridite): A chemical process creating a thin protective layer.

• Pros: Good corrosion resistance, electrically conductive (important for grounding/EMI shielding), lower cost than anodizing.

• Cons: Offers less wear resistance, lower emissivity than anodizing (doesn't help radiation much), limited color options (typically clear or yellow/gold).

• Electroless Nickel Plating: A metallic plating process.

• Pros: Excellent corrosion and wear resistance, electrically conductive, solderable surface.

• Cons: More complex/costly process than anodizing, emissivity similar to bare metal (poor radiation).

• E-Coating (Electrophoretic Coating): An electro-deposition paint process resulting in a thin, uniform layer.

• Pros: Good coverage even on complex shapes, good corrosion resistance, thinner than powder coating.

• Cons: Still an organic coating that adds some thermal resistance (though less than thick paint/powder), typically less durable than anodizing.

For general-purpose heatsinks where a balance of thermal performance, protection, and cost is needed, anodizing often provides the best overall value proposition.

6. Considerations: Colors, Costs, and Applications

• Color Choice: While black anodizing is standard for maximizing heat radiation, other dark colors (dark blues, greens, reds) also offer high emissivity compared to bare aluminum or clear anodize. Clear anodizing still provides significantly better emissivity than bare aluminum and offers excellent corrosion protection. Color choice often comes down to balancing thermal needs with aesthetic or branding requirements.

• Cost: Anodizing adds a relatively small cost to the manufacturing process, generally considered well worth the benefits in performance and longevity. Type III hardcoat anodizing is more expensive than standard Type II due to the longer processing times and higher energy use.

• Common Applications: Anodized aluminum heatsinks are ubiquitous across many industries, including:

• Consumer Electronics (PCs, Laptops, Audio Amplifiers)

• LED Lighting (high-power LEDs generate significant heat)

• Power Supplies and Voltage Regulators

• Automotive Electronics

• Industrial Controls and Automation

• Telecommunications Equipment

• Aerospace Components

7. Conclusion: The Value of Anodized Aluminum Heatsinks

Anodizing is far more than just a cosmetic finish for aluminum heatsinks. It's a functional surface treatment that delivers tangible benefits: superior protection against corrosion and wear, valuable electrical insulation, and, crucially, enhanced thermal performance in most applications due to significantly improved surface emissivity.

While bare aluminum offers slightly better raw conductivity, its poor resistance to the environment and, more importantly, its inability to effectively radiate heat make it less suitable for many applications. Finishes like paint or powder coat severely impede heat transfer. Anodizing strikes an optimal balance, providing essential protection while actively contributing to better heat dissipation through radiation. For these reasons, anodized aluminum remains the industry standard and a highly effective choice for reliable thermal management.
