In today's world of ever-shrinking electronics, powerful processors, and energy-intensive industrial processes, managing heat is more critical than ever. Overheating can lead to reduced performance, shorter lifespans, and even catastrophic failure. Enter the heat pipe: a remarkably simple yet incredibly effective passive device capable of transferring significant amounts of heat with minimal temperature drop. Unlike solid conductors like copper or aluminum which rely solely on conduction, heat pipes leverage the power of two-phase heat transfer – the evaporation and condensation of a working fluid – to achieve thermal conductivities orders of magnitude higher.
This guide dives deep into the world of heat pipe technology. We'll explore the fundamental working principle, dissect the various types designed for specific challenges – from cooling tiny microchips to managing heat in spacecraft – discuss the materials involved, highlight key applications, and provide insights into choosing the right heat pipe for your needs.
At its core, a standard heat pipe (also known as a Constant Conductance Heat Pipe or CCHP) is a closed system containing a small amount of working fluid under a vacuum. Its operation is an elegant continuous cycle driven purely by temperature differences:
Components:
Sealed Envelope/Container: A vacuum-tight tube, typically made of copper for electronics cooling due to its high thermal conductivity and compatibility with water.
Working Fluid: A liquid (like deionized water) chosen to vaporize at the desired operating temperature. The vacuum lowers the fluid's boiling point significantly.
Wick Structure: A porous material lining the inside walls (e.g., sintered copper powder, grooves, mesh). This structure acts like a sponge, using capillary action to transport the liquid fluid.

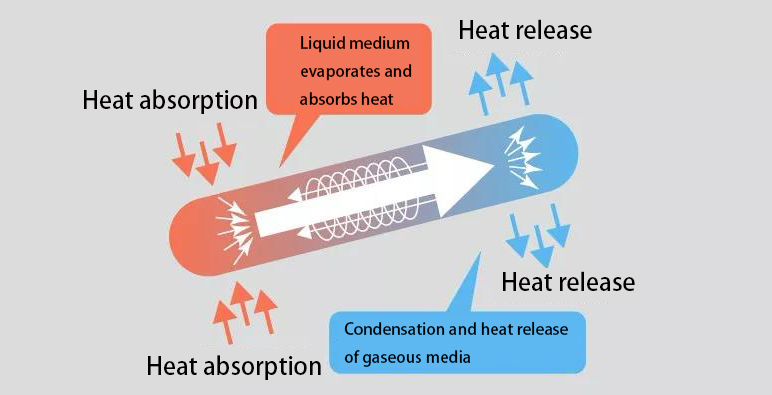

The Thermal Cycle:
Evaporation: Heat applied to one end (the evaporator section) causes the working fluid within the wick to absorb heat and vaporize (boil).
Vapor Transport: The resulting vapor, carrying the absorbed heat (as latent heat of vaporization), rapidly travels down the hollow center core of the pipe towards the cooler end due to the pressure difference created by the phase change. This movement is very fast and occurs with minimal temperature drop. An optional adiabatic section may exist between the hot and cold ends where no significant heat transfer occurs.
Condensation: At the cooler end (the condenser section), the vapor comes into contact with the cooler surface, releases its latent heat to the heat sink (e.g., cooling fins), and condenses back into liquid.
Liquid Return: The condensed liquid is absorbed by the wick structure, which then passively "pumps" it back to the evaporator section via capillary action, ready to repeat the cycle.
This continuous, passive cycle allows the heat pipe to act as a thermal "superconductor," moving heat efficiently from source to sink with very little temperature difference along its length.
While the basic principle remains similar, heat pipe technology has evolved into various specialized forms to meet diverse thermal challenges. Different designs optimize for factors like heat load, orientation, transport distance, temperature control, and geometry. Let's explore the most significant types:
Description: The most common and fundamental type, operating as described above. They rely on a wick structure's capillary action to return liquid to the evaporator, allowing them to function in various orientations, though performance can vary.
Key Features: High effective thermal conductivity, relatively low cost, reliable, wide range of sizes available. Performance against gravity depends on the wick.
Common Wicks:
Sintered Powder Metal: Offers the highest capillary pressure, excellent for working against gravity or in challenging orientations.
Grooved: Axial grooves machined into the inner wall offer good performance and reliability.
Mesh/Screen: Layers of metallic mesh provide capillary action; often lower cost and flexible but typically have lower capillary pressure than sintered wicks.
Uses: Ubiquitous in electronics cooling – CPUs, GPUs, laptops, servers, LED lighting, gaming consoles, power electronics.

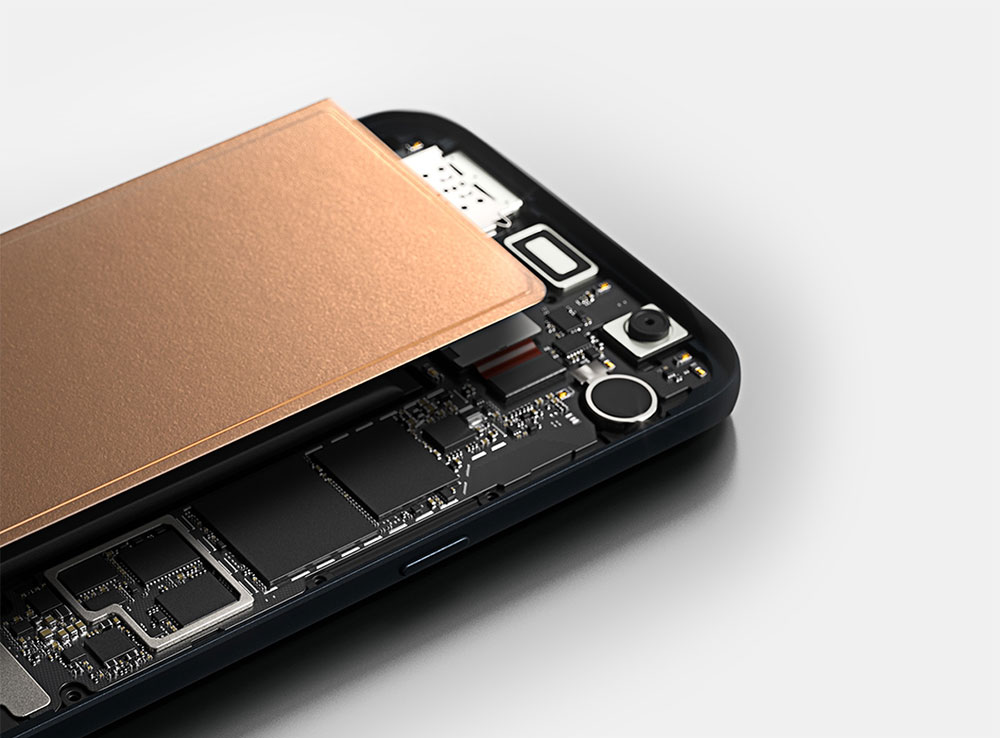

Description: Essentially flat or planar heat pipes designed primarily for spreading heat efficiently across a surface rather than transporting it linearly over a distance.
Key Features: Excellent at reducing "hot spots" by creating a highly isothermal surface, ideal for interfacing with multiple or large heat sources/sinks, can be made very thin. Available in traditional 2-piece designs (often thicker, higher performance) and lower-cost 1-piece designs (formed from a single tube, can allow some bending).
Uses: Cooling high-performance CPUs and GPUs, high-density power modules, servers, advanced gaming consoles, LED arrays, improving heat sink base efficiency.

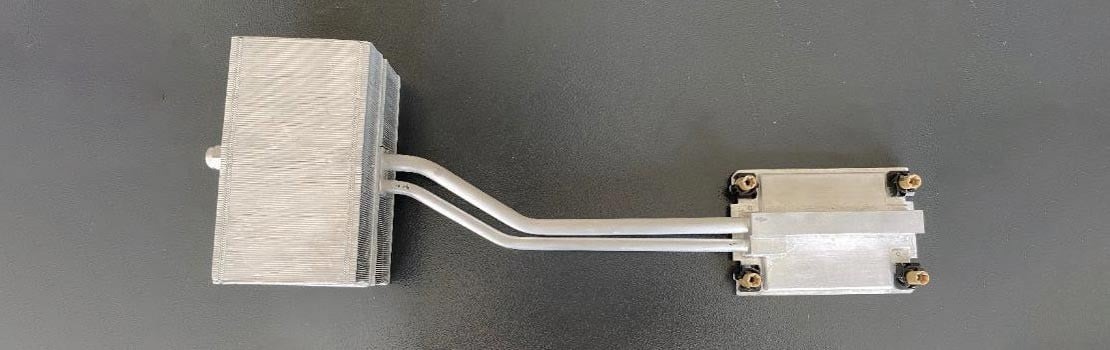

Description: A type of heat pipe that primarily relies on gravity to return the condensed liquid back to the evaporator section. They often have simplified or no wick structures (e.g., just smooth or grooved inner walls).
Key Features: Can transfer very high heat loads, capable of operating over extremely long distances (tens of meters), simple and robust construction. Crucially dependent on orientation: the evaporator must be located below the condenser for gravity return to function.
Uses: Large-scale industrial heat recovery systems, HVAC dehumidification and energy recovery, solar thermal water heaters, geothermal energy applications, anywhere gravity assistance is assured.
Description: Designed to passively maintain a relatively constant evaporator temperature even when the heat load or heat sink temperature fluctuates. They achieve this by incorporating a reservoir and a precisely measured amount of non-condensable gas (NCG, like nitrogen or argon).
Key Features: The NCG accumulates at the end of the condenser, forming a gas plug that effectively blocks off a portion of the condenser area. As conditions change, this gas plug expands or contracts, adjusting the active heat rejection area to stabilize the evaporator temperature.
Uses: Critical for spacecraft thermal control where external temperatures vary wildly, stabilizing temperatures for sensitive optical or electronic instruments, laboratory equipment requiring precise temperature points.
Description: Advanced two-phase systems designed for transporting high heat loads over long distances (several meters) and potentially against gravity. They feature separate liquid and vapor transport lines and utilize a high-performance capillary wick structure (acting as a pump) only within the evaporator.
Key Features: Excellent heat transport capacity over long distances, flexible routing possibilities for the transport lines, ability to operate against gravity. CPLs and LHPs have subtle design differences but similar operating principles; they are generally more complex and expensive than standard heat pipes.
Uses: Aerospace and satellite thermal control, demanding terrestrial applications needing long-distance heat transport independent of orientation (e.g., cooling large distributed systems).
Description: A relatively newer type consisting of a meandering capillary tube (or parallel channels) filled partially with working fluid, typically without a wick structure. Heat input causes the formation, expansion, and collapse of vapor bubbles, leading to oscillations and pulsations of liquid slugs and vapor plugs that effectively transfer heat.
Key Features: Simple construction (potentially wickless), can operate against gravity due to the oscillatory mechanism, complex internal fluid dynamics, potentially lower cost.
Uses: Electronics cooling (especially where space is tight and anti-gravity performance is needed), compact thermal management solutions.
Description: Engineered to allow significant heat flow in one direction (forward) but very low heat flow in the opposite direction (reverse), acting like a thermal diode or switch.
Key Features: Achieved through various mechanisms like liquid traps (preventing liquid return if heated from the wrong end) or vapor traps.
Uses: Preventing reverse heat flow (e.g., protecting sensitive components from external heat sources when off), spacecraft thermal management to isolate sections, specialized thermal control applications.
Description: Specifically designed to cool rotating machinery. They use centrifugal force, generated by the rotation itself, to drive the condensed liquid back towards the evaporator section located at the periphery.
Key Features: Can have internally tapered walls (wider at the condenser) or specific wick structures designed to work with rotational forces.
Uses: Cooling electric motor shafts, rotating components in industrial machinery, high-frequency RF rotary joints in telecommunications.
Flexible Heat Pipes: Use bellows or flexible tubing sections to allow routing around obstacles.
Micro & Miniature Heat Pipes: Scaled-down versions for cooling very small components or spaces (e.g., in compact mobile devices).
Cryogenic Heat Pipes: Utilize working fluids like nitrogen or neon for heat transfer at extremely low temperatures (below -150°C).
The choice of materials is critical for a heat pipe's performance, operating temperature range, and longevity. Key considerations include thermal conductivity, fluid compatibility, strength, weight, and cost.
Envelope Material:
Copper: Most common for electronics cooling (typically with water); excellent thermal conductivity, easily formed, good compatibility.
Aluminum: Lighter weight, often used with ammonia for spacecraft applications.
Stainless Steel: Used for higher temperatures or with specific working fluids (like alkali metals or certain organic fluids) where copper or aluminum are incompatible.
Wick Structure:
Sintered Powder Metal: Provides high capillary pressure for anti-gravity operation but may have lower permeability (resistance to flow).
Grooves: Offer lower capillary pressure but higher permeability, good balance for many applications.
Screen Mesh/Fiber: Flexible, can conform to shapes, often lower cost, capillary performance varies with mesh size and layers.
(Wick choice significantly impacts the heat pipe's ability to operate against gravity and its maximum heat transport capacity (Qmax)).
Working Fluid: The single most important factor determining the operating temperature range. The fluid must have suitable vapor pressure and thermodynamic properties within the target temperature window. Compatibility with the envelope and wick material is crucial to prevent corrosion or gas generation.
The efficiency and versatility of heat pipes have led to their adoption across numerous fields:
Electronics Cooling (The Dominant Application): Laptops, desktop PCs (CPU/GPU coolers), servers, data centers, graphics cards, LED lighting, gaming consoles, power supplies. Why? Passive operation, high efficiency in compact spaces, ability to move heat from confined sources to larger heat sinks.
Aerospace and Spacecraft: Thermal control of satellites, cooling electronics and instruments in vacuum, managing varying solar loads. Why? High reliability, passive operation (no power needed), lightweight options (Aluminum/Ammonia), VCHPs for temperature stability.
Industrial Processes: Heat recovery systems (e.g., capturing waste heat from exhaust stacks), cooling molds in plastic injection, temperature control in chemical processes, cooling large power electronics. Why? Robustness, high power handling (especially thermosiphons), reliability.
HVAC Systems: Enhancing dehumidification in air conditioners (wrap-around heat pipes pre-cool incoming air and reheat outgoing air), energy recovery ventilators. Why? Efficient energy transfer improves overall system efficiency.
Renewable Energy: Transferring heat from solar thermal collector panels to water storage tanks. Why? Efficient point-to-point heat transfer, often utilizing thermosiphon principles.
Medical Devices: Temperature regulation in diagnostic equipment, patient warming/cooling systems. Why? Reliability, precise temperature control possibilities.
Temperature Calibration: High-temperature heat pipes using alkali metals provide highly stable and uniform temperature zones for calibrating sensors.
Selecting the optimal heat pipe involves considering multiple interacting factors:
What is the Operating Temperature Range? This primarily determines the required working fluid and, consequently, compatible envelope/wick materials.
How Much Heat (Q) Needs to be Transferred? This influences the required diameter, length, and type of heat pipe (its Qmax or heat transport limit). Consider both average and peak heat loads.
What is the Heat Flux Density? High heat concentrations at the evaporator might necessitate specific wick structures (like sintered) or vapor chambers to avoid boiling limits.
What is the Transport Distance? How far does the heat need to move from source to sink? Longer distances might favor standard pipes, LHPs, or thermosiphons.
What is the Orientation Relative to Gravity? Will the heat pipe operate horizontally, vertically with heat source below (gravity-aided), or vertically with heat source above (anti-gravity)? This is critical for thermosiphons and heavily influences wick selection for standard pipes.
What are the Geometric Constraints? Are there limits on diameter, length, or shape? Does the pipe need to be bent or flattened? (Note: Bending and flattening generally reduce Qmax).
What are the Environmental Factors? Will the system experience vibration, shock, or potential freezing temperatures (requiring specific fluids or start-up considerations)?
What is the Cost Budget? Standard CCHPs and thermosiphons are generally lower cost than vapor chambers, VCHPs, or LHPs/CPLs.
Answering these questions will guide you towards the most suitable heat pipe type, size, fluid, and wick combination for your specific thermal management challenge.
Heat pipe technology continues to evolve, driven by demands for cooling ever more powerful and compact systems:
Miniaturization: Development of ultra-thin vapor chambers (<1mm) and micro heat pipes for mobile devices, wearables, and tightly packed electronics.
Higher Heat Flux: Improving wick structures and designs to handle the increasing power densities of modern processors, lasers, and power electronics.
Advanced Materials: Research into new working fluids, wick materials (e.g., composites, porous graphenes), and envelope materials for wider temperature ranges or enhanced performance.
Integration: Incorporating heat pipes directly into component packaging or system structures (e.g., chassis).
New Applications: Growing use in electric vehicle battery thermal management, advanced data center cooling architectures, and concentrated solar power.
Improved Control: Enhancements in VCHP technology for even more precise passive thermal regulation.
From the smartphone in your pocket to satellites orbiting Earth, heat pipes are unsung heroes of modern technology. Their ability to passively, efficiently, and reliably transfer heat using the elegant principle of two-phase flow makes them an indispensable tool for thermal engineers. With a diverse range of types available – each optimized for specific conditions – and ongoing innovation pushing their capabilities further, heat pipes will undoubtedly remain a cornerstone of effective thermal management for years to come.
A: Yes, absolutely. While solid copper is a good conductor, a heat pipe's effective thermal conductivity can be 100 to 1000+ times higher over its length. This is because it moves heat via the rapid phase change (vaporization/condensation) of its working fluid, not just slow atomic vibration (conduction).
A: No. Heat pipes are entirely passive devices. They have no moving parts and require no external power to operate – the heat transfer cycle is driven solely by the temperature difference between the evaporator and condenser. If properly manufactured with compatible materials and a perfect seal, they have an extremely long, maintenance-free lifespan.
A: No, orientation matters. Thermosiphons strictly rely on gravity and only work if the evaporator is below the condenser. Standard heat pipes' performance against gravity depends heavily on the wick's capillary force – sintered wicks provide the best anti-gravity performance, while grooved or mesh wicks are less effective when working against gravity. Vapor chambers generally perform well in any orientation due to their strong wick structure.
A: Several physical phenomena can limit a heat pipe's maximum heat transport capacity (Qmax):
Capillary Limit: The wick cannot pump liquid back to the evaporator fast enough to replenish what's boiling off.
Boiling Limit: Heat flux at the evaporator is so high that bubbles form and block liquid flow within the wick.
Vapor Limit (Sonic Limit): Vapor flow reaches the speed of sound, choking further transfer.
Entrainment Limit: High-speed vapor flow shears droplets off the returning liquid in the wick, hindering return flow.
A: Bending generally introduces a slight reduction in Qmax due to increased flow path length and potential disruption of flow. Flattening a round heat pipe significantly impacts performance, especially if done excessively, as it compresses the wick and reduces the cross-sectional area available for both liquid and vapor flow, increasing pressure drops and potentially lowering the capillary and vapor limits. Manufacturers typically provide derating factors for bent or flattened pipes.
