In the realm of industrial applications, the significance of selecting an optimized heat sink cannot be overstated. A heat sink, by design, dissipates heat generated by electronic components and power modules, protecting systems from performance degradation and failure. From high-power converters in the renewable energy sector to robust server racks in information and communications technology, having a well-tailored heat sink solution safeguards the longevity of your equipment and ensures steady, uninterrupted operations.
When industrial environments grow more sophisticated, and devices are expected to manage increasingly demanding workloads, the requirements for thermal management become equally stringent. The right heat sink, chosen after carefully evaluating both current and projected system requirements, can substantially impact your equipment's performance, energy efficiency, and reliability.
This article outlines the critical steps involved in selecting the ideal heat sink for your industrial applications, shares insights on essential decision-making criteria, and ultimately guides you toward more effective thermal management.
The first step in selecting a heat sink is often the most crucial: fully understanding your system's thermal profile. Each industrial environment or application has its own unique power output levels, operating temperature ranges, and workload patterns.
1. Identify peak load conditions: Assess whether your system experiences periodic spikes in processing power, continuous high loads, or a mix of different usage scenarios. Heat sinks should be designed or selected to handle peak thermal demands without risking internal damage or performance throttling.
2. Consider space constraints: Some devices, like power inverters or motor control modules, may be housed in compact enclosures, leaving limited room for cooling hardware. In such scenarios, the geometry of the heat sink and available airflow paths can be significant limiting factors.
3. Review component datasheets: High-power integrated circuits (ICs) or battery modules come with recommended thermal parameters. Cross-referencing these with the ambient conditions helps in narrowing down suitable heat sink designs.
By creating a reliable thermal profile, you can more easily zero in on products or designs that address the unique requirements of your industrial system, ensuring consistent results even under extreme or unpredictable workloads.
At the core of any heat sink is its fundamental material composition. The most commonly used metals are aluminum and copper, each with distinct characteristics:
1. Aluminum: Lightweight, relatively low in cost, and easy to machine or extrude. Aluminum is favored in many industrial settings that demand both affordability and moderate heat dissipation.
2. Copper: Exceptional thermal conductivity but heavier and more expensive. Copper heat sinks are often selected for high-heat scenarios where performance overrides cost or weight considerations.

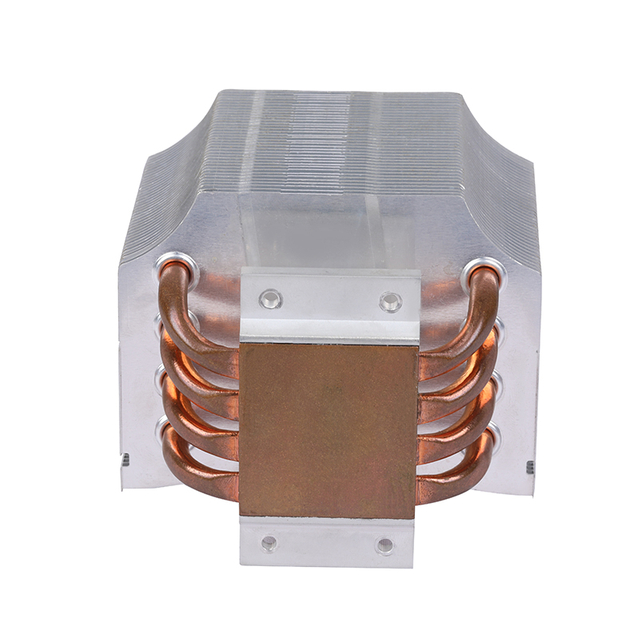

3. Advanced Materials: Innovations in the electronics cooling space have introduced heat pipes, vapor chambers, and composite materials that can outperform traditional metal-based designs. These solutions may be particularly relevant in sectors with complex thermal load profiles, such as servers, wind power converters, or specialized control units.
Choosing the optimal material involves balancing thermal performance, cost, and design complexity. In some environments, hybrid solutions that combine materials—copper core with aluminum fins, for instance—can deliver the best of both worlds.
Heat sinks come in myriad shapes and sizes, with design features dictated by how effectively they channel and disperse heat. A few notable design variations include:
1. Extruded Heat Sinks: Manufactured through an extrusion process, resulting in a solid piece of metal with fins spaced at regular intervals. Ideal for medium-power applications where cost-effectiveness is important.
2. Skived Fin Heat Sinks: Carved directly out of a metal block, providing thin fins and additional surface area. Particularly beneficial when there are restrictions on lateral space but a need for increased dissipation capacity.
3. Folded Fin or Bonded Fin: Fin structures created by folding or bonding metal sheets, leading to some of the highest surface area densities available. Highly adaptable designs allow for precise customization.
4. Pin-Fin Designs: Fins arranged as pins that help in dispersing heat in multiple directions. Typically effective in natural convection scenarios where airflow is disrupted or unpredictable.
Selecting a design stems from matching heat dissipation needs with the physical parameters of the equipment enclosure. In many industrial settings, where dust or debris may accumulate, ensuring that the chosen design is easy to maintain can be equally important.
In industrial environments, the choice between active and passive cooling can directly affect reliability, maintenance schedules, and energy consumption:
1. Passive Cooling: Relies on natural convection—a process where heat rises and moves away without forced airflow. It's simpler, quieter, and typically requires less maintenance, but may not be sufficient for very high-power applications where heat output is substantial.
2. Active Cooling: Involves integrating fans, blowers, or pumps (in liquid-cooled systems) to force heat away from the device more aggressively. While active cooling is highly effective, it also introduces maintenance points (fans can fail and dust can clog filters) and can increase power usage and noise levels.
Hybrid solutions may sometimes be the best approach—for example, combining a large, passive heat sink with temperature-controlled fans that only activate under high-load conditions.
Even the best-engineered heat sink can falter if improperly installed:
1. Thermal Interface Materials (TIMs): To maximize heat transfer from the device to the heat sink, ensure the contact surfaces are well-prepared and use appropriate TIMs, such as thermal grease, pads, or adhesives. These materials fill in microscopic gaps, enhancing conductivity.
2. Mechanical Fastening: Heat sinks secured with screws, clips, or direct bonding must maintain consistent pressure across the component. Over-tightening or uneven mounting can warp the heat sink base or damage the underlying component.
3. Assembly Tolerances: Industrial applications, especially those subject to vibration or shock, benefit from robust fastening methods that safeguard against loosening over time.
Regular checks of the heat sink's mounting integrity, especially under harsh operating conditions, can help prolong your system's life and maintain steady thermal performance.
Industrial equipment often operates in dusty, humid, or otherwise challenging environments that can degrade cooling efficiency:
1. Dust and Debris Accumulation: Over time, particulates can clog fins, hindering airflow and raising internal operating temperatures. Regular maintenance—scheduled vacuuming or cleaning—helps ensure the system remains within safe thermal limits.
2. Humidity and Corrosion: In coastal environments or production facilities where corrosive chemicals and moisture are present, coatings like anodizing or specialized plating can protect metal heat sinks from deterioration.
3. Extreme Temperatures: Industries located in very hot or very cold climates need to account for these extremes in their heat sink design. Material expansion and contraction can be managed by proper design margins and material selection.
Taking proactive steps to shield the heat sink from external hazards—be it shrouds, filters, or specialized surface treatments—can yield significant gains in reliability and longevity.
It's difficult to over-emphasize the value of standardized manufacturing processes and recognized quality certifications in the industrial equipment space. Trusted manufacturers tend to adhere to:
1. ISO9001: Focus on consistent quality management systems, ensuring products meet customer and regulatory requirements.
2. ISO14001: Environmental management system standards that reinforce environmentally responsible manufacturing.
3. IATF 16949 (previously TS16949): Critical for automotive applications, guiding the development of products that perform reliably under demanding conditions.
Investing in a heat sink from a certified supplier signals robust engineering practices, consistent manufacturing, and reliable performance. Rigorous quality management also facilitates the traceability of materials—a major plus if your system requires specialized metals or tight tolerances.
As technology evolves, your industrial equipment may need more processing power or might draw more current, leading to greater heat generation. Designing or selecting a heat sink that can handle potential capacity expansions can spare you from premature overhauls:
1. Allow Extra Thermal Headroom: If your system is running at 80% capacity today, plan for 100%—or more—within the same thermal solution.
2. Modularity: Some heat sinks permit adding or removing sections, fans, or heat pipes to adapt to new workload levels.
3. Emerging Technologies: Keep an eye on advanced cooling methods—like microchannel liquid cooling or newly developed materials—when working for industries pushing the boundaries of power efficiency and performance.
In many scenarios, a slightly larger up-front investment in a scalable heat sink design pays off by avoiding frequent replacements or performance bottlenecks down the line.
Choosing the right heat sink for industrial equipment is a multi-faceted process that requires balancing performance demands, environmental conditions, cost constraints, and the long-term evolution of your system. By meticulously evaluating your equipment's thermal profile, understanding the trade-offs in materials and design, and accounting for crucial installation and maintenance factors, you can help your machinery operate smoothly and efficiently for years to come.
Whether you're dealing with complex ICT environments, renewable energy inverters, wind power converters, or power-hungry automotive components, an appropriately sized and designed heat sink is essential. Building in safeguards against dust, corrosion, and other environmental threats further ups the reliability factor. Moreover, partnering with a manufacturer that maintains robust quality certifications helps ensure you receive consistent components built to perform in rigorous industrial scenarios.
If you have questions about integrating modern heat sink technologies or want guidance in optimizing your system's thermal performance, consider reaching out to Guangdong Winshare Thermal Technology Co., Ltd. Our mission revolves around delivering high-power cooling solutions, from cutting-edge aluminum and copper designs to advanced vapor chamber technologies. By investing in the right heat sink, you're investing in your equipment's safety, reliability, and scalability—an investment that pays off in stable, high-performance operations across the lifecycle of your industrial system.
