Single-Phase vs Two-Phase Immersion Cooling Comparison

Introduction: The Immersion Cooling Imperative for High-Density Computing

The digital world runs on data centers, and as our reliance on data grows exponentially, so does the power consumed—and heat generated—by these critical facilities. The rise of Artificial Intelligence (AI), High-Performance Computing (HPC), and increasingly dense server hardware has pushed traditional air-cooling methods to their breaking point. Heat densities within server racks are soaring, making efficient thermal management paramount for operational stability, hardware longevity, and environmental sustainability.

Enter immersion cooling, a transformative approach that moves beyond air and brings liquid directly into contact with heat-generating components. By submerging IT hardware in specialized dielectric (non-conductive) fluids, immersion cooling offers vastly superior heat transfer capabilities. However, "immersion cooling" isn't monolithic; it primarily encompasses two distinct technologies: single-phase immersion cooling (1-PIC) and two-phase immersion cooling (2-PIC). Understanding the fundamental differences, advantages, and trade-offs between these two approaches is crucial for making informed decisions about next-generation data center cooling. This article provides a comprehensive comparison to guide that choice.

Demystifying Single-Phase Immersion Cooling (1-PIC)

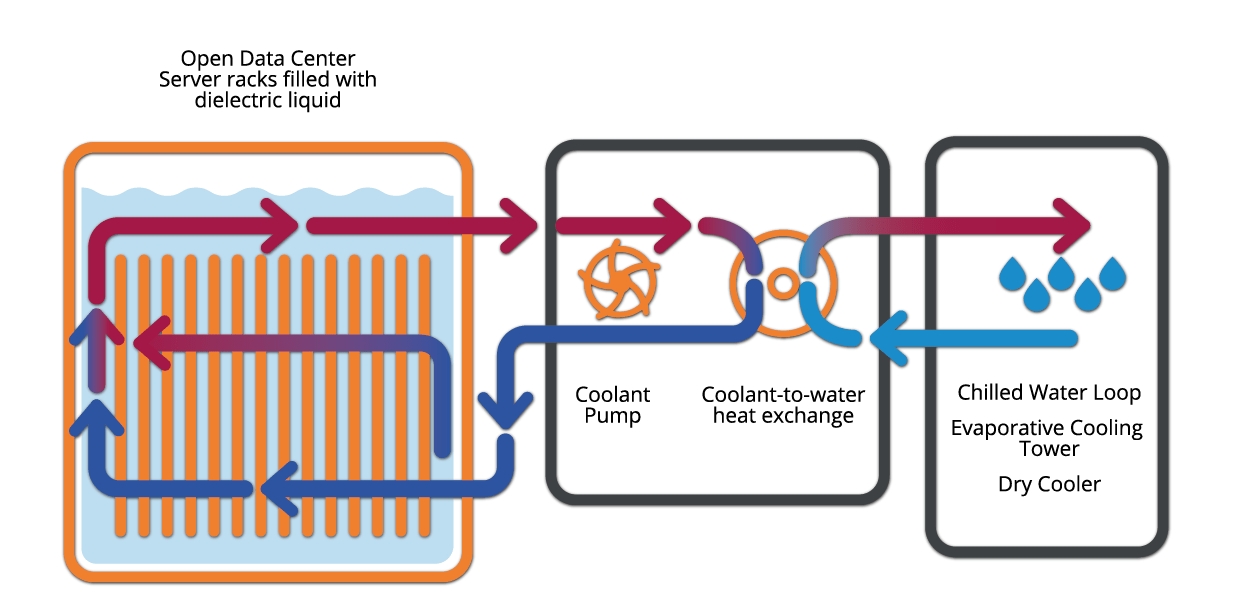

How it Works: The Convection & Circulation Approach

In a single-phase immersion cooling system, IT equipment (servers, GPUs, ASICs) is vertically or horizontally submerged in a tank filled with a dielectric coolant. Heat generated by the components transfers directly to the surrounding fluid primarily through convection. Crucially, the coolant remains in its liquid state throughout this primary cooling process – hence, "single-phase."

To remove the absorbed heat, the warmed dielectric fluid is actively circulated by pumps out of the immersion tank. It flows to an external heat rejection unit, typically a Coolant Distribution Unit (CDU), which contains a heat exchanger (often liquid-to-liquid). Here, the heat is transferred from the dielectric coolant to a secondary loop, usually facility water. The now-cooled dielectric fluid is then pumped back into the immersion tank to continue the cooling cycle.

Key Characteristics & Components

• Fluids: Typically utilize hydrocarbon-based engineered fluids (like mineral oils or synthetic oils) characterized by relatively high boiling points, low volatility (reducing evaporative loss), good thermal stability, and often lower cost compared to two-phase fluids.

• Hardware: Requires tanks (which can be designed as open baths or sealed units), robust pumps capable of handling the viscosity and flow rates of the dielectric fluid, and external CDUs or heat exchangers to interface with the facility's heat rejection system.

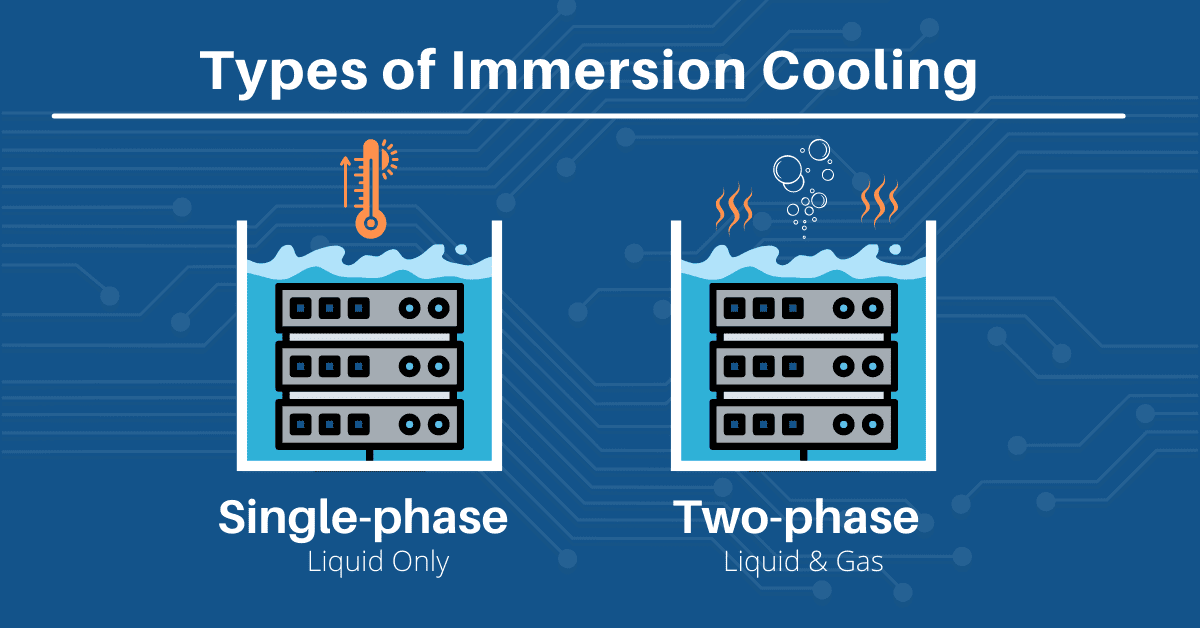

Demystifying Two-Phase Immersion Cooling (2-PIC)

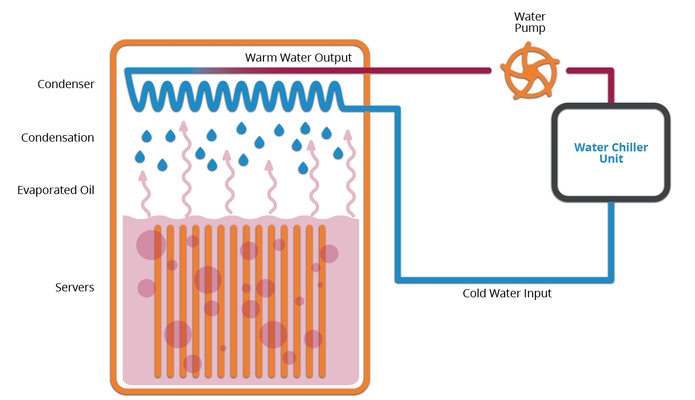

How it Works: The Boiling & Condensation Cycle

Two-phase immersion cooling also involves submerging hardware in a dielectric fluid, but with a key difference: the fluid is specifically engineered to have a very low boiling point (often around 50-60°C or 120-140°F at operating pressure).

As components heat up, they cause the surrounding fluid to boil directly on their surfaces. This liquid-to-vapor phase change absorbs a large amount of energy (latent heat of vaporization) very efficiently and at a nearly constant temperature. The generated vapor, being less dense, naturally rises to the top of the tank. There, it encounters a condenser (typically coils cooled by facility water or another secondary loop) integrated into the tank lid or upper section. The vapor releases its latent heat to the condenser, changes back into liquid, and then drips back down into the main fluid bath via gravity. This internal boiling/condensation cycle provides the primary cooling mechanism, largely eliminating the need for pumps to circulate the primary dielectric fluid within the tank itself.

Key Characteristics & Components

• Fluids:   Employs specialized fluorochemical dielectric fluids with low boiling points. However, in the current regulatory landscape, legacy fluids like the 3M Novec series have faced global phase-outs due to stringent PFAS (per- and polyfluoroalkyl substances) environmental regulations.

• Modern 2-PIC systems must navigate these chemical compliance bottlenecks by transitioning to next-generation, zero-PFAS, low-GWP (Global Warming Potential) formulations. Because these compliant fluids are highly volatile and extremely expensive, maintaining an absolute, zero-leakage sealed tank environment is paramount to preventing catastrophic fluid loss and operational cost overruns.

• Hardware: Requires carefully designed tanks that are usually sealed or semi-sealed to manage the vapor pressure and minimize the loss of expensive, volatile fluids. Integrated condensers are critical components. While primary fluid pumping within the tank is often eliminated, pumps are still needed for the external loop that cools the condenser.

Head-to-Head Comparison: Key Differences Between 1-PIC and 2-PIC

Understanding the nuances between these technologies requires a direct comparison across several key areas:

Heat Transfer Mechanism & Efficiency

• 1-PIC: Relies on sensible heat transfer via convection. Efficiency depends on fluid properties (thermal conductivity, specific heat, viscosity) and flow rate generated by pumps. Effective, but less efficient at the point of heat absorption than boiling.

• 2-PIC: Relies primarily on latent heat transfer via nucleate boiling. This mechanism has inherently higher heat transfer coefficients, allowing for more efficient heat removal directly from component surfaces.

Maximum Power Density

• 1-PIC: Capable of handling high rack densities, often cited up to 100 kW or even approaching 200 kW per rack, depending on the specific implementation and fluid used.

• 2-PIC: Generally considered capable of handling higher maximum power densities, often exceeding 200-250 kW per rack and potentially much higher, due to the superior efficiency of boiling heat transfer. This makes it attractive for the most extreme compute-intensive applications.

Thermal Performance & Uniformity

• 1-PIC: Can achieve good temperature control, but there will inherently be a temperature rise in the fluid as it flows past components and a temperature gradient across the system.

• 2-PIC: The boiling process occurs at a near-constant saturation temperature (dependent on pressure). This typically results in excellent temperature uniformity across the surfaces of the immersed components, reducing thermal stress and mitigating hotspots more effectively.

Working Fluids

• 1-PIC: Uses higher boiling point oils/synthetics. Generally lower cost, much lower volatility (minimal evaporative loss), simpler handling, and often fewer environmental concerns (depending on the specific fluid).

• 2-PIC: Uses low boiling point fluorochemicals. Significantly higher cost, high volatility (requires sealed systems to prevent costly losses), potentially higher GWP for some fluids (though newer options are improving), and regulatory considerations around PFAS chemicals. Excellent dielectric properties are a must.

System Hardware & Infrastructure

• 1-PIC: Simpler concept – requires robust primary loop pumps and external CDUs. Tank design can be less complex (open baths are common, simplifying access).

• 2-PIC: Eliminates primary loop pumps but requires efficient integrated condensers and sealed/semi-sealed tanks, adding complexity and potentially cost to the tank design itself. Still requires an external loop to cool the condenser.

Energy Efficiency (PUE - Power Usage Effectiveness)

• Both 1-PIC and 2-PIC offer dramatic PUE improvements over traditional air cooling, often achieving figures very close to ideal (1.0).

• 2-PIC often claims a slight edge (e.g., PUE potentially as low as 1.01-1.02) due to the elimination of primary pumping energy and highly efficient heat transfer.

• 1-PIC PUE is also excellent (e.g., 1.02-1.03 or better), with the main cooling energy overhead coming from the primary circulation pumps and the external heat rejection system (common to both). Real-world PUE depends heavily on the specific design, scale, and integration with facility cooling.

Maintenance & Serviceability

• 1-PIC: Often perceived as easier to service. Open bath designs allow direct access to hardware (though fluid dripping needs management). Fluids are less volatile and generally easier to handle.

• 2-PIC: Maintenance can be more complex. Sealed tanks may need to be opened carefully to minimize vapor loss. Handling volatile fluids requires specific procedures. Some sources claim simpler maintenance as fluid draining isn't required for component swaps, but vapor management remains a key consideration.

Pros and Cons Summarized: A Balanced View

Single-Phase Immersion Cooling (1-PIC)

• Pros:

• Simpler system mechanics and potentially lower hardware complexity.

• Lower cost and much lower volatility of working fluids.

• Easier fluid handling and potentially easier hardware access (open bath).

• Mature and widely deployed technology.

• Cons:

• Lower maximum heat density capability compared to 2-PIC.

• Requires significant energy for primary fluid pumping.

• Less inherent temperature uniformity compared to boiling.

Two-Phase Immersion Cooling (2-PIC)

• Pros:

• Highest heat transfer efficiency and capability for extreme power densities.

• Excellent temperature uniformity due to isothermal boiling.

• Eliminates primary fluid pumping energy (though condenser loop still needs cooling).

• Potentially the lowest achievable PUE.

• Cons:

• Higher system complexity (sealed tanks, condensers, vapor management).

• Significantly higher fluid cost and high volatility (requires sealing, risk of loss).

• Environmental/regulatory concerns associated with some fluorinated fluids (GWP, PFAS).

• Potentially more complex maintenance procedures.

Application Sweet Spots: Matching Technology to Needs

The choice between 1-PIC and 2-PIC is not always clear-cut and depends heavily on specific requirements:

• 1-PIC is often favored for applications requiring significant density improvements over air cooling (up to the ~100-200 kW/rack range) where simplicity, lower initial cost, and ease of operation are high priorities. It's a robust and proven solution for many HPC, AI, and enterprise data centers.

• 2-PIC is typically considered for applications pushing the absolute boundaries of power density (>200 kW/rack), such as cutting-edge supercomputers, extreme AI/ML training clusters, or specialized high-flux electronics where maximum thermal performance and the lowest possible PUE are paramount, and the higher complexity/cost can be justified.

Factors like initial CAPEX, long-term OPEX, local environmental compliance, and future-proof scalability dictate the final architectural path.

To bridge the gap between simpler 1-PIC infrastructure and extreme 2-PIC thermal density, Winshare Thermal works with global data center architects to deploy hybrid high-power liquid cooling solutions.

By utilizing our ultra-low-thermal-resistance direct-to-chip (D2C) liquid cold plates for the highest-wattage ASICs/GPUs, alongside scalable single-phase oil immersion for secondary components, we help facilities achieve near-perfect PUE without the regulatory risks and high fluid volatility costs associated with full two-phase immersion systems.

Navigating the Fluid Debate & Future Trends

The development of immersion cooling fluids is ongoing. For 2-PIC, significant research focuses on creating new fluids with lower GWP, improved material compatibility, and lower costs, while retaining excellent thermal and dielectric properties. Regulations surrounding PFAS chemicals may influence future fluid choices. For 1-PIC, advancements continue in optimizing fluid properties for better thermal conductivity and lower viscosity. We may also see hybrid approaches emerge, attempting to combine benefits from both technologies.

Conclusion: Making the Right Immersion Cooling Choice for Your Facility

Both single-phase and two-phase immersion cooling represent groundbreaking advances in data center thermal management, offering substantial improvements in efficiency, density, and sustainability compared to traditional air cooling. 1-PIC provides a simpler, often more cost-effective path to high-density liquid cooling using less volatile fluids. 2-PIC offers the pinnacle of heat transfer performance, enabling extreme power densities but comes with greater complexity and considerations around fluid cost, volatility, and environmental impact.

The optimal choice is not universal. It demands a thorough assessment of current and future power density needs, capital and operational budgets, technical expertise, risk tolerance, and sustainability objectives. Careful evaluation and often consultation with cooling experts are essential to select the immersion cooling strategy that best aligns with a facility's specific goals.
