Heat sinks are the unsung heroes of thermal management, quietly keeping our electronic devices from overheating by dissipating excess heat into the surrounding environment. Whether it's a high-performance gaming PC, a server rack, or an LED lighting system, heat sinks play a critical role in ensuring reliability and efficiency. Among the many types available, skived heat sinks and extruded heat sinks stand out as two of the most popular options. But how do they differ, and which one is right for your project?
In this article, we'll dive deep into the world of skived and extruded heat sinks, exploring their manufacturing processes, advantages, limitations, and ideal applications. By the end, you'll have a clear understanding of these two thermal management solutions and the tools to decide which one suits your needs. Let's get started!
A skived heat sink is a precision-engineered cooling solution crafted through a unique process called skiving. This method involves shaving thin fins directly from a solid block of metal—typically aluminum or copper—using a specialized blade. The result? A heat sink with fins that are seamlessly connected to the base, offering exceptional thermal performance.
The skiving process is a bit like sculpting with metal. A sharp blade slices into the metal block, cutting and bending it to form fins that remain attached to the base. This continuous process ensures no gaps or joints between the fins and the base, maximizing heat transfer efficiency. It's a meticulous method that allows for high fin density and thin fins, both of which are key to effective cooling.
1. Superior Heat Dissipation: The high fin density—more fins packed into a smaller space—means more surface area for heat to escape, making skived heat sinks a powerhouse for cooling.
2. Thin Fins for Efficiency: Skiving can produce ultra-thin fins, further boosting surface area and heat transfer without adding bulk.
3. Customization Flexibility: Need a specific shape or size? Skived heat sinks can be tailored to fit unique designs, offering engineers plenty of creative freedom.
4. Material Versatility: Skiving works with both aluminum (light and affordable) and copper (a thermal conductivity champ), giving you options based on your performance needs.
1. Higher Cost: The precision and time-intensive nature of skiving make these heat sinks pricier than their extruded counterparts.
2. Longer Production Time: Crafting each fin individually takes time, so lead times can stretch longer—something to consider for tight deadlines.
3. Fragile Fins: Those thin, delicate fins can be prone to bending or damage during handling or installation if not managed carefully.
Skived heat sinks shine in scenarios where top-tier thermal performance outweighs cost concerns—think high-power electronics or compact, heat-sensitive designs.

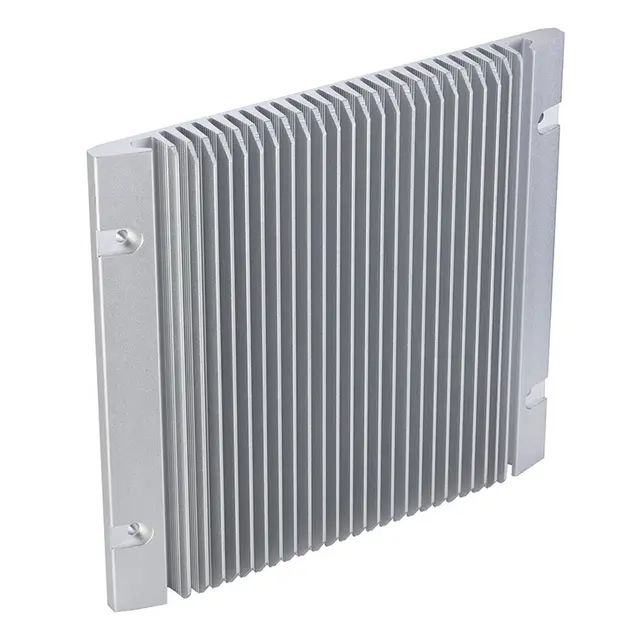

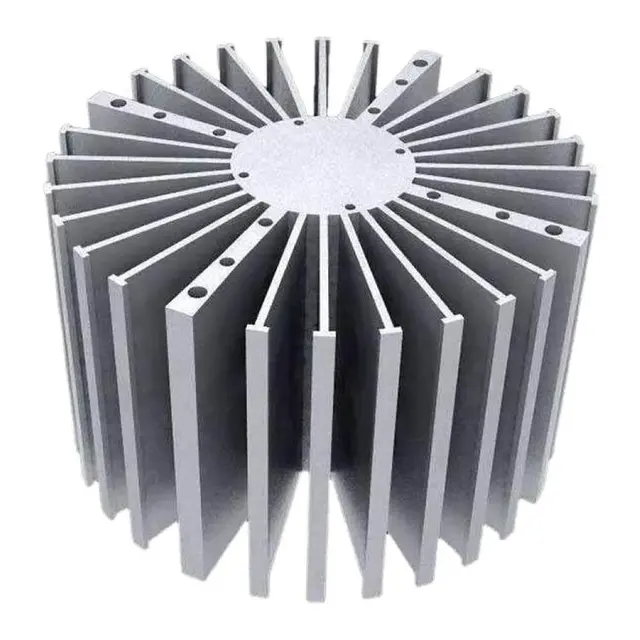

On the other side of the spectrum, we have extruded heat sinks, a go-to choice for many applications thanks to their simplicity and affordability. These heat sinks are made through extrusion, a process that shapes metal by forcing it through a die, creating uniform fins and profiles in a single pass.
Picture a giant Play-Doh extruder, but for metal. A heated billet—usually aluminum—is pushed through a die with a pre-designed shape, forming long, continuous profiles with fins. These profiles are then cut to length and often finished with additional machining or surface treatments. It's a fast, scalable process that's been a staple in heat sink manufacturing for decades.
1. Cost-Effective: Extrusion is efficient and economical, especially for large production runs, keeping your budget in check.
2. Quick Production: The streamlined process means shorter lead times—perfect when you need heat sinks fast.
3. Wide Variety of Sizes: From tiny modules to large panels, extruded heat sinks come in all shapes and sizes to fit diverse applications.
4. Simple Customization: While not as flexible as skiving, you can tweak the die or add secondary machining to meet specific needs.
1. Lower Fin Density: The extrusion process can't pack fins as tightly as skiving, which may limit cooling efficiency in high-heat scenarios.
2. Thicker Fins: Extruded fins tend to be chunkier, reducing surface area and potentially impacting performance compared to skived designs.
3. Material Constraints: Aluminum dominates here—copper extrusion is possible but rare and costly, limiting material options.
Extruded heat sinks are the practical, wallet-friendly choice for applications where adequate cooling meets the need without breaking the bank.
Now that we've covered the basics, let's break down the key differences between skived and extruded heat sinks. Understanding these distinctions will help you pinpoint which type aligns with your project's goals.
1. Skived: Fins are shaved from a solid block, creating a one-piece design with no joints. It's a slower, more precise process.
2. Extruded: Metal is pushed through a die, forming fins and base in one continuous shape. It's faster and more scalable.
1. Skived: High fin density and thin fins maximize surface area, boosting heat dissipation.
2. Extruded: Lower fin density and thicker fins mean less surface area, which can cap cooling potential.
1. Skived: Excels in high-power applications thanks to its enhanced heat transfer capabilities.
2. Extruded: Offers solid performance for general use but may fall short in extreme heat conditions.
1. Skived: More expensive and time-consuming due to the labor-intensive skiving process.
2. Extruded: Cheaper and quicker, making it ideal for mass production and budget-conscious projects.
1. Skived: Works with aluminum or copper, offering flexibility for high-conductivity needs.
2. Extruded: Mostly aluminum, with copper being less common and more challenging to extrude.
1. Skived: Highly customizable, perfect for bespoke or complex designs.
2. Extruded: Customizable within limits—die changes or machining can adapt it, but it's less versatile than skiving.
These differences highlight the trade-offs between performance, cost, and practicality—key factors in your decision-making process.
Where do skived and extruded heat sinks shine? Their unique strengths make them suited to different environments. Let's explore their real-world applications.
Skived heat sinks are the heavy hitters of thermal management, often found in high-stakes settings like:
1. High-Power Electronics: Think power amplifiers, IGBT modules, or inverters that generate intense heat.
2. Servers and Data Centers: Cooling CPUs and GPUs in densely packed racks where every degree counts.
3. LED Lighting: High-brightness LEDs need efficient cooling to maintain output and lifespan—skived heat sinks deliver.
4. Electric Vehicles (EVs): Power electronics in EV controllers rely on skived heat sinks for reliable performance under load.
For example, in a data center, a skived heat sink might cool a top-tier processor, ensuring uptime and efficiency in a compact footprint.
Extruded heat sinks are the workhorses of everyday electronics, commonly used in:
1. Consumer Electronics: TVs, gaming consoles, and audio gear often sport extruded heat sinks for reliable cooling.
2. Computers and Laptops: CPUs and power supplies in desktops or notebooks use extruded designs for cost-effective heat management.
3. Power Supplies: AC/DC converters and regulators benefit from the affordability and availability of extruded heat sinks.
4. Telecom Equipment: Routers, switches, and base stations use extruded heat sinks for consistent, no-fuss cooling.
Take a typical laptop—its CPU likely sits under an extruded heat sink, balancing performance and cost for the average user.
So, which heat sink should you pick? The answer depends on your project's priorities. Here's a decision-making checklist to guide you:
1. Thermal Needs: How much heat are you dealing with? High-power devices (e.g., servers or EVs) may demand a skived heat sink's superior cooling. For moderate heat, extruded works fine.
2. Budget: Tight on funds? Extruded heat sinks keep costs low, especially for bulk orders. If performance justifies the spend, skived is worth it.
3. Space Constraints: Limited room? Skived heat sinks pack more cooling into a smaller area. If space isn't an issue, extruded designs are more forgiving.
4. Production Volume: Small runs with custom needs favor skived heat sinks. Large-scale projects lean toward extruded for efficiency.
5. Material Choice: Need copper's conductivity? Skived is your go-to. Aluminum's lighter weight and lower cost make extruded a solid pick.
Still unsure? Consider running a thermal simulation or chatting with a cooling expert to nail down the best fit. Matching the heat sink to your application is the key to long-term success.
When it comes to skived vs extruded heat sinks, there's no one-size-fits-all answer. Skived heat sinks bring top-notch thermal performance, high fin density, and customization to the table—perfect for high-power, compact, or specialized applications. Extruded heat sinks, on the other hand, offer affordability, speed, and versatility, making them a staple for general-purpose electronics.
At Winshare Thermal, we're passionate about helping you find the right thermal management tools for your project. Whether you need the precision of skived heat sinks or the practicality of extruded designs, our team is here to offer insights and options tailored to your goals. Reach out to explore how we can support your next big idea—because effective cooling starts with the right choice.
With this knowledge in hand, you're ready to tackle your thermal challenges head-on. Which heat sink will you choose?
