In today's increasingly compact and powerful electronic devices, heat is the silent enemy. From the smartphone in your pocket to the servers powering the cloud, every electronic component generates heat as it operates. If not effectively managed, this heat can lead to reduced performance, instability, premature failure, and even permanent damage. This is where Thermal Interface Materials (TIMs) step in – the unsung heroes working diligently to dissipate heat and keep our technology running optimally.

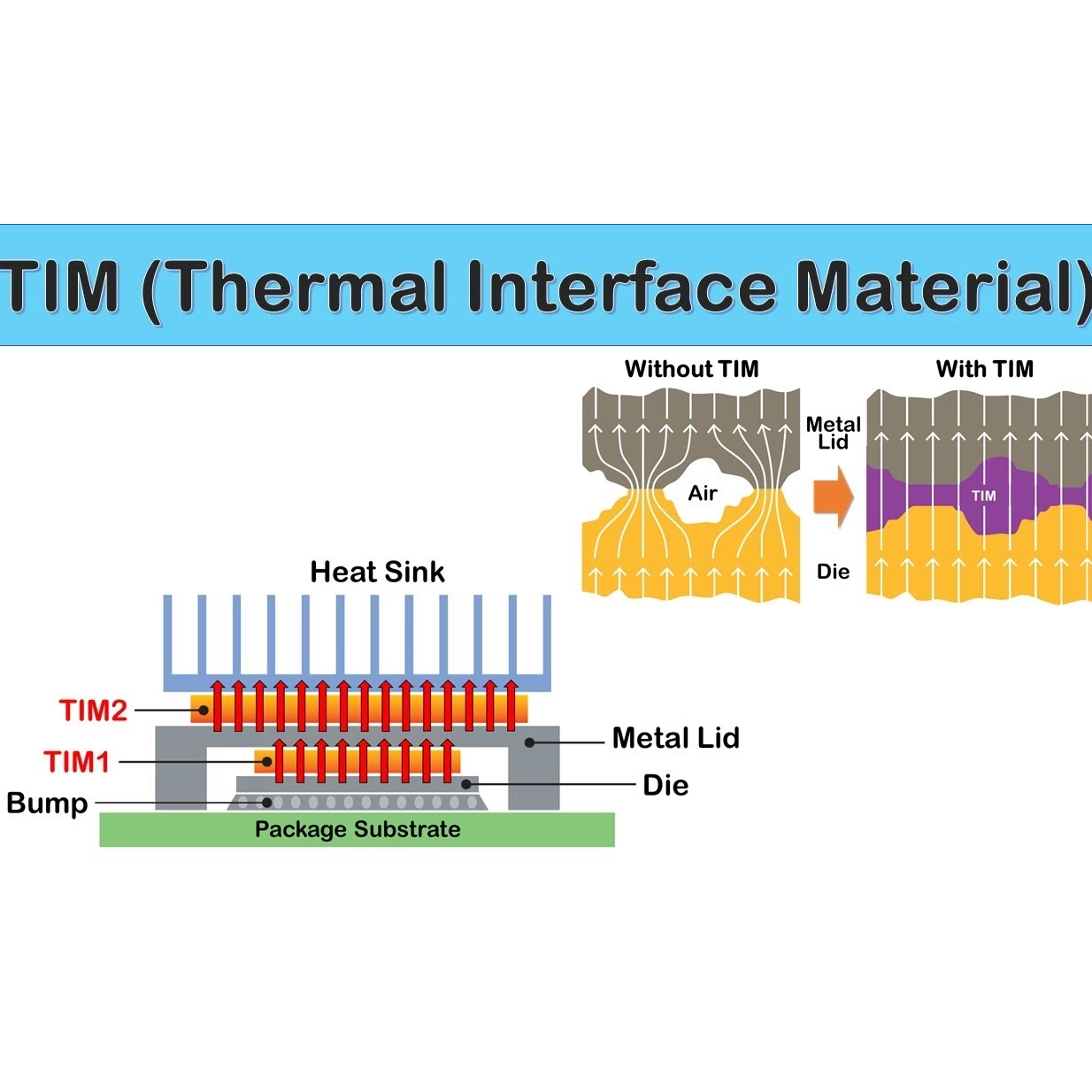

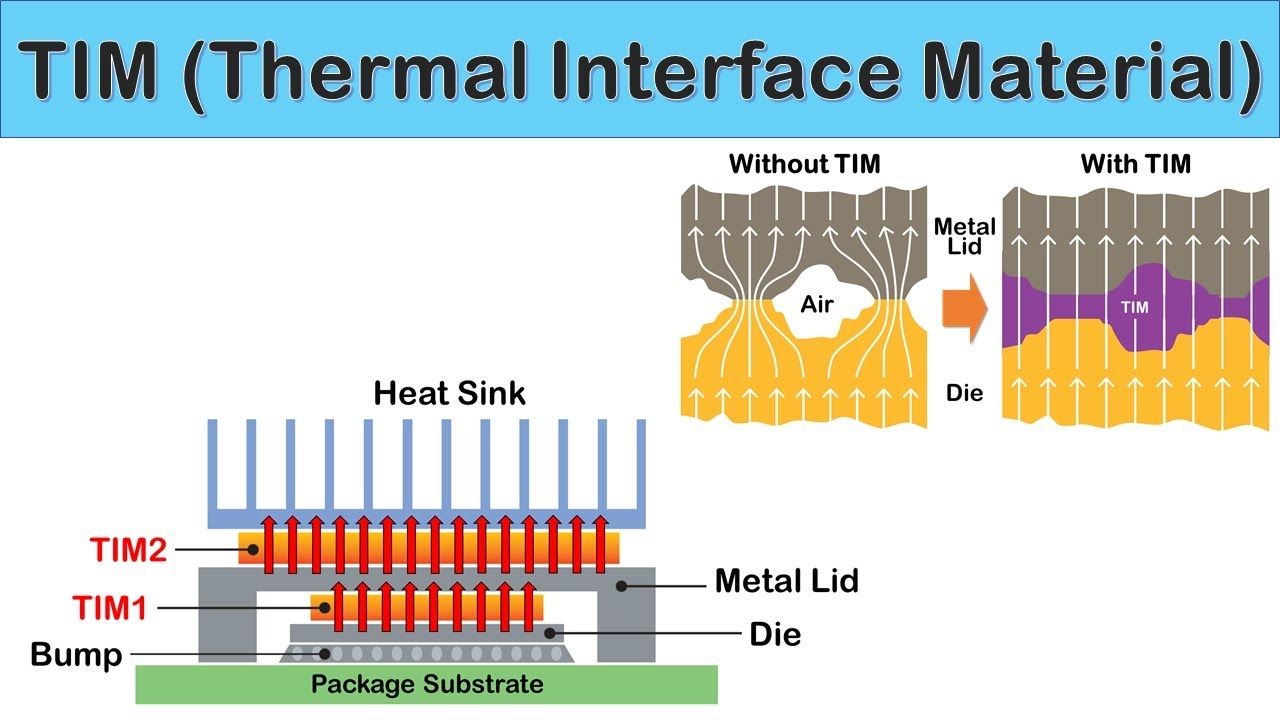

At a microscopic level, even seemingly smooth surfaces, like the top of a CPU and the base of a heatsink, are far from perfectly flat. They possess microscopic valleys and peaks. When these two surfaces are brought together, only a fraction of their area makes actual physical contact. The remaining minuscule gaps are filled with air, which is a very poor conductor of heat. This trapped air creates a significant thermal barrier, drastically impeding the flow of heat away from the component.
This barrier is quantified as thermal contact resistance. Thermal Interface Materials are specifically engineered to eliminate or significantly reduce this resistance. They achieve this by filling those microscopic air gaps, creating a continuous, highly conductive pathway for heat to flow from the heat-generating component to the cooling solution (like a heatsink or cold plate).
While we often hear about a material's thermal conductivity (measured in W/mK), which indicates how well a material conducts heat, for TIMs, thermal impedance (measured in °C·cm²/W or °C·in²/W) is often a more practical and telling metric. Thermal impedance considers not just the material's bulk conductivity, but also the bond line thickness and the quality of the interface it forms. A thinner, more uniform bond line with excellent surface wetting will result in lower thermal impedance, even if the material's bulk thermal conductivity isn't the absolute highest. TIMs work by minimizing these air gaps, maximizing direct contact, and providing an efficient path for heat to transfer.
The thermal management industry offers a variety of TIM types, each with its unique characteristics, advantages, disadvantages, and ideal applications. Choosing the right one is crucial for optimal performance and reliability.
Description: These are viscous, non-curing pastes composed of a silicone or synthetic oil base laden with thermally conductive filler particles (e.g., zinc oxide, aluminum nitride, silver, boron nitride).
Key Characteristics: High thermal conductivity, excellent wetting properties, allowing for extremely thin bond lines. They remain soft and pliable.
Pros: Generally offer excellent thermal performance due to their ability to fill microscopic voids efficiently; cost-effective for high-performance applications; easy to apply for thin gaps.
Cons: Can be messy to apply; prone to "pump-out" (separation of oil from fillers) or drying out over long periods, leading to performance degradation; not permanent, requiring reapplication if components are removed.
Typical Applications: CPUs, GPUs, high-performance computing, and consumer electronics where maximum thermal transfer is critical and future reapplication is feasible.

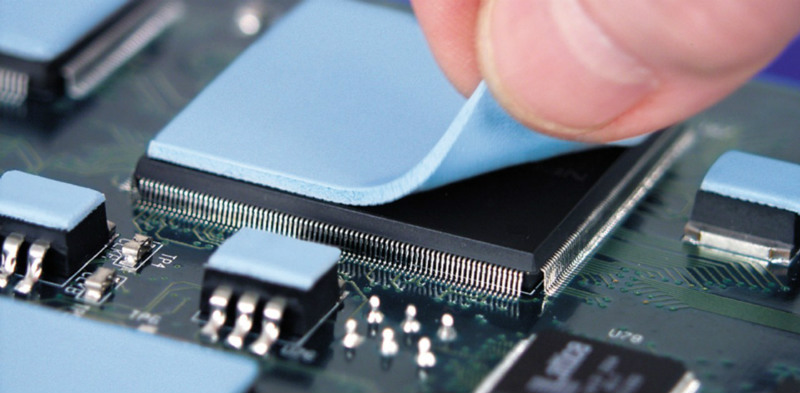

Description: Pre-formed, solid yet soft sheets typically made from silicone or acrylic polymers embedded with thermally conductive fillers. They come in various thicknesses and hardnesses.
Key Characteristics: Easy to handle, conformable to uneven surfaces, available in electrically insulating varieties.
Pros: Clean and easy to apply with no mess; ideal for filling larger, uneven gaps where grease might struggle; offer electrical isolation; good for high-volume manufacturing due to ease of automation.
Cons: Generally have lower thermal conductivity compared to high-end greases; performance can be highly dependent on proper compression; thicker bond lines may lead to higher thermal resistance.
Typical Applications: Memory modules (RAM), voltage regulator modules (VRMs), chipsets, SSDs, and situations requiring electrical isolation or accommodating significant surface irregularities.
Description: These are softer, dispensable materials that bridge the gap between greases and pads. They are typically lightly cross-linked or highly thixotropic, offering good flow without being as prone to pump-out as traditional greases.
Key Characteristics: Flowable like grease but with better stability; low modulus, excellent conformability; often non-curing or lightly curing.
Pros: Good conformability to complex geometries; less messy than grease; offer decent thermal performance; often reworkable.
Cons: Can be more expensive per unit than greases; thermal performance might not match the very best greases; still susceptible to some long-term settlement.
Typical Applications: Automotive electronics, industrial controls, power modules where long-term stability and conformability are key.
Description: These materials are solid at room temperature but melt at a specific, engineered operating temperature (typically between 50°C and 70°C). Upon melting, they transform into a low-viscosity liquid, effectively wetting the interface surfaces.
Key Characteristics: Specific melting point, excellent wetting upon phase change, consistent bond line thickness after melting.
Pros: Clean handling in solid form; achieve excellent wetting and minimal bond line thickness once melted, leading to superior performance; highly reliable and consistent in performance once activated.
Cons: Performance is dependent on the interface reaching its melting point; generally higher cost than greases; often designed for single use.
Typical Applications: High-volume manufacturing, pre-applied solutions on heatsinks, high-performance computing, and applications where consistent performance across many units is critical.
Description: Curing materials (often epoxies or silicones) that provide both thermal conductivity and a permanent mechanical bond between components.
Key Characteristics: Create a strong, permanent bond; available in various curing times and strengths.
Pros: Eliminates the need for mechanical fasteners (screws, clamps); provides structural integrity and vibration damping; excellent long-term stability.
Cons: Permanent bond makes rework or component replacement difficult or impossible; generally have lower thermal performance compared to high-end greases or PCMs; requires curing time.
Typical Applications: Attaching smaller heat sinks to chips, bonding sensors, or securing components where a permanent thermal and mechanical connection is desired.
Description: Alloys of metals (most commonly gallium-based) that are liquid at room temperature.
Key Characteristics: Exceptionally high thermal conductivity, significantly higher than any non-metallic TIM.
Pros: Unmatched thermal performance, leading to the lowest possible thermal resistance between surfaces.
Cons: Electrically conductive, posing a significant shorting risk if spilled; can be corrosive to certain metals (especially aluminum); difficult to apply cleanly; expensive; not suitable for vertical surfaces due to flow.
Typical Applications: Extreme high-performance computing (e.g., enthusiast CPU/GPU overclocking), highly specialized industrial or scientific applications where every degree of cooling matters, and components with nickel-plated or copper cold plates.
Description: These represent the cutting edge of TIM technology, leveraging advanced materials science like graphite/graphene sheets or sintered metal TIMs.
Key Characteristics: Often feature excellent thermal conductivity, very thin profiles, and unique properties (e.g., anisotropic conduction in graphite sheets). Sintered metal TIMs offer incredibly thin and robust interfaces.
Pros: Extremely high performance, excellent reliability, can be tailored for specific thermal pathways.
Cons: Often proprietary, higher cost, and can require specialized application processes.
Typical Applications: High-end consumer electronics, advanced power electronics, and specialized industrial or aerospace applications pushing the boundaries of thermal management.
Selecting the optimal TIM is not a one-size-fits-all decision. It requires a careful evaluation of several factors:
Thermal Performance Requirements: What is the maximum allowable component temperature? How much power (heat) needs to be dissipated? What are the target thermal resistance/impedance values?
Bond Line Thickness & Surface Flatness: The gap between the component and the heatsink is critical. Greases and PCMs are excellent for thin, flat gaps, while pads and gels excel at filling larger or more irregular gaps.
Electrical Insulation Needs: Is electrical conductivity acceptable, or is electrical isolation between the component and cooler required? Liquid metals are conductive, while most pads and many greases/gels are electrically insulating.
Application Method & Manufacturing Process: Will the TIM be applied manually or via automated dispensing? Is it a high-volume production or a custom build? This impacts the form factor (grease, pad, gel) and application tools needed.
Operating Environment & Reliability: What are the temperature ranges the device will experience? Are there vibrations or humidity? How long must the TIM perform reliably without drying out, pumping out, or degrading?
Cost: While performance is paramount, cost-effectiveness (material cost plus application cost) plays a role, especially in high-volume products.
Reworkability: Is it possible or necessary to remove and replace the component later? Adhesives offer permanent bonds, while greases and gels allow for easy rework.
Material Compatibility: Ensure the TIM is chemically compatible with the component packaging, heatsink material, and any other surrounding materials to prevent corrosion or degradation.
Even the best TIM can perform poorly if not applied correctly. Key practices include:
Surface Cleaning: Always ensure both mating surfaces are thoroughly cleaned of dust, oils, and old TIM residue using an appropriate solvent (like isopropyl alcohol) to maximize contact.
Correct Application Technique: Follow the manufacturer's specific instructions for the chosen TIM type. For greases, a thin, even layer (often a single dot or line for CPUs) is usually best. For pads, ensure even placement and sufficient compression.
Optimal Mounting Pressure: For many TIMs, especially pads and some greases/PCMs, achieving the correct mounting pressure from the heatsink is crucial to minimize bond line thickness and ensure proper wetting.
Thermal Interface Materials are foundational to effective thermal management. They are the crucial link that enables efficient heat transfer, safeguarding electronic components from the damaging effects of excessive heat. As electronic devices continue to miniaturize and demand higher power densities, the innovation and importance of TIMs will only grow. The "best" TIM is always application-dependent, a carefully chosen element that balances thermal performance, reliability, manufacturability, and cost.
