The relentless drive for faster, smaller, and more powerful electronic devices presents an escalating thermal management challenge. From densely packed data centers running AI workloads to compact power modules in electric vehicles and sophisticated microprocessors, the heat generated per unit volume is skyrocketing. Traditional cooling methods, primarily relying on forced air or even standard single-phase liquid cooling, are increasingly hitting their physical limits. As heat loads intensify, maintaining optimal operating temperatures becomes critical for performance, reliability, and device longevity. This is where two-phase cooling emerges as a highly effective, advanced thermal management strategy, capable of handling extreme heat fluxes by harnessing a fundamental physical principle: the power of phase change.
This article provides a comprehensive exploration of two-phase cooling. We will delve into what it is, the science behind its operation, the different types of systems employed, its significant advantages and potential challenges, how it compares to single-phase cooling, and where it's making a critical impact across various industries.
At its core, two-phase cooling is a thermal management technique that utilizes the transition of a working fluid between its liquid and vapor (gas) phases to absorb, transport, and dissipate heat. The key lies in leveraging the latent heat of vaporization – the substantial amount of energy a substance absorbs when it changes from a liquid to a gas at a constant temperature (boiling), or releases when it changes from a gas back to a liquid (condensation).
This stands in stark contrast to single-phase cooling (like standard water cooling or oil cooling). Single-phase methods rely on the sensible heat capacity of the coolant – the energy absorbed as the fluid's temperature increases. While effective up to a point, absorbing large amounts of heat requires significant fluid flow rates and results in a temperature gradient across the system. Two-phase cooling, by utilizing latent heat, can transfer considerably more heat energy per unit mass of the working fluid, often with minimal temperature change during the phase transition itself.
Most two-phase cooling systems operate on a closed-loop thermodynamic cycle. While specific implementations vary, the fundamental steps are:
Heat Absorption (Evaporation): A liquid coolant is brought into thermal contact with the heat-generating component. This contact might occur within microchannels in a cold plate mounted on a CPU, within the evaporator section of a heat pipe, or directly on the surface of a chip submerged in a dielectric fluid. As the coolant absorbs heat, its temperature rises to its saturation point (boiling point at the local pressure).
Phase Change (Boiling): The liquid begins to boil, transforming into vapor. This boiling process absorbs a significant amount of latent heat from the component. Crucially, this phase change occurs at a nearly constant temperature, helping to keep the surface of the hot component isothermal.
Vapor Transport: The generated vapor, now carrying the absorbed thermal energy, travels away from the heat source towards a cooler section of the system (the condenser). This movement can be driven passively by the pressure difference created during boiling, by capillary forces within a wick structure (heat pipes, vapor chambers), by gravity (thermosiphons), or actively by a mechanical pump.
Heat Rejection (Condensation): In the condenser – which could be heat sink fins exposed to ambient air, a heat exchanger connected to a secondary cooling loop, or cooled coils within an immersion tank – the vapor comes into contact with cooler surfaces. It releases its latent heat to the surroundings or secondary coolant.
Phase Change (Condensation): As the vapor releases heat, it condenses back into its liquid state.
Liquid Return: The condensed liquid is then transported back to the evaporator section to absorb more heat, completing the cycle. This return can be driven by capillary action, gravity, or a pump.
Two-phase cooling encompasses a range of technologies, broadly categorized as passive, active (pumped), or immersion systems:
These systems operate without mechanical pumps, relying on natural physical phenomena for fluid circulation. They are often valued for their reliability and zero power consumption for fluid movement.
Heat Pipes: These are perhaps the most common passive two-phase devices. A heat pipe is a sealed container (typically a copper or aluminum tube) lined with an internal wick structure (e.g., sintered powder, grooves, mesh) and containing a small amount of a working fluid (like water, ammonia, or methanol) under vacuum. Heat applied to one end (the evaporator) vaporizes the fluid. The vapor rapidly travels to the cooler end (the condenser), where it condenses, releasing heat. The wick structure then transports the condensed liquid back to the evaporator via capillary action, enabling continuous operation regardless of orientation (within limits). Heat pipes offer exceptionally high effective thermal conductivity, often hundreds of times that of solid copper.
Vapor Chambers: Essentially flat, planar heat pipes. They excel at spreading heat from a concentrated source (like a small chip) over a larger area where it can be more effectively dissipated by a heat sink or other means. They operate on the same principle as heat pipes, using a wick structure for liquid return.
Thermosiphons: Similar to heat pipes but often simpler in construction (may lack complex wicks) and rely primarily on gravity to return the condensed liquid to the evaporator. Consequently, the evaporator must be positioned below the condenser for proper operation. They are often used in larger-scale applications where orientation is fixed.
These systems utilize a mechanical pump to circulate the coolant, offering greater control and the ability to handle higher heat loads or transport heat over longer distances than passive systems might allow.
Pumped two-phase systems often circulate a subcooled or saturated liquid (frequently a refrigerant or engineered dielectric fluid) to specialized cold plates mounted directly on high-power components like CPUs, GPUs, or IGBTs. Boiling occurs within microchannels or structures inside the cold plate (sometimes referred to as Direct-to-Chip or DTC cooling). The pump ensures consistent fluid delivery and removes the vapor-liquid mixture to a remote condenser. These systems are highly effective for managing very high, localized heat fluxes and allow for precise temperature control.

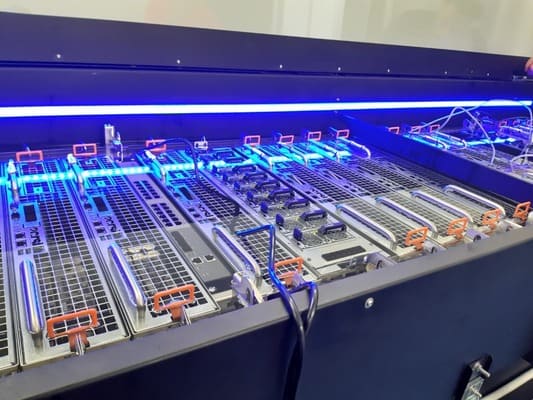

This approach involves completely submerging electronic components or entire servers directly into a bath of specialized dielectric (electrically non-conductive) fluid that has a low boiling point (often around 50°C).
As the components generate heat, the fluid boils directly on their hot surfaces, efficiently removing heat through latent heat absorption. The generated vapor rises naturally, typically encounters condenser coils (cooled by facility water or air) located near the top of the tank, condenses, and drips back down into the liquid bath. This passive circulation within the tank eliminates the need for pumps moving fluid across the servers, although pumps may be used in the external loop cooling the condenser coils. 2PIC is gaining traction in high-density data centers dealing with extreme rack power levels (e.g., for AI/HPC clusters).
The unique physics of phase change heat transfer provides several compelling benefits:
Latent heat values are typically orders of magnitude higher than sensible heat capacities for common coolants. This means two-phase systems can absorb and transport significantly more heat energy per unit mass of fluid, enabling the cooling of components generating extremely high heat fluxes (measured in W/cm²) that would overwhelm single-phase systems.
Because boiling and condensation occur at relatively constant temperatures (dependent on pressure), two-phase systems tend to maintain very uniform temperatures across the surfaces of both the heat source (evaporator) and the heat sink (condenser). This minimizes dangerous hotspots on sensitive components and improves overall system efficiency.
For a given heat load, pumped two-phase systems often require significantly lower fluid flow rates compared to single-phase liquid systems. This can lead to smaller pumps, reduced piping diameters, and lower energy consumption for pumping. Passive systems like heat pipes offer highly efficient heat transport with zero pump energy cost.
Heat pipes and vapor chambers allow for efficient heat transport away from constrained areas or enable effective heat spreading in low-profile designs. The high heat transfer coefficients allow for potentially smaller heat exchangers compared to single-phase solutions for the same heat load.
The use of electrically non-conductive fluids in immersion cooling and many pumped two-phase systems eliminates the risk of short circuits if leaks occur directly onto powered electronics, a significant advantage over traditional water cooling in certain applications.
While powerful, two-phase cooling also presents considerations:
System Complexity: Pumped two-phase systems can be more complex to design and operate than single-phase loops, potentially requiring components like accumulators, separators, and precise control systems. Immersion cooling requires specialized tanks, fluid handling, and potentially vapor containment strategies.
Cost: The specialized components (e.g., hermetically sealed heat pipes/vapor chambers, refrigerant-compatible pumps, expensive dielectric fluids) can make two-phase systems initially more costly than simpler air or single-phase liquid cooling solutions.
Working Fluid Selection: Choosing the right fluid is critical. Factors include the desired operating temperature (dictating boiling point), latent heat capacity, operating pressure, compatibility with system materials, safety (flammability, toxicity), environmental impact (Global Warming Potential - GWP), and cost.
Potential Flow Instabilities: Under certain conditions, two-phase flows (especially in pumped systems) can exhibit instabilities like pressure drop oscillations or flow maldistribution, which require careful engineering design to prevent.
Gravity Dependence: Some passive designs (thermosiphons, certain heat pipe implementations) have performance that is dependent on orientation relative to gravity.
Two-phase cooling is increasingly vital in applications pushing the boundaries of power density:
High-Performance Computing (HPC) & Data Centers: Cooling power-hungry CPUs, GPUs, and AI accelerators via direct-to-chip pumped systems or full immersion cooling to enable extreme rack densities.
Power Electronics: Managing heat in IGBTs, MOSFETs (especially SiC and GaN devices), power converters, and inverters used in industrial drives, renewable energy (solar, wind), automotive EVs, and grid infrastructure.
Aerospace & Defense: Cooling avionics, radar systems, directed energy weapons (DEWs), and other high-power electronics where size, weight, and performance are critical.
Telecommunications: Dissipating heat from high-power RF amplifiers in base stations and other demanding network equipment.
Medical Devices: Cooling lasers used in surgical or diagnostic equipment, MRI systems, and other heat-sensitive medical electronics.
Automotive: Advanced thermal management for EV battery packs (using heat pipes for spreading/uniformity), power electronics (inverters, DC-DC converters), and charging systems.
Advanced Lighting: Cooling high-brightness LEDs and laser diodes where temperature stability is crucial for performance and lifespan.
Selecting the optimal two-phase cooling approach depends on numerous factors: the magnitude and concentration (flux) of the heat load, required operating temperature, available space and weight constraints, budget, environmental conditions, reliability requirements, and the feasibility of passive versus active systems. Heat pipes might be ideal for passively moving moderate heat loads, vapor chambers for spreading localized hotspots, pumped systems for handling very high, consistent loads, and immersion for maximum density server cooling. Navigating these choices often requires collaboration with thermal management experts.
As electronic devices continue their trajectory towards higher power densities, two-phase cooling is transitioning from a specialized technique to a mainstream necessity. Its fundamental ability to manage intense heat loads efficiently and maintain temperature uniformity makes it indispensable for unlocking the potential of next-generation processors, power modules, and other advanced components. From passive heat pipes silently cooling laptops to sophisticated immersion tanks managing entire data centers, phase change cooling technologies are paving the way for continued innovation across a vast spectrum of industries.
