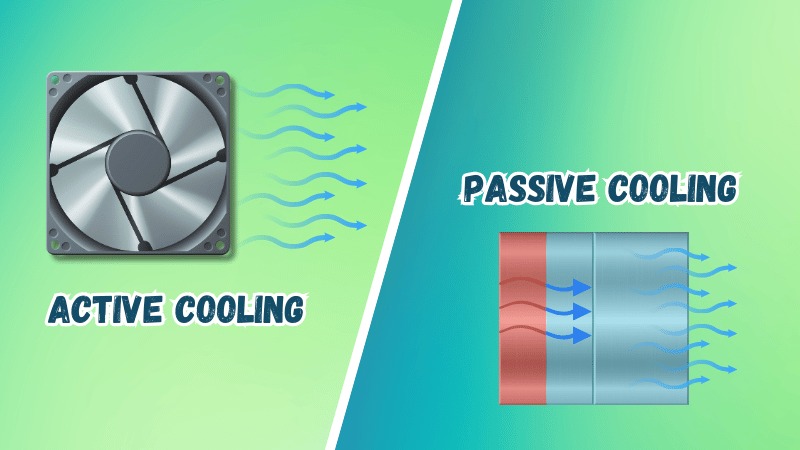

Overheating can damage electronics, reducing performance or causing failure. Choosing the right heat sink is critical, but active and passive types differ significantly. Active heat sinks use fans for superior cooling, while passive ones Stuart ones rely on natural airflow. Let’s explore their differences to guide your choice.
I recall my first project designing a cooling system for a high-performance server, struggling to decide between active and passive heat sinks. Understanding their differences was key to ensuring optimal performance. This challenge highlights why thermal management matters. As electronics become more powerful and compact, effective cooling is crucial. Whether for gaming PCs or industrial systems, knowing active versus passive heat sinks saves time, money, and ensures device longevity.
What Are the Advantages and Disadvantages of Active Heat Sinks?
What Are the Advantages and Disadvantages of Passive Heat Sinks?
How Do Active and Passive Heat Sinks Compare in Terms of Cost?
Active heat sinks are vital for cooling high-performance electronics. Their ability to handle intense heat makes them a go-to choice for demanding applications. But what exactly are they, and how do they function?
Active heat sinks use fans or liquid cooling systems to actively dissipate heat from electronic components. By forcing air or liquid over the heat sink, they enhance heat transfer, making them ideal for high-heat applications like gaming PCs or servers.
Active heat sinks come in various forms:
Fan-based heat sinks: These use fans to blow air across fins, increasing airflow and heat dissipation. For example, our air-cooled heat sinks are designed for high-performance computing.
Liquid-cooled heat sinks: These employ pumps to circulate coolant, absorbing heat and dissipating it via a radiator, often used in data centers.
Fans create forced convection, significantly boosting heat transfer compared to natural convection. By rapidly moving air over the heat sink, they increase the thermal gradient, allowing more heat to escape, which is critical for high-power components.
Active heat sinks are common in:
Gaming PCs: Cooling CPUs and GPUs during intense gaming sessions.
Data center servers: Managing heat from high-performance processors to ensure reliability.
Table: Common Active Heat Sink Applications
Practical Advice: When selecting an active heat sink, ensure the fan size matches your heat load. Test airflow direction to optimize cooling efficiency.
Passive heat sinks are the silent heroes of thermal management, relying on natural processes to cool electronics. Their simplicity makes them appealing, but how do they operate effectively?

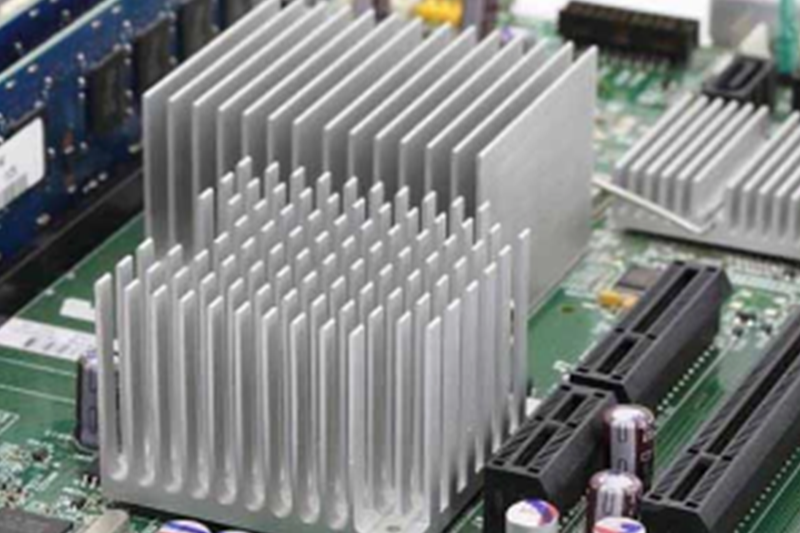

Passive heat sinks dissipate heat through natural convection and radiation, using no moving parts. Designed with fins to maximize surface area, they transfer heat to surrounding air, ideal for silent, reliable cooling in low-heat applications.
Passive heat sinks feature fins or ridges to increase surface area, enhancing heat dissipation. Materials like aluminum (cost-effective) or copper (high conductivity) are used. For instance, our passive heat sinks are optimized for LED lighting systems.
The absence of mechanical components offers:
Reliability: No risk of fan or pump failure.
Silence: Perfect for noise-sensitive environments like audio equipment.
No power use: Energy-efficient operation.
Passive heat sinks shine in:
LED lighting: Ensuring quiet, reliable cooling for bulbs.
Consumer electronics: Cooling routers or low-power processors.
Table: Material Comparison for Passive Heat Sinks
Practical Advice: Orient passive heat sinks vertically to maximize natural airflow. Ensure adequate spacing around fins to prevent heat buildup.
Choosing the right heat sink depends on your application’s heat load and environment. When does an active heat sink become the better choice?
Use an active heat sink for high heat loads that passive heat sinks can’t manage, such as in high-performance computing, gaming rigs, or industrial equipment with significant heat generation.
Calculate the Thermal Design Power (TDP) of your components. High TDP (e.g., >100W for CPUs) often requires active cooling to prevent overheating.
Consider:
Space: Active heat sinks need room for fans or liquid systems.
Noise: Fans may be noisy, unsuitable for quiet settings.
Power: Active systems consume electricity, impacting battery-powered devices.
In overclocked gaming PCs, active heat sinks manage the intense heat from CPUs pushed beyond standard specs, ensuring stable performance.
Practical Advice: Use thermal simulation tools to model heat dissipation needs. Test fan speeds to balance cooling and noise levels.
Passive heat sinks excel in simplicity and reliability. When are they the ideal choice for your cooling needs?
A passive heat sink is sufficient for low to moderate heat loads, such as in consumer electronics, LED lighting, or devices where silence and reliability are priorities.
Components with TDP below 50W, like low-power processors, can often be cooled effectively with passive heat sinks.
Passive heat sinks are perfect for:
Audio equipment: Silent cooling for recording studios.
Routers/modems: Reliable, maintenance-free operation.
Passive heat sinks struggle with:
High-performance components.
Restricted airflow in compact designs.
High ambient temperatures.
Practical Advice: Ensure proper ventilation around passive heat sinks. Test ambient temperatures to confirm cooling efficiency.
Active heat sinks offer powerful cooling but come with trade-offs. Let’s weigh their pros and cons to guide your decision.
Advantages of active heat sinks include superior cooling, handling high heat loads, and design flexibility. Disadvantages are higher costs, potential noise, power consumption, and reduced reliability due to moving parts.
Superior cooling: Manages high TDP components effectively.
Design flexibility: Adjustable fan sizes or liquid cooling configurations.
Compactness: Smaller than passive heat sinks for equivalent cooling.
Cost: Higher initial and operational expenses.
Noise: Fans can disrupt quiet environments.
Power use: Increases energy consumption.
Reliability: Moving parts risk failure over time.
Practical Advice: Regularly clean fans to prevent dust buildup, which can reduce cooling efficiency. Monitor fan performance to catch early signs of failure.
Passive heat sinks offer unique benefits but have limitations. Let’s explore what makes them suitable or not for your project.
Advantages of passive heat sinks include reliability, silent operation, no power consumption, and lower cost. Disadvantages are limited cooling capacity and larger size for equivalent cooling compared to active heat sinks.
Reliability: No mechanical failures ensure long-term performance.
Silence: Ideal for noise-sensitive applications.
No power use: Reduces energy costs.
Lower cost: Affordable initial investment.
Limited cooling: Ineffective for high heat loads.
Size: Larger designs needed for comparable cooling.
Airflow dependence: Performance varies with environmental conditions.
Opt for passive heat sinks when:
Heat loads are low to moderate.
Silence is critical.
Energy efficiency is a priority.
Practical Advice: Test passive heat sink performance in real-world conditions to ensure adequate cooling. Use high-conductivity materials like copper for better results.
Cost is a key factor in any project. How do active and passive heat sinks stack up financially?
Active heat sinks have higher upfront costs due to fans or pumps and incur ongoing power costs. Passive heat sinks are cheaper to purchase and have no operational costs, making them cost-effective for low-heat applications.
Active heat sinks include costs for fans or liquid cooling systems, increasing their price compared to simpler passive designs.
Active heat sinks consume power (e.g., 1-5W for fans), adding to electricity costs. Passive heat sinks have zero operational costs.
For high-heat applications, active heat sinks’ performance justifies their cost. For low-heat scenarios, passive heat sinks offer better long-term savings.
Practical Advice: Calculate total cost, including power usage, over the device’s lifespan. Choose passive heat sinks for budget-conscious, low-heat projects.
Energy efficiency matters, especially for sustainable designs. Which heat sink type uses less power?
Passive heat sinks are more energy efficient, consuming no power as they rely on natural convection. Active heat sinks, while effective, require power for fans or pumps, reducing their energy efficiency.
Fans typically use 1-5W, while liquid cooling systems may consume more, depending on pump size and coolant flow.
Passive heat sinks reduce energy use, lowering your carbon footprint, which is critical for eco-friendly designs.
For battery-powered or green computing projects, passive heat sinks minimize power draw, enhancing sustainability.
Practical Advice: Prioritize passive heat sinks for energy-sensitive applications. Monitor active heat sink power usage to optimize efficiency.
Active heat sinks excel in cooling high-heat electronics like gaming PCs and servers but come with higher costs, noise, and power consumption. Passive heat sinks offer silent, reliable, and energy-efficient cooling for low to moderate heat loads, such as in LED lighting or consumer electronics. Choosing between them depends on your heat dissipation needs, space, noise tolerance, and budget. Emerging trends, like 3D-printed designs and advanced materials like graphene, promise even more efficient solutions in the future.
