How Do Heatsinks Work?

I. Introduction

In our technology-driven world, electronic devices are ubiquitous, from smartphones to powerful gaming computers. However, as these devices operate, they generate heat due to electrical resistance and energy loss. This heat, if not managed properly, can lead to overheating, reduced performance, and even permanent damage to components.

Effective thermal management is crucial to ensure the longevity and reliability of electronic devices. One of the most common and effective solutions for dissipating heat is the heatsink. In this article, we will explore the fundamentals of heatsinks, how they function, their various types, and how to choose the right one for your needs.

II. What Are the Basics of Heat Transfer?

Understanding how heat transfer works is essential to grasp how heatsinks operate. There are three primary mechanisms of heat transfer:

A. Conduction

Conduction is the process of heat transfer through direct contact between materials. In heatsinks, heat is conducted from the heat-generating component (like a CPU) to the heatsink's base plate.

B. Convection

Convection involves the movement of heat through fluids (liquids or gasses). As air heats up around the heatsink, it becomes less dense and rises, allowing cooler air to take its place. This process helps to dissipate heat away from the heatsink.

C. Radiation

Radiation is the transfer of heat in the form of electromagnetic waves. While it plays a minor role in heatsink performance, it can contribute to heat loss in high-temperature applications.

III. What Are the Key Components of a Heatsink?

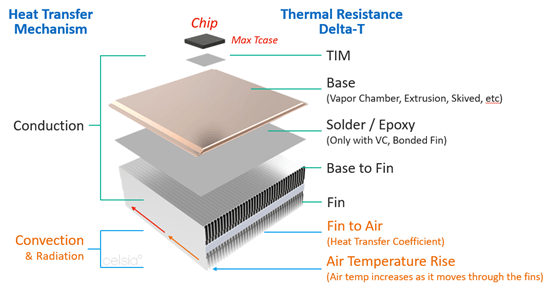

A heatsink consists of several key components that work together to manage heat effectively:

A. Base Plate

The base plate is the part of the heatsink that is in direct contact with the heat source. It absorbs heat through conduction and distributes it to the fins.

B. Fins

Fins are extended surfaces that increase the heatsink's surface area, allowing for more efficient heat dissipation through convection. The design and spacing of these fins are crucial for optimal airflow and heat transfer.

C. Why is Surface Area Important?

The larger the surface area of the heatsink, the more heat it can dissipate. This is why heatsinks are often designed with multiple fins and complex geometries to maximize their effectiveness.

IV. How Do Heatsinks Actually Function?

A. Heat Absorption from the Source

When an electronic component generates heat, it transfers that heat to the heatsink's base plate through conduction. The base plate quickly absorbs this heat and begins to distribute it to the fins.

B. Heat Dissipation Through Fins

As the fins receive heat from the base plate, they increase in temperature. The surrounding air absorbs this heat, which causes the air to rise and create a natural convection current. This process effectively dissipates heat away from the heatsink.

C. What Role Do Thermal Interface Materials Play?

Thermal interface materials (TIMs) are used between the heat source and the heatsink to improve thermal conductivity. They fill microscopic gaps between surfaces, reducing thermal resistance and enhancing heat transfer efficiency.

V. What Are the Different Types of Heatsinks?

Heatsinks come in various types, each suited for different applications:

A. Passive Heatsinks

Passive heatsinks rely solely on natural convection to dissipate heat. They are typically made of materials with high thermal conductivity, such as aluminum or copper, and are used in low-power applications.

B. Active Heatsinks (with Fans)

Active heat sinks incorporate fans to increase airflow over the fins, enhancing heat dissipation. They are commonly used in high-performance applications, such as gaming PCs and servers.

C. Liquid-Cooled Heatsinks

Liquid-cooled heatsinks use a liquid coolant to absorb heat from the component and transfer it away. This method is highly effective for high-performance systems, as it can dissipate heat more efficiently than air cooling.

VI. What Factors Affect Heatsink Performance?

Several factors can influence the performance of a heatsink:

A. Material Conductivity

The thermal conductivity of the material used in the heatsink significantly affects its ability to transfer heat. Metals like copper and aluminum are preferred for their excellent thermal properties.

B. Surface Area

As previously mentioned, a larger surface area allows for more effective heat dissipation. The design of the heatsink should maximize this area.

C. Fin Design and Spacing

The design and spacing of the fins play a critical role in airflow and heat transfer. Fins that are too close together may restrict airflow, while those that are too far apart may not effectively dissipate heat.

D. Airflow

The amount of airflow around the heatsink is crucial for effective cooling. Inadequate airflow can lead to hot spots and reduced performance.

VII. Where Are Heatsinks Commonly Used?

Heatsinks are widely used in various applications, including:

A. CPUs and GPUs

In computers, heatsinks are essential for cooling CPUs and GPUs, preventing thermal throttling and ensuring optimal performance.

B. Power Electronics

Heatsinks are used in power electronics, such as power amplifiers and converters, to manage heat generated during operation.

C. LED Lighting

High-power LED lights generate significant heat, making heatsinks necessary to maintain efficiency and prolong lifespan.

D. Renewable Energy Systems

In renewable energy systems, such as solar inverters, heatsinks help manage heat to ensure reliable operation.

VIII. How Do I Choose the Right Heatsink?

Selecting the right heatsink involves considering several factors:

A. What Are Thermal Resistance Considerations?

Thermal resistance is a measure of a heatsink's ability to dissipate heat. Look for heatsinks with low thermal resistance values for better performance.

B. How Do Space Constraints Affect Selection?

Consider the physical space available for the heatsink. Ensure it fits within the design of your device while allowing for adequate airflow.

C. How Does Budget Impact Heatsink Choice?

While high-performance heat sinks may come at a premium, it's essential to balance cost with performance needs. Evaluate your requirements and choose a heatsink that meets them without overspending.

IX. Conclusion

In summary, heatsinks play a vital role in managing heat in electronic devices, ensuring they operate efficiently and reliably. Understanding how they work and the factors that influence their performance can help you make informed decisions when selecting a heatsink for your applications.
