Appearance and performance of high-power electronic heat sinks

Views: 17     Author: Site Editor     Publish Time: 2022-04-20      Origin: Site

Electronic devices are prone to release heat, which could be very alarming in several cases. Hence, heat sinks are most commonly installed with such heat-releasing electronic devices.

A heat sink allows cooling down of the device; heating up may also damage the device. Some of the electronic devices and chips used commonly in several appliances release a lot of heat. A heat sink absorbs that heat and dissipates it by cooling it.

Electronic heat sink performance

The electronic heat sink is mainly used to ensure that the area between the processor of an electronic device and the medium of cooling is maximized.

An electric heat sink has been used to cool down the surroundings of an electronic device. The heat released is exchanged and transferred to a medium of low temperature using a cooling fluid.

It is essential to keep the electronic device at a cooler temperature. As much as the temperature of the electronic device increases, the rate of failure of the device also increases.

Different materials may be used to manufacture the proper heat sink for electronic devices. However, copper and aluminum prove to be the most suitable ones. They both have the power to reduce the temperature, and hence most heat sinks are manufactured using them.

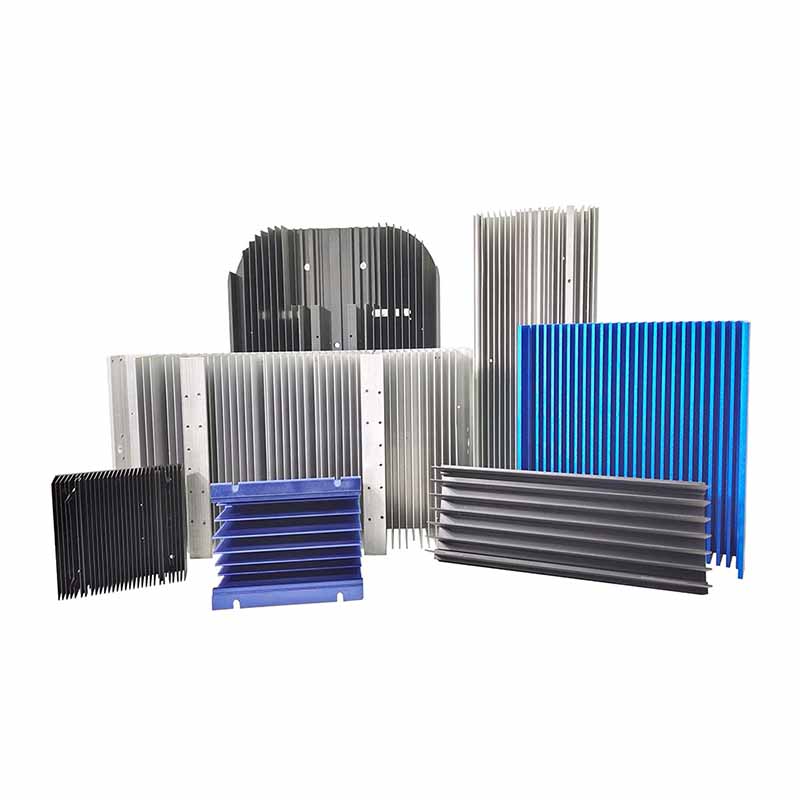

Appearance of the electronic heat sink


We have several electronic devices around us that would have a heat sink. For instance, if you ever get a chance to open your CPU, you can find a heat sink there upon removing the case.

You will see a rectangular or maybe a square-shaped object that has fins. These fins help in dispersing the heat away from the device. This heat sink would be made using either copper or aluminum materials. Materials of other kinds may be used, but these are the most suitable ones.

Moreover, when it comes to assessing the colors of the heat sink, you will find them in black and silver colored aluminum fin base structure. However, the black one would be a more suitable choice. Darker colors can dissipate heat, so these are more suitable.

Materials for electronic heat sinks

Materials with high thermal consumption are suitable for making heat sinks. Usually, two common kinds of materials observed in the making of heat sinks are copper and aluminum alloys.

Copper is one of the finest choices of materials whenever it comes to thermal conductivity. It is used very commonly in the manufacture of several electronic appliances and even circuits.

However, heat sinks may also be made out of copper.

Copper can cool down high thermal electronic devices. It amounts to be the best coolant to choose from. It is known for its excellent heat absorption property and is a good choice since it does not corrode. However, it is a bit expensive, so not every device may find it an affordable option.

On the other hand, aluminum alloys are also popular when choosing a material for heat sink manufacture. Aluminum is also a good choice for minimizing heat loss from an electronic device. It is also very affordable as well.

In certain heat sinks, it is observed that a combination of aluminum and copper may be used to manufacture heat sinks. The material selection depends significantly on the amount of heat released from a particular device.

Common processing technology of electronic heat sink

Several ways come under the head of processing technology of electronic heat sink; a few of the popular ones are discussed below:


●The stamping technique is inspiring and used for such heat sink manufacturing needed for bulk production for electronics that release a considerable amount of heat.

In this process, the aluminum coil is bent and cut down to achieve the heat sink's   fins. This process works on the punching mechanism.

●The electronic heat sink may be needed in the light source, and here, the role of cold forging is essential. It is a process that works by forming the aluminum, and it allows in a very cold temperature and hardens the material, adding to its heat resistance capacity.

It is quite popular with LED light sources.

●Die casting amounts to a very suitable process of creating a heat sink. In this method, the process has been done on a bulk quantity of heat sink. It offers a 3D design experience.

●Extrusion is a popular process with heat sink manufacturers. In this process, the material is pressed by an extrusion cylinder that causes different patterns on the aluminum alloys.

There are several methods through which heat sinks can be processed, depending upon the requirement of an industry and the process to serve.

How does an electronic heat sink work?

The electronic heat sink works using three different methods, and these have been discussed below:

●The heat sink causes the heat to move away from the source in the first method. In this process, the heat released by the electronic component is taken away from the component. It is then passed into another medium.

●Distribution of heat is also a method considered with the working mechanism of a heat sink. The heat is distributed all over the area, and in the zone closer to the part producing heat, you will feel the temperature to be high, and as you move away, the temperature will reduce.

●Another method accompanied by a heat sink is an introduction or a thermal fluid. The fluid takes away the heat from its source and acts as a cooling agent, making the temperature cool.

The main application of the heat sink

The application of a heat sink is featured in almost all kinds of devices backed with electricity, have chemicals or nuclear agents, or are subjected to thermal power.

Starting from a computer's CPU and going to the mobile phone, a heat sink is used widely.

A significant application of heat sink is observed in the automobile industry, HVAC systems, solar plants, and industries that need cooling processes, power plants, and several electronic appliances.


Controlling the thermal mechanism of every device is very crucial. It adds to the life of the device itself, and hence choosing the right heat sink is eminent for several businesses working in different industries.

Numerous manufacturers offer impeccable and good-quality heat sink systems to their clients. Winshare Thermal offers exemplary heat sink systems for multiple industries, among the well-known names.
