Thermal Challenges of 5G Base Stations

Views: 19     Author: Site Editor     Publish Time: 2022-02-21      Origin: Site

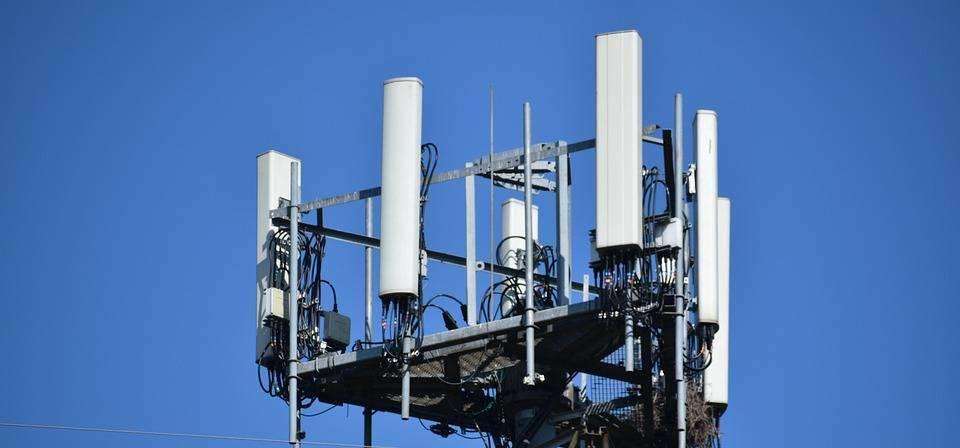

ThermalStations for 5G Base

A new spectrum called millimeter-wave (mmWave) is introduced in the fifth generation of wireless technology. mmWave can transmit data at speeds up to 20 gigabits per second, which is 100 times faster than current cellular networks. 5G base stations must be close together to provide full coverage for a limited area. This leads to several challenges in thermal management design, which will be discussed below.


What is 5G?


The Institute of Electrical and Electronics Engineers (IEEE) first defined the fifth generation of wireless technology in 2016. In 2018, the International Telecommunications Union Radiocommunication Sector (ITU-R) approved a set of requirements for new global standards. Higher data rates, lower latency, energy savings, cost savings, and greater system capacity are among these. The ITU-R estimates that peak data rates will reach 20 gigabits per second (Gbps).

5G is a massive upgrade from the fourth generation of wireless technology, transmitting data at rates up to 100 megabits per second (Mbps). This technology is used in laptops, smartphones, and other devices. The fifth generation of wireless technology will transmit data at speeds up to 20 Gbps, 100 times faster than current cellular networks. The world is getting crazy over this new technology.


Introduction to 5G Base Stations:


5G base stations are small cell radio access networks (RAN). They are smaller than traditional macro base stations and have limited coverage. This necessitates the need for many base stations to provide full coverage.

The high data rates and low latency of 5G wireless technology require a new type of base station. The traditional macro base station cannot provide the level of service required. In addition, the number of macro base stations needed to cover a given area would be prohibitively expensive.

The small cell base station is a vital component of the fifth-generation wireless infrastructure. They are less expensive to deploy and require less power than traditional macro base stations. However, they do have some limitations. The coverage area is smaller, and the data rates are lower than those achievable with a macro base station.

5G base stations come in two types:


Macro base stations:


These are the fundamentals of the network. They are located in areas with high demand for wireless services, such as downtown urban centers and shopping malls. Macro base stations provide coverage to an area of several square kilometers. These stations provide coverage in areas not covered by the small cell network. The macro base station is deployed in a centralized fashion and is connected to other cellular infrastructure components via fiber optic cable.


Micro base stations:


Micro base stations are located in areas with less demand for wireless services, such as rural or suburban locations. Micro base stations cover several square meters and use a dedicated spectrum not shared with other users.

The micro base station is deployed in a distributed fashion and is connected to other cellular infrastructure components via wireless links. It is important to note that the micro base station is not a replacement for the macro base station. Instead, it provides coverage in areas where a macro base station would not be economically feasible.


5G base station leading equipment AAU and BBU


The leading equipment for a 5G wireless base station is the radio access unit (AAU) and the baseband unit (BBU). The AAU is responsible for transmitting and receiving data signals. The BBU is responsible for processing and managing traffic on the network.

The AAU consists of some components, including:


Radio:

The radio transmits and receives data signals. It converts the digital information into an analog signal transmitted over the airwaves.


Antenna:

The antenna transmits and receives RF signals from the user devices. It must be located in a place with a clear line of sight to the users.


Modem:

The modem is responsible for modulating and demodulating the RF signals. Analog signals are transmitted over the airwaves from digital data. It also converts the received analog signal back into a digital form to be processed by other base station components.


Processor:

The processor is responsible for processing the digital data. It must be powerful enough to handle the significant traffic that passes through a base station daily.


Transceiver:

The transceiver receives and transmits RF signals from the user devices. Transmitting over the airwaves, it converts digital data into an analog signal.

The BBU consists of the following components:


Controller:

The controller is responsible for managing traffic on the network. It allocates bandwidth and ensures that all users access the required resources.


Memory:

Base stations store the data to be processed in the memory. It must have a large capacity to handle all traffic passing through a base station daily.


Interface:

The interface allows the base station to connect to other cellular infrastructure components. It must have a high data rate to handle all traffic passing through a base station daily.


Power Supply:

The power supply provides electricity for all of the components in the BBU. Base stations require a lot of power, so the device must be able to handle it.

The AAU and BBU are connected via an optical fiber cable. The optical fiber transmits data from one component to another at very high speeds. It also allows long distances between components, which is necessary to cover large areas with wireless services.

Fiber optics is composed of three parts: a core, a cladding, and a coating. Both the AAU and BBU need to be located in areas with a clear line of sight between them.


5G Base Station Power Consumption:


To provide coverage for a large area, a 5g wireless base station requires a lot of power. The power supply must handle the high power requirements of the AAU and BBU. In addition, the base station must be located in an area where it has access to a reliable source of electricity.

The average power consumption of a fifth-generation wireless base station is about 500 watts. The number of antennas chosen can affect this, as can the type of coverage area being served.

The power consumption can be categorized into three main categories:


Computational power consumption:

The computational power consumption is the energy that is required to process data. To provide coverage for a large area requires a lot of processing power.

This includes signal modulation and demodulation, error detection and correction, encryption and decryption, and other tasks. The amount of computational power consumption depends on how much traffic there is in the area being served by the base station.


Transmission Power Consumption:

The transmission power consumption is the energy required to transmit signals from one component to another at very high speeds over long distances via an optical fiber cable or wireless link such as LTE/LTE+.

The transmission power consumption depends on how far apart each component needs to provide coverage for the desired area.


Additional power consumption:

The additional power consumption is the energy required to power all of the components in the BBU. This includes things like the controller, memory, interface and power supply. The amount of additional power consumption depends on how many components are included in the BBU and their power requirements.

To provide coverage for a large area requires a lot of power. The power supply must handle the high power requirements of both the AAU and BBU. In addition, the base station must be located in an area where it has access to a reliable source of electricity.


5G Base Station Cooling Challenges:


The fifth-generation wireless base stations are becoming increasingly complex, and as a result, they are generating more heat. This presents many challenges for the designers of these systems.

One challenge is to ensure that the components in the BBU do not overheat. This can be done by using liquid cold plates to cool the AAU and BBU. A liquid cold plate is a device that uses liquid cooling to dissipate heat from electronic components.

The liquid is pumped through small tubes embedded in the cold plate. Heat is dispersed into the surrounding air by connecting the tubes to a radiator.

Another challenge is to ensure that the liquid cold plates can handle the high power requirements of both the AAU and BBU. In addition, they must be located in an area where they have access to a reliable source of liquid cooling fluid such as water or ethylene glycol.

The liquid cold plate design should also consider cost, weight and size constraints. The liquid tubes embedded in the cold plate need to be flexible enough to move for each other without causing damage or leaks. Also, it should not add too much additional weight onto already heavy components like antennas and batteries used for backup power supplies.


5G Base Station Liquid Cooling Solution:


One solution to these problems is liquid cooling. Liquid cooling uses liquid to transfer heat away from electronic components generating too much heat and dissipating it elsewhere, usually into the surrounding air or liquid.

This allows for higher power densities because there is no need for airflow through a heatsink which creates resistance and turbulence. Liquid cooling also allows for quieter operation since liquid does not make any noise when it moves through tubes at high speeds like air would be blown over an area with fans or other devices like wind turbines.

Liquid cooling solutions are becoming increasingly popular in the IT industry because they offer many advantages over traditional air cooling methods such as lower noise levels and higher reliability due to the liquid being less prone than air currents causing turbulence which causes wear on components over time.

In addition, liquid cold plates allow for more efficient use of space since liquid takes up much less room than air when heated up. This is important for constrained environments like data centers and wireless base stations.


Conclusion:


In conclusion, liquid cooling is a viable solution to the problem of overheating in 5G wireless base stations. Liquid cooling allows for higher power densities due to its ability to transfer heat away from electronic components and dissipate it elsewhere without creating resistance or turbulence that would occur if the air were used instead. The challenges mentioned above and solutions should be considered when designing a liquid cooling solution for a fifth-generation wireless base station.
