What Are Plate-Fin and Pin-Fin Heat Sinks?

Views: 72     Author: Site Editor     Publish Time: 2025-05-13      Origin: Site

Are you struggling to keep your electronics cool? Overheating can lead to performance issues, costly repairs, or device failure. Fortunately, heat sinks like plate-fin and pin-fin designs offer reliable cooling solutions. Plate-fin heat sinks use parallel fins for directed airflow, while pin-fin heat sinks feature pins for omnidirectional airflow, ensuring efficient heat dissipation.

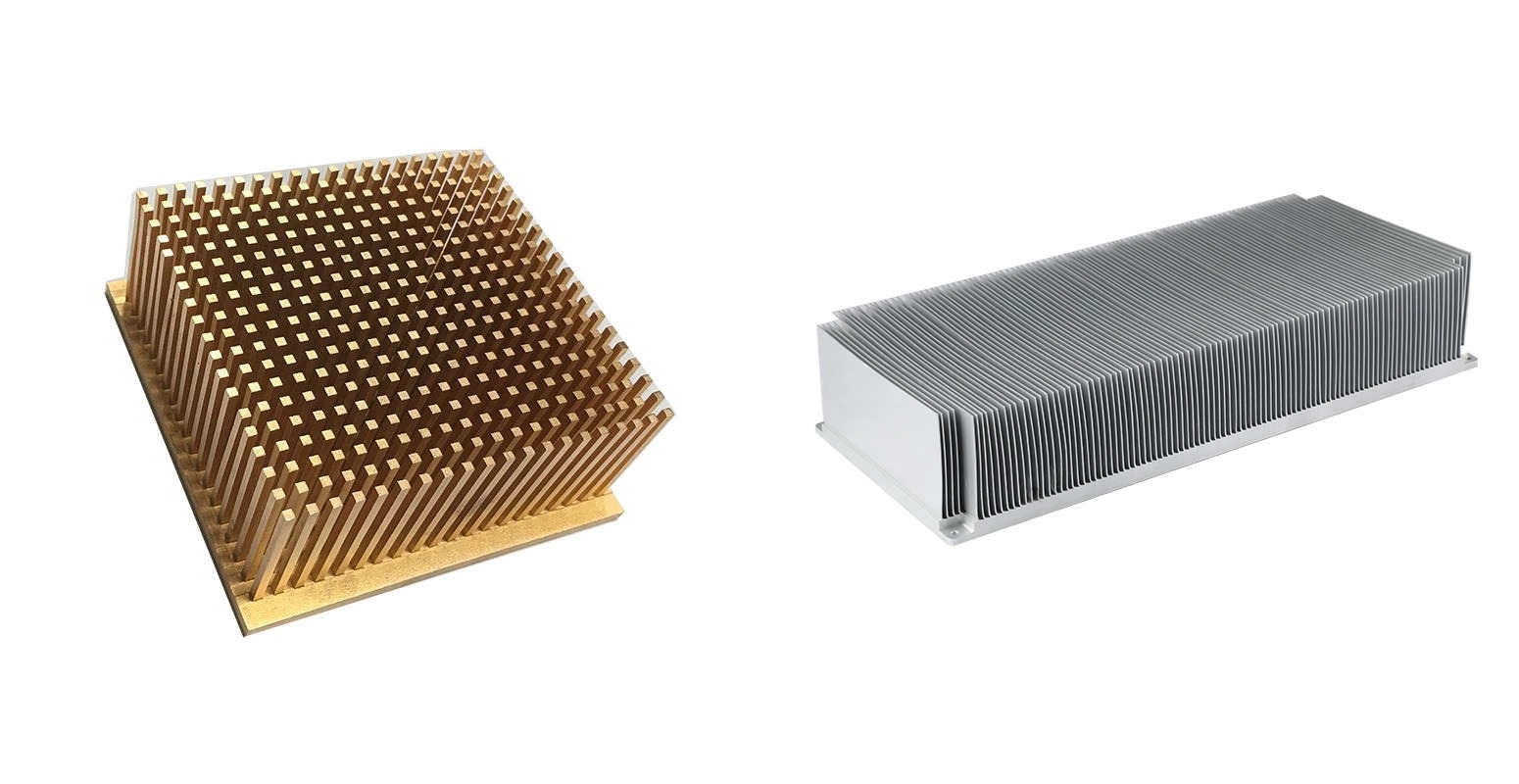

plate-fin and pin-fin heat sinks

As someone who once struggled to cool a gaming PC, I learned the hard way how vital heat sinks are. After researching and testing various designs, I discovered the unique strengths of plate-fin and pin-fin heat sinks. Let’s explore their differences to help you choose the right one.

Table of Contents

  1. What Is a Plate-Fin Heat Sink?

  2. What Is a Pin-Fin Heat Sink?

  3. How Do Plate-Fin and Pin-Fin Heat Sinks Differ?

  4. Which Heat Sink Is Better for Natural Convection?

  5. Which Heat Sink Is Better for Forced Convection?

  6. What Are the Cost Differences Between Plate-Fin and Pin-Fin Heat Sinks?

  7. How to Choose the Right Heat Sink for Your Application?

What Is a Plate-Fin Heat Sink?

Plate-fin heat sinks are a staple in electronics cooling, from laptops to industrial systems. Their simple yet effective design makes them a popular choice. Curious about how they work? Let’s dive in.

A plate-fin heat sink features a base plate with parallel, flat fins that maximize surface area for heat dissipation in environments with directed airflow, such as fan-cooled systems.

Plate-Fin Heat Sink

Design and Structure

Plate-fin heat sinks are typically made from aluminum or copper due to their high thermal conductivity. The base attaches to the heat-generating component, while the fins extend outward, creating channels for airflow. Manufacturers like Winshare Thermal use advanced extrusion techniques to produce high-performance plate-fin heat sinks, ensuring optimal thermal conductivity and durability (Cold Forged Heat Sink).

Working Principle

Heat conducts from the component to the base and into the fins. Air flowing through the channels—either naturally or via a fan—absorbs and dissipates the heat. Efficiency depends on fin density, height, and airflow alignment, with parallel airflow being optimal.

Applications

These heat sinks are ideal for applications with directed airflow, such as CPU coolers in desktops or inverters in renewable energy systems. For example, a plate-fin heat sink in a photovoltaic inverter ensures stable performance under high power loads.

Practical Advice

Test performance using a thermal sensor to monitor component temperature under load. Align fins with airflow direction and clean regularly to prevent dust buildup, which can reduce efficiency.

Material

Thermal Conductivity (W/m·K)

Cost

Aluminum

205

Low

Copper

401

High

Aluminum Alloy

120-180

Medium

What Is a Pin-Fin Heat Sink?

Pin-fin heat sinks offer a unique approach to cooling, excelling in scenarios where airflow is less predictable. Wondering what sets them apart? Let’s explore.

A pin-fin heat sink consists of a base with an array of pins, allowing airflow from multiple directions, making it ideal for applications with variable orientation or turbulent airflow.

Pin-Fin Heat Sink

Design and Structure

Pin-fin heat sinks feature pins in shapes like cylindrical or oval, made from materials like aluminum or copper. Winshare Thermal, for instance, crafts pin-fin heat sinks using cold forging for enhanced thermal performance (Pin Fin Heat Sink). The pins create turbulence, improving heat transfer.

Working Principle

Heat conducts from the base to the pins, which disrupt airflow to enhance convection. This design is less sensitive to airflow direction, making it versatile for complex setups.

Applications

Pin-fin heat sinks are used in LED lighting, automotive electronics, and servers where space is limited or orientation varies. For example, in electric vehicle controllers, they ensure efficient cooling regardless of position.

Practical Advice

Use thermal simulation software to assess performance across airflow directions. Regular cleaning is essential, as pins can trap dust, reducing efficiency.

How Do Plate-Fin and Pin-Fin Heat Sinks Differ?

Choosing between these heat sinks requires understanding their key differences. Let’s compare their designs and performance.

Plate-fin heat sinks use continuous fins for directed airflow, offering larger surface areas, while pin-fin heat sinks use discrete pins for omnidirectional airflow, providing higher convection efficiency.

Surface Area Comparison

Plate-fin heat sinks typically have a larger surface area, except in dense configurations where pin-fin designs may offer more surface area due to tight pin spacing.

Convection Coefficient

Pin-fin heat sinks have a higher convection coefficient due to airflow turbulence, enhancing heat transfer compared to the continuous fins of plate-fin designs.

Pressure Drop

Pin-fin heat sinks cause higher pressure drops, potentially reducing airflow in low-power fan systems. Plate-fin heat sinks have lower pressure drops, suitable for natural convection.

Orientation Sensitivity

Plate-fin heat sinks require airflow alignment, while pin-fin heat sinks are less orientation-sensitive, ideal for variable setups.

Feature

Plate-Fin Heat Sink

Pin-Fin Heat Sink

Fin Structure

Continuous, parallel fins

Discrete pins

Surface Area

Generally larger

Smaller, unless very dense

Convection Coefficient

Lower

Higher

Pressure Drop

Lower

Higher

Orientation Sensitivity

High

Low

Which Heat Sink Is Better for Natural Convection?

Natural convection relies on slow, buoyancy-driven airflow, posing unique challenges. Which heat sink performs best here?

Plate-fin heat sinks are generally better for natural convection when vertically aligned, while pin-fin heat sinks excel in variable orientations due to their omnidirectional airflow capability.

Performance in Vertical Orientation

Vertically aligned plate-fin heat sinks align with upward airflow, maximizing cooling efficiency. Pin-fin designs perform adequately but are less effective unless airflow is turbulent.

Performance in Horizontal Orientation

Horizontal plate-fin heat sinks struggle as fins block airflow, while pin-fin heat sinks maintain performance due to their design.

Practical Advice

Test orientation using thermal imaging to identify hot spots. For plate-fin designs, ensure vertical alignment; for pin-fin, consider variable orientations.

Which Heat Sink Is Better for Forced Convection?

Forced convection uses fans for enhanced airflow. How do these heat sinks compare in such systems?

Pin-fin heat sinks often outperform plate-fin heat sinks in forced convection, especially with variable airflow directions, due to their higher convection efficiency.

Airflow Direction

Plate-fin heat sinks require parallel airflow for optimal performance, while pin-fin heat sinks handle turbulent or multi-directional airflow effectively.

Pressure Drop Considerations

Pin-fin heat sinks’ higher pressure drop can be a challenge with low-power fans, but high airflow rates mitigate this issue.

Example Applications

Plate-fin heat sinks are common in server racks with directed airflow, while pin-fin heat sinks suit graphics cards with turbulent airflow.

Practical Advice

Use computational fluid dynamics (CFD) software to simulate airflow and ensure fan compatibility with pin-fin pressure drops.

What Are the Cost Differences Between Plate-Fin and Pin-Fin Heat Sinks?

Cost is a critical factor in design decisions. How do these heat sinks compare financially?

Plate-fin heat sinks are generally less expensive due to simpler extrusion processes, while pin-fin heat sinks, requiring complex methods like cold forging, are costlier.

Manufacturing Processes

Plate-fin heat sinks are often extruded, a cost-effective process. Pin-fin heat sinks may require casting or machining, increasing costs. Winshare Thermal, for example, uses cold forging for high-performance pin-fin heat sinks (Cold Forged Heat Sink).

Material Usage

Pin-fin designs may use more material for dense pin arrays, while plate-fin designs are typically more material-efficient.

Practical Advice

Request quotes from manufacturers to compare costs. Balance performance needs with budget constraints to optimize your choice.

How to Choose the Right Heat Sink for Your Application?

Selecting the right heat sink can be daunting. Let’s simplify the process with clear steps.

Choose a heat sink by evaluating airflow (natural or forced), orientation, space, and budget. Plate-fin suits directed airflow and lower costs; pin-fin excels in omnidirectional airflow and compact designs.

Step-by-Step Guide

  1. Calculate Cooling Needs: Use thermal analysis to determine heat dissipation requirements.

  2. Assess Airflow: Identify natural or forced convection and airflow direction.

  3. Check Space Constraints: Ensure the heat sink fits within your device’s dimensions.

  4. Consider Costs: Compare manufacturing costs against performance benefits.

  5. Select the Type: Choose plate-fin for directed airflow or pin-fin for flexibility.

Practical Tips

  • For a desktop PC, a plate-fin heat sink with a fan is often sufficient.

  • For outdoor electronics like solar inverters, pin-fin heat sinks handle varying orientations better.

  • Consult manufacturers like Winshare Thermal for tailored solutions.

Conclusion

Plate-fin and pin-fin heat sinks are vital for managing heat in electronics, each offering distinct advantages. Plate-fin designs are cost-effective and ideal for directed airflow, while pin-fin heat sinks provide flexibility for omnidirectional airflow and compact systems. By evaluating airflow, space, and budget, you can select the best heat sink for your needs.

For those seeking reliable thermal management solutions, Winshare Thermal offers a comprehensive range of heat sinks, including plate-fin and pin-fin designs, tailored for industries like electronics, renewable energy, and automotive. With over a decade of experience, a robust R&D team, and in-house manufacturing, they deliver high-quality, customized cooling solutions. Visit Winshare Thermal for more details.
