Choosing Heat Sinks for Automotive Electronics: Is Skived Fin the Right Solution?

The rapid integration of electric drivetrains, autonomous driving systems, and high-power onboard computing has introduced unprecedented thermal loads to modern vehicle architectures. Skived fin heat sinks offer the ideal automotive thermal management solution by providing an integrated, joint-free structure with a high surface area-to-volume ratio that maximizes heat dissipation within constrained vehicle spaces.

1. The Escalating Thermal Challenges in Modern Automotive Electronics

Modern vehicular architectures contain more high-power electronic components than ever before, operating under harsh environmental and mechanical conditions.

Automotive electronics experience severe thermal density challenges due to component miniaturization, enclosed packaging designs, and high continuous power throughput from systems like EV traction inverters and advanced driver-assistance systems (ADAS).

The convergence of high power output and compact enclosures creates extreme localized heat flux. This thermal density frequently surpasses the physical capabilities of traditional aluminum extrusions, which are typically limited to a 15:1 aspect ratio. Consequently, high-density skived fin solutions capable of achieving up to a 50:1 ratio become necessary for modern vehicle platforms.

As vehicles transition from internal combustion engines to electric and intelligent powertrains, components must process massive amounts of electrical energy in localized areas. When power densities rise across traction control units or high-performance computing platforms, conventional cooling elements become bulky and heavy. This presents a direct conflict with the strict weight reduction and spatial optimization goals of modern automotive engineering.

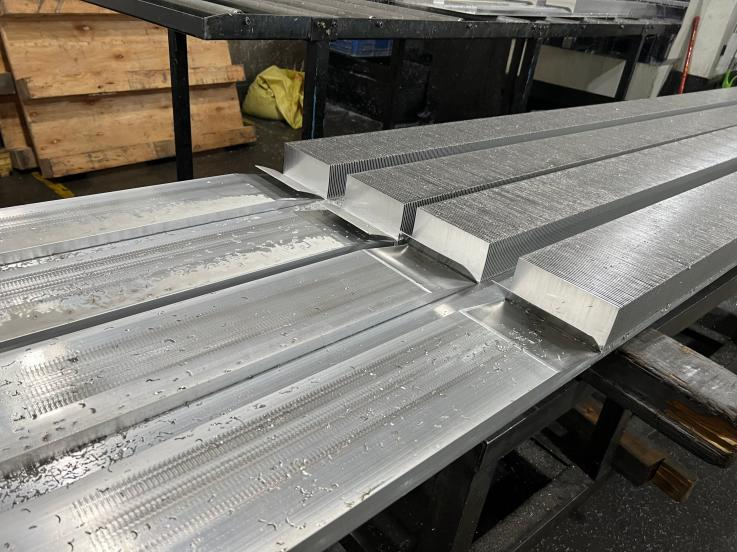

2. Understanding Skived Fin Manufacturing Technology and Structural Integrity

Evaluating an automotive electronics heat sink requires a deep look into the precise mechanical process behind its construction.

Skived fin manufacturing utilizes a precision machining process where a sharp slicing tool shaves thin layers of metal from a solid block and bends them upward to form continuous, high-density vertical fins.

During the manufacturing sequence, the precision profiling tool moves across the solid metal base material at a controlled depth and speed, lifted at a predetermined angle to form each individual fin.

Unlike bonded, folded, or brazed fin structures, skived fin heat sinks feature a monolithic design where the base and the fins form a single piece of metal. This integrated layout eliminates the presence of a thermal interface layer or bonding medium between the cooling fins and the baseplate. In high-power applications, eliminating adhesive or solder interfaces completely removes the localized thermal resistance that typically compromises jointed assemblies. The resulting continuous heat conduction path ensures uniform thermal dissipation across the entire module profile.

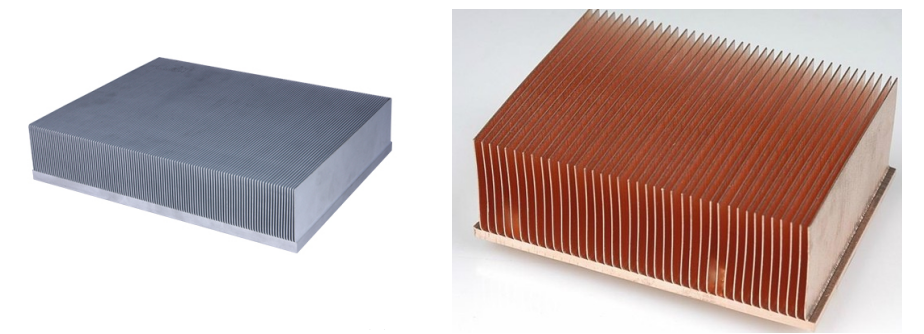

3. Comparing Aluminum vs. Copper Skived Fin Heat Sinks for Automotive Use

Material selection acts as the core baseline for balancing thermal conductivity, structural mass, and project economics.

Choosing between an aluminum skived fin heat sink and a copper skived fin heat sink requires mapping out localized heat flux distributions, component weight restrictions, and total cost targets.

High-performance heat sinks for automotive applications utilize pure metals or tailored alloys depending on the exact engineering goal. Aluminum variants excel in weight-sensitive positions where overall mass dictates vehicle range, while copper variants provide the extreme thermal performance needed to handle localized hot spots.

Technical Comparison of Skived Fin Materials

In highly specialized multi-chip systems, a copper-aluminum hybrid solution can be implemented. This design uses friction stir welding or precision embedding to place a copper block directly under high heat flux components, utilizing lightweight aluminum skived fins for the remaining structure.

4. Key Design Factors for Optimizing Automotive Skived Fin Heat Sinks

A skived fin design must be carefully tailored to integrate smoothly with the vehicle's secondary systems and fluid dynamics.

Optimizing an automotive electronics heat sink requires precise tuning of fin height, thickness, and pitch to match available fan or airflow pressure curves without creating excessive flow bypass.

• Fin Pitch and Density: Skiving allows for exceptionally tight fin spacing, expanding the effective surface area within small dimensions. However, if the pitch is too restrictive, the airflow resistance increases, causing air to bypass the heat sink entirely.

• Fin Thickness and Height: Thinner fins (down to 0.2 mm) permit higher density but possess lower structural stiffness. Taller fins maximize area but increase pressure drops and require careful evaluation against high-vibration automotive baselines.

• Base Thickness Optimization: The baseplate thickness must be designed to absorb transient thermal spikes from automotive power modules and spread the heat horizontally before it ascends through the cooling fins.

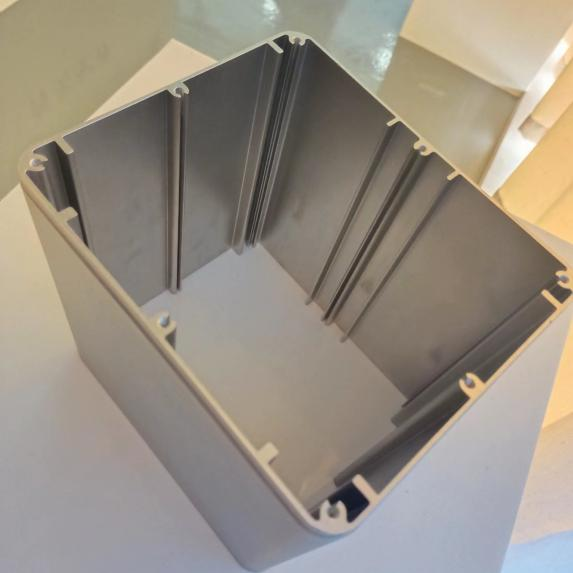

5. Critical Application Cases in Electric Vehicles and Intelligent Systems

High-density cooling solutions find a wide range of uses across several core subsystems in alternative fuel and connected vehicles.

5.1 EV Inverter Cooling

Electric vehicle traction inverters switch massive electrical currents via IGBT or Silicon Carbide (SiC) modules, generating intense localized heat fluxes. Custom automotive heat sinks utilizing copper skived fins are increasingly selected to maintain these semiconductor junctions below critical threshold temperatures. This careful thermal regulation directly supports stable power conversion efficiency and prevents system thermal throttling during rapid vehicle acceleration.

5.2 Battery Management Systems (BMS)

Battery management units track cell voltages, balancing systems, and state-of-charge parameters across extensive battery packs. An aluminum skived fin heat sink provides the necessary thermal control to keep delicate control circuitry within stable operating bands, ensuring long-term system reliability without introducing unnecessary weight penalties to the overall battery enclosure.

5.3 On-Board Chargers (OBC) and DC-DC Converters

On-board chargers experience prolonged, continuous thermal loads during high-power vehicle charging cycles. Incorporating optimized skived structures directly manages the heat generated by localized power semiconductors and transformer elements, protecting adjacent circuitry from accelerated aging or premature failure.

5.4 ADAS and Intelligent Computing Platforms

Advanced driver assistance systems rely on real-time radar, lidar, and camera data processing engines. These centralized autonomous driving computing units run at high clock speeds, mimicking server-level power profiles. Compact skived fin arrays fit cleanly into small dashboard or trunk compartments, utilizing available passenger cabin airflow or localized forced-convection loops.

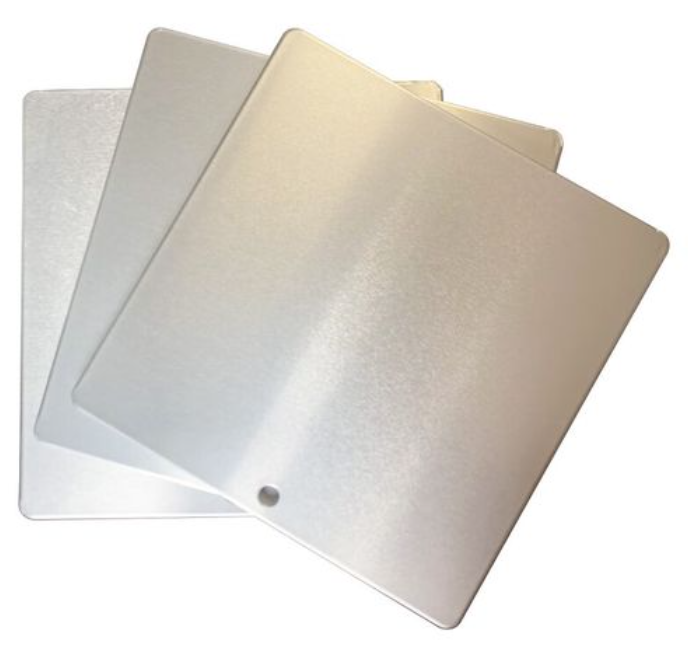

6. Evaluating Reliability: Mechanical Stability and Environmental Factors

The operational life of a vehicle demands that all under-hood and cabin components survive rigorous lifecycle testing regimes.

Because skived fin heat sinks feature a monolithic base-to-fin design, they demonstrate exceptional resistance to continuous mechanical vibration, structural fatigue, and severe thermal cycling.

Automotive platforms operate across wide temperature spreads (typically ranging from -40°C to +125°C) and encounter continuous, multi-axis chassis vibrations. In traditional bonded or soldered heat sinks, these repeated mechanical oscillations and mismatched thermal expansion rates can lead to localized delamination or solder-joint fracturing. This fracturing creates a major thermal barrier and can cause total component failure.

The unified physical block of a skived fin heat sink eliminates this specific mechanical vulnerability. To ensure long-term environmental durability, specific surface treatments such as clear or black anodizing for aluminum, and targeted nickel plating or passivation for copper, are utilized to protect against moisture intrusion and salt-spray corrosion.

7. B2B Selection Criteria: Moving from Design to Consistent Mass Production

For tier-1 automotive suppliers and original equipment manufacturers (OEMs), choosing a partner requires assessing engineering and quality competencies.

A tier-1 automotive heat sink supplier must possess strong thermal simulation capabilities, fast prototyping services, and highly automated mass-production processes to ensure consistent part quality and long-term delivery reliability.

The ideal engineering-to-mass-production pathway moves seamlessly from thermal simulation and design for manufacturability (DFM) through prototype fabrication, leading to automotive PPAP quality runs and automated high-volume manufacturing.

When evaluating a custom cooling solution supplier, procurement and engineering teams should focus on several crucial parameters:

1. Design for Manufacturability (DFM) Support: The capability to review raw geometric designs and suggest refinements to fin angles, tolerances, and thicknesses to streamline volume production.

2. Dimensional Repeatability: Precision control of automated skiving machinery to maintain consistent fin pitches and flat base surfaces across thousands of production cycles.

3. Advanced Validation Testing: Access to internal testing facilities for thermal performance indexing, geometric scanning, and reliability checking to verify compliance with strict automotive quality standards.

8. Balancing Performance, Weight, and Cost Optimization

The ultimate selection of an automotive thermal system hinges on balancing engineering performance against real-world economic constraints.

An engineered skived fin heat sink helps minimize overall system costs by maximizing thermal efficiency within existing spaces, allowing teams to avoid oversized cooling arrays or complex secondary systems.

Through carefully managed design optimization, custom skived fin components help reduce unnecessary system weight and material expenses. Rather than specifying a massive, generic extrusion that over-complicates packaging layouts, an optimized skived fin profile can be engineered to match the exact airflow and heat flux of the application. This tailored approach allows automotive engineering teams to meet target cooling requirements while achieving key mass-reduction and structural-efficiency targets.

Conclusion & Next Steps

Selecting the ideal automotive electronics heat sink is an integrated decision that heavily weights thermal dissipation capability, long-term structural reliability under vibration, and manufacturing economics. Skived fin technology provides an excellent solution for high-power, space-constrained vehicle systems by delivering an un-bonded, highly efficient heat transfer path directly through its monolithic metal structure.

As an experienced heat sink manufacturer for the automotive industry, Guangdong Winshare Thermal Technology Co., Ltd. provides comprehensive engineering and production support. Contact the engineering team today to arrange a professional technical consultation, request prototype samples, initiate an application design evaluation, or obtain a comprehensive mass-production quotation.

Frequently Asked Questions (FAQ)

Why are skived fin heat sinks preferred over bonded fin variants in electric vehicles?

Skived fin heat sinks are preferred because they are manufactured from a single block of metal, completely eliminating the joint interface between the fins and the base. Bonded fin variants use adhesives or brazing materials that introduce minor thermal resistance and can crack or fail structurally under continuous automotive vibrations and severe thermal cycling.

Can aluminum skived fin heat sinks handle the heat flux of high-power SiC inverters?

While aluminum skived fins offer excellent performance for many control units, high-power Silicon Carbide (SiC) traction inverters often exhibit extreme localized heat flux that surpasses aluminum's thermal conductivity. In these scenarios, pure copper or copper-aluminum hybrid skived configurations are typically selected to accelerate initial heat spreading.

What is the practical minimum fin thickness achievable through skiving for automotive electronics?

Automotive skived fin designs typically achieve a reliable, mass-production fin thickness down to approximately 0.2 mm to 0.4 mm. Pushing the thickness thinner allows for higher fin density but requires careful mechanical evaluation to ensure the fins do not bend or deform during high-volume handling or vehicle operation.

How does automated skiving machinery ensure dimensional consistency across large automotive orders?

Advanced skiving machinery utilizes high-precision CNC control systems and specialized cutting paths to monitor tool force and feed rates in real time. This automated process control ensures that fin pitch, height, and base thickness tolerances are maintained repeatably across large manufacturing runs, meeting strict automotive quality standards.

What surface treatments are applied to automotive skived fins to prevent corrosion?

Aluminum skived fin heat sinks commonly undergo clear or colored anodizing, which creates a protective oxide layer against environmental degradation without significantly impacting thermal performance. Copper skived heat sinks are typically finished with nickel plating or specialized chemical passivation to prevent oxidation and galvanic corrosion when integrated into multi-material automotive housings.

Are skived fin heat sinks suitable for passive, natural-convection automotive environments?

They can be used in passive environments, but their design must be carefully modified. Skived fins are inherently dense and tightly spaced, which excels in forced-air or liquid-ducted setups. For natural convection (passive airflow), the fin pitch must be opened up considerably to allow buoyancy-driven air to flow between the fins without stalling.
