How To Reduce Thermal Resistance with Custom Skived Fin Heat Sink Designs

As electronic devices continue to become smaller and more powerful, thermal resistance has become one of the most critical factors affecting system performance and reliability. High-power electronic applications generate increasing amounts of heat within limited installation spaces, where excessive temperature rise can cause reduced component efficiency, shortened service life, performance instability, and potential system failure. A well-designed custom skived fin heat sink improves heat transfer efficiency and lowers thermal resistance by utilizing a single-piece metal construction that completely eliminates internal bonding interfaces, creating an uninterrupted thermal conduction path.

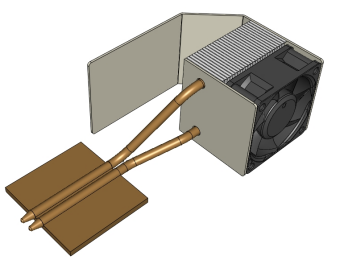

1. Understanding Thermal Resistance in High-Power Electronic Cooling

Managing thermal profiles in modern electronics requires a clear grasp of the physical pathways heat takes from the silicon junction to the ambient air. For design engineers, reducing thermal resistance is not simply about increasing the physical dimensions of a cooling component. Oversized cooling components often increase system weight, manufacturing costs, and spatial requirements without delivering proportional gains in thermal performance.

Thermal resistance represents the overall opposition to heat flow as thermal energy moves from a heat-generating component through a thermal management solution to the surrounding environment. Achieving a low thermal resistance heat sink solution ensures faster heat transfer, a lower operating temperature for semiconductors, and superior long-term system reliability.

The total thermal performance of any cooling setup depends on several intersecting variables:

• Material Thermal Conductivity: The baseline ability of the selected metal to transfer heat.

• Contact Interface Quality: The flatness and roughness of the mating surfaces where components meet.

• Heat Spreading Capability: The efficiency with which heat moves laterally across the base before moving vertically into the fins.

• Fin Surface Area: The total volumetric area available for heat dissipation.

• Airflow Conditions: The velocity, volume, and direction of air moving through the cooling assembly.

• Heat Sink Structure: The architectural layout of the base and fins, including the presence or absence of joint interfaces.

When high-power applications like EV power systems, servers, or industrial modules operate under heavy loads, heat must move away from critical junctions immediately. If the thermal resistance along this path is too high, heat accumulates at the source, triggering performance instability and component degradation. Therefore, optimizing the structural design of the heat sink remains the most effective strategy for mitigating thermal risks.

2. How Skived Fin Manufacturing Inherently Lowers Thermal Resistance

Conventional high-density heat sinks, such as bonded or assembled fin configurations, rely on secondary assembly processes to join the cooling fins to the baseplate. These processes introduce automated welding, soldering, or epoxy bonding materials at the joint interface, creating a distinct physical layer that acts as an unintended thermal barrier.

Skived fin manufacturing technology eliminates internal joint resistance by utilizing a specialized precision slicing process that shaves thin layers of metal from a solid block and raises them vertically to form continuous fins directly from the base material. This integrated metal construction ensures a completely seamless thermal path from the baseplate through to the tip of each fin.

The process functions as a continuous thermodynamic sequence:

• Solid Metal Block Input: A solid slab of high-purity copper or aluminum is secured within the machinery.

• Precision Slicing & Raising: A specialized profiling blade shaves a precise thickness of metal without detaching it from the core block.

• Vertical Fin Alignment: The shaved layer is folded upward to form a high-density vertical fin integrated directly with the base.

• Zero Interface Barrier: The completed component features no internal boundaries, eliminating connection thermal resistance entirely.

Because the fins and the base are a single, continuous piece of metal, a custom skived fin heat sink removes the thermal interface resistance that typically limits the performance of multipart assemblies. This design is especially beneficial for high-power components where high heat flux demands immediate conduction away from localized hot spots. The single-piece construction also delivers strong mechanical reliability, as there are no internal joints or bonding layers that could degrade, crack, or delaminate under continuous thermal cycling and operational vibration.

3. Material Selection: Maximizing Heat Spreading and Conduction Efficiency

Selecting the baseline material dictates the baseline conductivity and thermal diffusion behavior of a high performance heat sink solution. The choice of metal must align directly with the localized heat flux, structural weight limits, and economic parameters of the specific project.

Material optimization requires balancing the superior thermal conductivity of a copper skived fin heat sink for extreme heat fluxes against the lightweight and cost advantages of an aluminum skived fin heat sink for weight-sensitive applications.

The process of custom heat sink design allows engineering teams to leverage different material characteristics based on the target application environment.

Technical Material Comparison for Skived Fin Designs

Copper provides the rapid thermal diffusion required to manage intense localized heat flux, making it a staple in high-performance computing and power conversion modules. Conversely, aluminum options offer an optimized strength-to-weight ratio and greater cost efficiency, making them highly effective for applications where structural mass directly influences overall system efficiency.

4. Key Geometric Parameters for Effective Heat Sink Thermal Optimization

Achieving systematic heat dissipation optimization requires fine-tuning the individual dimensions of the custom skived fin heat sink during the early design phases. Modifying these dimensions alters the behavior of both heat conduction through the metal and fluid dynamics between the fins.

Effective heat sink thermal optimization relies on balancing fin thickness, fin height, and base thickness to expand total surface area while preserving an efficient horizontal and vertical heat spreading path.

A customized design evaluates these parameters collectively rather than in isolation:

Fin Thickness

Skived fin technology enables the production of exceptionally thin fins, down to approximately 0.2 mm. Thinner fins allow engineers to pack a higher number of individual fins into the same spatial footprint. This increase in fin density directly expands the available heat dissipation area without requiring an increase in the external dimensions of the heat sink.

Fin Height

Higher fins increase the total surface area exposed to the cooling medium. However, taller fins require careful evaluation against available airflow. If the fins are too high, a thermal gradient can develop where the tips of the fins remain underutilized, adding unnecessary weight and material costs without contributing to lower thermal resistance.

Base Thickness

The baseplate acts as the initial thermal reservoir. It must be thick enough to absorb transient thermal loads and spread heat horizontally across the footprint before the energy travels vertically into the fin array. An optimized base thickness balances horizontal heat spreading capability against overall weight and mechanical clearance requirements.

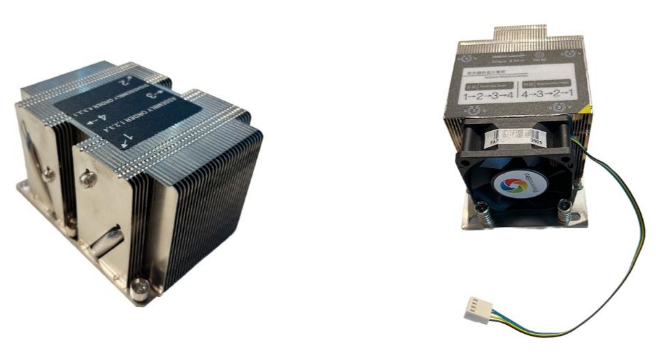

5. Balancing Flow Dynamics: Fin Pitch, High Density, and Pressure Drop

While maximizing the surface area via a high density fin heat sink is a reliable way to boost performance, it introduces significant resistance to moving air. If the internal spacing of the heat sink is designed incorrectly, the cooling performance can degrade rapidly due to poor fluid dynamics.

Fin pitch optimization maintains a critical balance between increasing the total heat dissipation area and preventing excessive air pressure drops that cause cooling air to bypass the heat sink.

When fins are positioned too close together, the physical restriction creates a high pressure drop across the core of the heat sink. Standard system fans may lack the static pressure required to force air through a highly restrictive fin array. As a result, the moving air takes the path of least resistance, bypassing the heat sink entirely and flowing around the sides of the enclosure.

Custom cooling components must therefore be engineered to match the specific airflow direction, fan curves, and velocity profiles of the final operating environment. By precisely calibrating the fin pitch, a compact cooling solution can maximize airflow utilization, ensuring that fresh air continuously moves through the channels to sweep away accumulated heat efficiently.

6. High-Power Application Cases: Industry Implementation Strategies

High-performance cooling solutions function as foundational components across multiple industries where compact spaces and intense heat loads intersect.

6.1 EV Power Electronics Cooling

Electric vehicles require continuous, high-efficiency thermal management for critical components such as traction inverters, power control units, and DC-DC converters. Custom skived fin heat sinks help reduce thermal resistance within highly compact packaging parameters. This localized temperature control directly improves power module reliability, optimizes energy conversion efficiency, and extends the operational lifespan of expensive vehicle electronics.

6.2 AI Servers and Data Center Equipment

High-performance computing systems and AI server infrastructure generate immense thermal loads within highly constrained rack layouts. Processors and power distribution components operate continuously at maximum capacity, demanding high-density cooling solutions. Skived fin configurations provide space-efficient thermal management, maximizing surface area within 1U or 2U server constraints to support stable, continuous computing performance.

6.3 Industrial Power Electronics

Heavy-duty industrial machinery, power supplies, motor drives, and factory automation controllers operate continuously under variable high-load conditions. Implementing a low thermal resistance heat sink helps mitigate the risk of localized overheating, protecting internal components from premature thermal fatigue and reducing maintenance-related downtime in demanding industrial settings.

6.4 Communication Equipment

Modern communication infrastructure, including high-frequency RF components and high-power amplifiers, relies on compact, highly dependable cooling components. Custom skived fin configurations manage heat loads effectively without expanding the physical enclosure sizes, preventing signal distortion and hardware degradation in critical communication modules.

6.5 Renewable Energy Systems

Solar inverters and commercial energy storage equipment require stable thermal performance to maintain optimal power conversion rates over decades of outdoor service. Skived fin structures provide the necessary high power cooling solution to keep internal power semiconductors within safe operating temperature margins, supporting long-term system efficiency and reliability.

7. B2B Selection Framework: Balancing Thermal Performance and Production Economics

Sourcing high power cooling solutions requires mapping technical complexities against real-world manufacturing capabilities. Industrial procurement teams and engineering managers need to evaluate prospective suppliers beyond simple production capacity.

A successful B2B selection framework prioritizes an experienced custom cooling components manufacturer capable of delivering comprehensive engineering support, material expertise, and repeatable mass-production quality.

When choosing a thermal management partner, buyers should focus on several key conversion factors and technical milestones:

1. Engineering Support Before Production: B2B buyers frequently navigate complex thermal design uncertainties. A capable manufacturer reduces development risks by providing concrete design recommendations, material selection support, and manufacturing feasibility analysis prior to tooling investment.

2. Custom Manufacturing Capability: High-value thermal management projects rely heavily on a supplier's ability to provide responsive prototype support, custom dimensional scaling, and a stable, long-term supply chain with consistent dimensional tolerances.

3. High Power Density Cooling Experience: Partnering with an experienced practitioner in high-power systems helps avoid common engineering pitfalls, such as product redesigns, over-designed cooling assemblies, or systemic field failures.

Optimized skived fin designs help engineering teams strike an ideal balance between performance and cost. By engineering the fin geometry to match the exact requirements of the heat source, companies can minimize system footprints, reduce raw material consumption, and achieve better cost efficiency without sacrificing system reliability.

8. Conclusion & Next Steps

Reducing thermal resistance requires a comprehensive design approach that treats the heat sink as an active, integrated component within the system architecture. Skived fin technology provides an excellent solution for high-power cooling challenges by delivering a monolithic, joint-free metal structure that entirely eliminates internal heat transfer barriers. By precisely adjusting design parameters like fin thickness, pitch, and base dimensions, engineers can maximize heat dissipation area while maintaining a compact physical footprint.

As a specialized custom cooling components manufacturer, Guangdong Winshare Thermal Technology Co., Ltd. provides expert design, validation, and manufacturing support tailored to specific technical requirements. The engineering team is available to provide professional technical consultations, Contact us ,comprehensive manufacturing feasibility analyses, prototype samples, or detailed production quotations.

9. Frequently Asked Questions (FAQ)

How exactly does a skived fin heat sink reduce thermal resistance compared to a bonded fin heat sink?

A skived fin heat sink reduces thermal resistance by eliminating the joint layer found in bonded fin variants. Because the fins are sliced and raised directly from the solid metal block, the base and fins form a single continuous path. This monolithic construction removes the thermal interface resistance caused by welding, soldering, or epoxies, allowing heat to flow freely into the fins.

When should a custom copper skived fin heat sink be specified instead of an aluminum one?

A copper skived fin heat sink should be selected when the application involves extreme heat flux, high localized power densities, or highly restricted spatial limitations (such as EV inverters or high-performance processors). Copper offers nearly double the thermal conductivity of aluminum, allowing it to spread and dissipate intense heat significantly faster.

Can the fin pitch of a high density fin heat sink be designed too tightly?

Yes. If the fin pitch is designed too tightly, the physical resistance to moving air increases sharply, creating a high pressure drop across the heat sink. If the system's fan does not possess sufficient static pressure to overcome this resistance, the cooling air will bypass the heat sink entirely, resulting in localized overheating despite the increased surface area.

What is the significance of base thickness in custom skived fin heat sink design?

The base thickness determines the heat sink's initial heat spreading capability. A base plate must be thick enough to absorb localized thermal energy from the heat source and spread it horizontally across the full footprint of the metal block. This ensures that when the heat travels vertically, it utilizes all available fins uniformly rather than overloading the fins directly above the heat source.

What technical support should a manufacturer provide during the custom heat sink design phase?

A capable manufacturer should provide comprehensive design for manufacturability (DFM) reviews, thermal performance optimization recommendations, material selection assistance, and structural validation. This upfront engineering support helps identify potential manufacturing or aerodynamic risks before moving to prototype fabrication and mass production.
