Top 30 Applications Where An Extruded Heat Sink Is The Best Cooling Solution

As electronic devices continue to deliver higher power density in increasingly compact designs, efficient thermal management has become a critical factor determining product reliability and service life. When internal components overheat, systems experience degraded performance, accelerated aging, and catastrophic failure. An extruded heat sink provides the optimal thermal management solution for medium-to-high volume production because it combines excellent thermal conductivity, structural flexibility, and low material waste, making it the most cost-effective cooling technology across industrial, automotive, and telecommunications sectors.

1. Why Extruded Heat Sinks Dominate Modern Thermal Management

When evaluating thermal management options, engineers must balance thermal resistance, mechanical stability, and mass-production unit costs.

An extruded heat sink dominates the industry because the AL6063 aluminum extrusion process allows for the continuous formation of complex fin profiles with near-zero material waste, significantly reducing unit costs while delivering excellent thermal performance.

Manufactured predominantly from AL6063 aluminum alloy, these heat sinks offer a superior balance of thermal conductivity (~200 W/m·K), corrosion resistance, and machining capability. Compared with fully CNC-machined heat sinks carved from solid aluminum blocks, extrusion minimizes raw material waste and drastically cuts machining time. Based on engineering data from Winshare Thermal, once the extrusion die is created, thousands of meters of heat sink profiles can be produced rapidly with highly consistent dimensional tolerances.

Following the raw extrusion, secondary CNC machining—including milling, drilling, tapping, and slotting—transforms the raw profile into a highly customized aluminum heat sink ready for precise component mounting.

Thermal Technology Comparison

2. Power Electronics & Renewable Energy Systems (Applications 1-10)

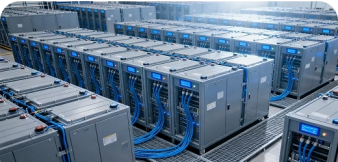

Power conversion generates significant switching and conduction losses, translating directly into thermal energy that must be managed to maintain system efficiency.

A heat sink for power electronics must absorb and dissipate intense localized heat flux. Custom aluminum extrusions are ideal here because their base thickness can be optimized for initial heat spreading, while customized fin geometries support high-velocity forced-air or passive cooling.

1. Industrial Power Supplies

Switch-mode power supplies (SMPS) operate at high frequencies, generating concentrated heat across MOSFETs and transformers. Extruded aluminum works exceptionally well because the profile can be designed to function as both the cooling component and the structural chassis of the power supply.

● Engineering Viewpoint: For SMPS units exceeding 500W, relying solely on natural convection is risky. A forced-air extruded profile with an aspect ratio of 10:1 offers a 30-40% improvement in thermal dissipation compared to passive designs, drastically reducing the required volumetric footprint.

2. AC/DC Power Converters

During the rectification process, substantial thermal energy is released. Extrusions are favored because the baseplate can be CNC-milled by integrated manufacturers like Winshare Thermal to strict flatness tolerances (often below 0.05mm), ensuring minimal thermal interface resistance between the rectifier bridge and the heat sink.

● Design Tip: When space is restricted, engineers often utilize cross-cut extruded fins. This allows omnidirectional airflow, ensuring that cooling remains effective regardless of how the end-user mounts the converter enclosure.

3. DC/DC Converters

High-density DC/DC converters in telecom and railway applications suffer from restricted airflow. The extrusion process allows for very specific fin geometries, such as wavy or serrated fins, to increase the surface area without increasing the overall volume.

● Decision Data: If your converter operates in an environment with an ambient temperature above 55°C, select an extruded profile with a thicker base (typically >8mm) to absorb transient thermal spikes during sudden load changes.

4. IGBT Modules

Insulated-Gate Bipolar Transistors (IGBTs) are the backbone of high-power switching but are notorious for generating massive, localized heat spikes.

● Material Strategy: While pure copper is sometimes used, a well-designed aluminum extrusion is far more cost-effective. By optimizing the base thickness, aluminum extrusions can spread the intense heat horizontally before it ascends into the fins, protecting the silicon junctions from thermal fatigue.

5. Thyristor Modules

Used primarily in high-voltage industrial switching, thyristor modules require robust industrial heat sinks capable of withstanding continuous high-temperature operation over decades. Extrusions are mechanically superior because their joint-free structure cannot delaminate or crack under severe thermal cycling.

6. Variable Frequency Drives (VFDs)

VFDs control industrial motor speeds, producing continuous heat from inverter components. In factory settings, dust accumulation is a major concern.

● Airflow Considerations: For passive VFD applications, vertical fin alignment is mandatory. This leverages the "chimney effect," where heated air naturally rises, pulling cool air from the bottom. Fin spacing should be kept wider (e.g., 6-8mm) to prevent dust from clogging the channels over time.

7. Solar Inverters

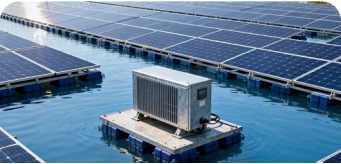

Solar inverters convert DC power from panels to AC grid power, experiencing conversion losses that amount to 2-5% of their total power rating. Because they are deployed outdoors, they must rely on passive cooling to eliminate the risk of mechanical fan failures.

● Surface Treatment Value: Black anodizing is essential here. Field data indicates that in a still-air outdoor environment, a black anodized finish can boost radiative heat transfer by up to 15%, while simultaneously providing critical protection against UV degradation and salt spray.

8. Energy Storage Systems (ESS)

Large-scale battery storage relies on massive inverters and control boards. Heavy-duty extruded profiles form the backbone of these thermal management systems, capable of handling hundreds of watts of passive dissipation to maintain grid stability.

9. Battery Management Systems (BMS)

BMS microprocessors monitor cell health and state-of-charge. If the BMS overheats, control logic fails, risking thermal runaway in the battery pack. Compact, low-profile extruded heat sinks provide highly reliable, vibration-resistant cooling for these delicate control units.

10. EV Charging Stations

DC fast chargers process hundreds of kilowatts, converting AC grid power directly to the vehicle's battery.

● System Reliability: Liquid cooling is common for the cables, but the internal power modules often rely on deep-finned extruded aluminum profiles paired with high-velocity industrial fans. Custom aluminum extrusion allows for the integration of mounting brackets directly into the thermal profile, simplifying internal cabinet assembly.

3. Electric Vehicle (EV) Electronics (Applications 11-14)

The automotive industry demands thermal solutions that can survive constant multi-axis vibration, severe thermal shock, and strict spatial and weight limitations to maximize vehicle range.

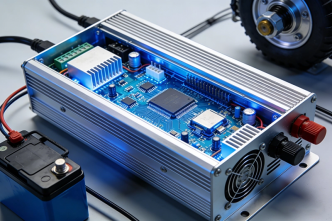

A heat sink for EV electronics relies on precision aluminum extrusion because it offers an exceptionally high strength-to-weight ratio, allowing engineers to reduce overall vehicle mass while securely dissipating heat from critical drivetrain modules.

11. On-board Chargers (OBC)

OBCs convert AC power from residential grids into DC power for the vehicle's high-voltage battery. These components are tightly sealed inside the chassis to protect against water and debris.

● Liquid Integration: Extrusion is highly versatile here. Many OBC thermal plates are created by extruding an aluminum block with internal channels, which are then CNC-machined by OEM suppliers like Winshare Thermal to flow liquid coolant, bridging the gap between air cooling and liquid cold plates.

12. Motor Controllers

Motor controllers regulate the massive flow of energy from the battery to the electric traction motor.

● Mechanical Rigidity: An extruded aluminum heat sink not only dissipates the intense switching heat but also acts as a structural mounting point for heavy copper busbars. The monolithic nature of the extrusion ensures it can support high mechanical torque during vehicle assembly without warping.

13. Power Distribution Units (PDU)

PDUs act as the central junction box for high-voltage currents, housing fuses, relays, and contactors. Lightweight extruded heat sinks protect these internal components from localized thermal overloads.

● Automotive Tip: By using AL6063 extrusion instead of cast aluminum, engineers achieve a ~10-15% better thermal conductivity rate, allowing for smaller PDU enclosures that fit more easily into crowded EV engine compartments.

14. Auxiliary Power Modules (APM)

APMs step down high voltages (e.g., 400V or 800V) to the 12V or 48V required for vehicular subsystems like infotainment and lighting.

● Manufacturing Scalability: The automotive sector demands extremely tight dimensional tolerances for automated robotic assembly. Once an extrusion die is validated via PPAP (Production Part Approval Process), it provides highly repeatable, cost-effective thermal components across hundreds of thousands of vehicles.

4. Telecommunications and 5G Infrastructure (Applications 15-18)

Telecommunications equipment is frequently mounted on remote cell towers or building rooftops, making mechanical fan failures a severe and expensive maintenance liability.

A heat sink for telecom equipment is explicitly designed as a passive cooling solution. Extruded aluminum allows for widely spaced fin pitches that optimize natural convection boundary layers, ensuring reliable cooling in hostile outdoor environments.

15. 5G Base Stations

The data processing requirements of 5G consume roughly three times the power of previous 4G networks.

● Design Evolution: To manage this, the entire outer casing of a 5G base station acts as a massive extruded heat sink. Engineers rely on complex, multi-directional fin profiles extruded to maximize exterior surface area while utilizing black anodizing to enhance both radiative cooling and weather resistance.

16. Remote Radio Units (RRU)

Mounted high on antenna masts, RRUs face extreme, direct solar radiation.

● Environmental Optimization: Extruded heat sinks for RRUs are designed with specialized fin geometries—often angled or staggered—to shed rainwater effectively and maximize passive airflow regardless of the prevailing wind direction, preventing thermal throttling during peak daytime data loads.

17. Network Switches

Inside enterprise data centers, 1U and 2U rack-mounted network switches process terabytes of data.

● Forced-Air Synergy: These environments are highly controlled. Standard extruded heat sinks are favored because their straight, continuous fin channels align perfectly with the high-RPM front-to-back chassis fans, keeping networking ASICs operating at peak speeds without airflow restriction.

18. Optical Communication Equipment

Fiber-optic transceivers (like QSFP modules) are highly sensitive to temperature fluctuations; if they run too hot, the optical signal wavelength drifts, causing data loss. Small, precision-extruded aluminum heat sinks with exceptionally flat CNC-milled contact surfaces ensure stable operating temperatures for these micro-components.

5. Industrial Automation and Embedded Computing (Applications 19-25)

Factory floors are unforgiving environments characterized by high ambient temperatures, airborne particulates, and continuous 24/7 operating cycles.

Industrial automation systems utilize extruded heat sinks because their joint-free, monolithic metal construction ensures that continuous mechanical vibration does not degrade the thermal conduction path or cause structural fatigue.

19. PLC Control Systems

Programmable Logic Controllers (PLCs) are the brains of the factory floor.

● Integration Strategy: Extruded profiles are highly favored because the extrusion die can be designed to include snap-fit or sliding features, allowing the heat sink to integrate directly onto standard 35mm DIN rails without requiring additional mounting brackets.

20. Servo Drives

Rapid motor acceleration and deceleration generate severe thermal transients in servo drives. An extruded industrial heat sink provides the necessary physical thermal mass (heat capacity) to safely absorb these spikes before slowly dissipating the energy to the ambient air.

21. Robotics Controllers

High-density control algorithms generate substantial heat within the confined joints and base units of multi-axis robots.

● Customization Advantage: Custom CNC-machined extrusions can be milled into complex, asymmetric shapes that fit perfectly around gears and cabling inside robotic housings, utilizing every available millimeter of space for heat dissipation.

22. Industrial Control Cabinets

To maintain the IP65/IP67 rating of a sealed control cabinet, internal electronics must be cooled without drawing in outside air. Large, externally mounted extruded heat sinks pull heat from the internal cabinet environment and dissipate it to the outside air, preventing dust and moisture ingress.

23. Audio Amplifiers

High-fidelity commercial audio amplifiers require dead-silent operation.

● Acoustic Consideration: Cooling fans introduce unacceptable electrical noise and acoustic hum. Therefore, heavy, aesthetically finished extruded aluminum blocks are used to dissipate heat entirely passively from the power transistors, preserving audio purity.

24. Industrial PCs (IPC)

Industrial PCs often operate in CNC machine shops or foundries where mechanical fans would clog with oil and metallic dust within weeks.

● Structural Cooling: The entire outer chassis of an IPC is typically constructed from heavy-duty extruded aluminum profiles, turning the protective shell itself into a highly effective passive cooling solution.

25. Embedded Computing Systems

IoT gateways and edge computing devices require low-profile extrusions. Because these devices are mass-produced for smart city and commercial applications, the low unit cost of the aluminum extrusion process makes it the most economically viable thermal choice for OEMs.

6. LED Lighting, Medical, and Precision Equipment (Applications 26-30)

In precision applications, thermal management is not just about preventing failure; it is about maintaining exact operational parameters, such as light wavelength, sensor calibration, or imaging accuracy.

A heat sink for LED lighting and precision equipment utilizes specialized extrusion shapes—such as radial or sun-flower profiles—to maximize heat dissipation in omnidirectional orientations while supporting premium aesthetic finishes.

26. LED Street Lights

High-lumen outdoor lighting generates immense heat at the diode junction. If the junction temperature exceeds 85°C, the LED phosphor degrades rapidly, shifting the color temperature and reducing brightness. Extruded profiles act as the structural backbone of the luminaire, ensuring decades of reliable nighttime illumination.

27. High Bay Lighting

Used in high-ceiling warehouses and factories, these fixtures require immense wattage.

● Aerodynamic Design: Engineers frequently utilize radial (sun-flower) extruded heat sinks for high bay lights. This specific shape allows ambient air to flow vertically through the center and out the sides of the fixture, maximizing the natural convective chimney effect.

28. Stage Lighting

Theatrical and studio lighting requires high intensity with silent operation. Extruded heat sinks provide the massive surface area necessary to cool these high-wattage arrays without introducing the acoustic noise of heavy cooling fans, which would disrupt live performances.

29. UV LED Equipment

UV curing systems (used in printing and manufacturing) require strict thermal control to maintain precise UV wavelengths. High-density extruded fins ensure rapid heat removal from the densely packed diode arrays.

● Engineering Insight: Extrusions for UV equipment are often deeply CNC-milled by precision manufacturers like Winshare Thermal to embed liquid cooling pipes, creating a hybrid thermal solution that handles extreme localized heat fluxes efficiently.

30. Medical Imaging Power Modules

Equipment such as MRI, CT scanners, and X-ray machines utilize high-voltage power supplies that demand exceptionally reliable cooling. Patient safety and imaging accuracy are directly tied to electronic stability. Custom extruded profiles ensure that these power modules operate well within thermal safety margins, preventing imaging artifacts caused by thermal noise.

7. B2B Sourcing: From Extrusion Prototype to Custom Mass Production

For OEM procurement teams, sourcing a thermal management solution goes far beyond purchasing a standard catalog part. The transition from prototype to mass production introduces significant supply chain and engineering risks.

An OEM heat sink manufacturer providing integrated thermal design, extrusion, secondary CNC machining, and surface treatment ensures product consistency, reduces supply chain complexity, and lowers the total manufacturing cost.

When evaluating B2B thermal partners, engineers and purchasing managers must focus on several core purchasing triggers to ensure success:

● Application-Specific Thermal Design Support: Customers need an engineering partner like Winshare Thermal who evaluates wattage, ambient temperature, and airflow to optimize the fin pitch and base thickness before tooling the extrusion die. This prevents costly mold revisions.

● Integrated CNC Machining: Modern electronics require precise mounting points. An extrusion plant that also performs in-house 5-axis CNC milling, drilling, and tapping drastically reduces logistical delays and eliminates tolerance stacking errors between different vendors.

● Surface Treatment Expertise: To guarantee reliability in harsh environments (like 5G RRUs or solar inverters), the supplier must offer high-quality black anodizing or chemical passivation to enhance corrosion resistance and surface emissivity.

● Scalability: The ability to smoothly transition a design from a CNC-machined prototype (for thermal validation) to a high-volume extrusion die minimizes development risks and accelerates time-to-market.

8. Conclusion & Next Steps

Extruded aluminum heat sinks remain the cornerstone of modern thermal management due to their unmatched balance of high thermal conductivity, mass-production scalability, and geometric flexibility. Whether managing the intense heat flux of an EV motor controller, providing a passive cooling solution for a remote 5G base station, or ensuring the longevity of high-power LED lighting, custom extruded heat sinks deliver reliable, cost-effective performance.

Ready to optimize your product’s thermal management and reduce manufacturing costs?

As a leading OEM heat sink manufacturer, Guangdong Winshare Thermal Technology Co., Ltd. provides end-to-end engineering support—from thermal simulation and custom extrusion die creation to precision CNC machining and mass production. Contact our engineering team today for a technical design review, structural optimization consultation, or a comprehensive manufacturing quotation.

Frequently Asked Questions (FAQ)

Why is AL6063 the most commonly used alloy for an aluminum extrusion heat sink?

AL6063 offers the perfect balance of required industrial properties. It possesses a high thermal conductivity (around 200 W/m·K), flows smoothly through complex steel extrusion dies without tearing, machines easily during secondary CNC operations, and accepts anodizing exceptionally well for surface protection.

What is the maximum fin aspect ratio possible with an extruded heat sink?

Traditional aluminum extrusion typically maxes out at a fin aspect ratio (fin height to the gap between fins) of about 10:1 to 15:1. Pushing beyond this limit increases the risk of the extrusion die breaking or the fins warping during the push. For higher aspect ratios, Winshare Thermal typically recommends skived fin or bonded fin technologies.

Can an extruded heat sink be used effectively as a passive cooling solution?

Yes, extruded heat sinks are ideal for passive cooling. By designing the extrusion with a wider fin pitch, engineers can optimize the heat sink for natural convection, allowing buoyant hot air to escape without being restricted by overly dense fins.

Why is CNC machining required after the aluminum extrusion process?

The extrusion process only creates a continuous 2D profile stretched into a 3D length. To mount electronic components securely, the heat sink requires secondary CNC machining to face-mill the base for perfect flatness, drill and tap mounting holes, and mill out specific pockets for component clearance.

Does black anodizing actually improve the thermal performance of an extruded heat sink?

In passive cooling (natural convection) scenarios, yes. Black anodizing significantly increases the surface emissivity of the aluminum, allowing it to radiate more heat to the surrounding environment. In high-speed forced-air applications, the thermal improvement is negligible, but anodizing is still highly recommended for corrosion resistance and electrical insulation.

How does an OEM heat sink manufacturer help reduce total product costs?

A professional manufacturer conducts a Design for Manufacturability (DFM) review prior to tooling. By optimizing the fin thickness, adjusting the base dimensions to reduce raw material weight, and designing the profile to minimize secondary CNC machining time, the manufacturer can significantly lower the unit cost for mass production.
