Top 7 Mistakes To Avoid When Buying Custom Skived Fin Heat Sinks

When purchasing custom skived fin heat sinks, many engineers focus solely on thermal conductivity or unit price, overlooking factors that dictate long-term cooling performance and production feasibility. Avoiding critical mistakes in material selection, fin geometry optimization, and supplier engineering capabilities is essential to prevent thermal bottlenecks and ensure system stability in high-power applications.

1. What is a Custom Skived Fin Heat Sink?

For high-power electronics, EV components, power modules, servers, and industrial equipment, a heat sink is not just a metal component—it is a critical thermal management solution that determines system stability.

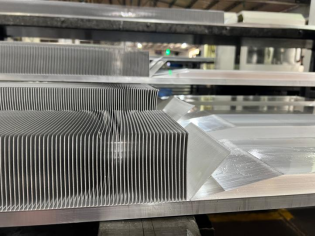

A custom skived fin heat sink is a high-performance thermal management component manufactured by precisely cutting thin layers from a solid metal block and folding them upward to form fins directly from the base.

Compared with bonded fin structures or extruded heat sinks, the integrated design of a skived fin heat sink eliminates the interface resistance (thermal barrier) between the fins and the base. Because the fins and the base are a single, continuous piece of metal, this structure creates an uninterrupted heat conduction path. This manufacturing technology allows for extremely high fin densities and fin thicknesses down to approximately 0.2 mm, providing greater flexibility for high-density cooling designs where space is limited and thermal loads are high.

2. Mistake 1: Choosing Only Based on Price Instead of Total Thermal Cost

Cost is always a factor in procurement, but treating a custom skived fin heat sink as a cheap commodity is a dangerous engineering trap.

Prioritizing the lowest purchase price often leads to hidden costs through compromised material purity, inaccurate fin geometry, and poor manufacturing precision, ultimately increasing the risk of system thermal failure.

Low-cost heat sinks often compromise on the very factors that make skived fin technology effective. For instance, lower-tier suppliers may use recycled aluminum or lower-grade copper with high impurity levels, significantly reducing the actual thermal conductivity. Furthermore, poor skiving machinery can lead to inconsistent fin thicknesses, varying fin pitches, and rough surface finishes that trap dust and disrupt airflow.

The lowest purchase price does not always mean the lowest total cost. A failed thermal management solution can lead to shortened lifespans for expensive power electronics, increased warranty claims, and costly product recalls. A professional custom heat sink supplier helps reduce costs through better design—optimizing the skived fin structure so you do not have to rely on oversized cooling components—rather than cutting corners on manufacturing quality.

3. Mistake 2: Ignoring System-Level Thermal Design and Airflow

A high-performance heat sink cannot function effectively in isolation. Engineers sometimes design a heat sink based purely on the component's maximum heat output, without evaluating the environment in which it operates.

Failing to match the heat sink design with system-level heat load, airflow conditions, and installation space will cause thermal throttling, even if the heat sink material is of the highest quality.

Without thorough thermal analysis, unexpected thermal bottlenecks occur. The cooling capability of a high density fin heat sink is heavily dependent on the airflow direction, fan pressure, and internal chassis layout. If the airflow bypasses the dense fins because the pressure drop is too high, the surface area becomes useless.

A reliable thermal solution requires comprehensive system-level evaluation. At Winshare Thermal, our engineering team conducts fluid analysis and thermal simulation to map heat load distribution and optimize airflow channels. By evaluating the system's precise temperature limits and spatial constraints, we ensure the custom cooling components integrate seamlessly with the entire equipment architecture.

4. Mistake 3: Selecting the Wrong Material

Material selection is the foundation of any thermal management solution. Specifying the wrong material can result in an excessively heavy product, an over-budget project, or inadequate heat dissipation.

Choosing between copper and aluminum requires balancing thermal conductivity, weight, and budget. While copper offers superior heat transfer for extreme power densities, aluminum provides a lightweight, cost-effective solution with excellent cooling capabilities.

Skived fin technology works exceptionally well with both aluminum and copper, but the choice depends entirely on the application requirements.

Material Comparison for Skived Fin Heat Sinks

Selecting a copper skived fin heat sink for a device with strict weight limitations (like certain aerospace or automotive applications) is an engineering mistake, just as using an aluminum skived fin heat sink for a concentrated 1000W IGBT module may result in thermal failure.

5. Mistake 4: Overlooking Fin Geometry Optimization

The primary advantage of skived fin technology is geometric flexibility. Failing to optimize these geometries based on your specific application is a massive missed opportunity.

Incorrect fin spacing, fin height, or fin thickness can drastically increase airflow resistance or reduce heat transfer efficiency, rendering the heat sink design completely ineffective.

Skived fin designs require rigorous optimization based on actual operating conditions. Key design parameters that affect performance include:

• Fin Thickness: Can be skived down to roughly 0.2 mm. Thinner fins allow for more fins in the same space, increasing total surface area.

• Fin Pitch (Spacing): If the pitch is too narrow, the pressure drop increases, meaning standard fans cannot push air through the fins.

• Fin Height: Taller fins provide more cooling area but require deeper skiving cuts, which must be balanced against mechanical stability.

• Base Thickness: Must be thick enough to absorb and spread the heat load laterally before it travels up the fins.

A professional heat sink design optimization process ensures that the ratio of fin height, thickness, and pitch perfectly matches the available fan curve and heat flux.

6. Mistake 5: Working with Suppliers Lacking Engineering Support

Many buyers choose a skived fin heat sink manufacturer based purely on machinery count and production capacity. However, complex thermal projects require deep engineering insight.

Partnering with a supplier that lacks thermal engineering support restricts you to a build-to-print process, missing crucial opportunities for design optimization, prototype validation, and thermal efficiency improvements.

A professional skived fin heat sink manufacturer should provide much more than basic production capacity. The supplier must understand thermal requirements, material characteristics, and application environments to optimize the final cooling solution.

As a Thermal Management Engineering Expert, Winshare Thermal operates as a technical partner. We support clients through structure design, material selection, prototype validation, and mass production. If a customer provides a design that is thermally inefficient or mechanically flawed, a manufacturer with strong engineering capabilities will flag the issue, conduct thermal simulations, and propose an optimized, high power cooling solution before any metal is cut.

7. Mistake 6: Ignoring Production Scalability and Tolerances

Creating a single, perfectly functioning prototype in a lab is vastly different from producing 10,000 flawless units in a factory.

Designing a custom heat sink prototype without considering mass production scalability can result in inconsistent manufacturing quality, poor dimensional tolerances, and sudden cost increases during large-scale production.

Engineers often design custom fin geometries that look great in simulation but are incredibly difficult to skive at scale. The skiving process involves massive mechanical force. If the fin aspect ratio is pushed past the limits of manufacturing consistency, the blade may cause fin deformation, or the base may warp during production.

A prototype solution must always consider repeatability, quality control, and cost during mass production. Winshare Thermal’s engineering-to-mass-production capability ensures that the high-density fin heat sinks designed in the engineering phase transition smoothly to high-volume manufacturing with strict quality consistency.

8. Mistake 7: Neglecting Long-Term Reliability and Environmental Factors

A heat sink might pass initial thermal testing, but real-world environments are unforgiving.

Overlooking environmental factors like mechanical vibration, chemical exposure, and continuous thermal cycling can degrade the heat sink's mechanical strength and surface integrity over its operational lifespan.

Heat sinks operate continuously in many high-demand applications. Important reliability factors include:

• Mechanical Strength: In automotive and industrial applications, continuous vibration can cause improperly designed, ultra-thin fins to fatigue and bend.

• Surface Treatment: Without proper anti-corrosion treatments (like anodizing for aluminum or specific plating for copper), oxidation will create a thermal barrier on the fin surfaces over time, reducing airflow and heat transfer.

• Stable Thermal Performance: The base flatness must remain stable over years of thermal cycling to ensure continuous contact with the heat source or thermal interface material.

9. High-Power Applications for Skived Fin Heat Sinks

Skived fin technology is highly sought after across several demanding industries due to its compact high-power cooling capability and strong mechanical reliability.

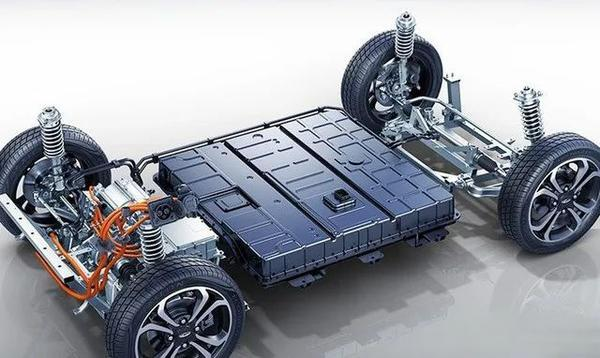

9.1 EV Power Electronics Cooling

Electric vehicles generate significant heat from inverters, power modules (like IGBT and SiC components), and charging systems. Custom skived fin heat sinks help maintain stable operating temperatures while supporting the compact, lightweight vehicle designs required for EV range extension.

9.2 AI Servers and Data Centers

High-performance computing systems face unprecedented thermal challenges due to higher chip power density, continuous 24/7 operation, and limited rack installation space. Skived fin heat sinks support high-density thermal management by maximizing the heat dissipation surface area within a highly confined 1U or 2U server structure.

9.3 Industrial Power Equipment

Industrial controllers, heavy-duty power supplies, variable frequency inverters, and factory automation equipment operate in harsh, enclosed environments. Reliable heat dissipation using skived fins helps improve equipment lifetime and dramatically reduces costly thermal-induced automation failures.

9.4 Renewable Energy Systems

Solar inverters, energy storage systems (ESS), and power conversion equipment are often deployed outdoors. Thermal stability is essential for the long-term operation of these renewable energy systems in demanding, fluctuating temperature environments.

10. Conclusion & Next Steps

When investing in custom skived fin heat sinks for high-performance applications, treating the component as a mere piece of metal is a costly error. By avoiding these seven common mistakes—especially focusing only on price, selecting the wrong material, and ignoring fin geometry—engineers can ensure their thermal management solutions perform reliably under heavy loads.

Working with a capable custom heat sink supplier who understands airflow, system-level thermal design, and mass production scalability is the most effective way to eliminate thermal risks and reduce total project costs.

Ready to optimize your product's thermal performance?

As a leading thermal management manufacturer, Guangdong Winshare Thermal Technology Co., Ltd. is ready to help you solve your toughest heat dissipation challenges. Contact our engineering team today to request a technical consultation, custom thermal design evaluation, prototype samples, or a detailed quotation for your next project.

Frequently Asked Questions (FAQ)

What is the main advantage of a skived fin heat sink over an extruded heat sink?

The main advantage is the ability to achieve a much higher fin density and thinner fins. Extrusion processes are limited in how thin and closely spaced the fins can be. Skived fins can reach thicknesses of 0.2 mm, providing significantly more surface area in the same volumetric footprint, and they feature no interface thermal resistance since the fins are carved directly from the base.

Should I choose an aluminum or copper skived fin heat sink?

Choose aluminum for applications requiring lightweight design, cost efficiency, and good thermal performance (such as general industrial power supplies). Choose copper when dealing with extreme heat fluxes and severe space constraints (such as EV inverters and AI chips), as copper offers nearly double the thermal conductivity of aluminum.

What are the limits for fin thickness and pitch in skived fin manufacturing?

Using advanced manufacturing processes, skived fin heat sinks can achieve fin thicknesses as thin as 0.2 mm. However, the exact limits for fin thickness, height, and pitch depend on the material (copper vs. aluminum) and the required mechanical stability for your specific application environment.

How does fin density affect airflow and pressure drop?

Increasing fin density increases the total surface area for heat dissipation, but it also increases the airflow resistance (pressure drop). If the fin pitch is too tight for the system's fan capacity, air will bypass the fins entirely, leading to overheating. Balancing density and pressure drop through thermal simulation is critical.

Does Winshare Thermal provide custom thermal design support?

Yes. Winshare Thermal provides end-to-end engineering support, including thermal simulation, fluid analysis, structural design, material selection, prototype validation, and highly scalable mass production for custom cooling components.

Can skived fin heat sinks be used in liquid cooling systems?

Yes. Skived fin structures are frequently integrated into liquid cold plates. The skived fins act as internal micro-channels within the cold plate, dramatically increasing the surface area in contact with the liquid coolant, making it an ideal high power cooling solution for EV batteries and AI servers.
