Why Aluminum Heat Sink Extrusion is the Ideal Solution for Thermal Management

Aluminum heat sink extrusion is the ideal solution for thermal management because it offers an unparalleled combination of high thermal conductivity, low weight, cost-effectiveness, and exceptional design flexibility. This synergy allows for the creation of highly efficient, customized, and economically viable cooling components, making it the dominant technology for dissipating heat in electronics, LED lighting, and automotive applications.

What is an Aluminum Extruded Heat Sink?

An aluminum extruded heat sink is a passive heat exchanger designed to dissipate heat from electronic or mechanical devices into a surrounding fluid, typically air. The term "extruded" refers to its specific manufacturing process. This method involves pushing a heated aluminum billet through a custom-shaped die to create a long profile with a consistent cross-section. These profiles, featuring intricate fin designs, are then cut to the desired length to form the final heat sink. This process is fundamental to why these components are so effective and widely adopted.

The Critical Role of a Heat Sink in Thermal Management

In virtually every modern electronic device, from a simple LED bulb to a complex server CPU, the generation of waste heat is an unavoidable byproduct of operation. Effective thermal management is not just a recommendation; it is a critical necessity. Excessive heat can drastically reduce a component's efficiency, shorten its lifespan, and lead to catastrophic failure. A heat sink's primary function is to provide a larger surface area for this heat to dissipate more efficiently. It achieves this by drawing thermal energy away from the hot component (like a processor) and transferring it to the cooler ambient environment through convection, radiation, and conduction.

Without an adequate cooling solution, components would quickly overheat and exceed their maximum operating temperature. This is where the passive cooling provided by a heat sink becomes indispensable. By managing the thermal load, heat sinks ensure that devices operate reliably and consistently within their specified temperature range, safeguarding performance and longevity. The choice of heat sink material and design directly impacts how effectively this crucial task is performed.

Demystifying the Aluminum Extrusion Process

The aluminum extrusion process is a manufacturing technique that shapes aluminum by forcing it to flow through a shaped opening in a die. Imagine squeezing toothpaste from a tube; the toothpaste emerges in the shape of the tube's opening. Similarly, a powerful hydraulic press pushes a heated, softened aluminum alloy billet through a hardened steel die. The aluminum emerges on the other side as an elongated piece with the same profile as the die's cross-section. This continuous profile is then cooled, stretched to correct any twisting, and cut into specific lengths.

This process is exceptionally well-suited for creating components with complex, intricate cross-sections, which is precisely what makes an effective heat sink. The ability to create detailed fins—thin, tall, and closely spaced—in a single, continuous piece is a key advantage. The tooling (the die) is relatively inexpensive compared to other manufacturing methods, making it highly economical for both medium and large production volumes. This combination of design capability and cost-efficiency is the foundation of aluminum heat sink extrusion's dominance in the market.

Why is Aluminum the Material of Choice for Heat Sinks?

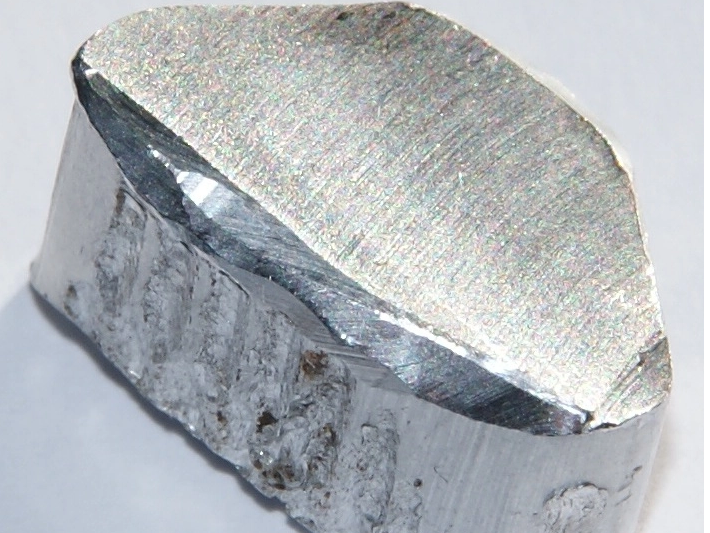

While other materials like copper can be used for heat sinks, aluminum—specifically alloys like 6061 and 6063—remains the industry standard. This is not due to a single property, but rather a compelling balance of thermal, physical, and economic characteristics that make it the most practical and efficient choice for a vast range of applications.

Excellent Thermal Conductivity-to-Weight Ratio

One of the most significant advantages of aluminum is its impressive thermal conductivity relative to its weight. Pure aluminum has a thermal conductivity of about 235 W/m·K. While this is lower than copper's (~400 W/m·K), the commonly used 6063 alloy still boasts an excellent conductivity of around 200 W/m·K. Crucially, aluminum has a density of only 2.7 g/cm³, roughly one-third that of copper. This means that for a given weight, an aluminum heat sink can be made significantly larger, with a greater surface area, than a copper one, often resulting in comparable or even superior overall cooling performance in weight-sensitive applications.

This high thermal conductivity-to-weight ratio is a game-changer for industries like aerospace, automotive, and portable electronics, where every gram counts. The ability to achieve effective cooling without adding significant mass makes extruded aluminum heat sinks the default choice for designers looking to optimize both thermal performance and product weight.

Unbeatable Cost-Effectiveness and Malleability

Perhaps the most compelling business case for aluminum is its cost. Aluminum is significantly less expensive than copper, both as a raw material and in terms of processing costs. The extrusion process itself is highly efficient and economical, especially for high-volume production, further driving down the per-unit cost. The tooling for extrusion is also more affordable and has a longer lifespan than dies used in processes like die casting.

Furthermore, aluminum is a highly malleable and ductile material. This means it can be easily pushed through complex extrusion dies without fracturing, allowing for the creation of intricate and optimized fin designs that would be difficult or prohibitively expensive to produce with other materials or methods. This combination of low material cost and ease of fabrication makes aluminum heat sink extrusion an economically superior solution.

High Recyclability and Sustainability

In an increasingly environmentally conscious world, sustainability is a major design consideration. Aluminum is one of the most recycled—and recyclable—materials on the planet. Recycling aluminum requires only about 5% of the energy needed to produce virgin aluminum from bauxite ore. This not only reduces the carbon footprint but also contributes to a circular economy. The high scrap value of aluminum means that manufacturing waste is almost entirely reclaimed, minimizing material loss and further enhancing its cost-effectiveness. Choosing aluminum for heat sinks aligns with corporate sustainability goals and appeals to environmentally aware consumers.

How Does the Extrusion Process Enhance Heat Sink Performance?

The choice of aluminum is only half the story. The manufacturing method—extrusion—is what unlocks the material's full potential for thermal management. It provides a level of design freedom and structural integrity that other processes struggle to match.

Unmatched Design Freedom for Complex Fin Profiles

The primary goal of a heat sink is to maximize the surface area that is in contact with the cooling medium (air). The extrusion process allows engineers to design incredibly complex and optimized fin profiles to achieve this. It enables the creation of high aspect ratio fins (fins that are tall and thin), which dramatically increase the available surface area without significantly increasing the heat sink's footprint. Interlocking fins, curved profiles, and other sophisticated geometries can be easily integrated into the die design to optimize airflow and thermal dissipation for specific applications, a feat that is often impossible or cost-prohibitive with CNC machining or casting.

Seamless, One-Piece Construction for Superior Thermal Transfer

An extruded heat sink is a single, monolithic piece of aluminum. This is a critical advantage for thermal performance. In multi-part heat sinks (like bonded-fin or stacked-fin designs), there is an interface between the base and the fins. This interface, no matter how well-made, introduces a layer of thermal resistance that impedes the flow of heat. Because aluminum heat sink extrusion creates the base and fins simultaneously from one piece of metal, there is no thermal interface resistance between them. Heat flows seamlessly from the base to the full length of the fins, maximizing the efficiency of the entire structure and ensuring the lowest possible thermal resistance.

Scalability and Cost Savings for Mass Production

Extrusion is an inherently scalable process. Once the die is created, thousands of feet of a consistent profile can be produced quickly and with minimal labor. This makes it exceptionally cost-effective for medium to high-volume manufacturing runs. The initial investment is in the die, which is relatively low compared to complex molds for die casting. For projects requiring hundreds or thousands of identical heat sinks, the per-unit cost of an extruded profile is significantly lower than that of a CNC-machined equivalent, which requires individual processing for every single part. This scalability ensures that as production needs grow, the cost per heat sink remains low.

Aluminum Extrusion vs. Other Manufacturing Methods: A Comparative Analysis

To fully appreciate the benefits of aluminum extrusion, it's helpful to compare it with other common heat sink manufacturing methods. Each has its place, but extrusion offers the best all-around value for the majority of applications.

Critical Design Considerations for Optimal Performance

Creating an effective extruded aluminum heat sink is more than just pushing metal through a die. Several design parameters must be carefully considered by engineers to ensure the final product delivers optimal thermal performance.

Fin Geometry: How to Maximize Surface Area Effectively

The geometry of the fins is the most critical factor in a heat sink's performance. The goal is to maximize the surface area without impeding airflow. Key considerations include fin height, fin thickness, and fin spacing. Taller, thinner fins provide more surface area, but if they are too tall and thin, they become less efficient at conducting heat to their tips. If fins are spaced too closely together, they can create excessive air pressure drop, preventing cool air from flowing effectively through the channels. A balance must be struck, often determined through thermal simulation, to find the optimal fin density and aspect ratio for a given airflow condition (natural vs. forced convection).

Base Thickness and Its Impact on Heat Spreading

The base of the heat sink serves two functions: it provides a mounting surface for the heat-generating component and it spreads the concentrated heat outward to the fins. If the base is too thin, it cannot effectively spread the heat, leading to a "hot spot" directly above the component and underutilized fins at the periphery. This phenomenon is known as spreading resistance. Conversely, an overly thick base adds unnecessary weight and cost. The ideal base thickness depends on the size of the heat source and the overall dimensions of the heat sink. Proper design ensures uniform heat distribution across the base, allowing all fins to participate effectively in the cooling process.

The Importance of Surface Finish and Anodization

While a raw, shiny aluminum surface might seem ideal, it is actually a poor radiator of thermal energy. Heat is dissipated through both convection (transfer to air) and radiation. To enhance radiative cooling, heat sinks are almost always given a surface treatment, most commonly anodization. Anodizing creates a hard, corrosion-resistant layer of aluminum oxide on the surface and allows it to be dyed, typically black. A black, anodized surface has a much higher emissivity (typically >0.85) than raw aluminum (<0.1), significantly increasing its ability to radiate heat away. This simple and cost-effective secondary process can improve overall thermal performance by 5-15% in natural convection scenarios.

Where are Extruded Aluminum Heat Sinks Most Commonly Used?

The versatility and cost-effectiveness of aluminum heat sink extrusion make it ubiquitous across numerous industries. You can find them in:

• LED Lighting: High-power LEDs generate significant heat. Extruded heat sinks are used to form the body of bulbs, streetlights, and high-bay fixtures, ensuring long life and consistent light output.

• Power Electronics: Components like power transistors, rectifiers, and solid-state relays in power supplies and motor drives rely on large extruded profiles to dissipate heat and operate reliably.

• Computer Components: Chipset coolers on motherboards, voltage regulator modules (VRMs), and some entry-level CPU coolers use extruded aluminum.

• Automotive Systems: In-car entertainment systems, engine control units (ECUs), and power management modules for electric and hybrid vehicles all use extruded heat sinks for robust thermal management.

• Telecommunications: Equipment in base stations and network switches often uses custom extruded profiles to cool critical processors and power amplifiers.

Conclusion: The Unbeatable Synergy of Aluminum and Extrusion

When evaluating the ideal solution for thermal management, it becomes clear that aluminum heat sink extrusion stands out not for one single attribute, but for the powerful synergy between its material properties and manufacturing process. Aluminum provides the essential thermal conductivity, light weight, and low cost. The extrusion process unlocks this potential by enabling complex, high-performance designs to be manufactured economically and at scale, with superior structural integrity.

From a designer's perspective, it offers the perfect balance of performance, cost, and design freedom. For the end-user, it translates to more reliable, efficient, and long-lasting products. While other methods have their niche applications, the vast majority of thermal challenges are best and most efficiently solved by the proven, versatile, and unbeatable combination of aluminum and extrusion.
