How Do Heat Pipes Work?

In today's technology-driven world, managing heat effectively is crucial for the performance and longevity of electronic devices and renewable energy systems. At Winshare Thermal, we understand the challenges industries face in thermal management, and we are committed to providing innovative solutions. One of the most effective tools in our arsenal is the heat pipe—a passive thermal management device that excels in transferring heat efficiently. In this article, we will explore how heat pipes work, their applications, advantages, and design considerations to help you understand how they can solve your thermal management challenges.

What is a Heat Pipe?

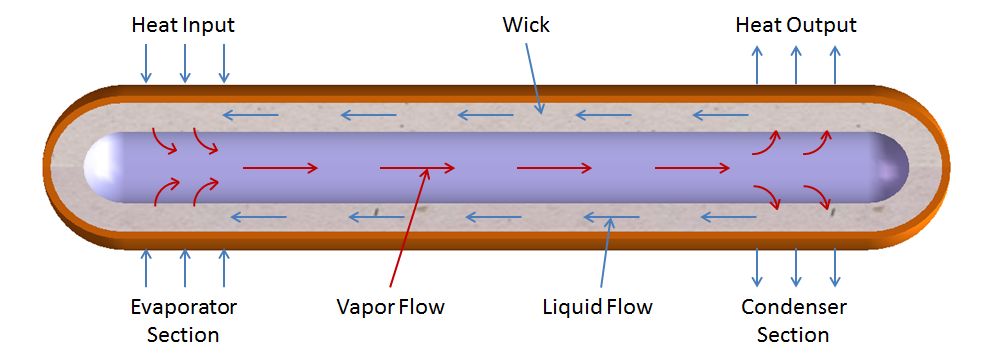

A heat pipe is a sophisticated thermal transfer device designed to move heat from one location to another with minimal temperature difference. It comprises a sealed vacuum enclosure containing a working fluid, which undergoes phase changes to transport heat. The key components of a heat pipe include:

· Evaporator: The section where the working fluid absorbs heat and evaporates.

· Condenser: The area where the vapor releases heat and condenses back into liquid.

· Wick Structure: A capillary structure that facilitates the return of liquid from the condenser back to the evaporator.

This unique design allows heat pipes to achieve high thermal conductivity, making them essential in various applications.

The Working Principle of Heat Pipes

Phase Change Mechanism

The efficiency of heat pipes lies in their ability to utilize phase changes. When heat is applied to the evaporator section, the working fluid vaporizes, absorbing a significant amount of energy in the process (latent heat). This vapor then travels to the condenser section, where it releases its energy and condenses back into liquid form. This continuous cycle allows for efficient heat transfer over long distances with minimal temperature loss.

Capillary Action

Capillary action plays a vital role in ensuring that the liquid returns to the evaporator. The wick structure inside the heat pipe creates a network of tiny channels that draw the condensed liquid back through capillary forces. This mechanism is crucial for maintaining continuous operation, especially in applications where orientation may vary.

Types of Heat Pipes

Heat pipes come in various configurations tailored for specific applications:

· Standard Heat Pipes: Commonly made from copper or aluminum, these are widely used in electronics cooling.

· Variable Conductance Heat Pipes: These adapt their thermal resistance based on temperature differences, making them ideal for applications with fluctuating thermal loads.

· Loop Heat Pipes: Featuring a more complex design, these are suitable for high-power applications and can operate effectively in microgravity environments.

· Flat Heat Pipes vs. Vapor Chambers: Flat heat pipes are designed for compact spaces, while vapor chambers provide uniform cooling across larger surfaces.

Performance Metrics

Understanding performance metrics is essential when selecting a heat pipe for your application:

· Thermal Conductivity: Heat pipes can achieve thermal conductivities several times higher than traditional materials like copper or aluminum.

· Maximum Power Carrying Capacity (Qmax): Factors such as diameter, orientation, and wick structure influence Qmax. Selecting the right design ensures optimal performance.

· Temperature Operating Ranges: Different working fluids have varying safe operating limits; understanding these constraints is crucial for effective thermal management.

Design Considerations

When designing or selecting a heat pipe, several factors must be considered:

Wick Structure Variations

The wick structure significantly impacts performance. Options include:

· Sintered Wicks: Provide excellent capillary action but may have higher manufacturing costs.

· Screen Wicks: Offer good performance at lower costs but may be less efficient at high power levels.

· Grooved Wicks: Ideal for high-capacity applications but require precise manufacturing.

Orientation Effects

Heat pipes can operate efficiently in various orientations; however, their performance may vary based on gravitational effects. Understanding how orientation impacts operation is crucial for applications like aerospace or portable electronics.

Material Compatibility

Selecting compatible materials for both the envelope and working fluid is vital to prevent chemical reactions that could compromise performance. At Winshare Thermal, we prioritize material selection to ensure reliability and longevity.

Applications of Heat Pipes

Heat pipes find extensive use across multiple industries:

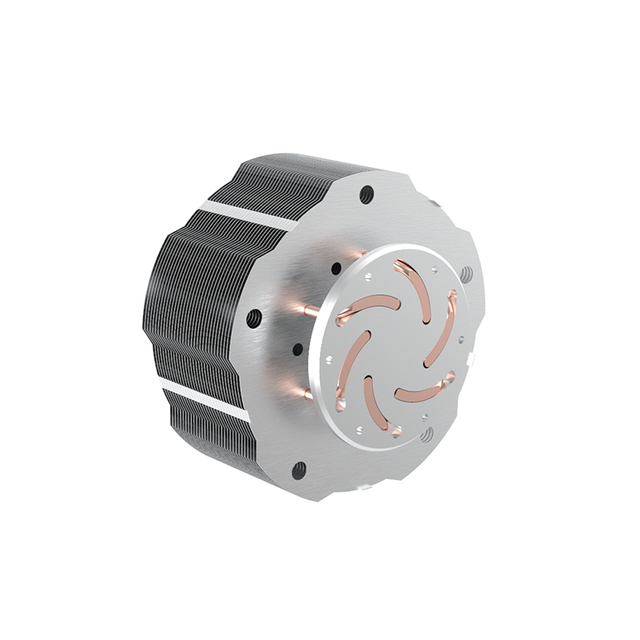

· Electronics Cooling: In modern electronics—such as CPUs and GPUs—heat pipes are essential for dissipating excess heat efficiently. Their compact design allows them to fit seamlessly into tight spaces while maintaining high thermal performance.

· Renewable Energy Systems: Heat pipes play a critical role in solar thermal collectors and energy storage systems by efficiently transferring heat from solar collectors to storage units or conversion systems.

· Aerospace Applications: In aerospace technology, where traditional cooling methods may fail due to zero-gravity conditions, loop heat pipes ensure efficient thermal management of satellites and spacecraft components.

Advantages of Heat Pipe Technology

Heat pipes offer numerous benefits:

· High Efficiency: They provide superior thermal conductivity compared to traditional cooling solutions.

· Lightweight Design: Their compact nature makes them ideal for applications where space and weight are critical factors.

· Reliability: With no moving parts, heat pipes require minimal maintenance and have long operational lives.

Challenges and Limitations

Despite their advantages, there are challenges associated with heat pipe technology:

· Operating Temperature Constraints: Each working fluid has specific temperature limits; exceeding these can lead to failure.

· Design Complexities: Custom applications may require intricate designs that increase manufacturing complexity and cost.

Conclusion

Heat pipes represent a revolutionary solution for modern thermal management challenges across various industries. By understanding their working principles, types, performance metrics, and design considerations, businesses can leverage this technology to enhance efficiency and reliability. At Winshare Thermal, we are dedicated to providing high-quality thermal management solutions tailored to your needs. Explore our range of innovative products and let us help you achieve optimal thermal performance in your applications!

For more information about our offerings or to discuss your specific needs, please contact us today!
