How Long Does It Take to Manufacture a Custom Extruded Heat Sink?

For OEMs developing new electronic products, unpredictable thermal component lead times can severely delay critical product launches. The manufacturing lead time for a custom extruded heat sink typically ranges from 3 to 6 weeks, depending heavily on extrusion die development, secondary CNC machining complexity, and surface finishing requirements. Partnering with an integrated supplier capable of handling the entire workflow in-house is the most effective strategy to accelerate delivery and ensure strict quality control.

1. The Phased Timeline of Custom Heat Sink Manufacturing

When sourcing a custom aluminum heat sink, procurement teams often expect a single delivery timeframe. However, the actual manufacturing schedule is heavily dependent on a sequence of highly specialized industrial steps.

A custom extruded heat sink schedule is divided into distinct operational phases: engineering DFM, extrusion die creation (tooling), raw profile extrusion, secondary CNC machining, and surface finishing.

Understanding this phased approach allows engineering and procurement teams to accurately map out their project milestones. If a standard, off-the-shelf extrusion profile can be utilized without modification, the tooling phase is entirely bypassed, which can cut the total lead time in half. However, for most high-performance OEM applications, custom fin geometries are required to fit specific enclosures and thermal loads.

To provide a clear expectation of the manufacturing timeline, the following table breaks down the standard phases for a completely custom aluminum extrusion heat sink project:

Standard Manufacturing Timeline for Custom Extruded Heat Sinks

2. Engineering Review and DFM: The Foundation of Manufacturing Speed

Conducting a rigorous Design for Manufacturability (DFM) review before tooling begins prevents costly mold revisions, reduces unnecessary machining complexity, and is the most effective way to shorten the overall development cycle.

When an OEM submits a custom heat sink design, an experienced extruded heat sink manufacturer conducts a comprehensive engineering evaluation. This evaluation verifies the thermal requirements against the physical realities of the aluminum extrusion process. For example, if an engineer designs a heat sink with fins that are too thin or packed too closely together (exceeding the standard 15:1 extrusion aspect ratio), the metal will tear or warp as it is pushed through the steel die.

If this unextrudable design goes straight to tooling without a DFM review, the resulting die will fail during the trial run. The die must then be re-engineered, re-cut, and re-tested, adding weeks of delay to the project. Early engineering coordination identifies these structural impossibilities upfront. By subtly thickening a fin base or adjusting a fin pitch during the DFM stage, the supplier guarantees a smooth extrusion process, locking in the production schedule.

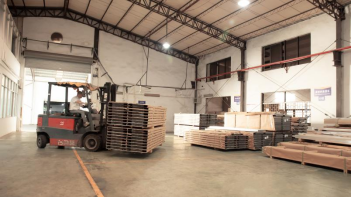

3. Tooling and Extrusion Die Development Lead Times

The most significant variable in custom heat sink manufacturing is the creation of the extrusion tooling.

For completely new custom profiles, manufacturing the precision steel extrusion die is the longest single step, typically requiring up to two weeks before the first physical prototype samples can be extruded and validated.

An extrusion die is a thick, highly engineered disk of hardened H13 tool steel. It features precisely cut negative space corresponding exactly to the cross-section of the desired custom aluminum heat sink. Creating this die involves Wire Electrical Discharge Machining (EDM) and CNC milling, followed by specialized heat treatment to ensure the steel can withstand the immense hydraulic pressures (often thousands of tons) required to push heated alu minum billets through its openings.

Because die manufacturing is an intensive metallurgical process, its lead time is relatively inflexible. Once the die is completed, the manufacturer runs a "first article" trial. A short segment of AL6063 aluminum is extruded and meticulously checked against the customer's dimensional tolerances. If the profile passes this quality inspection, the die is approved for full-scale mass production.

4. Secondary CNC Machining and Precision Customization

The aluminum extrusion process only creates a continuous, two-dimensional profile stretched along a third axis. To transform this raw metallic length into a functional electronic component, it requires precision shaping.

After the raw aluminum profile is extruded, secondary CNC operations—including face milling, drilling, tapping, and slotting—are performed to integrate the precise mounting features required by OEM assembly lines.

A CNC machined heat sink is essential because raw extrusions cannot accommodate screws, mounting brackets, or localized component clearances without secondary processing.

● Base Milling: The bottom of the extrusion is often face-milled to achieve exceptional flatness, ensuring maximum contact with the thermal interface material (TIM) and the semiconductor.

● Drilling and Tapping: Precise holes are drilled and threaded to allow the secure mounting of PCBs, transistors, or exterior chassis covers.

● Cross-Cutting and Slotting: For applications requiring omnidirectional airflow, CNC machines cut transverse slots across the extruded fins.

The speed of this phase depends heavily on supply chain structure. If an OEM purchases raw extrusions from one facility and ships them to a separate machine shop for CNC work, logistical delays and tolerance disputes are inevitable. Integrated manufacturing eliminates these handoffs, allowing CNC programming to occur concurrently with the extrusion phase.

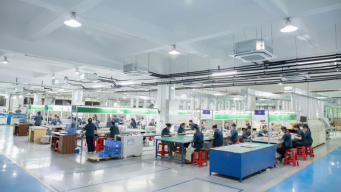

5. Surface Finishing: Anodizing and Quality Inspection

The final manufacturing phases ensure the heat sink is protected from environmental degradation and meets strict cosmetic and dimensional standards.

Surface treatments such as black or clear anodizing are applied after all CNC machining is complete to improve corrosion resistance, while final dimensional inspections guarantee consistent product quality before shipment.

Applying a surface finish like anodizing, powder coating, or chemical passivation typically adds three to five days to the lead time. Black anodizing is the most common specification because it forms a hardened, controlled aluminum oxide layer that enhances surface durability and provides vital electrical insulation. Furthermore, the black finish increases the surface emissivity of the heat sink, slightly improving radiative heat transfer in passive cooling applications.

It is critical that all CNC machining (cutting, drilling, tapping) occurs before anodizing. If a part is anodized first and machined later, the cutting tools will strip away the protective oxide layer, exposing raw aluminum to potential galvanic corrosion.

Following the surface treatment, the components undergo a final QA regimen. Advanced visual inspection systems check for cosmetic blemishes (scratches, uneven dye), while Coordinate Measuring Machines (CMM) verify that all CNC-machined hole placements and base flatness metrics adhere precisely to the engineering drawings. Only after passing these checks is the custom heat sink packaged for secure transit.

6. Core Industry Applications for Custom Extruded Heat Sinks

Different technology sectors impose unique demands on the manufacturing schedule, driven by their specific product lifecycles and reliability standards.

From high-voltage EV power electronics to heavy-duty industrial automation, custom extruded heat sinks provide rapid, scalable, and reliable thermal management across diverse technology sectors.

1. Consumer Electronics

Consumer hardware development is defined by aggressive time-to-market constraints and short product lifecycles.

● Rapid Prototyping: Fast product launch schedules require rapid prototype production followed seamlessly by scalable mass manufacturing without changing suppliers.

● Aesthetic Requirements: These custom heat sinks often demand flawless surface finishes, as they are sometimes visible on the exterior of gaming rigs or high-end audio amplifiers.

2. Industrial Power Supplies

Power conversion modules demand robust thermal capacity and precise mechanical integration.

● Complex CNC Needs: Custom heat sinks for industrial power supplies often require extensive additional machining, deep pockets, and precise mounting features for heavy transformers.

● Engineering Coordination: Because of these complex mechanical requirements, deep engineering coordination between the OEM and the heat sink manufacturer is an important factor in maintaining delivery schedules.

3. EV Power Electronics

Electric vehicle components must survive severe vibration and thermal shock over long lifespans.

● Stringent Tolerances: Battery chargers, DC-DC converters, and power modules typically require custom extrusion profiles with exceptionally tight dimensional tolerances.

● Production Quality: The automotive sector relies on PPAP (Production Part Approval Process), meaning consistent production quality and meticulous documentation from the supplier are non-negotiable.

4. Telecommunications Equipment

Telecom hardware, such as 5G remote radio units, is frequently deployed in hostile outdoor environments.

● Custom Geometries: Communication hardware projects frequently involve highly customized heat sink geometries designed to shed rainwater and maximize passive convective airflow.

● Surface Reliability: Premium black anodizing or heavy-duty outdoor powder coating is mandatory to meet strict outdoor weather-resistance requirements.

5. LED Lighting

Commercial lighting relies on passive cooling to protect diode junction temperatures and maintain luminous efficacy.

● High-Volume Scale: Large-volume LED lighting manufacturers often seek suppliers capable of supporting initial prototype verification, complex radial tooling development, and massive scale production under one unified quality management system.

6. Industrial Automation

Factory floor equipment operates continuously in dusty, high-temperature environments.

● Thermal Mass: Servo drives, programmable controllers, and heavy automation equipment require customized thermal solutions that feature thick baseplates for absorbing transient heat spikes.

● Long-Term Consistency: Manufacturers in this space prioritize production efficiency balanced against long-term, fail-safe reliability.

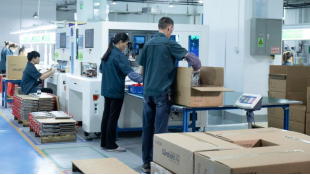

7. Strategic Supplier Selection: Minimizing Total Project Risk with Integrated Manufacturing

For procurement teams and engineering directors, successfully sourcing custom thermal components is about managing the entire project lifecycle, not just chasing the fastest raw manufacturing speed.

OEMs drastically reduce supply chain risks, accelerate lead times, and ensure consistent quality by partnering with a single, integrated heat sink manufacturer capable of managing everything from initial DFM to high-volume production.

Relying on a fragmented supply chain—where one company makes the die, another extrudes the aluminum, a third performs CNC machining, and a fourth handles anodizing—guarantees delays. Every transfer introduces shipping lag, finger-pointing over quality defects, and compounded lead times.

When clients evaluate custom heat sink manufacturing partners, they prioritize suppliers that offer end-to-end capabilities:

● Need for DFM Support: By optimizing structural design during the early engineering review, a capable manufacturer reduces tooling complexity and prevents downstream machining errors, actively shortening delivery times.

● Prototype to Mass Production Capability: Utilizing the same supplier for initial small-batch prototypes and subsequent mass production ensures that the final product remains mechanically and thermally consistent, eliminating the need to re-validate parts.

● Reliable OEM Production Planning: Large-scale manufacturing requires strict adherence to project milestones. An integrated supplier provides transparent project management and reliable production planning, giving OEMs the confidence to schedule final assembly and market launches.

● Customized Machining and Finishing In-House: Keeping CNC milling, tapping, and anodizing under one roof slashes lead times and centralizes quality control, reducing the overall project risk significantly.

By consolidating the supply chain, companies secure a long-term manufacturing partner capable of supporting ongoing product upgrades and iterative design optimizations seamlessly.

8. Conclusion & Next Steps

Understanding the manufacturing timeline of a custom extruded heat sink empowers engineering and procurement teams to plan their product development cycles with accuracy. While the process typically requires 3 to 6 weeks, the duration is heavily dictated by the complexity of the extrusion die, the depth of secondary CNC machining, and the efficiency of the supply chain. Engaging a supplier early for DFM review and utilizing an integrated manufacturing facility are the most proven methods to accelerate lead times without sacrificing thermal performance or mechanical quality.

Contact our engineering team today

Frequently Asked Questions (FAQ)

What is the fastest way to reduce the lead time for an aluminum extrusion heat sink?

The fastest way to reduce lead time is to utilize a standard, pre-existing extrusion profile that closely matches your thermal requirements. By avoiding the need to design and manufacture a custom extrusion die, you can cut the manufacturing schedule by 10 to 15 days, moving straight into CNC machining and finishing.

How long does a custom heat sink prototype take compared to mass production?

The first prototype typically takes the longest (around 3 to 4 weeks) because the custom extrusion die must be manufactured and validated. Once the die is approved, subsequent mass production orders are significantly faster (often 1 to 2 weeks), as the tooling already exists and the process shifts directly to raw extrusion and CNC machining.

Can I skip secondary CNC machining if I only need the basic extruded profile?

Yes, if your design requires a simple length of raw extruded profile with no mounting holes, tapped threads, or flattened base requirements, you can order raw extrusions. However, for 99% of electronic applications, precise CNC machining is mandatory to securely mount the heat sink to the PCB or semiconductor module.

Does black anodizing add significant time to the manufacturing schedule?

Standard black anodizing typically adds only 3 to 5 days to the overall lead time. When handled by an integrated supplier with in-house or closely partnered finishing facilities, this process is highly streamlined and rarely causes unexpected production delays.

Why is a DFM review necessary before manufacturing an extrusion die?

A Design for Manufacturability (DFM) review ensures the custom profile can actually be extruded using physical machinery. If fins are designed too thin or spaced too tightly, the aluminum will tear or warp under pressure. A DFM review identifies these impossible geometries early, allowing engineers to adjust the design before wasting weeks on a doomed extrusion die.
