How to Choose an Extruded Heat Sink for LED Power Supplies

LED power supplies generate intense heat during continuous operation that, if unmanaged, slashes component lifespans, degrades power conversion efficiency, and causes premature fixture failure. To prevent critical system breakdowns, engineers must carefully calculate the driver's thermal resistance requirements and optimize the heat sink’s fin geometry, base thickness, and surface emissivity to perfectly match the specific spatial and environmental constraints.

1. The Thermal Risks in High-Power LED Power Supplies

High-power lighting infrastructure operates under grueling continuous loads, making the power supply (or LED driver) the most thermally vulnerable component within the entire system architecture.

Failing to effectively dissipate heat in LED power supplies leads to elevated internal ambient temperatures, which exponentially shortens the lifespan of electrolytic capacitors, reduces electrical power conversion efficiency, and drastically increases the likelihood of premature field failures.

During the AC to DC power conversion process, LED drivers inherently experience electrical losses that are immediately converted into thermal energy. In high-power lighting systems—such as street lights, high-bay luminaires, and industrial LED fixtures—these drivers are often packed tightly into sealed, weather-resistant enclosures. If an inadequate LED power supply heat sink is utilized, the thermal energy cannot escape.

This trapped heat aggressively attacks the weakest links in the electronic circuit. Based on the Arrhenius equation for chemical reaction rates, electrolytic capacitors—which are critical for voltage smoothing in LED drivers—suffer a 50% reduction in their operational lifespan for every 10°C rise above their rated operating temperature. Furthermore, as the semiconductor components (like MOSFETs) within the driver overheat, their switching resistance increases, generating even more heat in a dangerous cycle of thermal runaway. Therefore, proactive LED thermal management is not a luxury, but a mandatory engineering requirement to ensure the luminaire meets its projected multi-year warranty.

2. Why Aluminum Extrusion is the Standard for LED Driver Cooling

Engineers have access to various thermal management technologies, but one manufacturing method consistently dominates the commercial and industrial lighting sector.

An aluminum extruded heat sink offers the most effective thermal management solution for LED drivers because it combines high thermal conductivity (~200 W/m·K) with the manufacturing flexibility to create complex, high-aspect-ratio fin profiles at a highly cost-efficient mass-production scale.

Compared with more complex cooling technologies like liquid cold plates, vapor chambers, or die-cast heat sinks (which often suffer from lower thermal conductivity due to porosity and alloy composition), aluminum extrusion delivers exact thermal performance at a fraction of the unit cost. Extrusion allows manufacturers to push heated aluminum billets through precise steel dies, creating long, continuous profiles.

This manufacturing method supports fin aspect ratios (the ratio of fin height to the gap between fins) up to 15:1. This scalability allows thermal engineers to maximize the total heat dissipation surface area without expanding the physical footprint of the lighting fixture. Because the base and the fins are formed from a single, continuous piece of metal, there is zero internal thermal contact resistance, ensuring heat spreads rapidly from the driver to the fin tips.

3. Key Technical Parameters for Heat Sink Selection

Selecting an off-the-shelf component based purely on physical dimensions is a major engineering pitfall. A reliable passive cooling heat sink must be mathematically matched to the operational physics of the lighting system.

Choosing the correct custom extruded heat sink requires calculating the maximum allowable thermal resistance by evaluating the driver's power dissipation, the absolute maximum junction temperature, and the peak ambient operating temperature.

Before tooling a custom aluminum heat sink, thermal engineers must conduct a thorough environmental and electrical evaluation. Designing a heat sink for an indoor commercial fixture operating in a climate-controlled room is vastly different from designing one for an outdoor street light exposed to direct solar loading.

Critical Parameters for LED Heat Sink Design

4. Fin Geometry Optimization: Balancing Natural Convection and Space

The cross-sectional shape of an aluminum heat sink for LED drivers dictates how efficiently thermal energy transfers from the metal surface to the surrounding air.

Engineers must precisely customize fin height, fin spacing, and base thickness to manage boundary layer interference in passive cooling environments, ensuring optimal heat dissipation without exceeding the luminaire's volumetric limits.

Most LED lighting applications rely heavily on passive cooling (natural convection) because mechanical fans introduce unacceptable failure points, acoustic noise, and dust ingress issues. In natural convection, as air between the fins heats up, it expands, becomes lighter, and rises, drawing cooler air in from the bottom. As this air flows along the fin surface, a boundary layer of slow-moving air develops due to friction.

To optimize this effect, an extruded heat sink for LED power supplies must feature specific geometric tuning. If the fin spacing (pitch) is too tight (e.g., under 5mm for natural convection), the thermal boundary layers of adjacent fins will intersect, stalling the airflow and causing heat to become trapped within the profile. For passive cooling, engineers typically recommend a fin spacing of 7mm to 12mm to ensure unobstructed vertical airflow.

Additionally, the base thickness must be calculated accurately. A base that is too thin will fail to spread the localized heat from the driver's concentrated hot spots horizontally across the entire extrusion, leaving the outer fins cold and useless.

5. Secondary CNC Machining: Minimizing Thermal Interface Resistance

An extruded aluminum profile is merely a raw thermal conduit until it is mechanically adapted to fit the specific architecture of the lighting product.

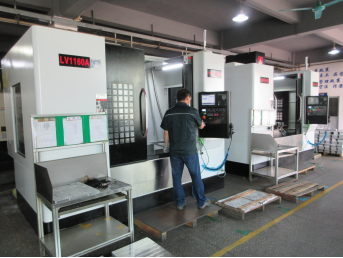

Because standard profiles cannot accommodate specialized LED driver PCBs, secondary CNC machining is essential to create ultra-flat contact surfaces that minimize thermal interface resistance, alongside integrating precise mounting threads and slots.

Lighting OEM manufacturers frequently encounter spatial conflicts when attempting to use generic heat sinks. A custom extruded heat sink solves this by undergoing highly precise secondary CNC processing at integrated manufacturing facilities like Winshare Thermal.

Once the raw profile is cut to length, 5-axis CNC machining centers are utilized to face-mill the baseplate. In high-power LED applications, base flatness is critical; milling the base to a flatness tolerance of less than 0.05 mm guarantees that the Thermal Interface Material (TIM) layer can be kept as thin as possible. A thick TIM layer acts as an insulator, driving up the total thermal resistance of the system.

Furthermore, CNC drilling and tapping allow engineers to embed precise threaded holes directly into the heat sink body. This enables the custom aluminum heat sink to double as the structural mounting chassis for both the driver PCB and the outer luminaire housing, eliminating heavy, redundant mounting hardware.

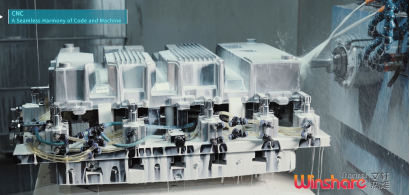

6. Surface Treatments: Black Anodizing for Outdoor and Passive Cooling

The final manufacturing step is arguably the most critical for luminaires deployed in hostile environments or those reliant entirely on passive thermal management.

Applying black anodizing to an extruded heat sink dramatically improves its corrosion resistance and significantly boosts surface emissivity (from ~0.05 to over 0.85), which maximizes radiative heat transfer in fanless designs.

Bare aluminum is an excellent conductor of heat, but it possesses a naturally low thermal emissivity rate (typically around 0.05). This means it is very poor at radiating heat away as infrared energy. In actively cooled systems with high-speed fans, this is irrelevant, as convective airflow dominates heat removal. However, for a passive cooling heat sink enclosed in an outdoor fixture, radiative heat transfer can account for 25% to 30% of the total cooling capacity.

Black anodizing alters the surface chemistry of the aluminum, increasing its emissivity to 0.85 or higher. This provides a measurable, mathematically significant boost to cooling performance in still-air environments. Beyond thermal enhancement, the electrochemical anodizing process creates a hardened aluminum oxide layer that seals the metal against moisture, salt spray, and airborne industrial chemicals. This durable, professional black finish is an absolute necessity for commercial lighting products operating outdoors.

7. Core Application Scenarios in the Commercial Lighting Industry

Different lighting sectors impose vastly different environmental and thermal demands on power conversion components. Custom aluminum extrusions provide the versatility required to adapt to these strict parameters.

From high-vibration industrial warehouses to moisture-heavy agricultural setups, custom extruded heat sinks protect critical LED power supplies across a diverse range of demanding commercial and outdoor lighting applications.

7.1 LED Street Lighting

Outdoor LED street lights operate continuously from dusk till dawn under wildly varying environmental conditions, including driving rain, freezing temperatures, and intense summer heat.

● Engineering Viewpoint: Because they are mounted high on poles, maintenance access is expensive. Custom extruded heat sinks provide highly reliable passive cooling with zero moving parts. Following rigorous black anodizing, these extrusions offer the exceptional corrosion resistance required to survive decades of exposure to road salt and humidity.

7.2 High-Bay Industrial Lighting

Industrial lighting systems deployed in massive warehouses, manufacturing foundries, and logistics centers require efficient heat dissipation to maintain stable lumen output and a long service life.

● Design Considerations: High-bay drivers are frequently subjected to elevated ambient temperatures (Ta) near factory ceilings, where hot air naturally accumulates. Extruded profiles designed with wide, radial fin spacing ensure that airborne factory dust and particulate matter do not clog the cooling channels, maintaining a stable thermal resistance over time.

7.3 LED Floodlights

High-power architectural and stadium floodlights often combine highly compact outer housings with extreme thermal loads.

● Structural Integration: Customized extrusion profiles help maximize cooling performance within these tightly limited installation spaces. By utilizing advanced CNC machining, the heat sink acts as the structural spine of the floodlight, supporting the heavy power supply while minimizing the overall wind load of the fixture.

7.4 Horticultural LED Lighting

Indoor grow lights and greenhouse illumination systems typically operate for extended 12-to-18-hour daily cycles, making LED thermal management essential for maintaining driver efficiency.

● Environmental Protection: Horticultural environments are purposefully kept at high humidity levels to promote plant growth. Anodized aluminum heat sinks protect sensitive electronic components from moisture ingress while passively dissipating heat, ensuring the delicate spectrum calibration of the LEDs remains unaffected by thermal drift.

7.5 Commercial LED Fixtures

Architectural, retail, and indoor commercial lighting products frequently demand a flawless aesthetic alongside reliable performance.

● Customization Benefit: These fixtures require customized heat sinks with precision CNC machining to integrate seamlessly with low-profile housings, suspended mounting brackets, and complex electrical assemblies, ensuring the thermal solution remains invisible to the end-user while adhering strictly to UL/CE temperature safety limits.

7.6 UV LED Equipment

UV curing systems, printing hardware, and industrial UV LED modules generate incredibly concentrated heat footprints that require highly stable thermal management.

● Performance Stability: To ensure consistent optical performance, curing efficiency, and overall equipment reliability, heavy-duty extruded heat sinks with extra-thick baseplates are utilized. The thick base rapidly spreads the high heat flux away from the UV drivers instantly, preventing critical wavelength shifts caused by overheating.

8. OEM Sourcing Strategy: From Prototype to Mass Production

For lighting OEM manufacturers, treating thermal management as an afterthought rather than a core design pillar inevitably leads to delayed product launches, bloated assembly costs, and field failures.

OEM lighting manufacturers must partner with an integrated OEM heat sink manufacturer capable of providing upfront thermal engineering calculations, rapid custom prototype development, integrated CNC machining, and consistent mass production to reduce total manufacturing costs.

Procurement and engineering teams evaluating a thermal management partner should prioritize several core B2B purchasing triggers:

● Need for Application-Specific Optimization: Standard, catalog-bought profiles often fail to meet strict thermal resistance targets. Buyers need an OEM supplier like Winshare Thermal that provides custom extrusion profiles tailored perfectly to specific driver dimensions and wattages.

● Engineering Support Early in Design: Customers require a partner who offers actionable Design for Manufacturability (DFM) advice. By analyzing power output, target junction temperatures, and airflow orientation before tooling begins, the supplier ensures the design avoids boundary layer choking and is cost-effective to produce.

● Integrated CNC and Surface Finishing: LED driver cooling demands extensive secondary processing. Consolidating raw extrusion, CNC face-milling (to achieve <0.05 mm flatness), tapping, and black anodizing under one roof slashes logistical delays and eliminates quality disputes between different vendors.

● Seamless Mass Production Transition: Large-scale lighting projects demand strict consistency. An integrated supplier provides reliable prototype development followed directly by scalable mass production, guaranteeing that unit 10,000 performs exactly like the approved thermal prototype.

By optimizing the extruded profile design and eliminating unnecessary or overly complex CNC machining steps, a strategic manufacturing partner ensures superior heat dissipation while simultaneously driving down the total product cost.

9. Conclusion & Next Steps

As LED technology pushes toward higher wattages and more compact fixture designs, the power supply remains the most critical thermal bottleneck. Selecting an extruded heat sink for LED power supplies offers the industry's most reliable and cost-effective method to mitigate thermal risks. By calculating exact thermal resistance requirements, optimizing fin geometries for passive convection, and utilizing integrated CNC machining and black anodizing, engineers can guarantee peak driver efficiency and secure long-term product reliability in any harsh environment.
