Leveling Up Performance: Thermal Solutions for Next-Gen Gaming Consoles

1. Background & The Challenge

The gaming industry has entered an era of unprecedented visual fidelity and processing power. Modern gaming consoles are expected to deliver 4K resolution, ray tracing, and ultra-high frame rates, pushing their custom APUs to extreme thermal limits. However, unlike bulky desktop PCs, consumer gaming consoles must maintain a sleek, living-room-friendly form factor. This creates a severe engineering paradox: dissipating massive amounts of heat within a highly restricted, ultra-compact chassis. Furthermore, to ensure an immersive gaming experience, the cooling system must operate as quietly as possible, preventing loud fan noise from ruining the gameplay.

2. The Solution & Products Used To solve this complex thermal puzzle, Winshare partnered with the world's leading gaming console manufacturers to engineer compact, high-efficiency thermal modules. Winshare’s Consumer Electronics division designed customized cooling architectures for iconic platforms, including the Play Station 5, XBOX One, XBOX 360, and Nintendo Switch.

Winshare’s integrated console cooling solutions heavily rely on advanced phase-change technologies:

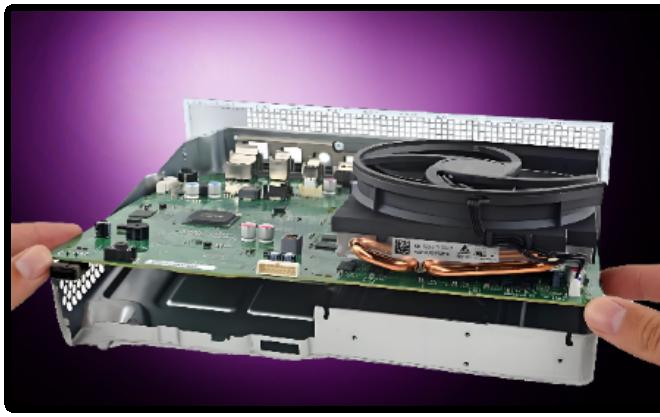

• High-Performance Heat Pipe (HP) Heat Sinks: Customized for platforms like the Play Station 5, XBOX One, and Switch, these heat sinks use precisely bent copper heat pipes to rapidly transfer heat away from the APU to high-density aluminum fin arrays.

• Vapor Chamber (VC) Heat Sinks: For specific high-density thermal challenges, such as those seen in the XBOX 360, Winshare implemented Vapor Chamber technology to spread heat evenly across a larger surface area instantly, eliminating localized hot spots in ultra-thin profiles.

3. The Results & Impact

Winshare’s heat pipe and vapor chamber modules successfully bridged the gap between extreme gaming performance and compact hardware design. By dramatically increasing the heat transfer rate within a confined footprint, these solutions ensure that next-generation consoles can sustain peak processing speeds without thermal throttling or hardware degradation. Additionally, the superior passive heat transfer capability allows the console's internal fans to operate at lower, quieter RPMs. Backed by Winshare's massive production capacity, these cooling modules have been reliably deployed to millions of gamers worldwide, proving Winshare's capability to deliver high-quality, high-volume consumer electronics solutions.
