Thermal Solution For 5000W IGBT Cooling Project

Views: 112     Author: Site Editor     Publish Time: 2021-06-18      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Heat pipe heat sink of 5000W and soldering process, Winshare thermalloy.

Thermal Solution for 5000W IGBT cooling project.


The design requirements

CASE2:IGBT x 9PCS=5022W;

CASE4:IGBT x 9PCS=5040W;

Fans :700m3/H ，at intake temperature 50℃

Heat sink: Skived fin heat sink with heat pipes

Environment temperature:50℃

The heat sink surface maximum temperature is below 95℃

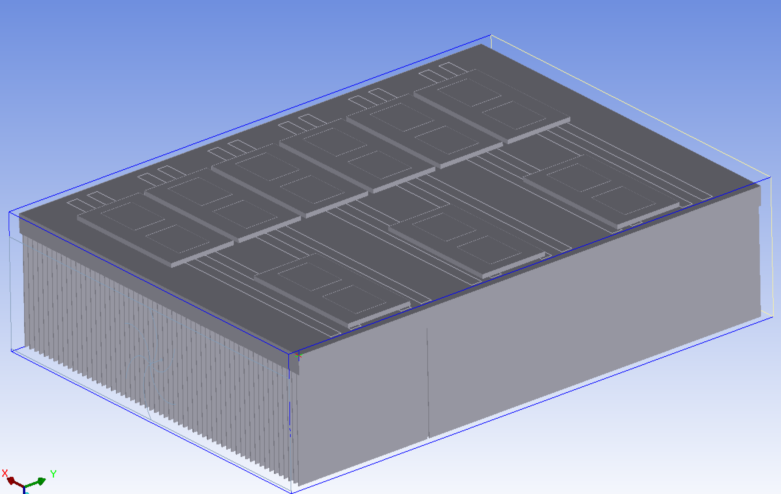

Design model in Ansys16.0

81


Meshing Num nodes

82

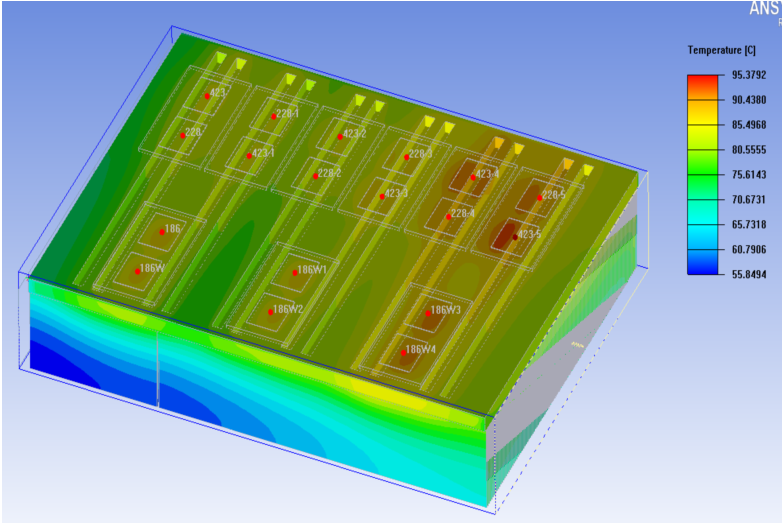

Heat sink temperature distribution

83

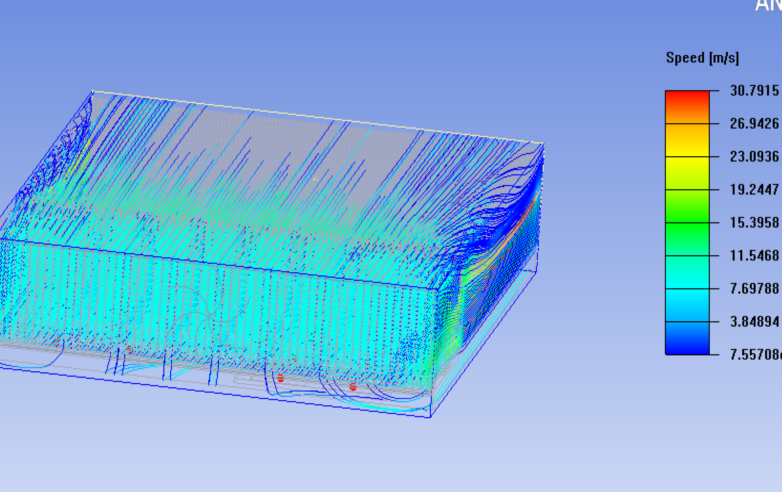

Fan speed

84

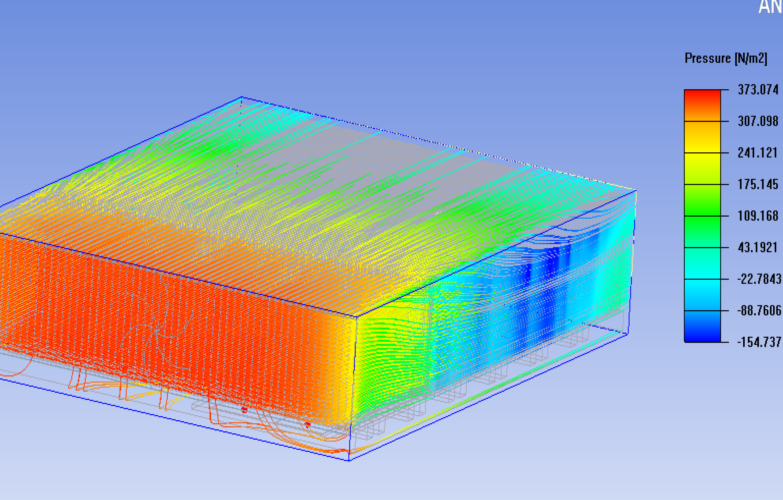

Fan pressure

85


The results:

Used the simple model method, the result  will be different from the actual module.

Case 2 heat sink surface temperature is 95.37℃

Case 4 heat sink surface temperature is 95.32℃

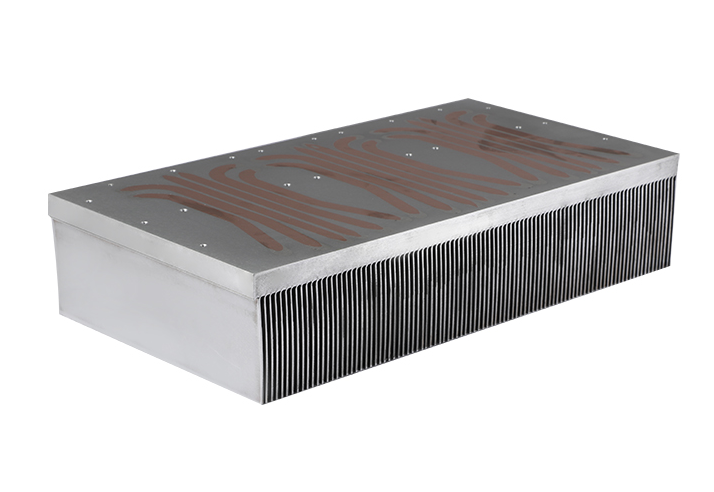

Making the sample:

86





heat pipe heat sink
