TOP 20 Automotive Thermal Management Alloys & Materials (Aluminum vs Copper vs Stainless)

Selecting the wrong automotive thermal material adds unnecessary chassis mass, inflates raw material budgets, or causes solder-joint fatigue and galvanic corrosion inside electric vehicle cooling loops. Aluminum alloys (1050A, 3003, 6061, and 6063) serve 85% of EV battery, ADAS, and motor heat sinks due to their optimal conductivity-to-weight ratio, whereas copper (C1100 and C1020) and stainless steels handle extreme inverter heat flux and corrosive environments. Within the Winshare automotive thermal management portfolio, this guide compares 20 production alloys and surface finishes to support engineering and procurement decisions.

1. Why Material Choice Decides Weight, Cost, and Cooling Performance in EV Thermal Parts

Consider a platform thermal engineer developing a liquid cooling plate for an 800V passenger EV battery pack with a 1.8-meter footprint and a 25 kW fast-charging heat load. Looking strictly at bulk thermal conductivity, pure C1100 copper (398 W·m⁻¹·K⁻¹) conducts heat nearly twice as fast as 3003 or 6063 aluminum (193 to 209 W·m⁻¹·K⁻¹). Yet specifying copper for a full-pack battery cold plate is a costly mistake: at a density of 8.94 g/cm³ versus aluminum's 2.70 g/cm³, switching from aluminum to copper increases cold plate mass from 14 kg to more than 46 kg and multiplies the raw metal cost per vehicle more than tenfold.

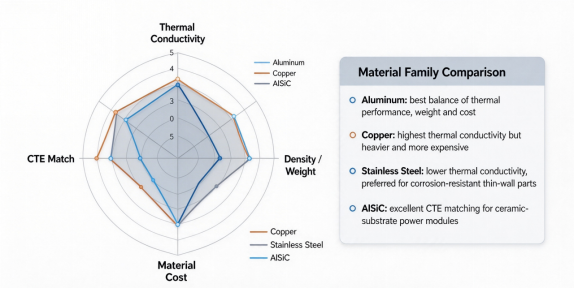

In modern electric powertrains, bulk thermal conductivity is only one variable in a multi-constraint engineering equation. Every automotive thermal material decision must balance heat spreading against curb weight, manufacturing process compatibility (stamping, extrusion, friction stir welding, or vacuum brazing), coolant corrosion resistance, and mechanical yield strength.

· Aluminum alloys dominate large-area and structural cooling because their low density delivers nearly twice the specific thermal conductivity (thermal conductivity divided by density) of copper, while extrusion and stamping keep unit manufacturing costs low.

· Copper alloys dominate localized high-heat-flux zones such as direct-cooled silicon carbide (SiC) power module baseplates, where heat flux exceeds 50 to 100 W/cm² over a compact 100 mm × 150 mm footprint and lateral heat spreading prevents semiconductor thermal runaway.

· Stainless steels and metal-matrix composites solve mechanical and expansion boundaries where thin-wall pressure containment, road-salt corrosion resistance, or ceramic substrate expansion matching outweighs bulk heat conduction.

For engineers evaluating how material selection interacts with channel fabrication and pack assembly tolerances, our EV battery cold plate selection guide details how alloy choice governs flatness and leak-test validation.

2. Five Core Selection Factors for an Automotive Thermal Material

Before reviewing individual alloy grades, procurement managers and thermal engineers should evaluate candidates against five fundamental physical and commercial criteria. Optimizing one property without checking the others frequently triggers late-stage DFM (design for manufacturability, the engineering practice of designing parts for efficient, defect-free manufacturing) revisions during B-sample validation.

2.1 Bulk vs Effective Thermal Conductivity

Thermal conductivity (k, measured in W·m⁻¹·K⁻¹) dictates the conductive thermal resistance across the solid wall between the heat source and the liquid coolant or ambient air:

R_cond = t / (k · A)

Where t is the conductive wall thickness and A is the heat transfer area. When wall thickness is thin—such as a 1.0 mm stamped aluminum battery cold plate—conductive thermal resistance across the metal wall represents less than 10% of the total thermal resistance between the battery cell and the coolant; the TIM (thermal interface material, a compliant paste or pad that fills microscopic surface voids between mating parts) and convective boundary layer dominate. Conversely, under a compact power semiconductor module generating 80 W/cm², three-dimensional lateral heat spreading through a 3.0 mm to 5.0 mm baseplate makes high thermal conductivity essential to lower peak junction temperature rise.

2.2 Density, Curb Weight, and Specific Stiffness

Every extra kilogram added to an EV battery pack or e-axle housing reduces vehicle driving range and increases suspension load. Aluminum alloys cluster tightly around 2.68 to 2.81 g/cm³, AlSiC (aluminum silicon carbide, a metal-matrix composite combining a ceramic silicon carbide preform infiltrated with liquid aluminum) sits near 3.00 g/cm³, stainless steels range from 7.70 to 7.98 g/cm³, and copper alloys weigh 8.83 to 8.94 g/cm³. If a component acts as a structural enclosure—such as a cell-to-pack tray or an ADAS domain controller housing—engineers must pair low density with high tensile yield strength (such as 6061-T6 or 6082-T6) to pass automotive random vibration and crush tests.

2.3 Coefficient of Thermal Expansion (CTE) Mismatch

CTE (coefficient of thermal expansion, the fractional change in length per °C of temperature change, expressed in ppm/K) governs solder-joint and sintered-layer fatigue in automotive power electronics. Silicon and SiC dies expand at roughly 3.0 to 4.5 ppm/K, and ceramic DBC (direct bonded copper, an insulating ceramic substrate such as alumina or silicon nitride bonded with thin copper sheets on both sides) substrates expand at 6.0 to 8.0 ppm/K.

Aluminum expands at 21 to 24 ppm/K and copper expands at 16.5 to 17.0 ppm/K. During power cycling from -40°C to +150°C, the lower CTE of copper or AlSiC (7 to 9 ppm/K) reduces shear stress across the solder attach layer compared to bare aluminum, preventing delamination over a 15-year vehicle lifespan.

2.4 Galvanic Compatibility and Coolant Corrosion

Automotive liquid cooling loops circulate a 50/50 mixture of deionized water and ethylene glycol (WEG) formulated with organic acid technology (OAT) corrosion inhibitors. Mixing copper and bare aluminum components within the same coolant loop without strict inhibitor maintenance creates a galvanic cell: dissolved copper ions migrate through the fluid, deposit onto the anodic aluminum cold plate walls, and trigger rapid pitting corrosion that leads to pinhole coolant leaks.

2.5 Raw Material Cost and Processability

London Metal Exchange (LME) base copper prices typically trade at 3.5 to 4.2 times the price of primary aluminum per metric ton—and because copper is 3.3 times denser, a part of identical volume costs more than 11 times as much in raw metal when machined from copper instead of aluminum. Furthermore, different grades within the same metal family exhibit vastly different extrudability, stamping formability, and brazing behavior.

3. TOP 20 Automotive Thermal Materials Quick-Reference Table

The table below compiles the 20 most widely specified alloys and composites across EV battery packs, traction inverters, onboard chargers, ADAS domain controllers, and e-motors. Engineers can use these reference values to screen materials during concept architecture reviews.

3.1 Key Engineering Takeaways from the 20-Material Dataset

· Purity drives thermal conductivity: Within both the aluminum and copper families, alloying elements added to boost mechanical strength scatter electrons and phonons, reducing thermal conductivity. Commercially pure 1060 aluminum (234 W·m⁻¹·K⁻¹) conducts 80% better than high-strength 7075 aluminum (130 W·m⁻¹·K⁻¹), just as pure C1100 copper (398 W·m⁻¹·K⁻¹) outperforms precipitation-hardened C17510 (245 W·m⁻¹·K⁻¹).

· 6063 is the thermal sweet spot for structural extrusions: At 209 W·m⁻¹·K⁻¹, 6063 aluminum delivers 25% higher thermal conductivity than 6061 (167 W·m⁻¹·K⁻¹) while maintaining sufficient T6 yield strength for extruded multi-channel tubes and heat sinks.

· Ferritic stainless steels beat austenitic grades thermally: When corrosion or structural armor requires stainless steel, ferritic grades 430 (26.0 W·m⁻¹·K⁻¹) and 444 (20.0 W·m⁻¹·K⁻¹) provide 30% to 70% higher thermal conductivity and lower thermal expansion than austenitic 304 (16.2 W·m⁻¹·K⁻¹) or 316L (15.1 W·m⁻¹·K⁻¹).

4. Aluminum Family Deep-Dive: 1050A and 1060 vs 6061 vs 6063

When specifying aluminum 6061 6063 automotive cooling components alongside 1000-series and 3000-series sheets, engineers must match the alloy series to the forming and joining method.

4.1 1050A, 1060, and 1100: High-Conductivity Skived Fins and Formed Plates

The 1000-series grades (1050A with ≥99.5% Al, 1060 with ≥99.6% Al, and 1100 with ≥99.0% Al) are non-heat-treatable wrought alloys with exceptional ductility and the highest thermal conductivity in the aluminum family (218 to 234 W·m⁻¹·K⁻¹). Because their tensile yield strength in the annealed O-temper is only 30 MPa to 45 MPa, they are unsuitable for load-bearing chassis frames or high-torque threaded bosses.

· When to choose 1050A or 1060: Specify 1060 or 1050A for high-density skived-fin heat sinks (where a precision blade peels thin, continuous vertical fins from a solid bar), internal turbulator fin inserts inside brazed cold plates, and non-structural formed battery cooling ribbons.

· When to avoid 1000-series: Avoid 1050A/1060 for thick CNC-machined housings with complex threaded holes; the soft metal gums up cutting tools, produces heavy burrs, and strips threads under automotive bolt preloads.

4.2 3003 and 5052: Brazed Stamped Plates vs Formed Enclosures

Alloy 3003 adds ~1.2% manganese to aluminum, boosting yield strength above 1000-series grades while retaining very good thermal conductivity (193 W·m⁻¹·K⁻¹), outstanding deep-drawing formability, and high resistance to glycol coolant pitting. In automotive production, 3003 serves as the core sheet clad with a thin layer of 4343 or 4045 silicon brazing alloy for stamped vacuum-brazed or controlled-atmosphere-brazed battery cold plates and chillers.

Alloy 5052 contains 2.5% magnesium, offering superior salt-spray corrosion resistance and sheet-metal bending fatigue strength, but its thermal conductivity drops to 138 W·m⁻¹·K⁻¹ and its high magnesium content poisoned standard atmospheric brazing fluxes. Consequently, 5052 is reserved for welded sheet-metal battery pack covers and environmental shields rather than primary heat-transfer surfaces.

4.3 6061 vs 6063 vs 6082 vs 7075: Extrusion, Machining, and FSW

The 6000-series (Al-Mg-Si) alloys are precipitation-hardenable grades that form the backbone of structural EV thermal hardware:

· 6063-T6 (209 W·m⁻¹·K⁻¹): The premier extrusion alloy. Because 6063 flows smoothly through intricate hollow dies, it is the top choice for multi-port extruded battery cold plate tubes and a 6063-T6 water cooled heat sink for ECUs, autonomous driving domain controllers, and TCU (transmission control unit) enclosures.

· 6061-T6 (167 W·m⁻¹·K⁻¹): Offers higher mechanical yield strength (~240 MPa vs ~210 MPa for 6063-T6) and superior CNC machinability (clean chip breaking). Specify 6061-T6 for thick CNC-machined cold plates, friction-stir-welded (FSW) structural battery trays, and high-pressure manifold blocks.

· 6082-T6 (180 W·m⁻¹·K⁻¹): Widely specified by European automotive OEMs as a higher-strength structural alternative to 6061, containing manganese to refine grain structure in heavy extrusions and structural heat sinks.

· 7075-T6 (130 W·m⁻¹·K⁻¹): A zinc-alloyed aerospace grade with yield strength exceeding 480 MPa, but poor corrosion resistance, low thermal conductivity, and high hot-cracking sensitivity during welding. Use 7075 only for dry mechanical clamping brackets or crash-load frames, never for wetted coolant channels.

5. Copper Family Deep-Dive: C1100 Thin-Wall Advantage and High-Heat-Flux Trade-Offs

While aluminum handles the majority of vehicle-level heat exchangers, designing a copper cold plate automotive assembly becomes necessary when localized heat flux exceeds the spreading capacity of aluminum or when ultra-thin stamped walls must withstand direct semiconductor attachment.

5.1 Pure Coppers: C1100, C1020, and C1220

· C1100 Electrolytic Tough Pitch (ETP) Copper (398 W·m⁻¹·K⁻¹): Contains ≥99.90% copper with a trace oxygen content (0.02% to 0.04%). C1100 delivers the highest thermal conductivity among standard industrial metals and is widely used for skived micro-fin copper cold plates, stamped thin-wall cooling modules, and copper heat pipes embedded in ADAS heat sinks. However, because of its trace oxygen content, C1100 must not be brazed in a hydrogen-rich reducing atmosphere above 400°C, or hydrogen will react with internal cuprous oxide to form steam pockets ("hydrogen embrittlement") that crack the grain boundaries.

· C1020 Oxygen-Free (OF) Copper (391 W·m⁻¹·K⁻¹): Keeps oxygen below 0.001%, eliminating hydrogen embrittlement during high-temperature vacuum or hydrogen furnace brazing and ensuring defect-free silver-sintered or active-metal-brazed power module baseplates.

· C1220 Phosphorus-Deoxidized (DHP) Copper (391 W·m⁻¹·K⁻¹): Deoxidized with trace phosphorus to provide excellent brazeability and TIG/laser weldability for tubular manifolds and brazed copper cold plate assemblies.

5.2 High-Strength Copper Alloys: C194, C18150, and C17510

Pure copper softens (anneals) at furnace brazing temperatures above 300°C to 400°C, dropping its yield strength below 70 MPa and making thin baseplates prone to bowing during module bolt-down. When a power electronics baseplate requires both high thermal conductivity and resistance to thermal softening or bolt relaxation, engineers specify precipitation-hardened copper alloys:

· C194 (Cu-Fe-P, 260 W·m⁻¹·K⁻¹): An iron-modified copper alloy that resists softening during soldering and provides superior stamping stiffness for leadframes and power module baseplates.

· C18150 (CuCrZr, 320 W·m⁻¹·K⁻¹): Chromium-zirconium copper retains high mechanical strength at elevated operating temperatures up to 400°C while delivering 80% of pure copper's thermal conductivity, ideal for heavy-duty EV traction inverter baseplates and high-current busbars.

· C17510 (CuNiBe, 245 W·m⁻¹·K⁻¹): Nickel-beryllium copper combines yield strength above 550 MPa with strong thermal conductivity, serving high-pressure spring contacts, high-current fast-charge connectors, and wear-resistant thermal pads.

5.3 Where Copper Beats Aluminum in EV Power Electronics

Copper outperforms aluminum in three specific automotive scenarios:

1. Direct-cooled SiC traction inverter pin-fin baseplates where local chip heat flux exceeds 60 to 120 W/cm² and copper's 398 W·m⁻¹·K⁻¹ conductivity spreads the heat cone into adjacent pin fins before coolant boiling occurs. See our engineering guide on SiC traction inverter cold plate design for micro-channel and pin-fin sizing rules.

2. Double-sided cooled power modules where thin 0.8 mm to 1.5 mm stamped copper cooling jackets sandwich the upper and lower DBC substrates with minimal CTE mismatch.

3. Height-constrained ADAS domain controllers where copper heat pipes or vapor chambers embedded inside an aluminum housing transport 60 W to 150 W from a system-on-chip (SoC) to remote cooling fins without exceeding a 15 mm Z-height envelope.

6. Stainless Steel and Specialty Composites: Corrosion, Strength, and CTE-Matching Scenarios

Although stainless steels exhibit low bulk thermal conductivity (15.1 to 26.0 W·m⁻¹·K⁻¹), their high tensile strength, laser weldability, and chemical inertness allow engineers to stamp ultra-thin walls (0.2 mm to 0.5 mm) that keep through-thickness conductive thermal resistance surprisingly low.

6.1 Austenitic (304, 316L) vs Ferritic (430, 444) Stainless Steels

· 304 and 316L Stainless Steel (16.2 and 15.1 W·m⁻¹·K⁻¹): Austenitic grades with exceptional deep-drawing formability and laser seam weldability. Grade 316L adds molybdenum to prevent chloride pitting in coastal, marine, or heavy winter road-salt environments. Used for underbody battery stone-shield cooling trays, commercial vehicle EGR/fuel-cell heat exchangers, and high-pressure hydraulic oil coolers.

· 430 and 444 Stainless Steel (26.0 and 20.0 W·m⁻¹·K⁻¹): Ferritic grades that are nickel-free (lowering material cost stability risk) and offer up to 70% higher thermal conductivity than 316L alongside lower thermal expansion (10.4 ppm/K vs 17.2 ppm/K for 304). Grade 444 is stabilized with niobium/titanium and molybdenum, making it highly resistant to chloride stress-corrosion cracking in brazed automotive fluid coolers.

6.2 AlSiC, Invar, and Kovar for Hermetic and Low-CTE Electronic Packages

In mission-critical automotive radar/LiDAR transceivers, aerospace-grade powertrain controllers, and heavy-duty locomotive/truck traction modules, thermal cycling fatigue at the ceramic-to-metal interface dictates component life:

· AlSiC (180 W·m⁻¹·K⁻¹, 3.00 g/cm³): Combines the thermal conductivity of 6082 aluminum with a tailorable low CTE (7.5 to 12 ppm/K) that closely matches silicon nitride and aluminum nitride DBC substrates, eliminating baseplate bowing during reflow and thermal shock while cutting weight by 66% compared to copper.

· Invar (Fe-36Ni) and Kovar (Fe-29Ni-17Co): Specialty iron-nickel alloys engineered for ultra-low CTE (1.2 to 5.5 ppm/K). While their thermal conductivity is low (~13 to 17 W·m⁻¹·K⁻¹), they are essential for hermetic glass-to-metal and ceramic-to-metal sensor packages in autonomous driving optics and high-reliability automotive electronics.

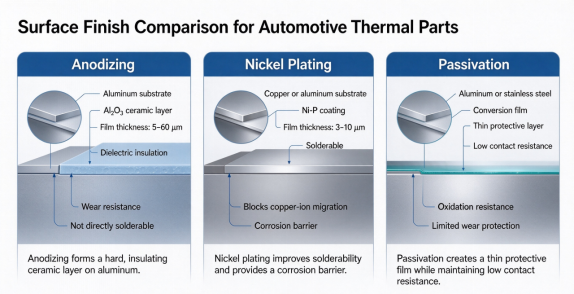

7. Surface Treatment Comparison: Anodizing vs Nickel Plating vs Passivation

Selecting the base metal is only half of the specification; the surface finish controls corrosion resistance, electrical isolation, radiative emissivity, and solderability. Specifying an anodized nickel plating heat sink or conversion-coated cold plate prevents field oxidation and galvanic attack.

7.1 Anodizing (Type II Clear/Black vs Type III Hard Coat)

Anodizing is an electrochemical process that converts the outer aluminum surface into a dense, integral aluminum oxide (Al₂O₃) ceramic layer:

· MIL-A-8625 Type II Anodizing (5 µm to 25 µm thickness): Sealing the porous oxide layer in clear or dyed black finish protects air-cooled ECU heat sinks against salt fog while raising surface thermal emissivity from ~0.08 (bare machined aluminum) to 0.85, boosting natural-convection radiative heat dissipation by 10% to 15%.

· MIL-A-8625 Type III Hard Coat Anodizing (25 µm to 60 µm thickness): Grown in a chilled electrolyte bath to produce a rock-hard, abrasion-resistant ceramic layer that provides 500 VDC to 1,500+ VDC breakdown voltage insulation between EV battery modules and the cold plate. For a full breakdown of film thickness, emissivity, and thermal contact trade-offs, read our guide on anodized aluminum heatsinks.

7.2 Electroless and Electrolytic Nickel Plating

Bare aluminum cannot be soldered directly with standard tin-silver-copper (SAC305) solder paste because its instantaneous oxide film prevents wetting, and bare copper cold plates inside mixed-metal glycol loops risk shedding copper ions that corrode aluminum radiators.

Applying a 3 µm to 10 µm layer of electrolytic or electroless nickel (Ni-P) over a copper or aluminum baseplate solves both problems:

1. Solderable and Sinterable Interface: Nickel plating allows power semiconductor DBC substrates or vapor chambers to be reflow-soldered directly onto an aluminum or copper cold plate with less than 2% voiding.

2. Wetted Coolant Barrier: Selective electroless nickel plating inside the fluid channels of a C1100 copper cold plate isolates the copper from the water-glycol coolant, allowing copper inverter cold plates to operate safely inside an aluminum-dominated EV thermal loop.

7.3 Trivalent Chromate Conversion and Acid Passivation

When an aluminum cold plate requires low electrical contact resistance for EMI (electromagnetic interference) chassis grounding—or when complex internal brazed micro-channels cannot be anodized due to Faraday-cage current shielding—suppliers apply a RoHS-compliant trivalent chromium conversion coating (such as SurTec 650 or Alodine). On 304 and 316L stainless steel housings, citric or nitric acid passivation removes free surface iron left behind by stamping dies and laser cutting, restoring the passive chromium-oxide barrier without changing part dimensions.

8. Pick by Application Quick Guide: Battery Pack, SiC Inverter, ADAS Controller, and Traction Motor

To streamline material callouts on engineering drawings, match each EV subsystem to the proven alloy and surface finish combination in the table below.

8.1 Subsystem Decision Rules for Engineering and Procurement Teams

· EV Battery Pack: Specify stamped 3003/4343 clad aluminum for high-volume brazed cold plates, or extruded 6063-T6 / 6061-T6 joined via FSW for structural cell-to-pack trays. Pair with trivalent passivation and a dielectric spray or PET film on the cell contact face.

· SiC Traction Inverter & OBC: Specify C1020 or C1100 copper with electroless nickel plating when the DBC substrate is soldered directly to a pin-fin baseplate; specify 6061-T6 or 3003 vacuum-brazed aluminum when using a bolted module over thermal grease.

· ADAS / Autonomous Driving ECU: Specify a 6063-T6 water cooled heat sink for ECUs (extruded + FSW) for liquid-cooled central computers above 150 W, or a die-cast aluminum housing embedded with flattened C1020 copper heat pipes for air-cooled domain controllers. Leave the PCB grounding boss chromate-converted for EMI shielding while anodizing the exterior fins.

· Traction Motor Cooling: Specify an extruded or FSW-welded 6061/6063 aluminum sleeve for indirect stator water-glycol jackets, or corrosion-resistant copper-nickel / 304 stainless steel manifolds for direct ATF (automatic transmission fluid) spray cooling; see our comparison of EV motor oil vs water-glycol cooling for stator thermal path trade-offs.

Founded in 2009 in Dongguan, Guangdong Winshare Thermal Technology Co., Ltd. operates a 60,000 m² manufacturing base with 800+ employees and over 200 patents under IATF 16949, ISO 9001, ISO 14001, and ISO 45001 quality systems. With in-house CNC machining, skiving, friction stir welding, vacuum brazing, die casting, heat pipes, and stamping, Winshare processes all 20 automotive thermal alloys for global leaders including BYD, Geely, Chery, XPeng, Lucid, Li Auto, Sungrow, and Delta.

9. Conclusion

Selecting the optimal automotive thermal material requires matching thermal flux density, weight targets, and joining processes to the exact metallurgy of each alloy family:

· Specify 3003/4343 clad aluminum for high-volume stamped and brazed battery cold plates, 1050A/1060 for high-density skived fins, 6063-T6 for extruded ECU/battery cooling profiles, and 6061-T6 for CNC-machined structural FSW plates.

· Specify C1100 or C1020 copper (with nickel plating) when local power electronics heat flux exceeds 50 W/cm² or when direct solder/sinter attachment is required, and upgrade to C18150 (CuCrZr) when high-temperature bolt-load retention is critical.

· Specify 304, 316L, or 444 stainless steel for corrosive underbody, marine, or high-pressure oil environments, and AlSiC for low-CTE ceramic substrate matching.

Before sending your thermal drawings for an alloy recommendation and rapid sample quotation, prepare this 5-Item Pre-Send Engineering Checklist:

1. Duty Profile & Heat Flux: Total heat dissipation (W or kW) and localized heat source footprint (W/cm²).

2. Weight & Envelope Budget: Maximum allowable part mass (kg) and external XYZ dimensions (mm).

3. Coolant & Operating Pressure: Fluid composition (e.g., 50/50 water-glycol or dielectric oil), flow rate (L/min), and proof/burst pressure targets.

4. Environmental & Electrical Constraints: Salt-spray duration, EMI grounding needs, or required dielectric breakdown voltage (VDC).

5. Annual Volume & Target Process: Prototype sample quantity vs. SOP annual volume to match extrusion, stamping, brazing, or FSW tooling.

FAQ

Why is 6063-T6 preferred over 6061-T6 for extruded ECU and battery cold plates?

Alloy 6063-T6 delivers a thermal conductivity of 209 W·m⁻¹·K⁻¹ compared to 167 W·m⁻¹·K⁻¹ for 6061-T6—a 25% improvement in conductive heat transfer—and extrudes through thin-walled multi-port dies with lower extrusion pressure and smoother internal channel surfaces. Engineers only switch to 6061-T6 when the part is heavily CNC-machined from solid plate or requires higher structural yield strength (~240 MPa vs ~210 MPa).

Can I put a bare C1100 copper inverter cold plate in the same coolant loop as an aluminum battery cold plate?

Running bare copper and bare aluminum in the same water-glycol loop carries a severe risk of galvanic pitting corrosion on the aluminum cold plate if coolant inhibitor levels deplete over time. To prevent copper ion migration, specify electroless nickel plating inside the fluid channels of the copper cold plate, or validate an aluminum pin-fin cold plate with a brazed external copper heat spreader on the dry side.

Which aluminum alloy is best for vacuum-brazed automotive cold plates?

Alloy 3003 (193 W·m⁻¹·K⁻¹) paired with a 4343 or 4045 silicon-rich clad brazing sheet is the automotive benchmark for stamped vacuum-brazed cold plates because its solidus temperature (~643°C) sits safely above the clad filler melting range (577°C–613°C). For thicker CNC-machined vacuum-brazed plates, 6061 and 6063 are also used, though they require post-braze heat treatment if T6 mechanical strength must be restored.

Does anodizing an aluminum cold plate reduce its thermal performance?

On a liquid cold plate where heat transfers by conduction through a clamped interface, a thick Type III hard-anodized layer (30 µm to 50 µm) adds a small conductive barrier because aluminum oxide has a thermal conductivity around 15 to 30 W·m⁻¹·K⁻¹. However, at 25 µm thickness, the added temperature rise at typical battery heat fluxes (<2 W/cm²) is less than 0.2°C, whereas under a high-heat-flux SiC inverter module (>60 W/cm²), the mounting pad should remain bare machined or thin chromate-coated.

When should I specify C1020 oxygen-free copper instead of C1100 copper?

Specify C1020 oxygen-free copper whenever the cold plate or baseplate will undergo high-temperature furnace brazing in a hydrogen-containing atmosphere, electron-beam welding, or high-temperature silver sintering. At furnace temperatures above 400°C in reducing atmospheres, the trace oxygen in standard C1100 copper reacts with hydrogen to cause internal micro-cracking and blisters.

Why would an engineer choose 444 or 316L stainless steel with only 15 to 20 W·m⁻¹·K⁻¹ conductivity for a cooler?

When stainless steel is hydroformed or stamped into 0.25 mm to 0.40 mm thin corrugated plates, the conduction path t is so short that the metal wall resistance remains small compared to the liquid convective boundary layer. In return, 316L and 444 stainless steels provide 3x the tensile strength of aluminum, immunity to road-salt pitting, and tolerance for high exhaust or transmission oil temperatures where aluminum loses strength.
