How to Customize a Suitable Water Cooled Plate

The water cooled plate is also called water cold heat sink. It is usually used on some high -power devices to play a very good heat dissipation effect. For some daily contacts, such as medical equipment, electronic equipment, industrial equipment, military equipment, laser, will use water -cooled plates. Do you know the processes if you want to customize a water -cooled plate that is suitable for your own products?

Winshare Thermal Provides Structural Type of Water Cooling Heat Dissipation Options

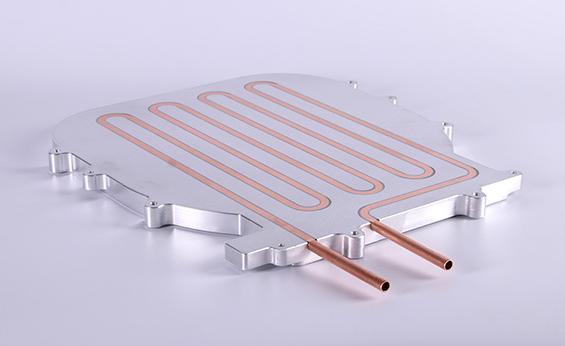

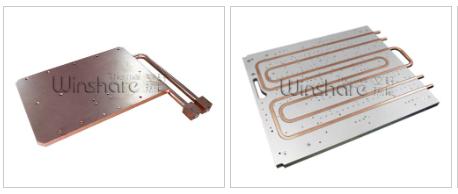

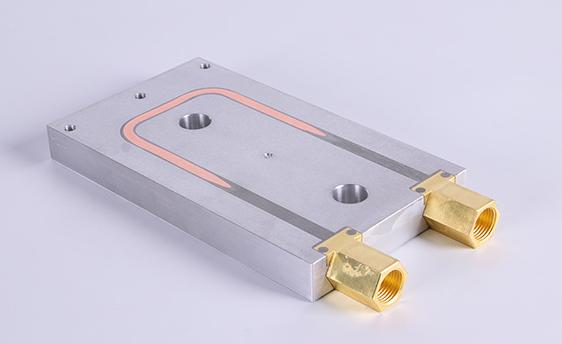

1. Buried tube molding water cooling tube + pipe joint

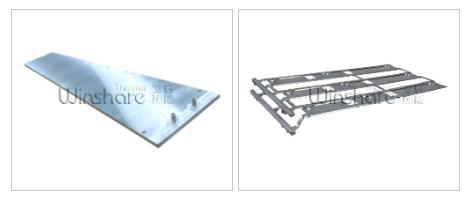

2. Profile squeezing molding water cooling tube + welding

3. Machine plus forming water -cooled tube + welding

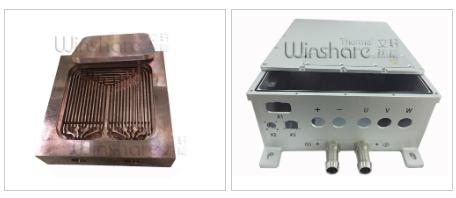

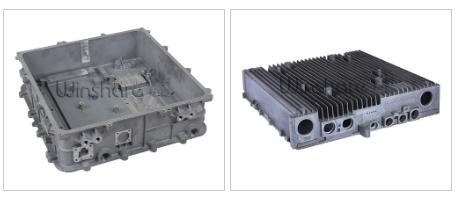

4. Die -casting type water cooling tube + welding

The custom process of the water -cooled plate is as follows

Step 1: Clear demand.

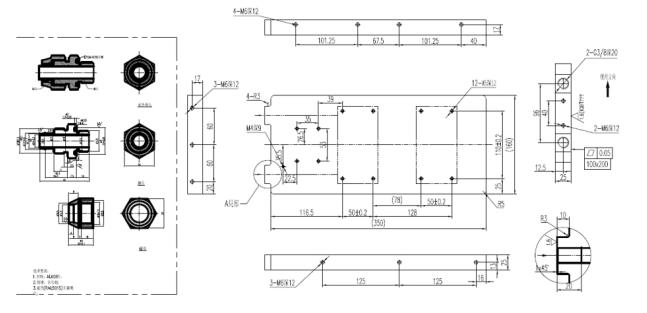

Customers provide drawings and requirements for detailed data such as product heating core specifications, heat dissipation power, and working environment in order to fully understand for our R & D team.

Related technical descriptions are also necessary. The R & D team can give the most cost -effective solution in accordance with customer needs.

Step 2: Design and simulate simulation.

The R & D team designed the heat dissipation plan, that is the design of the water cooling board and determined the details of the plan with the customer. Engineers design simulation of product (mainly water -cooled plate joint) structural design, heat simulation confirmation, product materials, surface treatment and manufacturing processes. To ensure the installation, maintenance, versatility and environmental protection requirements of the product, and formulate relevant inspection standards and specifications.

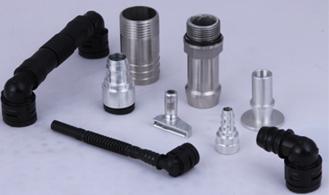

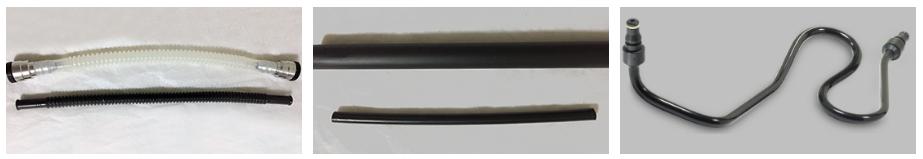

The cooling design parameters determine the material and flow resistance of the cold plate, liquid volume and density. The design and results of heat dissipation simulation need to be summarized, including section speed, temperature, flow trajectory, changes in pressure, and changes in shell temperature. The water cooling heat dissipation solution also provides joint and pipeline options.

Step 3: Sample and production test.

Sample production after the cold plate design is passed. It shows that the overall plan enters the test session. The test process is closely communicated with customers, and adjustments and modifications are made according to the actual situation until they reach customer requirements.

Step 4: Acceptance.

After the test is passed, it is packed and shipped according to the customer's packaging requirement. Establish a customer database, we will deal with various emergencies in a timely manner, and relieve customers' worries.

Are you clear about the process of custom water cooled plate? If you have any other questions about the cold plate or need a cooling solution for your cold plate, feel free to leave a comment or send an email to contact Winshare.
