Design Tips

Liquid Cold Plates Designing

Views: 47     Author: Site Editor     Publish Time: 2021-06-18      Origin: Site

Liquid cold plates of Winshare thermalloy

When designing the liquid cold plates, we usually calculate the size of the heat dissipation, understand the power parameters

of the customer, the flow rate of the fluid, and the application field of the product, so that it is convenient for us to find the right

coolant. Of course, these are the preliminary design preparation, is to lay the foundation data for the formal design behind. At the

same time, when we designing, we try to choose the company's standard materials, such as thickness, diameter of copper tube, etc.,

which can shorten the later procurement time and also save costs.

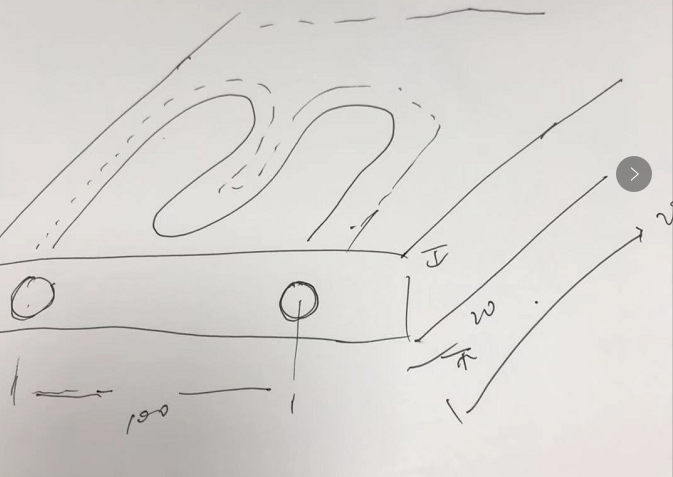

22

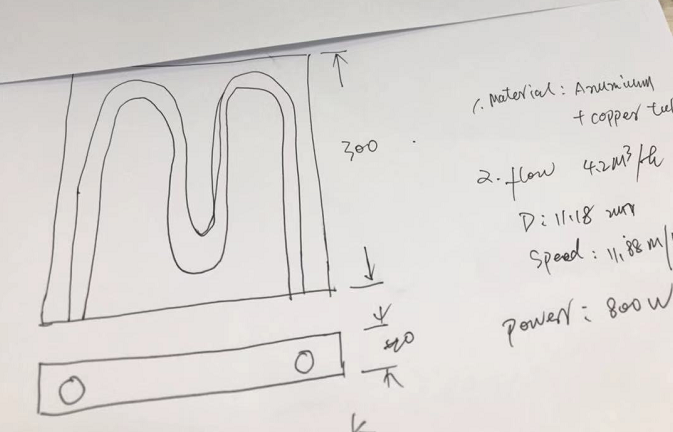

33

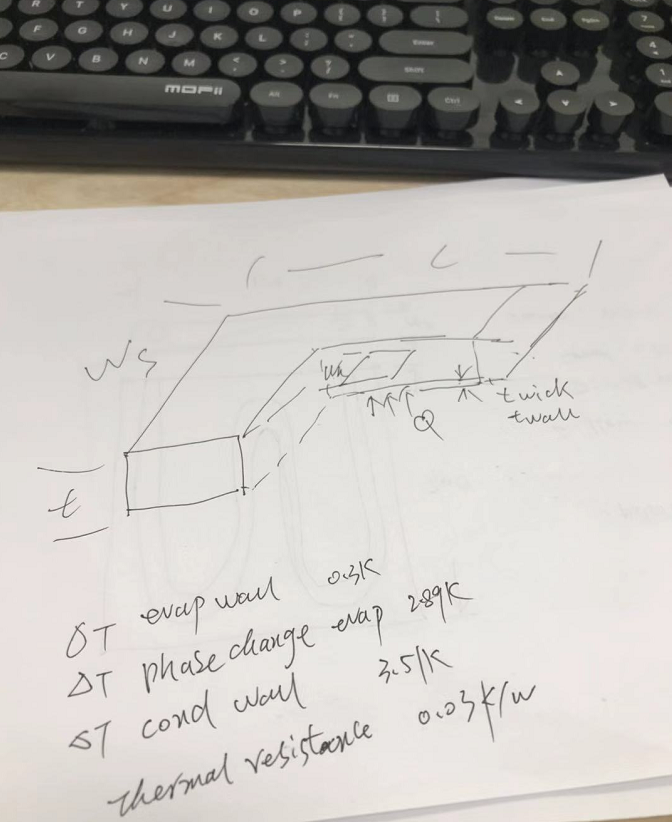

44
