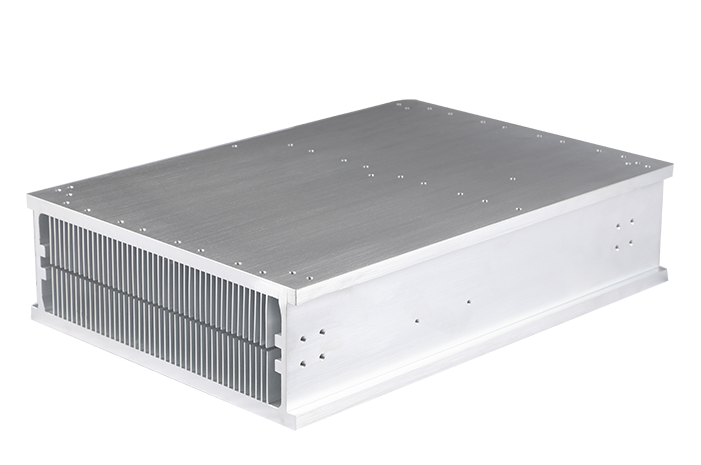

Heat pipe heat sink, Thermal Solution for 800W Laser cooling project.
The design requirements:
LD1 power: 6*70W=420W;
LD2 power: 1*35W=35W;
LD3 power: 1*13W=13W;
MOS chipsets: 8 group*30=240W;
Fans: PF92252V1-1000C-A99 X3pcs
Heat sink: Extrusion process
The pump source LD temperature should not exceed 55 degree(temperature difference less than
15 degree) when tested in a 40 degree environment.

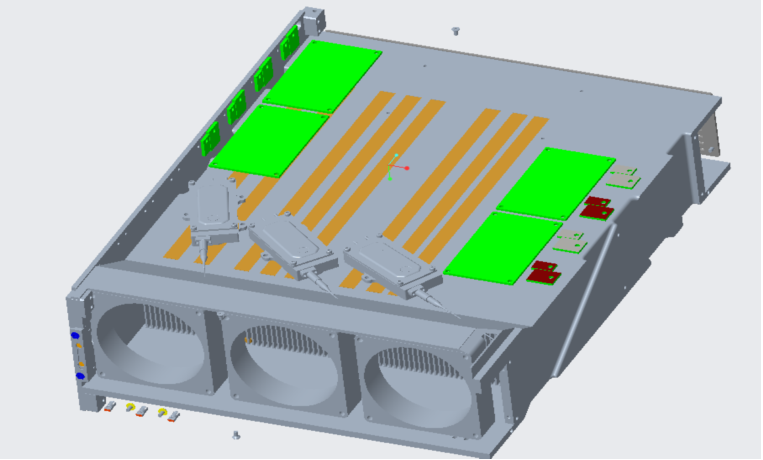

3D design model in Creo
Orient positive X,Y,Z
Orient positive X,Y,Z

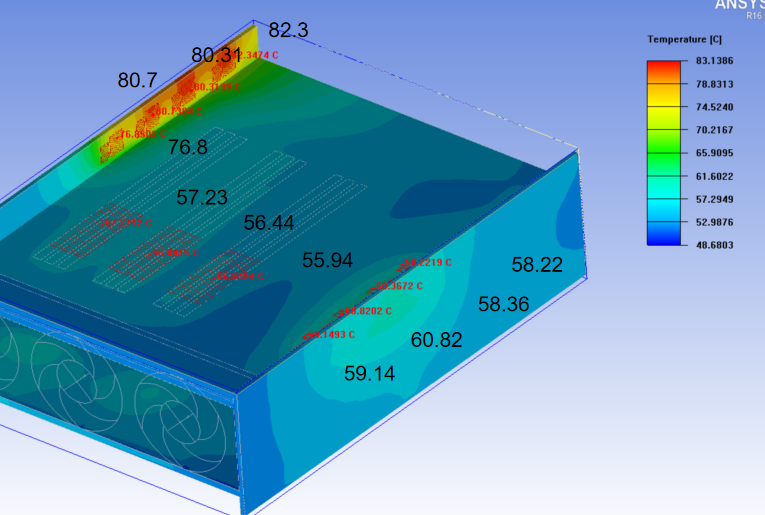

LD4, LD5, LD6 Temperature and MOS chipsets distribution

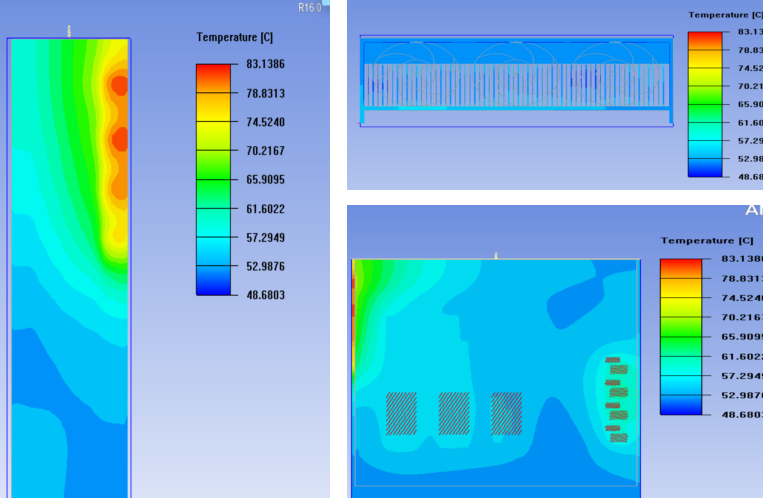

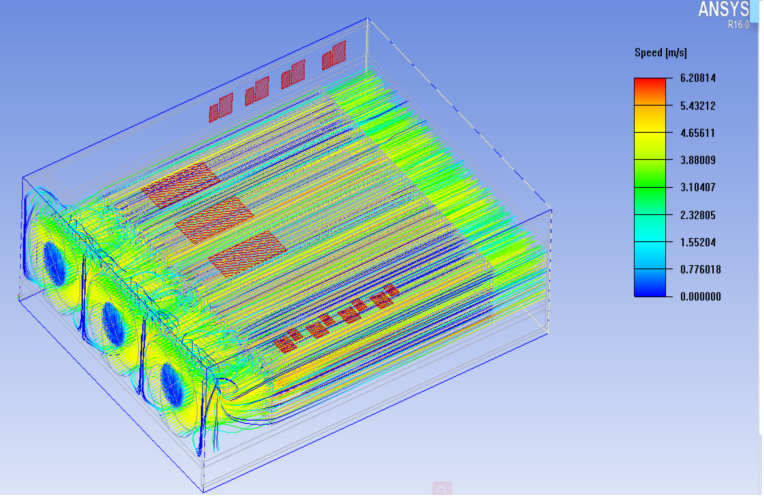

The results:
The module adopts the simple model method, the result and the actual will be different.
These LD power is about 55-57 degree.
MOS Chepsits: 59-83 degree.
